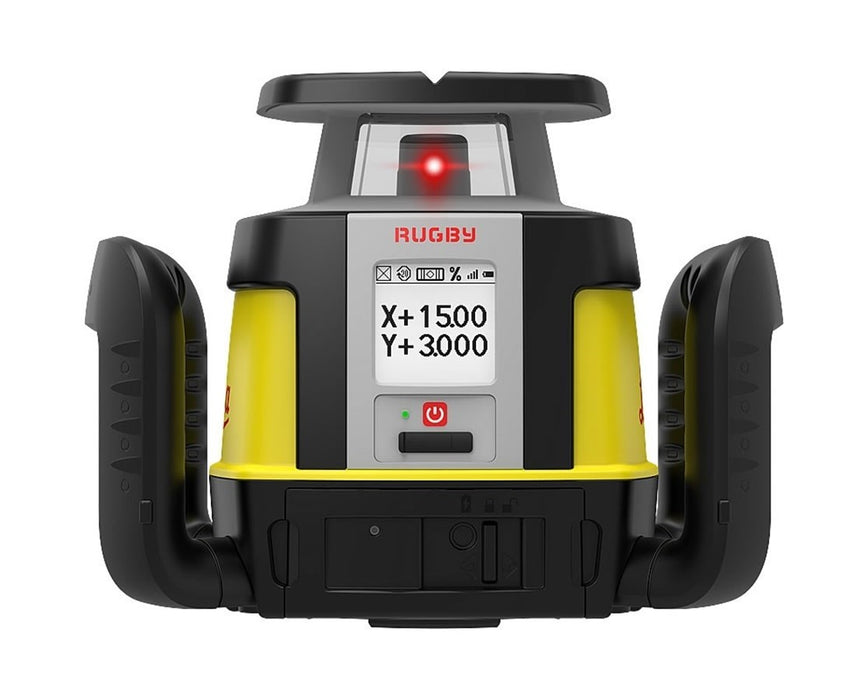

Rugby CLA Active Rotary Laser Level

Leica
by Leica
MFR#: 6016027
TIGER#: TS79649
$2,100.00 - $2,100.00
List Price: $2,100.00
$2,100.00
$2,100.00 - $2,100.00
$2,100.00
Rugby CLA Active Rotary Laser Level
Rugby CLA Active Rotary Laser Level - $2,100.00
$2,100.00
*Must Purchase 1 for Rugby CLA Active Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 4/29/2024

One of our Sales Experts will be in touch!
Documents
Item Brochure
Essential Add-Ons:
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$75.99
$79.99
Fiberglass Rod
Fiberglass Rod
Details
$76.95
  • Grade capability of ±15% (X/Y axes)
  • Working range up to 4,400 ft.
  • Accuracy of 1/16" at 100 ft.
  • Self-leveling range of ±6°
  • Rotation speed: 0, 2, 5, 10, 15, 20 RPS
  • Compatible with RE120, RE140, RE160, and CLC Remote/Receiver Combo
  • IP68 dustproof and water immersible
  • One-button horizontal laser

The Leica Rugby CLA All-Rounder Rotary Laser is a highly flexible laser level that offers upgradeable software features to adapt to any application needs. This Leica laser level is simple to operate, making concrete and formwork leveling, height checking and transferring, and land leveling applications quickly and easily. It features a grade capability of ±15 percent and offers versatile rotation speeds of 0, 2, 5, 10, 15, or 20 RPS.

The Leica Rugby CLA has a Class 2 laser and can self-level within ±6 degrees with an accuracy of ±1/16-inch at 100 feet (±1.5 millimeter at 30 meters). It also has a working diameter range of up to 4,400 feet using the Leica CLC receiver.

The Leica CLA Active has built-in controls on the unit, allowing the ability to dial-in grade and other key functions without the CLC remote combo. This gives you the option to work with any receiver of your choice. You will also save money If you already have an existing system, since you do not need to have the CLC combo to operate the laser.

The Leica Rugby CLA rotary laser is made of durable materials and has an IP68 protection class. This ensures that the laser level can withstand different outdoor working conditions. It is powered by a Li-Ion rechargeable battery that works up to 50 hours of continuous use.

Configuration Options

The Leica Rugby CLA Laser Level is available in various software upgrades. Please select your preference from the menu above.


Model/Upgrade


CLX 250 Upgrade


CLX 500 Upgrade


CLX 600 Upgrade


CLX 700 Upgrade


CLX 800 Upgrade


Functionality


Horizontal & Manual Slope


Horizontal, Vertical, & Manual Slope


Horizontal, Vertical, & Dial-In Single Grade


Horizontal, Vertical, & Dial-In Dual Grade


Horizontal, Vertical, Dial-In Dual Grade, & Machine Compatibility


Grade


N/A


N/A


Dial-In Single Grade,
Fully Automatic to 15%


Dial-In Dual Grade,
Fully Automatic to 15%


Dial-In Dual Grade,
Fully Automatic to 15%


Applications


* Batterboard
* Formwork Alignment
*


* Batterboard
* Formwork Alignment
* Drywalls and Suspended Ceilings


* Fully-Automatic Dial-In Slopes in X-Axis:
Driveways & Ramps


* Fully-Automatic Dial-In Slopes in X and Y Axes: Driveways, Ramps, Roads, & Parking Lots


* Land leveling
* Slopes Over Large Distances
* Covers All Applications



Scroll back to Top

  • Choice of the base unit, CLX 250, CLX 500, CLX 600, CLX 700, or CLX 800 software upgrades
  • Working range up to 4,400 ft
  • Accuracy of 1/16” at 100 ft. (±1.5mm at 30m)
  • Horizontal and vertical grade capability of ±15%
  • Self-leveling range of ±6°
  • Rotation speed: 0, 2, 5, 10, 15, 20 RPS
  • Compatible with RE120, RE140, RE160, and CLC remote combo receivers
  • Class 2 laser
  • One-button horizontal laser
  • Remote control range up to 1,968 ft
  • 50-hour battery life
  • Fast charge
  • IP68 protection class

What’s in the Box

  • Leica Rugby CLA Active Rotary Laser
  • Li-Ion battery
  • Charger
  • Carry case
  • 5-year warranty

Leica Geosystems products are special order only.

We do not accept returns or cancellations for special ordered items.

Accuracy
Horizontal
±1/16 inch at 100 feet
Vertical
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Interior Walls
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Rechargeable Battery Pack
Up to 50 hours
Power Source
Li-Ion battery
Charger
Charging Time
Up to 5 hours
Extra Technology
Detector/Receiver
Optional
Remote Control
Optional
Features
Adjustable Rotating Speed
0, 2, 5, 10, 15, 20 RPS
Display
Yes
Drop Damage Protection
Yes
Dual Handles
Yes
One-Touch Commands
Yes
Protection Class
IP68 dustproof and water immersible beyond 1 meter
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Yes
Slope Match
Yes
General
Dimensions
9.1" H x 8.3" D x 11.7" W
Warranty
5-year
Weight
8.3 lbs (3.76 kg)
Laser
Classification
2
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Range
Exterior
Up to 2,000 feet (600m)
Interior
Up to 4,400 feet (1,341 m)
Remote
Up to 1,968 feet (600 m)
Self Leveling
±6 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
