MSHA Mining Alignment Laser

Johnson Level
by Johnson Level
MFR#: 40-6264
TIGER#: TS42389
$1,585.27 - $1,585.27
List Price: .
$1,585.27
$1,585.27 - $1,585.27
$1,585.27

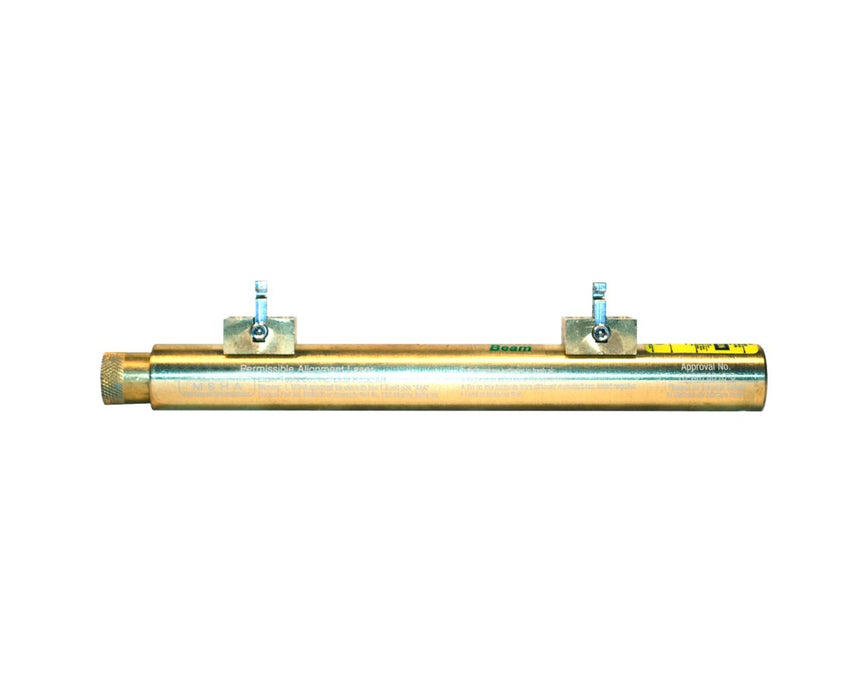

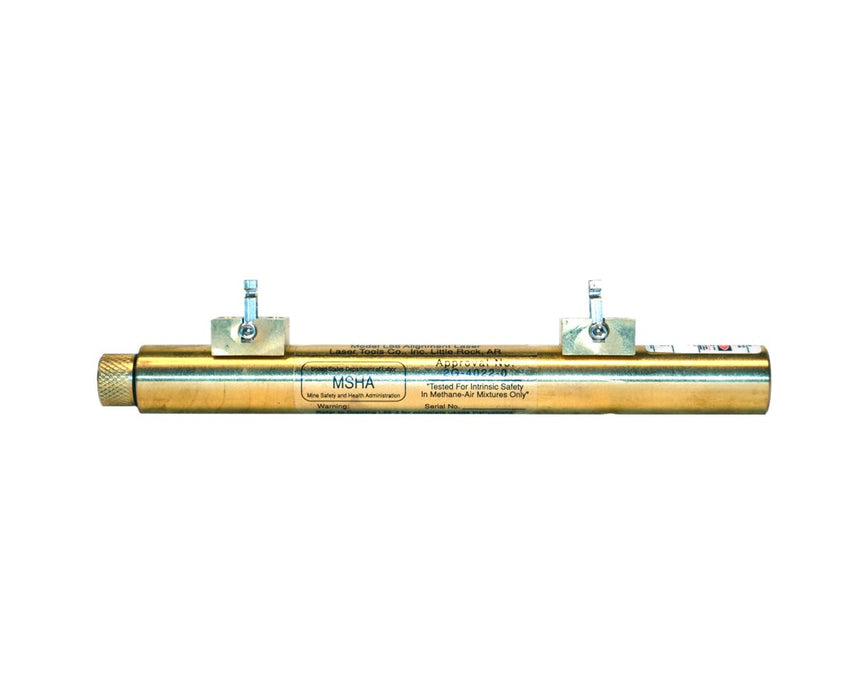

MSHA Mining Alignment Laser
MSHA Mining Alignment Laser - $1,585.27
$1,585.27
*Must Purchase 1 for MSHA Mining Alignment Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 7 - 10 Business Days Shipping Date By: 5/12/2024

? California Proposition 65 WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

One of our Sales Experts will be in touch!
Documents
Product Manual Item Brochure
  • Choice of Red or Green beam
  • Range up to 500 ft. or 1,500 ft.
  • Battery life up to 12-15 hours
  • Intrinsically safe and MSHA approved
  • 20x brighter than standard lasers
  • Water and oil proof to IP67 standards
  • Solid brass for harsh environments
  • Reflective film for headlamp illumination

The Johnson Level MSHA Mining Alignment Laser is used by mining companies for operation of equipment that requires precise alignment to operate properly. It is intrinsically safe and MSHA (Mining, Safety & Health Administration) approved that do not require explosion proof containment. Can be used above ground and underground operations and extremely rugged with 6mm optics for a small dot at a distance. It comes with a milled flat on the bottom that serves as an installation laser level.

The precision beam alignment of Johnson Level MSHA Mining Alignment Laser has self-cleaning threads that do not require any tools. The laser beam is aligned to be concentric with the outside diameter of the brass housing, this allows the installer to use the outside of the case for centering and positioning the beam. The large optics is 20 times brighter than standard lasers with a range of up to 500 feet for Red beam and 1,500 feet for the Green beam variation.

The "O" ring seal is water and oil proof to IP67 standards and the solid brass construction is proven to work in harsh environments. It also comes with an adjustable hanging brackets that connect to pads directly. The Johnson Level MSHA Mining Alignment Laser includes two "AAA" alkaline batteries that last up to 12 to 15 hours of continuous use, an instruction manual, and 1-year warranty.

Configuration Options

The Johnson Level MSHA Mining Alignment Laser is available in two beam colors. Select your preference from the drop-down menu above.

  • 40-6264: Red Beam (Range up to 500 ft.)
  • 40-6266: Green Beam (Range up to 1,500 ft.)
  • Range up to 500 ft. (Red beam) or 1,500 (Green beam)
  • Intrinsically safe and MSHA approved
  • Extremely rugged with 6mm optics for a small dot at a distance
  • Precision beam alignment - self-cleaning threads
  • Large optics - 20 times brighter than standard lasers
  • Battery life up to 12-15 hours of continuous use
  • "O" ring seal - water and oil proof to IP67 standards
  • Solid brass - proven to work in harsh environments
  • Milled flat on bottom use as an installation laser level

What’s in the Box

  • Johnson Level MSHA Mining Alignment Laser
  • Adjustable pad hanging tabs
  • 2 "AAA" alkaline batteries
  • User manual
  • 1-year warranty

Available Package Options

Beam Color & Range: Red (up to 500 ft.) or Green (up to 1,500 ft.)

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Operating Time
Approximately 12 hours
Power Source
2 "AAA" alkaline batteries (included)
Features
Environmental Class
IP67
General
Dimensions
6.8" x .75" (173 x 19mm), 6.8" x .75" (173 x 19mm)
Laser Class
Class IIIa
Laser Type
635nm (Red), 532nm (Green)
Warranty
1-year warranty
Weight
0.63 lbs. (0.29kg) 40-6264, 0.69 lbs. (0.13kg) 40-6266
Measuring Capabilities
Beam Direction
Less than .15 mrad
Leveling Accuracy
±1/8"/100 ft. (±1mm/10m)
Working Range
Up to 500 ft. (150m) 40-6264 and 1500 ft. (500m) 40-6266
