GRZ 360-Degree Prism

by Leica
MFR#: 639985
TIGER#: TS13651
Original price $1,380.00 - Original price $1,380.00
Original price List Price: $1,380.00
$1,380.00
$1,380.00 - $1,380.00
Current price $1,380.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
GRZ 360-Degree Prism
GRZ 360-Degree Prism - $1,380.00
$1,380.00
*Must Purchase 1 for GRZ 360-Degree Prism

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 10/5/2023
Documents
  • Choice of 2 models
  • 2.0 mm accuracy
  • 23.1 mm prism constant
  • 2,000 ft. working range
  • 6 corner-cube prisms
  • Lightweight
  • Rubber mountings on the top and bottom
  • Passive 360° reflector

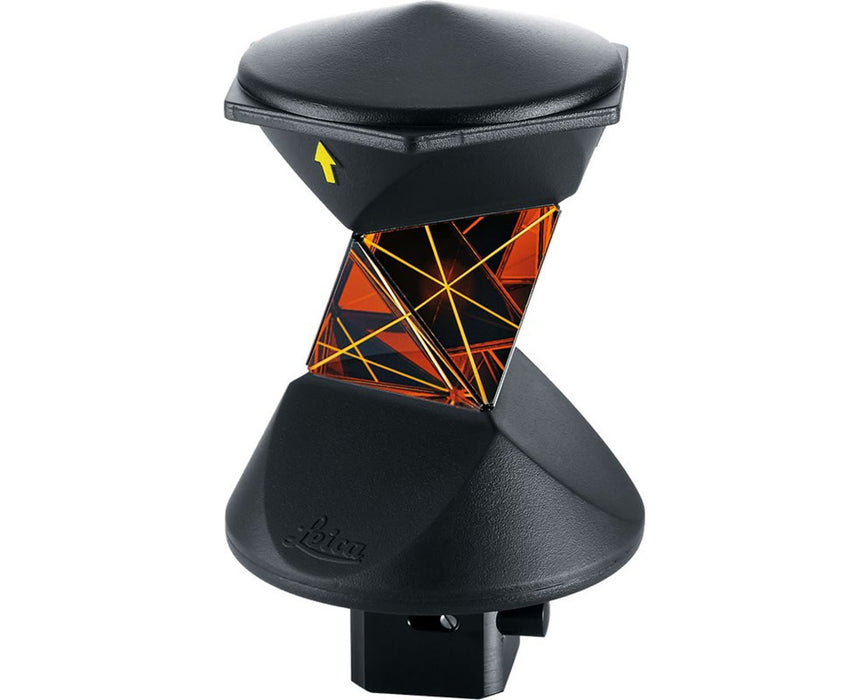

The Leica GRZ 360-Degree Prism is a lightweight passive reflector for use with Robotic Total Stations. It provides efficient operation without the need for directing the reflector toward the instrument. It has six corner-cube prisms that are joined together and are arranged in a way that measuring beams reflect directly back to its source from any position. The GRZ prism also has rubber mountings on the top and bottom to provide protection.

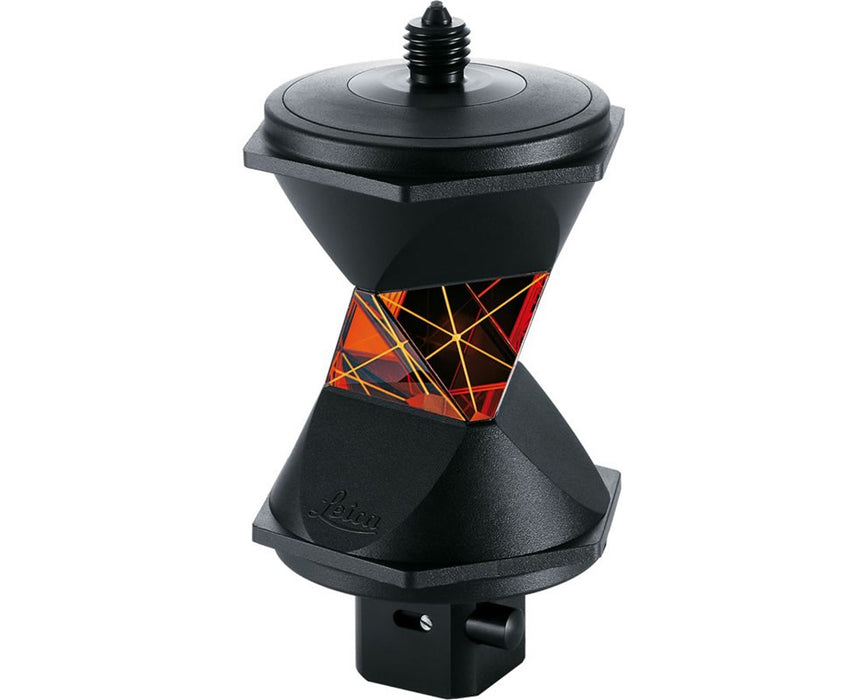

This reflector has an overall 3D pointing accuracy of 2.0 millimeter, a working range of 2,000 feet, and a prism constant of 23.1 millimeters. The GRZ122 model includes a built-in point that allows it to be positioned directly on a survey mark at a height of 78 millimeters and a  5/8-inch thread adapter for mounting a GPS antenna.

Configuration Options

The Leica GRZ 360-Degree Prism is available in two models. Please select your preference from the menu above.

  • 639985: GRZ4 - Prism Only
  • 754384: GRZ122 - with Built-In Point and 5/8 Thread Adapter
  • GRZ4 - prism only
  • GRZ122 - with built-In point and 5/8" thread adapter
  • 2.0 mm accuracy
  • 23.1 mm prism constant
  • 2,000 ft. working range
  • 6 corner-cube prisms
  • Lightweight
  • Rubber mountings on the top and bottom
  • Passive 360° reflector
  • For Robotic Total Stations

What’s in the Box

  • Leica GRZ 360-Degree Prism
  • 1-Year Limited Warranty

Available Product Options

  • Models:
    GRZ4 - Prism Only
    GRZ122 - with Built-In Point and 5/8 Thread Adapter

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Angle
2.0 mm
Distance
Up to 2000 ft. (600 m)
Offset
+23.1 mm
General
Coating
Rubber
Prism Height
6"
Thread
5/4" (GRZ122)
Type
Copper
Warranty
1 year
