GL722 Dual Grade Laser w/ Remote Control

by Spectra Precision

MFR#: GL722-BCR

TIGER#: TS14095

List Price: $8,100^.00

You Save: $1,215^.00 -15%

$8,100^.00 - $8,100^.00

List Price: $8,100^.00

$6,885^.00

$6,885^.00 - $6,885^.00

$6,885^.00

GL722 Dual Grade Laser w/ Remote Control - $6,885^.00

$6,885^.00

*Must Purchase 1 for GL722 Dual Grade Laser w/ Remote Control

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 2 - 4 Business Days Shipping Date By: 5/3/2024

Documents

Product Manual Item Brochure

Essential Add-Ons:

Aluminum Rod

Details

$33^.95

$44^.95

Universal Contractor’s Tripod

Details

$75^.99

$79^.99

Range up to 3,000 feet
Accuracy ±1/16 inch at 100 feet
Self-leveling
Dual grade to ±10% horizontal and -0.5 to +25% vertical
Automatic axis alignment and temperature compensation
Grade matching and PlaneLok
Dual, large alphanumeric display
Fully-sealed aluminum housing

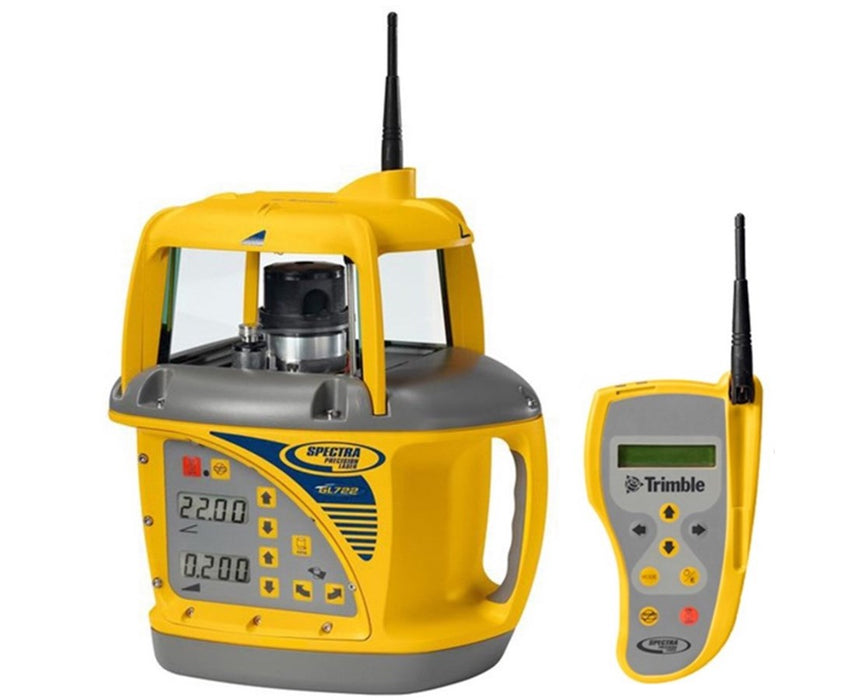

The Spectra GL722 is a self-leveling construction laser with dual grade capability, automatic axis alignment, grade matching, PlaneLok, and full radio remote functions. With an operating range of up to 3,000 feet, the GL722 also includes a CR600 laser receiver and remote control. With the same range and base capabilities as the Spectra GL720, the GL722 laser level has an X-axis grade range of +/-10 % and -0.5% to +25% in the Y-axis. Grade match allows you to automatically match and display an existing grade, while PlaneLok virtually eliminates beam drift by locking the laser beam to a fixed elevation for increased stability and accuracy.

Automatic axis alignment enables construction professionals to align the GL722 to within +/-40° of the desired axis to easily perform axis alignments in general construction, site preparation, road construction, and machine control. You can also mount this device vertically or horizontally on a 5/8-11 tripod. The included CR600 laser receiver can be used as a handheld or rod mounted laser receiver for a wide range of applications, such as measuring cut and fill, leveling forms and footers, setting grade and measuring elevation changes. It can also be used for machine control with the magnetic mount for use on a backhoe, small excavator, box blade or skid steer loader.

The GL722 laser level offers automatic temperature compensation for accuracy within environmental changes. With two-way communication between the Spectra GL722 laser and its remote control, you can now change the grade and read measurement information from afar. It also features grade bump for raising or lowering the grade remotely and grade reverse that mirrors the grade setting with the push of a button. With fully sealed aluminum housing and protective lens hood, the GL722 allows you to work in all weather conditions. This grade slope laser uses NiMH batteries and offers flexible power options, battery life indicator, and a wirelessly operated sleep mode that saves power.

Configuration Options

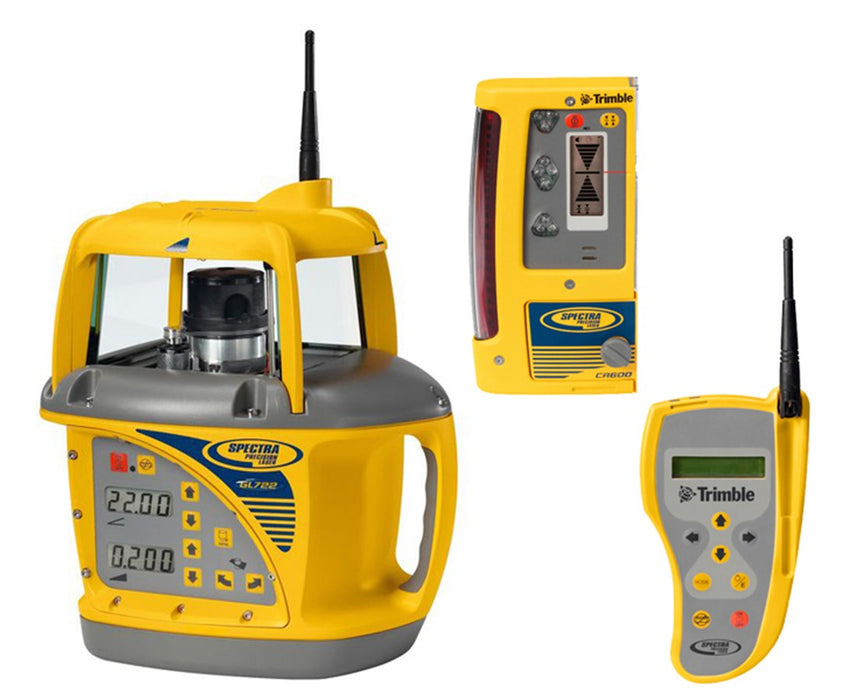

The Spectra GL722 Dual Grade Laser w/ Remote Control comes in variations that differ in the configuration of the package. The options with CR600 Receiver has an included C50 adapter clamp and C51 Magnetic Mount, while the option with an included Infrared Beam Laser is used for rail works where red beams are not allowed on a live track. Please select from the drop-down menu above.

GL722-BCR: Standard Package
CTO-GL722: With CR600 Receiver
CTO-GL722IR: With CR600 Receiver & Infrared Beam Laser

	Included Radio Remote control is easier to use because it does not have to be aimed at the laser for it to work. This increases the flexibility of the laser for long-range setups while maintaining outstanding accuracy.
	Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.
	Horizontal Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error free.
	Automatic Axis Alignment provides the benefit of simultaneously aligning two axes at 90 degrees to each other.
	Active Temperature Compensation gives accurate, stable results regardless of temperature changes.

Optional infrared beam
Up to 3,000-foot operating range
±1/16 inch accuracy at 100 feet
Self-leveling
Dual grade to ±10% horizontal and -0.5 to +25% vertical
CR600 laser receiver
Automatic axis alignment
Grade matching measures and displays the existing grade
PlaneLok automatically locks on the laser beam
Automatic temperature compensation
Grade bump to remotely raise or lower the grade
Grade reverse mirrors the grade setting
Selectable rotation speeds
Ideal for machine control
Up to 30 hours battery life
Fully sealed aluminum housing
Protective lens hood
Dual, large alphanumeric display
5/8-11 tripod thread
Unmatched beam stability
Intuitive, simple controls

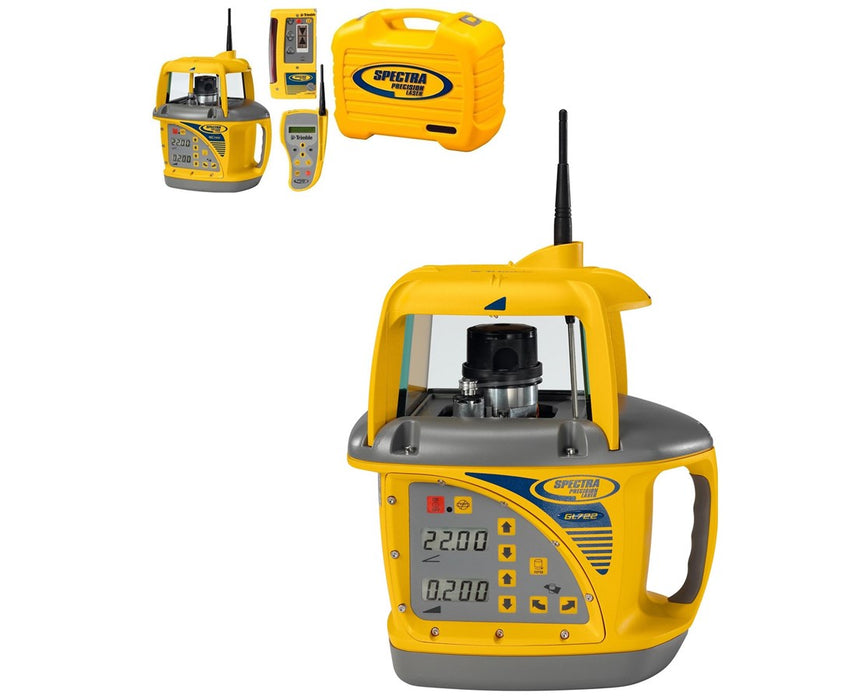

What’s in the Box

Spectra GL722 Dual Grade Laser
Radio remote control RC703
Hard carrying case
6 x Rechargeable D-cell NiMH batteries
2 x AA alkaline batteries
Battery charger
Power cable
User manual
2-year manufacturer’s warranty

Available Package Options

Type: Standard, w/ CR600 Receiver, or w/ CR600 Receiver & Infrared Beam Laser

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

Horizontal

±1/16 inch at 100 feet

Applications

Concrete Forms, Footings and Foundations

Yes

Checking Building Square & Area

Yes

Checking Elevations of Sub-Base and Sub-Grade

Yes

Checking/Setting Elevations

Yes

Estimating Cut & Fill

Yes

Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)

Yes

Installation/Leveling Ceiling Grids

Yes

Installation/Leveling Interior Walls

Yes

Locating Finished Floor Levels

Yes

Machine Control of Excavators, Graders, Dozers or Similar Equipment

Yes

Matching Existing Slope & Grade

Yes

Short-Range Leveling for Decks, Patios & Swimming Pools

Yes

Short-Run Vertical Alignment

Yes

Squaring and Layout of Partitions, Walls & Tile Floors

Yes

Transferring Points from Floor to Ceiling

Yes

Battery/Power

Battery Life Alert

Yes

Battery Life with Rechargeable Battery Pack

Up to 30 hours

Power Source

NiCad or NiMH batteries

Extra Technology

Detector/Receiver

HL700/CR600

Remote Control

Radio/IR remote control

Features

Adjustable Rotating Speed

300, 600, 900 RPM

Automatic Shut-Off

Yes

Bump Sensor (H.I./Out of Position Alert)

Yes

Display

Large, alphanumeric

Tripod Adapter (Center Screw Thread)

5/8 x 11

Functions

Automatic Leveling

Yes

Grade Operation

Automatic

Slope Match

Yes

General

Dimensions

11.75" L x 10.0" W x 7.75" H

Remote Control Operating Distance

Up to 750 feet (225 m)

Warranty

2-year

Weight

18.8 lbs (8.5 kg)

Grade

Accuracy

1/8 inch at 100 feet (3.0 mm per 30 m)

Percentage

±10% in X axis; -0.5 to +25% in Y axis

Type

Dual

Laser

Classification

Class 2

Color

Red

Direction

Horizontal only

Visibility

Visible

Wavelength

650 nm

Range

Exterior

Up to 3,000 feet (914 m)
