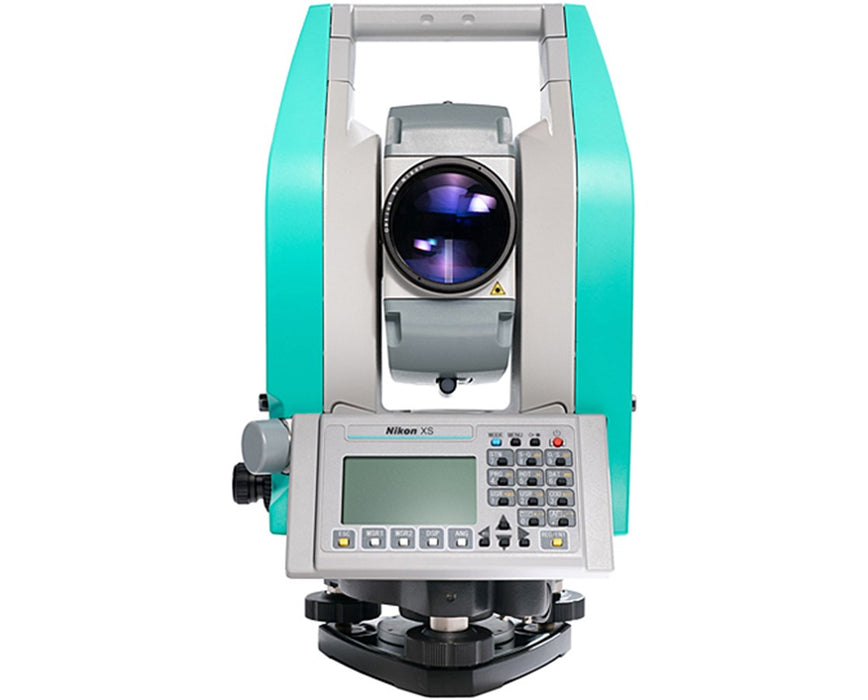

XS 5 Second Reflectorless Total Station with Laser Plummet

Nikon
by Nikon
MFR#: HNA20500
TIGER#: TS45652
List Price: $10,475.00
You Save: $1,624.00 -16%
$10,475.00 - $10,475.00
List Price: $10,475.00
$8,851.00
$8,851.00 - $8,851.00
$8,851.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
XS 5 Second Reflectorless Total Station with Laser Plummet
XS 5 Second Reflectorless Total Station with Laser Plummet - $8,851.00
$8,851.00
*Must Purchase 1 for XS 5 Second Reflectorless Total Station with Laser Plummet

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: Discontinued
Documents
Product Manual Item Brochure Product Video
Essential Add-Ons:
Complete Accessory Package
Complete Accessory Package
Details
$425.00
$700.00
  • Angular accuracy options from 1-sec to 5-sec
  • Single-prism range up to 16,404 feet
  • Reflectorless range up to 2,600 feet
  • Internal memory up to 50,000 points
  • Integrated Nikon onboard software
  • Built-in Bluetooth connectivity
  • Two-year warranty
  • IP66 dustproof and waterjet resistant
  • Up to 22 hours Li-ion rechargeable battery life

Featuring dual-axis compensation and autofocus, the Nikon XS Series Reflectorless Total Station provides highly-accurate distance and angle measurements in the field. It has a reflectorless range of up to 2,600 feet and up to 16,400 feet using a single prism. In addition, this Nikon total station has a serial RS-232C, USB port, and an integrated Bluetooth for easy file transfer and connection with data collectors.

With 50,000 points of internal memory, the XS total station is equipped with an onboard Nikon surveying software that guarantees productive operation and seamless data storage. This reliable surveying equipment features 30x telescope magnification and PIN security to prevent unauthorize use.

This Nikon total station is protected from dust and powerful water jets. It is integrated with dual backlit, graphic displays with a full numeric keypad for easy reading of measurements, even under low-light conditions. Works up to 22 hours, the XS total station uses two Li-ion batteries that are hot-swappable for all-day use.

Configuration Options

The Nikon XS Series Reflectorless Total Station offers four accuracies and two plummet options to suit your surveying needs. All are supported by a two-year manufacturer's warranty. Please select your preference from the drop-down menu above.

  • HNA20100: Nikon XS 1 Second Reflectorless Total Station with Optical Plummet
  • HNA20200: Nikon XS 2 Second Reflectorless Total Station with Optical Plummet
  • HNA20300: Nikon XS 3 Second Reflectorless Total Station with Optical Plummet
  • HNA20500: Nikon XS 5 Second Reflectorless Total Station with Optical Plummet
  • HNA20203: Nikon XS 2 Second Reflectorless Total Station with Laser Plummet
  • HNA20303: Nikon XS 3 Second Reflectorless Total Station with Laser Plummet
  • HNA20503: Nikon XS 5 Second Reflectorless Total Station with Laser Plummet
  • Accuracy options: 1 second, 2 second, 3 second or 5 second
  • Optional laser or optical plummet
  • Reflectorless range up to 2,600 feet
  • Range up to 16,404 feet with a single prism
  • 50,000-point memory
  • Nikon onboard software
  • 30x telescope magnification
  • PIN security
  • Dual-axis compensation with liquid-electric detection
  • Integrated Bluetooth
  • Serial RS-232C & USB port
  • Hot-swappable batteries
  • Up to 22-hour battery life
  • Dual backlit, graphic LCD displays with full-numeric keypad
  • IP66 dustproof and water resistant

What’s in the Box

  • Nikon XS Series Reflectorless Total Station
  • Hard plastic carrying case
  • Universal charger
  • Power cord and adapters
  • Rain/dust covers
  • Lens cap
  • Adjustment pin tool
  • Allen wrench
  • Tribrach
  • 2 x Shoulder straps for carrying case
  • 2 x Li-ion batteries
  • User manual
  • 2-year manufacturer's warranty

Available Product Options

  • Accuracy: 1", 2", 3" or 5"
  • Plummet: Laser or Optical
Angle Measurement
Accuracy
1 second, 2 second, 3 second, 5 second
Detection Method
No
Diameter of Circle
2.4-inch (60.96 mm)
Display Method
No
Measuring Method/Reading System
Absolute encoder
Minimum Reading
1 second
Applications
Accident Reconstruction
Yes
Archaeology
Yes
Environment Studies
Yes
Geomarking
Yes
Mapping and GIS (geographic information systems)
Yes
Surveying and Construction
Yes
Utilities
Yes
Auto-pointing
360 Degree Prism
No
Mini Prism
No
One AP Prism
No
Reflective Sheet
No
Battery/Power
Battery Life
Up to 22 hours (continuous angle-only measurement); up to 18 hours (distance/angle measurement AF every 30 seconds); up to 10 hours (continuous distance/angle measurement)
Battery Life Alert
No
Power Source
2 x Internal Li-ion battery
Voltage
3.6-volt
Display and Keypad
Backlight
Yes
Keys
Full numeric keypads
Pixels
128 x 64 pixels
Sides
Dual
Touchscreen
No
Type
LCD display
Distance Measurement
EDM Accuracy (Precision)
±(2+2 ppm × D) mm
Minimum Reading
No
Unit of Measure (distance display)
m/ft
Functions
Angle and Distance Stake Out
Yes
Area Calculation
Yes
Coordinate Measurement Point
Yes
Missing Line
Yes
Offsets
Yes
Real-Time Video Imaging
No
Remote Elevation
Yes
Resection
Yes
Stake Out Line
Yes
General
Auto Shut Off
No
Auto-Tracking Speed
No
Dimensions
8.1" L x 6.7" W x 12.5" H (20.57 cm x 17.02 cm x 31.75 cm)
Guide Light
No
Internal Memory
50,000 points
Protection Class
IP66 dustproof and water jet resistant
Software
Nikon onboard
Tribrach
No
Tripod Thread
5/8-11
Warranty
2-year
Weight
9.5 lbs (4.3 kg)
Interface
Bluetooth
Yes
Operating System
No
Pin Port
RS-232C
USB
1 (host)
Laser Plummet
Accuracy
No
Class
Class 2
Wavelength
No
Laser Pointer
Class
2
Level
Circular Bubble Vial
10 minutes (2 mm)
Electronic Level
No
Plate/Tubular Bubble Vial
No
Measurement Range (under fair weather conditions)
No Prism
Up to 2,625 feet (800 m)
Reflector Sheet
Up to 4.9 feet to 984 feet (1.5 m to 300 m)
Single Prism
Up to 4.9 feet to 16,404 feet (1.5 m to 5,000 m)
Measurement Time
Fine
No
Rapid
No
Tracking
No
Optical Plummet
Field of View
1°25'
Focus Range
No
Erect
Magnification
30x
Telescope
Diameter of Objective Lens (Aperture)
1.77 in (45 mm)
Field of View
1°25'
Erect
Length of Tube
4.9 in (124.46 mm)
Magnification
30x
Minimum Focus Distance
4.92 ft. (1.5 m)
Quick Sights (Rough Sights)
No
Ratio of Stadia Lines
No
Reflectorless
Yes
Resolving Power
3"
Reticle Illumination
No
Sight Distance Precision/Focus Range
No
Temperature
Operating
-4 to 122 °F (-20 to 50°C)
Storage
-22 to 140 °F (-25 to 60 °C)
Tilt Sensor/Compensator
Method
Liquid-electric detection
Range
±3 degrees
Setting Accuracy
No
Type
Dual-axis
