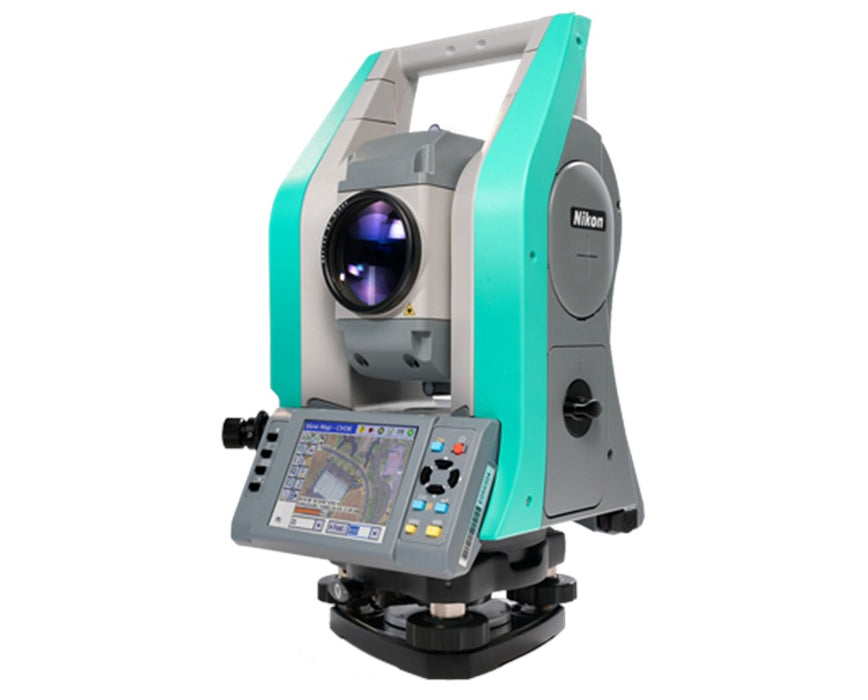

The Nikon XF High-Precision (HP) Total Station of the Nikon XF Series is specially designed for highly precise edge and corner measurements. It produces a smaller laser spot than its cousin Nikon XF, making it a better choice for thin/small targets such as corners of steel frames, l-beam steel, and iron frames.
Nikon XF Series: The Nikon XF HP is part of the Nikon XF Series, a portfolio of Nikon mechanical total stations that lets you choose the EDM technology that best fits your type of work. It has two models: the Nikon XF which uses the Time of Distance (TOF) EDM for long-range measurements and the Nikon XF HP which uses Phase Shift EDM for shorter range but higher accuracy/smaller spot measurements. The Nikon XF HP is ideal if your work mainly involves steelwork, bridges, shipbuilding, landscaping, and other jobs that require extremely precise shorter-range measurements. Please refer to the table at the end of this page for more information on the differences between the two models.
Top-Notch Performance: Available in 5”, 3”, 2”, ad 1” angle accuracies, the Nikon XF HP Total Station features dual-axis compensation with liquid-electric detection for accurate angle measurements. It also uses superior Nikon optics with 30x magnification that provides crisp and bright sightings in any lighting condition.
Efficient Field Workflow: The Nikon XF Series Total Stations have dual-color touchscreen displays that can run Survey Basic, Survey Pro, and Layout Pro onboard. With these software options, you can collect data, layout your site, and do all your surveying tasks with ease. Further, its long-lasting hot-swappable batteries reduce downtime in the field. It also has an optical plummet for fast and accurate centering. It has PIN security to prevent unauthorized use and is Trimble Locate2Protect ready for effective tracking of lost or stolen equipment.
Seamless Data Transfer: Data transfers to PCs and data collectors are made easier with the Total Station File Transfer app and a Class 1 Bluetooth with a range of up to 328 feet. It also connects with PCs with an RS-232C cable and two USB ports. You can also store files in its 512 MB RAM and 4 GB flash memory.
This Nikon total station comes with an IP66 protection rating, making it dustproof and water-resistant. With its lightweight and compact design, the XF HP total station is easy to handle, store, and transport.
Configuration Options
The Nikon XF HP is available in 4 accuracies so you can choose based on the type of work you typically do. Please select your preference from the menu above to place your order.
- HNA40570: 5" Accuracy
- HNA40370: 3" Accuracy
- HNA40270: 2" Accuracy
- HNA40170: 1" Accuracy
| |
Nikon XF |
Nikon XF HP
|
| Measurement principle
|
Time of Flight |
Phase Shift |
| Laser class
|
Class 1 |
Class 1 / Class 3R |
| Distance accuracy (ISO Standard)
|
Prism : ± (2 mm + 2 ppm)
Reflectorless : ± (3 mm + 2 ppm) |
Prism : ± (1 mm + 1.5 ppm)
Reflectorless : ± (2 mm + 2 ppm) |
| Distance range
|
Prism : 5000 m
Reflectorless : 800 m |
Prism : 3000 m
Reflectorless : 500 m |
| Measurement time
|
Prism : 1.0 s |
Prism : 1.6 s |
| Spot size (at 30 m)
|
60 mm |
26 mm |
| Angle accuracy
|
1”, 2”, 3”, 5” |
1”, 2”, 3”, 5” |
| Autofocus
|
Yes |
Not Available |
| Plummet
|
Optical / Laser |
Optical |
| Battery Meas. every 30 s
|
12 h (AF every 30 s) |
18 h |
