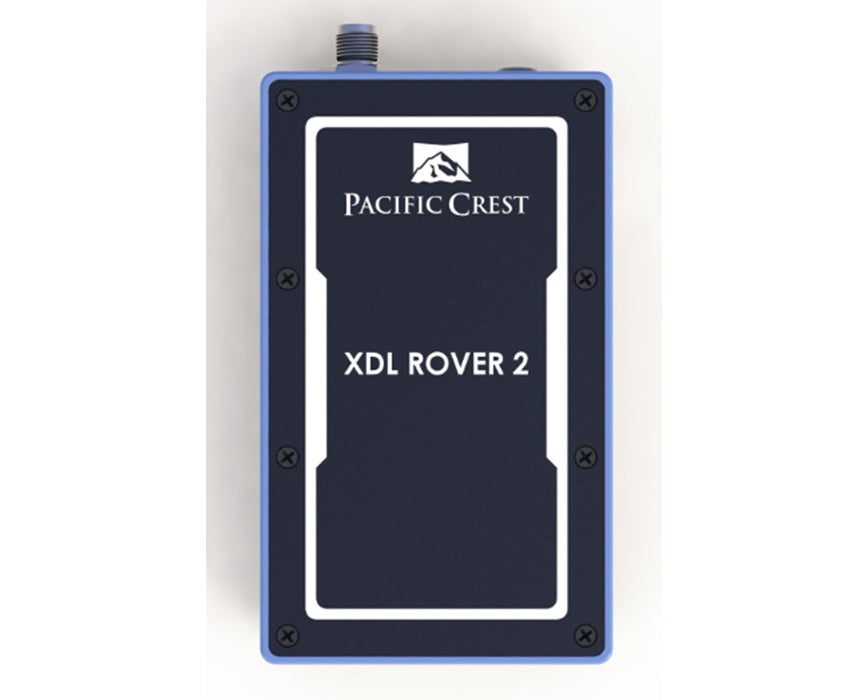

XDL Rover 2 Radio Kit

Pacific Crest
by Pacific Crest
MFR#: 86759-41-SPN
TIGER#: TS34997
List Price: $1,450.00
You Save: $224.75 -16%
$1,450.00 - $1,450.00
List Price: $1,450.00
$1,225.25
$1,225.25 - $1,225.25
$1,225.25
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
XDL Rover 2 Radio Kit
XDL Rover 2 Radio Kit - $1,225.25
$1,225.25
*Must Purchase 1 for XDL Rover 2 Radio Kit

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 10-12 Weeks Shipping Date By: 12/18/2023
Documents
Product Manual Item Brochure
  • Bluetooth enabled
  • Frequency: 403-473 MHz
  • High over-the-air link rate
  • Advanced data link design
  • Pocket-sized portability
  • Internal rechargeable battery
  • Charger and programming cable included
  • IP67 dustproof and water immersible

The Pacific Crest XDL Rover 2 Radio Kit is a lightweight, ruggedized ultrahigh-frequency (UHF) receiver offering 403-473 MHz frequency and over 70 MHz bandwidth coverage in either 12.5 or 25 kHz channels. This sophisticated receiver offers advanced data link design for high performance over the entire band. It utilizes Pacific Crest's latest generation XDL modem technology while remaining compatible with existing Pacific Crest radios and other products.

The XDL Rover 2 is equipped with Bluetooth wireless communication which allows users to configure the receiver using a Bluetooth-equipped computer or an Android device. Serial communications are also available through the standard LEMO port. With high over-the-air link rate, the Rover 2 supports 1Hz RTK corrections for multi-GNSS receivers. Using the latest modem technology from the leader in radio frequency data communications instantly puts your products in touch with the world’s largest installed base of GNSS precise positioning systems.

The Rover 2 by Pacific Crest boasts high environmental capabilities with an IP rating of 67 ideal for indoor and outdoor use. Featuring waterproof design, high vibration tolerance, and wide temperature range, it has a pocket-sized design for ultimate portability. Lastly, the Rover 2 comes with a rechargeable battery which powers the receiver up to 14 hours, charger, a standard programming cable, and a 1-year limited warranty.

  • Bluetooth enabled
  • 70 MHz bandwidth coverage
  • High over-the-air link rate
  • Software-derived channel bandwidth
  • IP67 waterproof design
  • Pocket-sized portability
  • Internal rechargeable battery
  • Comes with charger kit and LEMO power cable
  • 1-year limited warranty

What’s in the Box

  • Pacific Crest XDL Rover 2 Radio Kit 86759-41
  • Charger kit
  • Programming/Power Cable Lemo/DE9
  • 1-year limited warranty

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Advanced Features
Shock Protection
MIL-STD-810F
Weather Protection
IP67 dustproof and water immersible
Applications
Kinematic Survey
Yes
Battery/Power
Battery Life
Up to 14 hours
Charging Time
Less than 4 hours
Power Source
2550 mAHr Li-ion rechargeable battery
Voltage
11 to 28V DC
Communication Interface
Bluetooth
Yes
Internal UHF
Yes
RS232 (9-pin serial adapter)
Yes
Display/Keypad
Keys
Power Button, Bluetooth
Type
LED indicators
Functions
Network Connection Setting
Yes
Raw Data Recording
Yes
Rover Configuration
Yes
RTK Network Rover
Yes
General
Dimensions
3.30" L x 1.10" W x 5.60" H (8.4 x 2.8 x 14.2 cm)
Housing
Tough, impact-resistant enclosure
Warranty
1-year limited
Weight
0.60 lbs. (0.27 kg)
Operating System
Type
Windows
Software
Upgradeable
ADLCONF software
Temperature
Operating
–4 to 140 °F (-20 to 60 °C)
Storage
–4 to 140 °F (-20 to 60 °C)
Tracking Features
Antenna
TNC female RF connector
Channels
12.5 or 25 kHz channels
Frequency
403-473 MHz
RTK
1Hz RTK corrections
