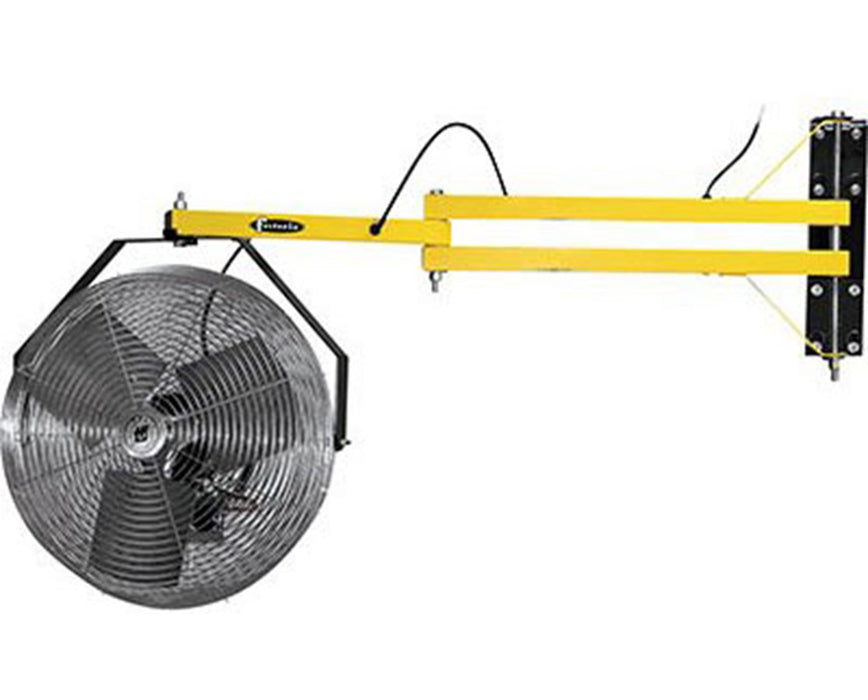

Workstation Wall Mount Fan With Pivoting Arm

MFR#: 24LDFTE
TIGER#: TS59050
Original price List Price: $457.00
You Save: $110.94 -24%
Original price $457.00 - Original price $457.00
Original price List Price: $457.00
Current price $346.06
$346.06 - $346.06
Current price $346.06
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Workstation Wall Mount Fan With Pivoting Arm
Workstation Wall Mount Fan With Pivoting Arm - $346.06
$346.06
*Must Purchase 1 for Workstation Wall Mount Fan With Pivoting Arm

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/27/2023
Documents
  • Choice of 3 arm lengths
  • High-velocity modular 18” fan
  • 3-speed switch
  • HP: 1/8
  • Single-phase, 115V motor
  • Dual electrical sockets in the arm
  • NEMA 5-15 grounded plug
  • Aluminum blades

The TPI Workstation Wall Mount Fan With Pivoting Arm is a space-saving fan that can be used on loading docks to cool off workers when entering hot truck trailers and at factories to cool off employees or machines. This high-velocity modular 18-inch fan offers a three-speed switch and 1/8 horsepower for added efficiency. It comes with a single-phase, 115-volt PSC (permanent split capacitor) motor that is totally enclosed and is permanently lubricated.

This TPI workstation fan is plugged into the one socket of the dual electrical outlets embedded in the pivoting arm. Also, it features a five-foot, 18/3 SJTW conductor cord and a NEMA 5-15 grounded plug. The other socket is reserved for the optional modular lights (sold separately).

The TPI wall mount fan is constructed of coated steel guards and aluminum blades that guarantees long life. The mounting arm is made of 1-1/2-inch square, 14 gauge steel tubing. Plus, it includes a 3”L x 5” W x 3/16” H mounting plate that secures with the four bolts. As an extra feature, this TPI fan meets OSHA standards and is made in the USA.

Configuration Options

The TPI Workstation Wall Mount Fan With Pivoting Arm offers three arm lengths that suit your needs. Please choose from the menu above.

  • 24LDFTE: 24”
  • 40LDFTE: 40”
  • 60LDFTE: 60”
  • Choice of 3 arm lengths
  • Space-saving
  • High-velocity modular 18” fan
  • 3-speed switch
  • 1/8 horsepower
  • Single-phase, 115V motor
  • Permanent split capacitor
  • Totally enclosed
  • Permanently lubricated
  • Dual electrical sockets in the arm
  • 5’ long, 18/3 SJTW conductor cord
  • NEMA 5-15 grounded plug
  • Optional modular lights (sold separately)
  • Coated steel guards
  • Aluminum blades
  • 1-1/2” square, 14 gauge steel tubing arm
  • 3”L x 5” W x 3/16” H mounting plate attaches with 4 bolts
  • Meets OSHA standards
  • Made in the USA

What’s in the Box

  • TPI Workstation Wall Mount Fan With Pivoting Arm
  • Mounting plate
  • 4 x 3/8” Bolts
  • User manual
  • 1-year limited warranty

Available Product Options

  • Arm Length: 24”, 40” or 60”

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan
Amps
2.2
Blade Size
18"
Certification
OSHA, Intertek
Cord Length
5 feet
Cord Type
18/3 SJTW conductor with NEMA 5-15 grounded plug
Cubic Feet per Minute (CFM)
Up to 1,800
Fan Type
Workstation fans
Head Type
Stationary
Velocity Profile (CFM/Area Sq. Ft.)
2,900/125
General
Material
Aluminum blades/coated steel guards
Warranty
1-year limited
Weight
31 lbs (24LDFTE); 38 lbs (40LDFTE); 44 lbs (60LDFTE)
Motor
Horsepower (HP)
1/8
Lubrication
Permanent
Power
1-Phase, 115V
Speed Switch
3-speed
Split Capacitor
Permanent
