Venturi-Mounted Direct Drive Exhaust Fan

by TPI Corporation

MFR#: CE10DV

TIGER#: TS59290

List Price: $458.00

You Save: $111.17 -24%

$458.00 - $458.00

List Price: $458.00

$346.83

$346.83 - $346.83

$346.83

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Venturi-Mounted Direct Drive Exhaust Fan - $346.83

$346.83

*Must Purchase 1 for Venturi-Mounted Direct Drive Exhaust Fan

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/30/2023

Documents

Product Manual Item Brochure

Choice of 8 fan sizes & HP
Can be used with an external shutter
Single-phase, 120V permanent split capacitor motor
Can be installed from inside the wall
Switch: 2-speed or 3-speed
No cord-junction box for direct wiring
Rough-in hole: 1/2”
Construction: Aluminum blade

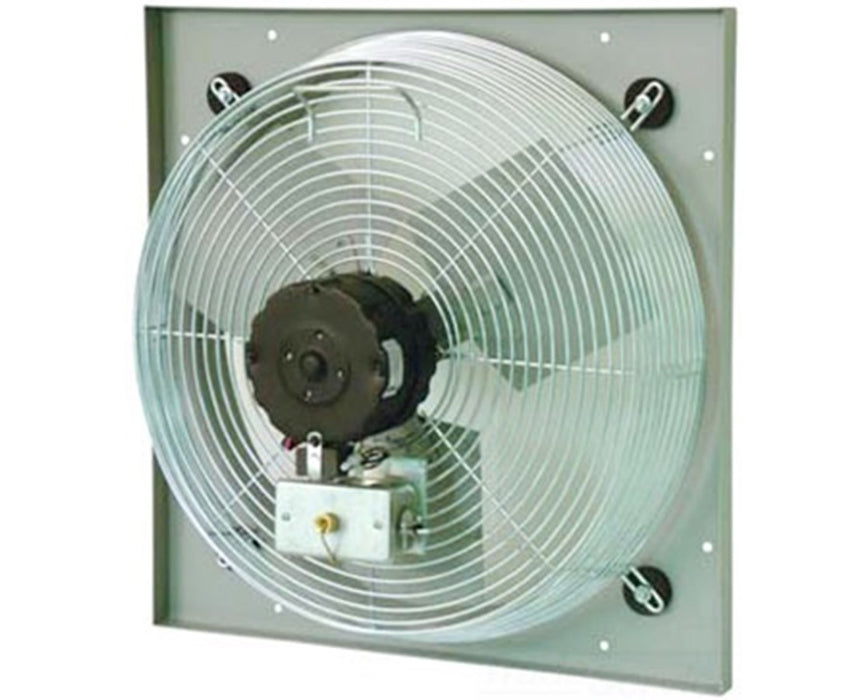

The TPI Venturi-Mounted Direct Drive Exhaust Fan is a dependable exhaust fan that can be used with an external shutter and can be installed from inside the wall. It uses a single-phase, 120-volt permanent split capacitor motor that has a three-speed or two-speed switch.

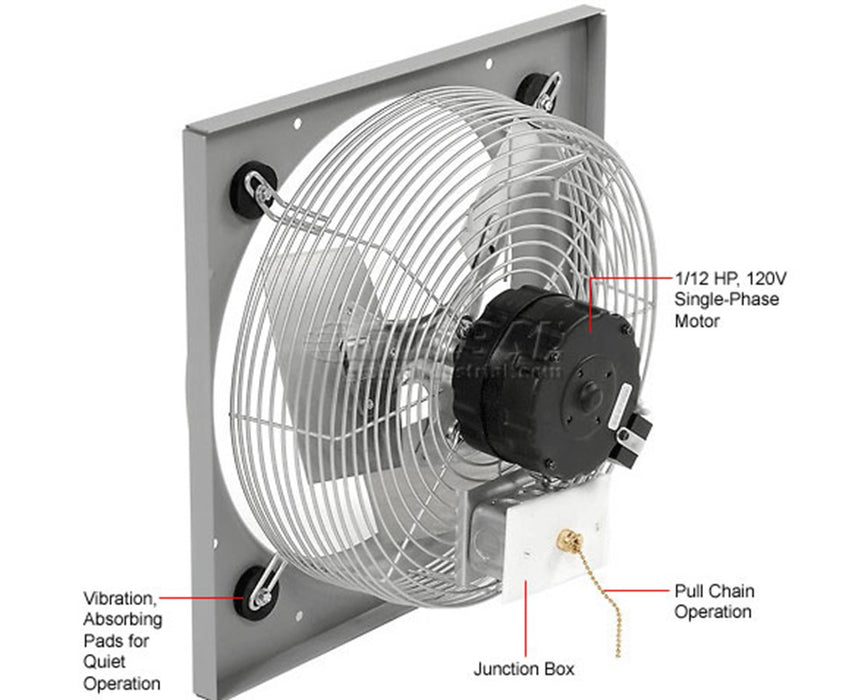

This TPI Venturi-mounted exhaust fan offers a pull chain switch and has a no cord-junction box for direct wiring. Also, it comes with a 1/2-inch rough-in hole size for a hassle-free installation.

For durability, the TPI direct drive exhaust fan is constructed of an aluminum blade and steel spiral wire guards. As an additional feature, this TPI fan is made in the USA.

Configuration Options

The TPI Venturi-Mounted Direct Drive Exhaust Fan has eight models of varying sizes and horsepower. Please choose from the drop-down menu above.

CE10DV: 10” Fan, 1/12 HP (3-Speed Sleeve Bearing)
CE12DV: 12” Fan, 1/12 HP (3-Speed Sleeve Bearing)
CE14DV: 14” Fan, 1/8 HP (3-Speed Sleeve Bearing)
CE16DV: 16” Fan, 1/8 HP (3-Speed Sleeve Bearing)
CE18DV: 18” Fan, 1/8 HP (3-Speed Sleeve Bearing)
CE20DV: 20” Fan, 1/4 HP (2-Speed Ball Bearing)
CE24DV: 24” Fan, 1/4 HP (2-Speed Ball Bearing)
CE30DV: 30” Fan, 1/4 HP (2-Speed Ball Bearing)

Choice of 8 fan sizes & HP
Can be used with an external shutter
Can be installed from inside the wall
Single-phase, 120V permanent split capacitor motor
Switch: 2-speed or 3-speed
Pull chain switch
No cord-junction box for direct wiring
Rough-in hole: 1/2”
Construction: Aluminum blade
Steel spiral wire guards
Made in the USA

What’s in the Box

TPI Venturi-Mounted Direct Drive Exhaust Fan
User manual
1-year limited warranty

Available Product Options

Fan Size: 10”, 12”, 14”, 16”, 18”, 20”, 24” or 30”
HP (horsepower): 1/12, 1/8 or 1/4

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

1 (CE10DV); 1.1 (CE12DV); 2 (CE14DV); 2.1 (CE16DV); 2.2 (CE18DV); 2.3 (CE20DV); 2.5 (CE24DV); 2.7 (CE30DV)

Blade Size

10" (CE10DV); 12" (CE12DV); 14" (CE14DV); 16" (CE16DV); 18" (CE18DV); 20" (CE20DV); 24" (CE24DV); 30" (CE30DV)

Cubic Feet per Minute (CFM)

Up to 680 (CE10DV); Up to 825 (CE12DV); Up to 1,520 (CE14DV); Up to 2,100 (CE16DV); Up to 2,300 (CE18DV); Up to 2,925 (Up to CE20DV); Up to 3,400 (CE24DV); Up to 3,950 (CE30DV)

Fan Type

Exhaust fans

Speed (Revolutions per Minute)

Up to 1,560 (CE10DV, CE12DV); Up to 1,660 (CE14DV, CE16DV, CE18DV); Up to 1,140 (Up to CE20DV, CE24DV, CE30DV)

General

Material

Aluminum blades

Warranty

1-year limited

Weight

11 lbs (CE10DV); 17 lbs (CE12DV, CE14DV); 18 lbs (CE16DV); 26 lbs (CE18DV); 34 lbs (CE20DV); 48 lbs (CE24DV); 55 lbs (CE30DV)

Motor

Horsepower (HP)

1/12 (CE10DV, CE12DV); 1/8 (CE14DV, CE16DV, CE18DV); 1/4 (CE20DV, CE24DV, CE30DV)

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

3-speed (CE10DV, CE12DV, CE14DV, CE16DV, CE18DV); 2-speed (CE20DV, CE24DV, CE30DV)

Split Capacitor

Permanent
