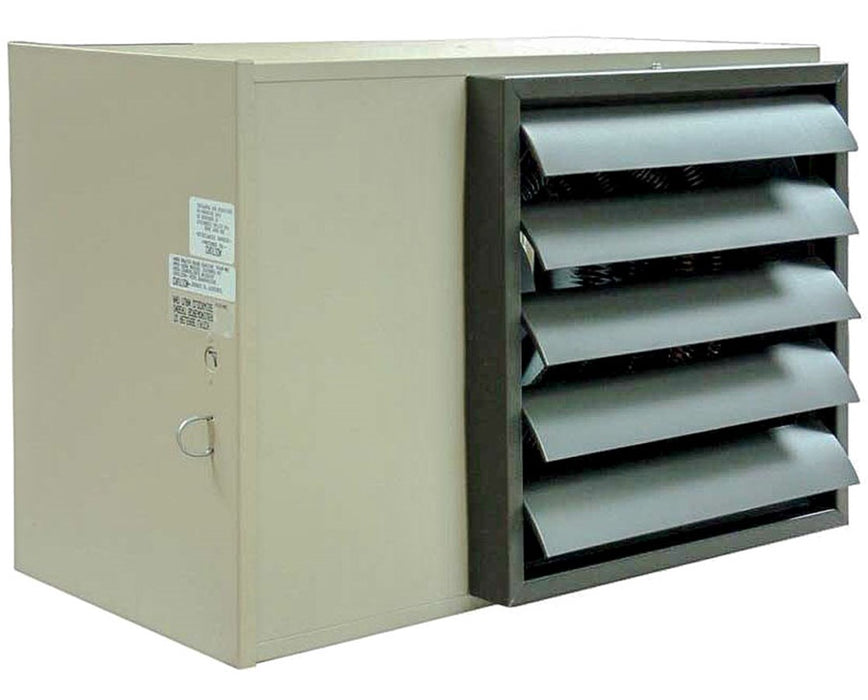

UH Horizontal Fan-Forced Heater with Contactor System

MFR#: F3FUH03C03
TIGER#: TS59911
Original price List Price: $1,101.00
You Save: $267.27 -24%
Original price $1,101.00 - Original price $1,101.00
Original price List Price: $1,101.00
Current price $833.73
$833.73 - $833.73
Current price $833.73
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
UH Horizontal Fan-Forced Heater with Contactor System
UH Horizontal Fan-Forced Heater with Contactor System - $833.73
$833.73
*Must Purchase 1 for UH Horizontal Fan-Forced Heater with Contactor System

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/21/2023
  • Choice of 16 models
  • Contactor control system
  • Adjustable louver assembly
  • Automatic resetting type limit control
  • Heavy-gauge welded steel cabinet construction
  • Bearings: unit or sleeve
  • Copper clad steel sheath heating element
  • Control compartment hinged & latched door

The TPI UH Series Horizontal Fan-Forced Heater with Contactor System is a hard-wearing heating device that is popularly used in commercial and industrial areas. This fan-forced heater comes with a permanently lubricated, thermally protected, totally enclosed motor that has a unit or sleeve bearings. Also, it features a contractor control system that is spring-loaded to avoid contact welding and it provides overload protection.

The TPI horizontal fan-forced heater includes an adjustable louver assembly that carefully guides airflow and allows the airflow to be controlled at any direction. This TPI heater is furnished with an automatic resetting type limit control for de-energizing the heater if an over-temperature happens.

The TPI UH Series heater boasts a heavy-gauge welded steel cabinet construction and a powder-coated finish that guarantees longevity. It also consists of a control compartment with a hinged and latched access door which promotes easy installation and maintenance. In addition, the UH series heater includes a circular copper clad steel sheath heating element for a seamless air production.

Please Note: The heater can be mounted with the motor shaft from horizontal to downward at 45° off horizontal. Also, the louver assembly is square and is mounted with screws. The louver can be positioned (left, right, up or down) with the heater in the horizontal position.

Configuration Options

The TPI UH Series Horizontal Fan-Forced Heater with Contactor System offers 16 models with varying heater wattages, voltages and phases. Please select your desired choice from the drop-down menu above.

  • Heater Wattage: 3.3 kW, 5 kW, 7.5 kW, 10 kW, 10/7.5 kW, 12.5 kW or 15 kW
  • Voltage: 208 V, 240 V or 240/208 V
  • Phase: 1 Phase, 3 Phase or 1/3 Phase
Heater kW BTU Volts / Phase Amps
(1-Ph/3-Ph)
Dimensions
3.3 kW 11,200 208 V, 3-Ph
240 V, 3-Ph
9.2,
7.9
20" L x 11" H x 13" H
5 kW  17,100 208 V
240 V
24.1 / 14
20.8 / 12.1
20" L x 11" H x 13" H
7.5 kW  25,600 208 V, 3-Ph
240 V
20.8
31.3 / 18.1
20" L x 11" H x 13" H
10 kW
10 / 7.5 kW
34,100
25,600
208 V 48.1 / 27.8
36.1 / 20.8
20" L x 11" H x 13" H
12.5 - 15 kW 42,600 208 V
240 V
60.1 / 34.7
52.1 / 30.1
22" L x 11" W x 15" H
15 kW 51,200 208 V
240 V
62.5 / 36.1  22" L x 11" W x 15" H
  • Choice of 16 models
  • Hard-wearing heating device
  • Permanently lubricated, thermally protected, totally enclosed motor
  • Bearings: unit or sleeve
  • Contactor control system
  • Adjustable louver assembly
  • Automatic resetting type limit control
  • Heavy-gauge welded steel cabinet construction
  • Powder-coated finish
  • Control compartment with a hinged and latched access door
  • Copper clad steel sheath heating element

What’s in the Box

  • TPI UH Series Horizontal Fan-Forced Heater with Contactor System
  • Installed threaded nuts and rods
  • Louver assembly screws
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 3.3 kW, 5 kW, 7.5 kW, 10 kW, 10/7.5 kW, 12.5 kW or 15 kW
  • Voltage: 208 V, 240 V or 240/208 V
  • Phase: 1 Phase, 3 Phase or 1/3 Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Adjustable Louves
Yes
Fan Guards
Plated
Control Enclosure
Average Temperature Rise
26 °F (3-kW models); 40 °F (5-kW models); 42 °F (7.5-kw models); 55 °F (10-kW, 10/7.5-kW models); 49 °F (12.5-kW); 59 °F (15-kW)
Control Voltage
24 V
Dimensions
Heater
20" L x 11" W x 13" H (3.3 - 10 kW); 22" L x 11" W x 15" H (12.5 - 15 kW)
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Finish/Coating
Powder coated
Housing
Heavy-gauge welded steel
Recommended Mounting Height
9’ (3 to 10-kW models); 10’ (12 to 15-kW models)
Warranty
1-year limited
Weight
36 lbs (3.3-kW models); 44 lbs (5-kW & 7.5-kW models); 42 & 45 lbs (10-kW models, 12.5-kW models); 54 lbs (15-kW models)
Heater
Air Throw
26’ (3.3-kW, 5-kW models); 36’ (7.5-kW, 10-kW, 10/7.5-kW models); 45’ (12.5-kW, 15-kW models)
Amps
7.9, 9.2, 12.1, 14, 18.1, 20.8, 24.1, 27.8, 30.1, 31.1, 34.7, 36.1, 41.7, 48.1, 52.1, 60.1, 62.5, 72.1
BTU
11,200 BTU, 17,100 BTU, 25,600 BTU, 34,100 BTU, 42,600 BTU, 51,200 BTU
CFM
400 (3.3-kW, 5-kW models); 575 (7.5-kW, 10-kW, 10/7.5-kW models); 800 (12.5-kW, 15-kW models)
Power Distribution
1-Phase or 3-Phase
Voltage
208 V, 240 V, 240/208 V
Wattage
3.3 kW, 5 kW, 7.5 kW, 10 kW, 10/7.5 kW, 12.5 kW, 15 kW
Motor
Bearing Type
Unit bearing (3-kW, 7.5-kW, 10-kW, 10/7.5-kW models); Sleeve bearing (12.5-kW & 15-kW models)
