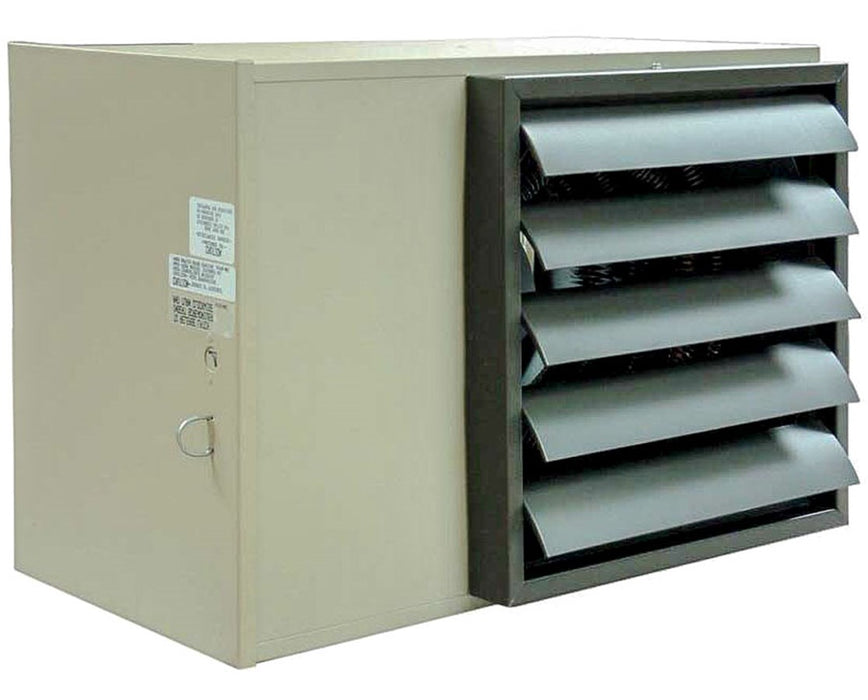

UH Horizontal Fan-Forced Heater w/ Contactor & Transformer

by TPI Corporation

MFR#: P3PUH03CA1

TIGER#: TS59937

List Price: $1,404.00

You Save: $340.82 -24%

$1,404.00 - $1,404.00

List Price: $1,404.00

$1,063.18

$1,063.18 - $1,063.18

$1,063.18

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

UH Horizontal Fan-Forced Heater w/ Contactor & Transformer - $1,063.18

$1,063.18

*Must Purchase 1 for UH Horizontal Fan-Forced Heater w/ Contactor & Transformer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/25/2023

Documents

Product Manual Item Brochure

Choice of 28 models
24-volt transformer
Contactor control system
Permanently lubricated and thermally protected motor
Adjustable louver assembly
Circular copper clad steel sheath element
Heavy-gauge welded steel cabinet construction
Automatic resetting type limit control

The TPI UH Series Horizontal Fan-Forced Heater w/ Contactor & Transformer is a fully-featured heater delivers the best heating capabilities that are ideal to use in many industries. Featuring a permanently lubricated and thermally protected motor, this heater motor is totally enclosed and has a rubber insulator that minimizes vibration and noise. It comes with an adjustable louver assembly for a seamless directional control of the airflow.

The TPI UH Series features a 24-volt transformer that secures the conversion from line voltage to low voltage remote thermostat operation. Also, it comes with a contactor control system that prevents contact welding and protects the device from any overload. This TPI heater includes a circular copper clad steel sheath element with continuously brazed steel fins to match the air delivery pattern of the fan blade.

This TPI Fan-Forced heater assures long life with its heavy-gauge welded steel cabinet construction and powder-coated finish. Also, it comes with a control compartment with a hinged and latched access door that makes installation and maintenance easy. As an extra feature, the UH series heater is equipped with automatic resetting type limit control to protect the unit from over-protection.

Please Note: The heater can be mounted with the motor shaft from horizontal to downward at 45° off horizontal. Also, the louver assembly is square and is mounted with screws. The louver can be positioned (left, right, up or down) with the heater in the horizontal position.

Configuration Options

The TPI UH Series Horizontal Fan-Forced Heater w/ Contactor & Transformer offers 28 models with different heater wattages, voltages, and phases. All units are supported by a one-year limited warranty. Please select your preference from the drop-down menu above.

Heater Wattage: 3.3 kW, 5 kW, 7.5 kW, 10 kW, 12.5 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 48 kW
Volts: 208 V, 240 V, 277 V or 480 V
Phase: 1 Phase or 3 Phase

Heater kW	BTU	Volts	Amps	Dimensions
3.3 kW	11,200	480 V, 3-Ph	4	20" L x 11" W x 13" H
5 kW	17,100	480 V, 3-Ph	6.1	20" L x 11" W x 13" H
7.5 kW	25,600	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 480 V, 3-Ph	36.1 31.3 27.1 9.1	20" L x 11" W x 13" H
10 kW	34,100	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 480 V, 3-Ph	48.1 41.7 36.1 12.1	20" L x 11" W x 13" H
12.5 kW	42,600	480 V, 3-Ph	15.1	22" L x 11" W x 15" H
15 kW	51,200	480 V, 3-Ph	18.1	22" L x 11" W x 15" H
20 kW	68,300	208 V 240 V 480 V, 3-Ph	96.2 / 55.6 83.3 / 48.2 24.1	24" L x 17" W x 17" H
25 kW	85,300	208 V 240 V 480 V, 3-Ph	120.2 / 69.5 104.2 / 60.2 30.1	24" L x 17" W x 17" H
30 kW	102,390	208 V, 3-Ph 240 V 480 V, 3-Ph	83.4 125 / 72.3 36.1	24" L x 17" W x 17" H
40 kW	136,500	480 V, 3-Ph	48.2	26" L x 23" W x 19" H
48 kW	163,800	480 V, 3-Ph	57.8	26" L x 23" W x 19" H

Choice of 28 models
Permanently lubricated and thermally protected motor
Totally enclosed motor with rubber insulator
Adjustable louver assembly
24-volt transformer
Contactor control system
Circular copper clad steel sheath element
Continuously brazed steel fins
Heavy-gauge welded steel cabinet construction
Powder-coated finish
Control compartment with a hinged and latched access door
Automatic resetting type limit control

What’s in the Box

TPI UH Series Horizontal Fan-Forced Heater w/ Contactor & Transformer
Installed threaded nuts and rods
Louver assembly screws
1-year limited warranty

Available Product Options

Heater Wattage: 3.3 kW, 5 kW, 7.5 kW, 10 kW, 12.5 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 48 kW
Volts: 208 V, 240 V, 277 V or 480 V
Phase: 1 Phase or 3 Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater

Adjustable Louves

Yes

Fan Guards

Plated

Control Enclosure

Average Temperature Rise

26 °F (3.3 kW); 40 °F (5 kW); 42 °F (7.5 kW); 55 °F/42 °F (10 kW); 49 °F (12.5 kW); 59 °F (15 kW); 47 °F (20 kW); 58 °F (25 kW); 70 °F (30 kW); 55 °F (40 kW); 67 °F (48 kW)

Control Voltage

24 V

Transformer

Yes

Dimensions

Heater

20" L x 11" W x 13" H (3.3 - 10 kW); 22" L x 11" W x 15" H (12.5 - 15 kW); 24" L x 17" W x 17" H (20 - 30 kW); 26" L x 23" W x 19" H (40 - 48 kW)

Features

Cart

Disconnect Switch

Yes

Forklift Channels

Pilot Light

Thermostat

Optional

General

Finish/Coating

Powder coated

Housing

Heavy-gauge welded steel

Recommended Mounting Height

9’ (3-10 kW); 10’ (12-15 kW); 13’ (20-30 kW); 16’ (40-48 kW)

Warranty

1-year limited

Weight

36 lbs (3.3 kW); 40 & 41 lbs (7.5 kW); 42 lbs (10 kW); 44 lbs (5 kW & 7.5 kW); 45 lbs (12.5 kW); 51 lbs (10 kW); 54 lbs (15 kW); 55 lbs (20 & 25 kW); 60 lbs (30 kW); 75 lbs (40 kW); 78 lbs (48 kW)

Heater

Air Throw

26’ (3.3 & 5 kW); 36’ (7.5 & 10 kW); 45’ (12.5 & 15 kW); 56’ (20, 25, 30, 40 & 48 kW)

Amps

4, 6.1, 9.1, 12.1, 15.1, 18.1, 24.1, 27.1, 30.1, 31.3, 36.1, 41.7, 48.1, 48.2, 55.6, 57.8, 60.2, 69.5, 72.3, 83.3, 83.4, 96.2, 104.2, 120.2, 125

BTU

11,200 BTU, 17,100 BTU, 25,600 BTU, 34,100 BTU, 42,600 BTU, 51,200 BTU, 68,300 BTU, 85,300 BTU, 102,390 BTU, 136,500 BTU, 163,800 BTU

CFM

400 CFM (3.3 & 5 kW); 575 CFM (7.5 & 10 kW); 800 CFM (12 & 15 kW); 1,350 CFM (20 & 25 kW); 2,275 CFM (40 & 48 kW)

Power Distribution

1-Phase or 3-Phase

Voltage
