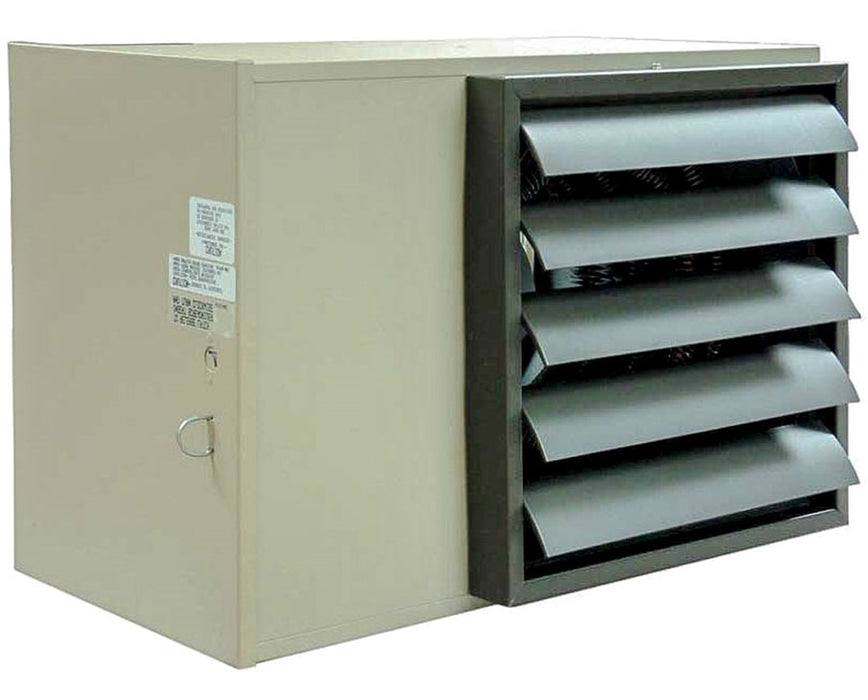

UH Horizontal Fan-Forced Heater

MFR#: F1FUH03003
TIGER#: TS59903
Original price List Price: $1,101.00
You Save: $267.27 -24%
Original price $1,101.00 - Original price $1,101.00
Original price List Price: $1,101.00
Current price $833.73
$833.73 - $833.73
Current price $833.73
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
UH Horizontal Fan-Forced Heater
UH Horizontal Fan-Forced Heater - $833.73
$833.73
*Must Purchase 1 for UH Horizontal Fan-Forced Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023
  • Choice of heater wattage & volts
  • Permanently lubricated and thermally protected motor
  • Single-phase
  • Adjustable Louvers
  • Circular copper clad steel sheath heating element
  • Continuously brazed fins
  • Automatic resetting type limit control
  • Construction: welded steel cabinet

The TPI UH Series Horizontal Fan-Forced Heater provides an optimum level of performance for heating areas in industrial and commercial locations. It features a single-phase, totally-enclosed motor that is permanently lubricated and thermally protected. This TPI heater’s fan and motor come with rubber insulator mounts that minimize vibration and noise. Also, it has a size of 20" L x 11" W x 13" H.

This TPI fan-forced heater features adjustable louvers that allow directional regulation of air flow. It has a circular copper clad steel sheath heating element that comes with continuously brazed steel fins that match the air production arrangement of the fan blade. The UH series is equipped with an automatic resetting type limit control to weaken the heater in an event of an over-temperature.

The TPI UH Series heater includes a robust fan assembly that is housed by a heavy-gauge, close-spaced and chrome-plated wire guard. The UH Series heater is made of a durable welded steel cabinet with powder-coated finish. It comes with a control compartment and a hinged, latched access door for easy installation and maintenance. As an extra feature, this TPI horizontal heater comes with a summer fan switch, fan delay switch and a disconnect switch for a hassle-free operation. Also, the

Please Note: The heater can be mounted with the motor shaft from horizontal to downward at 45° off horizontal. Also, the louver assembly is square and is mounted with screws. This louver can be positioned (left, right, up or down) with the heater in the horizontal position.

Configuration Options

The TPI UH Series Horizontal Fan-Forced Heater offers six models with different heater wattages, voltages and phases. Please select your preference from the menus above.

  • F1FUH03003: 3.3-kW Heater, 208 V
  • H1HUH03003: 3.3-kW Heater, 240 V
  • G1GUH03003: 3.3-kW Heater, 277 V
  • F1FUH05003: 5-kW Heater, 208 V
  • H1HUH05003: 5-kW Heater, 240 V
  • G1GUH05003: 5-kW Heater, 277 V
  • Choice of heater wattage & volts
  • Totally-enclosed motor
  • Permanently lubricated and thermally protected motor
  • Size: 20" L x 11" W x 13" H
  • Rubber insulator mounts
  • Adjustable Louvers
  • Circular copper clad steel sheath heating element
  • Continuously brazed fins
  • Automatic resetting type limit control
  • Robust fan assembly
  • Durable welded steel cabinet construction with powder-coated finish
  • Control compartment
  • Hinged, latched access door
  • Summer fan switch, fan delay switch and a disconnect switch

What’s in the Box

  • TPI UH Series Horizontal Fan-Forced Heater
  • Installed threaded nuts and rods
  • Louver assembly screws
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 3.3 or 5 kW
  • Voltage: 208 V, 240 V or 277 V

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Adjustable Louves
Yes
Fan Guards
Plated
Control Enclosure
Average Temperature Rise
26 °F (F1FUH03003, H1HUH03003, G1GUH03003); 40 °F (F1FUH05003, H1HUH05003, G1GUH05003)
Control Voltage
24 V
Dimensions
Heater
20" L x 11" W x 13" H
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Finish/Coating
Powder coated
Housing
Heavy-gauge welded steel
Recommended Mounting Height
9'
Warranty
1-year limited
Weight
36 lbs
Heater
Air Throw
26'
Amps
6.1, 4, 7.9, 9.2, 11.9, 12.1, 13.8, 14, 15.9, 18.1, 20.8, 24.1, 31.3, 36.1
BTU
11,200 BTU, 17,100 BTU
CFM
400
Power Distribution
1-Phase
Voltage
208 V, 240 V, 277 V
Wattage
3.3 kW, 5 kW
