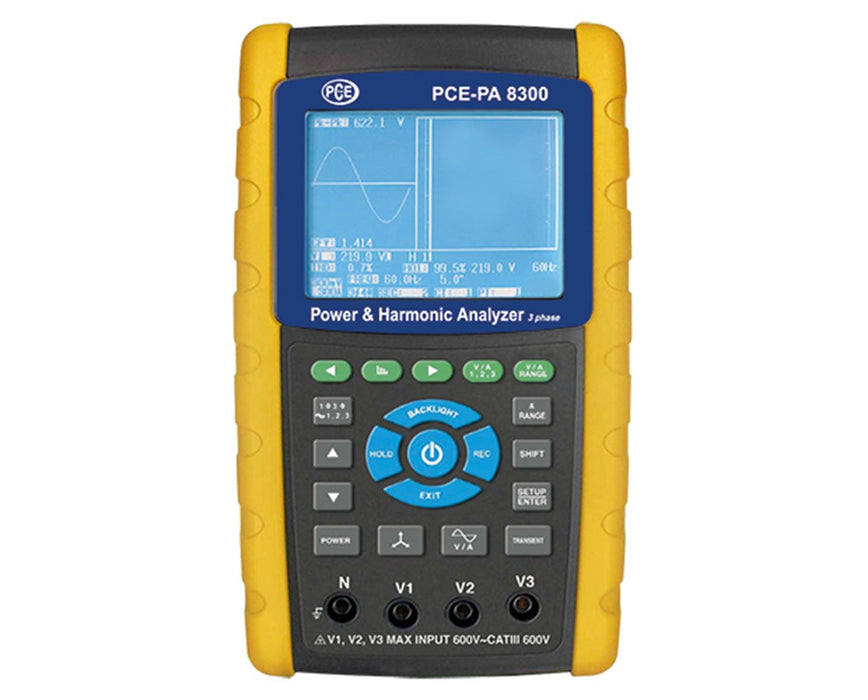

Three-Phase Electrical Power & Harmonic Analyzer

The PCE Three-Phase Electrical Power & Harmonic Analyzer is a high-quality measuring device that is used by construction professionals to scale, analyze, and record electric current, harmonics, and network capacity. This power meter uses clamps or coils, depending on the model, to perform prolonged, and accurate current measurements on wires and cables, and determine the effective, apparent, and reactive power, as well as delay angle and frequency of a current.

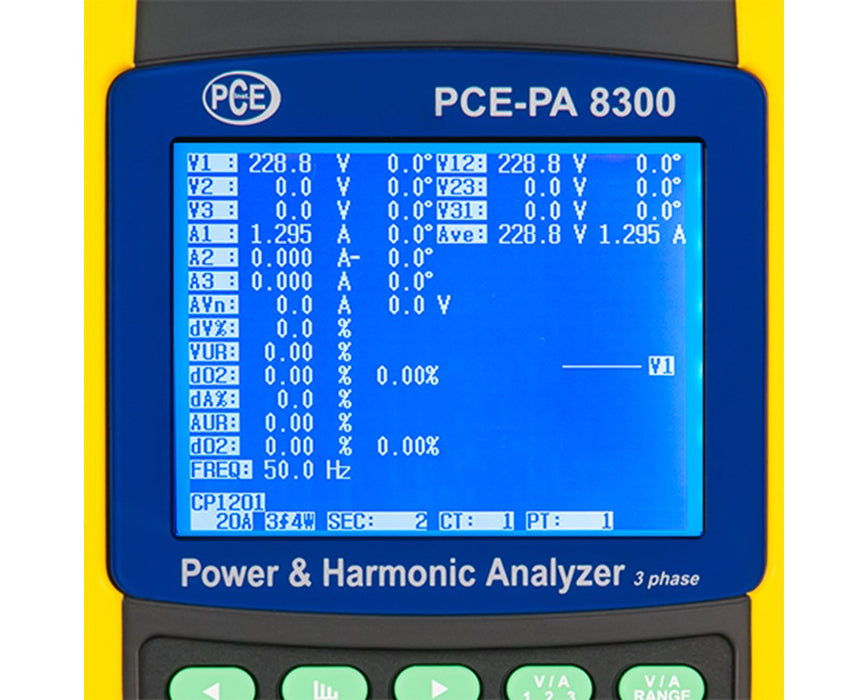

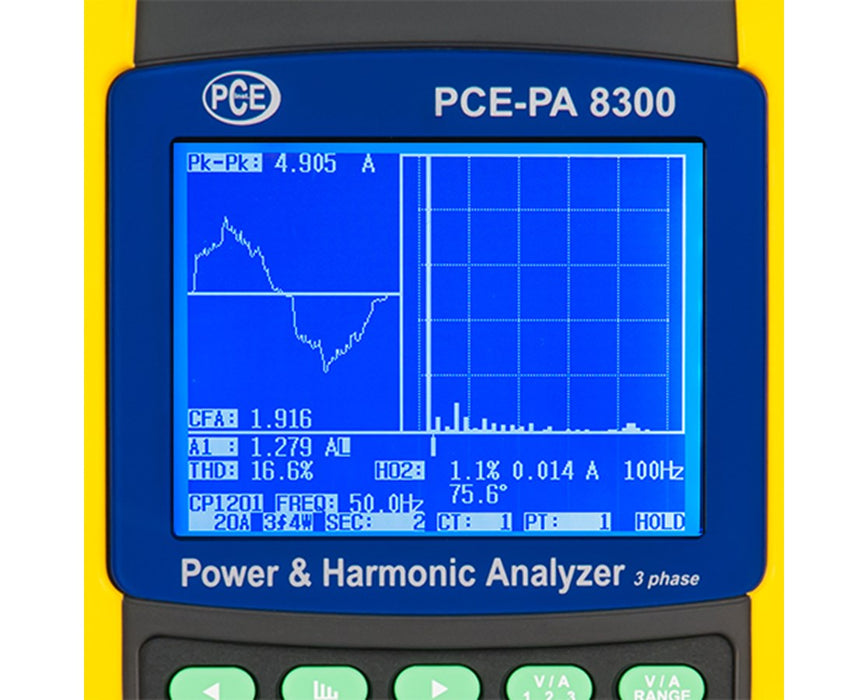

High-Quality & Easy-to-Use: This Power Meter shows the results on its LCD screen, displaying harmonics (with spectrum measurement of up to the 50th order), waveforms, Graphic Phasor diagram, and as well as transients, such as dip, swell, and outage results. It features an included SD card memory to allow data storage for later analysis of measurements, and is designed with a heavy-duty enclosure to allow durability and long-term use.

Versatile & Reliable: This PCE Power Analyzer, or sometimes called an HVAC meter or Power Data Logger, can measure Voltage range of 10 V ... 600 V AC, and has an auto-adjustable measurement range of 0 kW ... 9.999 MW (VA/VAR). It can be used with power clamps from other manufacturers, and comes with a back-up interval, to store collected data effectively.

Product Options

The PCE Three-Phase Power Analyzer comes in two variations that differ in their inclusions. You may choose the device with 3 Power Clamps, which has a Current measurement range of 20 A ... 1200 A AC, or the options with 3 flexible Rogowski Coils, that has a current measurement range of 30 A ... 3000 A AC. Kindly choose your preference on the options menu above.

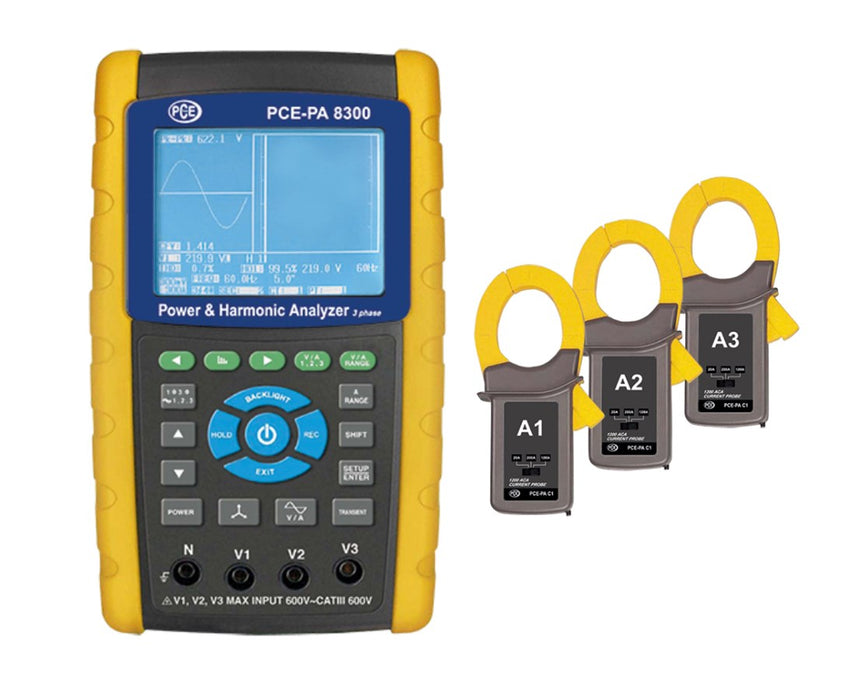

• Power Analyzer w/ 3 Power Clamps (PCE-PA 8300-1)

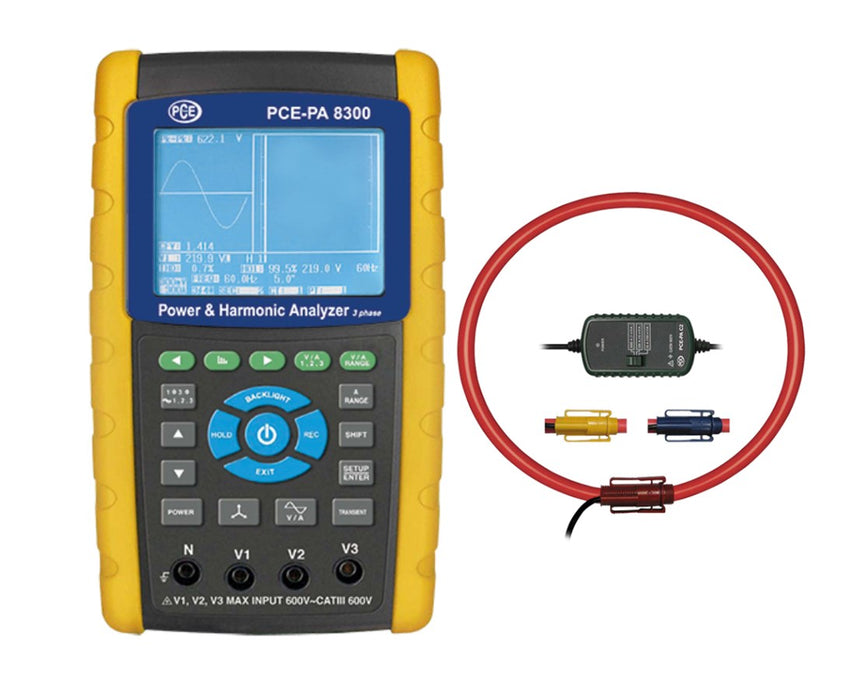

• Power Analyzer w/ 3 Rogowski Coils (PCE-PA 8300-2)
