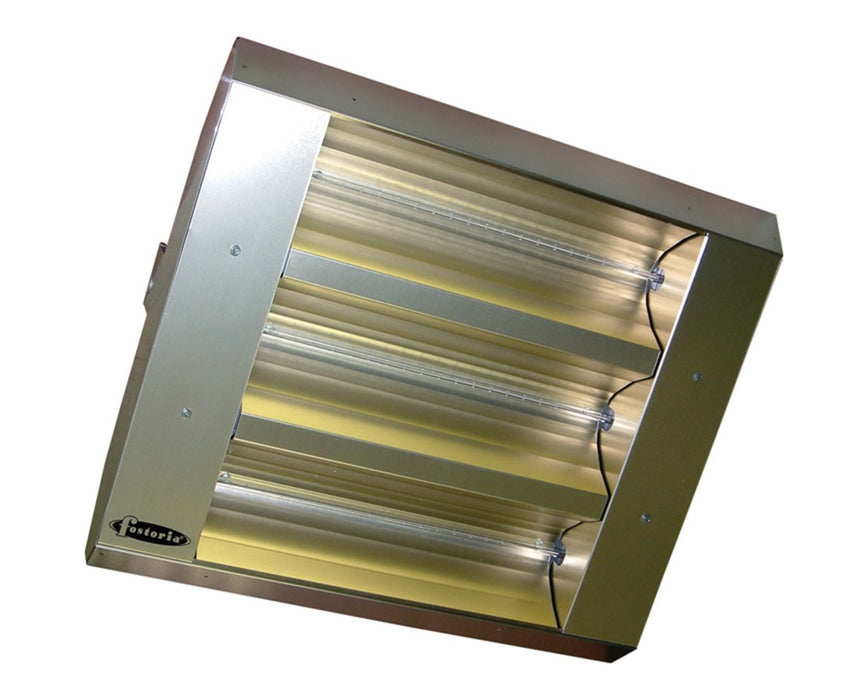

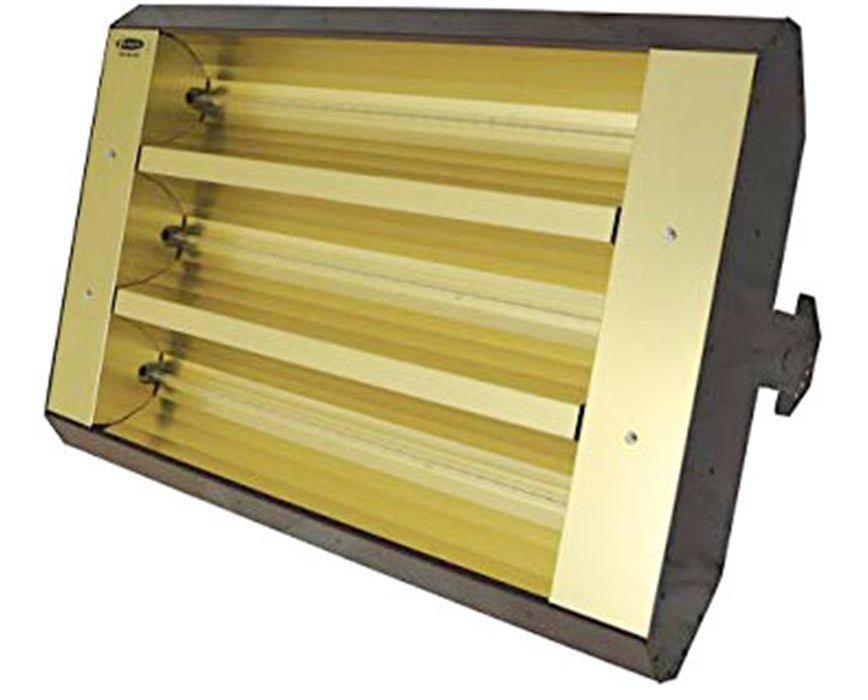

TH & THSS Mul-T-Mount Electric Infrared Heater with 3 Lamps

by TPI Corporation

MFR#: 22330TH208V

TIGER#: TS62051

List Price: $1,625.00

You Save: $394.47 -24%

$1,625.00 - $1,625.00

List Price: $1,625.00

$1,230.53

$1,230.53 - $1,230.53

$1,230.53

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

TH & THSS Mul-T-Mount Electric Infrared Heater with 3 Lamps - $1,230.53

$1,230.53

*Must Purchase 1 for TH & THSS Mul-T-Mount Electric Infrared Heater with 3 Lamps

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023

Documents

Product Manual Item Brochure Product Video

Choice of watts, volts, reflector pattern & finish
50% higher watt densities
Selectable symmetrical reflector patterns
Utilizes 3 clear Quartz lamps
Wiring: Single or 3-phase
Efficiency: 96%
High-temperature lead wires
Construction: 20-gauge steel

The TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 3 Lamps is a heat source that works for suspended indoor and outdoor heating, snow heating and ice control tasks. This TPI infrared heater offers a 50% higher watt densities and selectable symmetrical reflector patterns that suit every heating application. Also, it is perfect for recessed use.

The TPI Mul-T-Mount infrared heater utilizes three clear Quartz lamps that have a single or three-phase wiring that provides safe and instantaneous heat-up performance. With a 96% radiant efficiency, it has varying wattages and voltages which give high moisture and thermal shock resistance. The TPI electric infrared heater comes with high-temperature lead wires.

For reliability, the TH & THSS Series heater is constructed of a robust 20 gauge steel that is ETL listed for exposed areas. It consists of Gold anodized Aluminum reflectors and end caps for superior reflectivity. As an added feature, the TH & THSS Series has a built-in surface mounting brackets for easy adjustment.

Configuration Options

The TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 3 Lamps offers 48 models that have different wattages, voltages, reflector pattern and finish that suit your needs. There is also an option of two finishes: Brown Enamel or Stainless Steel. Please select your preference from the menus above.

Heater Wattage	BTUs	Volts	Amps	Reflector Pattern	Dimensions (L x W x H)
4.8 kW	16,382	208 V 240 V 277 V 480 V	23.08 20 17.33 10	30° Symmetrical 60° Symmetrical 90° Symmetrical	24" x 21.5" x 10.88"
7.5 kW	25,298	208 V 240 V 480 V	36.06 31.25 15.63	30° Symmetrical 60° Symmetrical 90° Symmetrical	33" x 21.5" x 10.88"
10.95 kW	37,372	480 V	22.81	30° Symmetrical 60° Symmetrical 90° Symmetrical	46" x 21.5" x 10.88"

Choice of watts, volts, reflector pattern & finish
50% higher watt densities
Selectable symmetrical reflector patterns
Perfect for recessed use
Utilizes 3 clear Quartz lamps
Single or 3-phase wiring
96% radiant efficiency
High-temperature lead wires
20 gauge steel construction
ETL listed
Gold anodized Aluminum reflectors and end caps
Built-in surface mounting brackets

What’s in the Box

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 3 Lamps
3 x Clear Quartz lamps
1-year limited warranty

Available Product Options

Watts: 4.8 kW, 7.5 kW or 10.95 kW
Volts: 208 V, 240 V, 277 V or 480 V
Reflector Pattern: 30° Symmetrical, 60° Symmetrical or 90° Symmetrical
Finish: Brown Enamel or Stainless Steel

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions

Heater

24" L x 21.5" W x 10.88" H, 33" L x 21.5" W x 10.88" H, 46" L x 21.5" W x 10.88" H

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

General

Finish/Coating

Brown enamel finish or Stainless steel

Housing

20 gauge steel

Warranty

1-year limited

Weight

25 lbs, 33 lbs, 41 lbs

Heater

Amps

10, 15.63, 17.33, 20, 22.81, 23.08, 31.25, 36.06

BTU

16,382 BTU, 25,298 BTU, 37,372 BTU

Power Distribution

1-Phase or 3-Phase (wiring)

Voltage

208 V, 240 V, 277 V, 480 V

Wattage

4.8 kW, 7.5 kW, 10.95 kW
