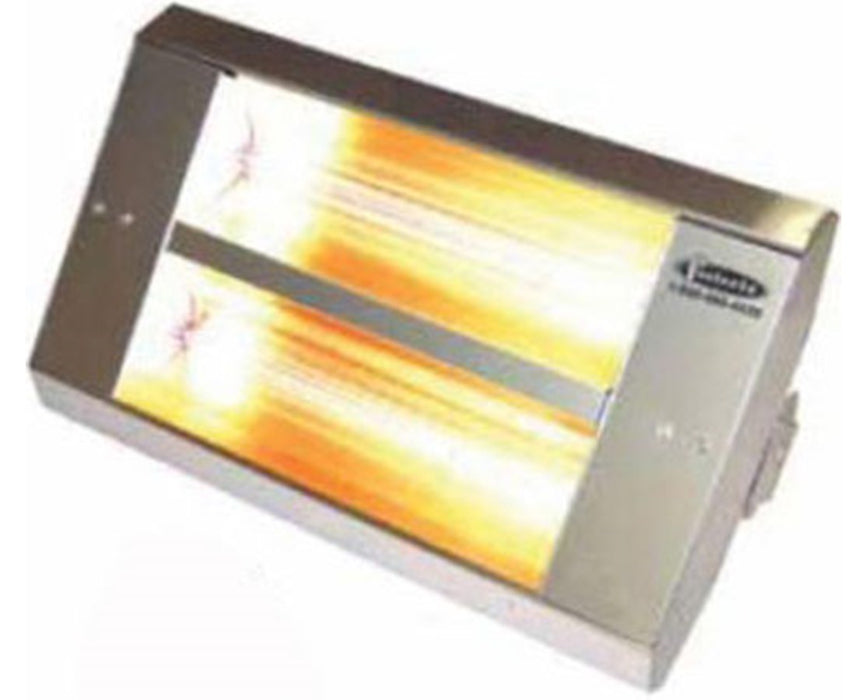

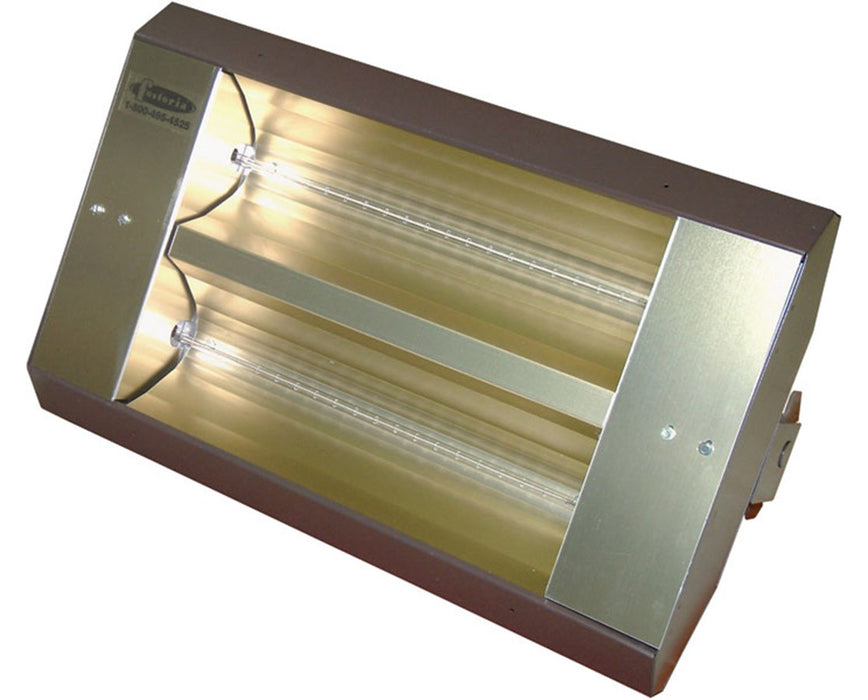

TH & THSS Mul-T-Mount Electric Infrared Heater w/ 2 Lamps

by TPI Corporation

MFR#: 22230TH208V

TIGER#: TS61917

List Price: $983^.00

You Save: $238^.62 -24%

$983^.00 - $983^.00

List Price: $983^.00

$744^.38

$744^.38 - $744^.38

$744^.38

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

TH & THSS Mul-T-Mount Electric Infrared Heater w/ 2 Lamps - $744^.38

$744^.38

*Must Purchase 1 for TH & THSS Mul-T-Mount Electric Infrared Heater w/ 2 Lamps

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/29/2023

Documents

Product Manual Item Brochure Product Video

Choice of watts, volts, reflector pattern & finish
Uses 2 clear Quartz lamps
Single-phase wiring
Efficiency: 96%
High-temperature lead wires
Housing: 20-gauge steel
Gold anodized Aluminum reflectors and end caps
Built-in surface mounting bracket

The TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 2 Lamps is a powerful source that is perfect for suspended outdoor or indoor comfort heating, exterior snow heating, and ice control applications. This TPI infrared heater offers a selectable reflector pattern that is great for recessed use and provides wide coverage.

The TH & THSS Series heater uses two clear Quartz lamps that feature a single-phase wiring. The TPI Mul-T-Mount heater lamp offers a 96% efficiency with high moisture and thermal shock resistance. It also includes high-temperature lead wires that provide safe heating and is long lasting.

This TPI electric infrared heater is housed in a 20 gauge steel housing that is safe to use for both indoor and outdoor applications. For an exceptional reflectivity, it comes with Gold anodized Aluminum reflectors and end caps. The TH & THSS Series features a built-in surface mounting bracket that allows horizontal tilting up to 45 degrees. In addition, it is cETLus listed and is made in the USA.

Configuration Options

The TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 2 Lamps has 80 available models that possess varying features that suit your needs. You can also choose between two finishes: Brown Enamel or Stainless Steel. Please choose from the drop-down menu above.

Heater Wattage	BTUs	Volts	Amps	Reflector Pattern	Dimensions (L x W x H)
3.2 kW	10,922	208 V 240 V 277 V 480 V	15.38 13.33 11.55 6.67	30° Symmetrical 30° Asymmetrical 60° Symmetrical 60° Asymmetrical 90° Symmetrical	24" x 15" x 10.88"
5 kW	17,065	208 V 240 V 480 V	24.04 20.83 10.42	30° Symmetrical 30° Asymmetrical 60° Symmetrical 60° Asymmetrical 90° Symmetrical	33" x 15" x 10.88"
7.3 kW	24,915	480 V	15.21	30° Symmetrical 30° Asymmetrical 60° Symmetrical 60° Asymmetrical 90° Symmetrical	46" x 15" x 10.88"

Choice of watts, volts, reflector pattern & finish
Selectable reflector pattern
Great for recessed use
Provides wide coverage
Uses 2 clear Quartz lamps
Single-phase wiring
96% efficiency
High-temperature lead wires
20-gauge steel housing
Gold anodized Aluminum reflectors and end caps
Built-in surface mounting bracket
Horizontal tilt up to 45°
cETLus listed
Made in the USA

What’s in the Box

TPI TH & THSS Series Mul-T-Mount Electric Infrared Heater with 2 Lamps
2 x Clear Quarts lamps
1-year limited warranty

Available Product Options

Watts: 3.2 kW, 5 kW or 7.3 kW
Volts: 208 V, 240 V, 277 V or 480 V
Reflector Pattern: 30° Asymmetrical, 30° Symmetrical, 60° Asymmetrical, 60° Symmetrical or 90° Symmetrical
Finish: Brown Enamel or Stainless Steel

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions

Heater

24" L x 15" W x 10.88" H, 33" L x 15" W x 10.88" H, 46" L x 15" W x 10.88" H

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

General

Finish/Coating

Brown enamel finish or Stainless steel
