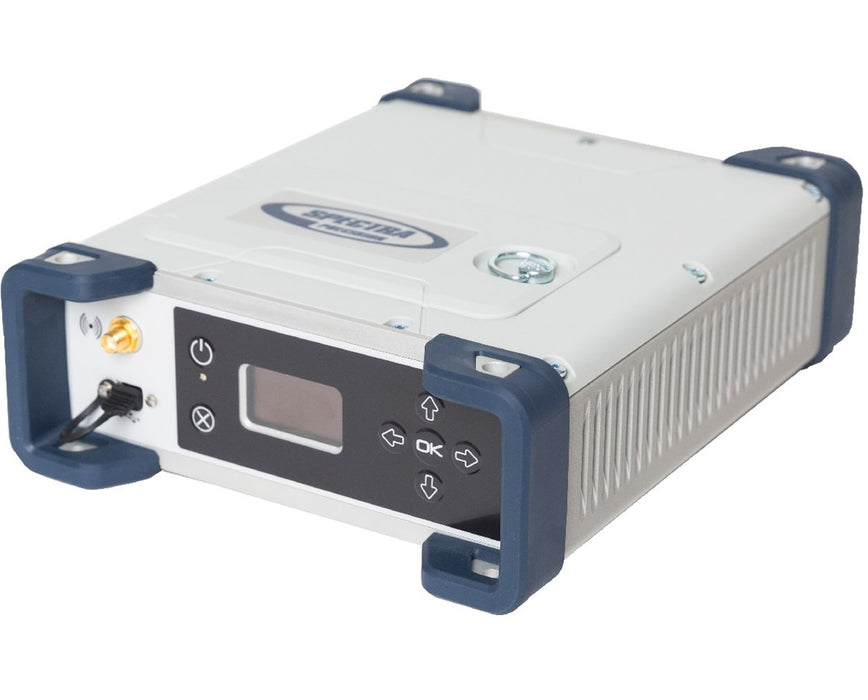

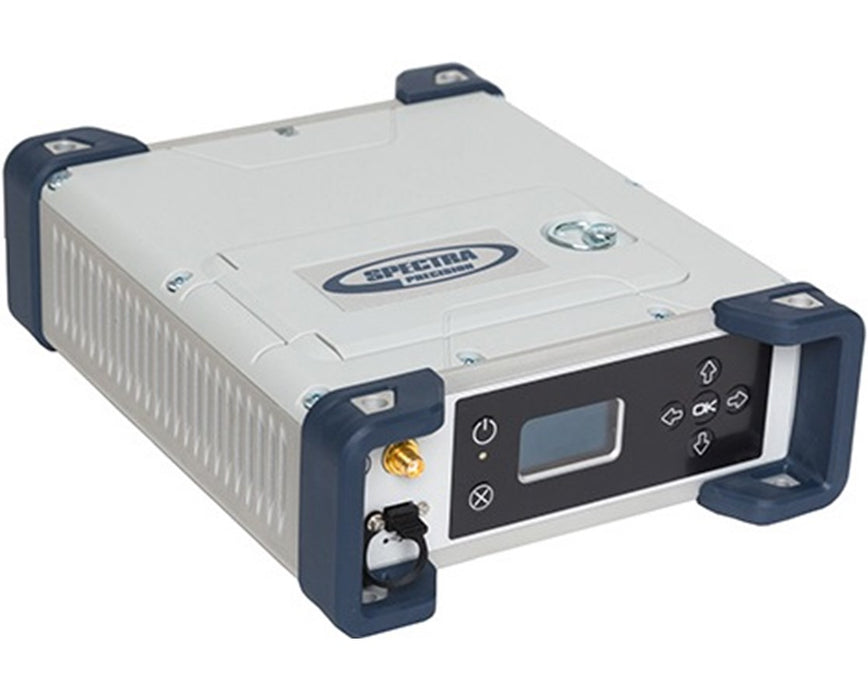

SP90M GNSS Receiver

by Spectra Geospatial

MFR#: 113329-03

TIGER#: TS42922

$3,305^.00 - $3,305^.00

List Price: $3,305^.00

$3,346^.00

$3,346^.00 - $3,346^.00

$3,346^.00

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

SP90M GNSS Receiver - $3,346^.00

$3,346^.00

*Must Purchase 1 for SP90M GNSS Receiver

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 2/22/2024

Documents

Product Manual Item Brochure Product Video

480 GNSS channels
Supports RTCM 3 format
Trimble RTX correction services
Two MMS L-band channels
Dual GNSS antenna inputs
Modem: 3.5G cellular
RTK range up to 24 miles
OLED display, keyboard, and WEB UI

With an ultra-rugged design, the Spectra SP90M GNSS Receiver is a powerful, highly versatile, modular receiver designed for a wide array of real-time and post-processing applications. This professional-grade GNSS receiver offers a variety of integrated communication options such as RTCM-3 format, two MMS L-band channels, and built-in Bluetooth and Wifi for receiving Trimble RTX correction services. Featuring Spectra's patented Z-Blade technology, the SP90M features 480 channels (GPS, GLONASS, GALILEO, BeiDou, QZSS, IRNSS, and SBAS).

With a 99.9% reliability, the Spectra Precision SP90m comes with an instant RTK initialization with a range of up to 24 miles. Plus, it includes a backup RTK and bridge for accurate positioning. This GNSS receiver supports rapid data processing with a recording interval of up to 999 seconds. For a more effective surveying operation, it has additional features like event marker input, PPS output, and Dual GNSS antenna inputs. It is also equipped with a 3.5G cellular modem that can be used for SMS, e-mail, and internet connectivity.

The SP90M features an advanced OLED display, keyboard, and Web UI. It can also resist a drop of up to 3.3 feet and is dustproof and water resistant (IP67). This Spectra GNSS receiver can easily store lots of information with its 8GB memory. As an extra feature, it boasts an anti-theft technology for the protection of the instrument.

Configuration Options

The Spectra Precision SP90M GNSS Receiver offers two packages with an option of UHF internal radio. Both are backed by a two-year manufacturer's warranty. Please select your preference from the drop-down menu above.

SP90M-101-00: SP90M GNSS Receiver Kit without Internal UHF Radio
SP90M-101-60: SP90M GNSS Receiver Kit with Internal 410-40 MHz UHF Radio
SP90M-102-00: SP90m GNSS Receiver Kit without Internal UHF Radio, 4G
SP90M-102-60: SP90M GNSS Receiver Kit with Internal 410-40 MHz UHF Radio, 4G

The Internal 410-40 MHz UHF Radio enables the Spectra SP90M GNSS Receiver to work in almost any weather condition and not be affected by solar activity. Construction professionals and surveyors can easily process highly accurate data anywhere without any interference.

Optional internal UHF radio
Reliable with an ultra-rugged design
Highly versatile, modular receiver design
RTCM-3 format
2 MMS L-band channels
Built-in Bluetooth and Wifi communications
Trimble RTX correction services
480 GNSS channels (GPS, GLONASS, GALILEO, BeiDou, QZSS, IRNSS, and SBAS)
Z-Blade technology
3.5G cellular modem
SMS, e-mail and internet connectivity
99.9% reliable
Instant RTK initialization
RTK range up to 24 miles (40 Km)
Backup RTK and bridge
Recording interval up to 999 seconds
Event marker input
PPS output
Dual GNSS antenna inputs
OLED display, keyboard, and WEB User Interface
Drop-resistant up to 3.3 feet (1m)
IP67 dustproof and water resistant
8GB internal memory
Anti-theft technology

What’s in the Box

Spectra SP90M GNSS Receiver
User Manual
2-year manufacturer's warranty

Available Package Options

SP90M-101-00

Spectra SP90M GNSS Receiver Without Internal UHF Radio
Bluetooth Antenna
Li-Ion Battery 7.4V, 3700mAHr
Dual Li-Ion Battery Charger
2 X Battery Spacer Inserts for Charger
Power Supply 100-240VAC
Power Cable 0.6m, 7P Lemo to SAE
Adapter Cable 0.15m, SAE to DC socket (2.1mm)
OTG Cable USB A to Mini USB B
Tape Measure, 3.6m / 12ft
Transport Bag
Quick Start Guide

SP90M-101-60

Spectra SP90M GNSS Receiver With Internal 410-40 MHz UHF Radio
Antenna 5" Whip - TNC 410-470MHz Radio
Bluetooth Antenna
Li-Ion Battery 7.4V, 3700mAHr
Dual Li-Ion Battery Charger
2 x Battery Spacer Inserts for Charger
Power Supply 100-240VAC
Cable - 1.5m, DB9(F) Y to 0S/7P/M to Power Jack
OTG Cable USB A to Mini USB B
Tape Measure, 3.6m / 12ft
Transport Bag
Quick Start Guide

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

DGPS

Horizontal: 25 cm + 1ppm; Vertical: 50 cm + 1 ppm

Flying RTK

5 cm (0.165 ft) + 1 ppm (steady state) horizontal for baselines up to 1000 km

Post Processing

Horizontal: 8 mm (0.026 ft) + 0.5 ppm, Vertical: 20 mm (0.065 ft) + 1.0 ppm

RTK

Horizontal: 8 mm + 1 ppm; Vertical: 15 mm + 1 ppm

SBAS

< 50 cm (1.64 ft)

Static

Horizontal: 3 mm (0.009 ft) + 0.5 ppm, Vertical: 5 mm (0.016 ft) + 0.5 ppm

Advanced Features

Shock Protection

Yes

Weather Protection

Yes

Applications

Kinematic Survey

Yes

Mapping

Yes

Static Survey

Yes

Battery/Power

Battery Life

Up to 4 hrs (RTK Base, GNSS On, UHF Tx On), Up to 6 hrs (RTK Rover, GNSS On, UHF Rx On)

Power Source

Li-ion battery, 27.8 Wh (7.4 V x 3.7 Ah)

Voltage

9-36 V DC input

Communication Interface

Bluetooth

v2.1 + EDR

Cellular

3.5G

Ethernet

Yes

Internal UHF

Optional

PPS Output

RS232

RS232 (9-pin serial adapter)

Yes

USB

OTG

Wireless LAN

WiFi (802.11 b/g/n)

Display/Keypad

Keys

6 keys

Type

OLED

Functions

Base Configuration

Yes

NTRIP Protocol

Yes

Post Processing

Yes

Raw Data Recording

Yes

Rover Configuration

Yes

General

Dimensions

6.5" L x 8.1" W x 2.6" H (16.5 x 20.6 x 6.5 cm)

Warranty

2-year

Weight

3.66 lbs. (1.66 kg) without UHF; 3.75 lbs. (1.70 kg) with UHF

Memory

Expandable

Expandable when used with USB and hard drives

On-Board

8GB

Software

On-Board

Yes

Temperature

Operating

-40 to 149 °F (-40 to 65°C)

Storage

-40 to 203 °F (-40 to 95 °C)

Tracking Features

Antenna

UHF

Channels

480

Frequency

410-40 MHz

RTK

Yes

Satellites

GPS, GLONASS, GALILEO, BeiDou, QZSS, IRNSS, SBAS
