SP60 GIS GNSS Single Receiver Kit

Spectra Geospatial
by Spectra Geospatial
MFR#: 104234-80
TIGER#: TS35609
List Price: $4,020.00
You Save: $492.00 -12%
$4,020.00 - $4,020.00
List Price: $4,020.00
$3,528.00
$3,528.00 - $3,528.00
$3,528.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart

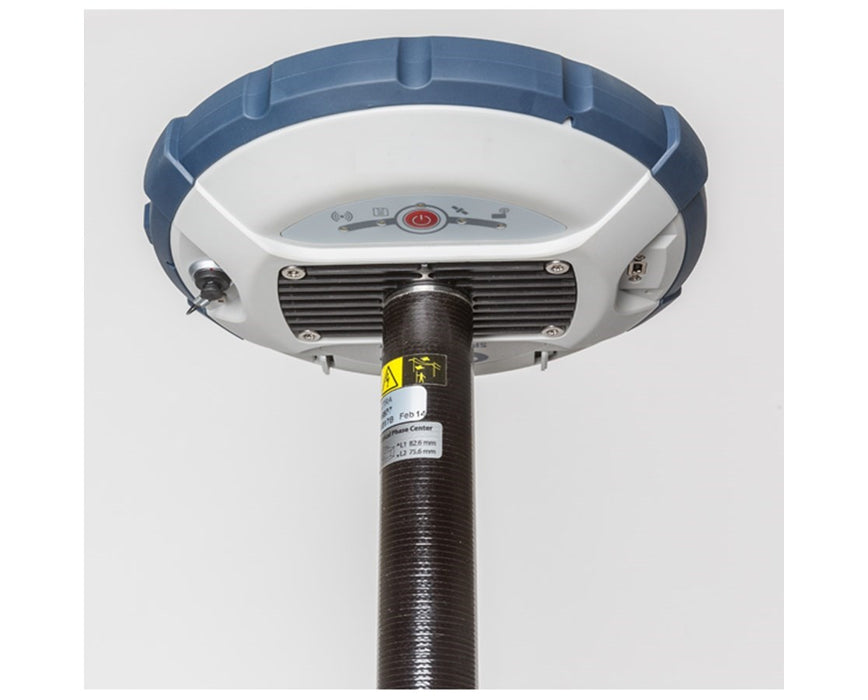

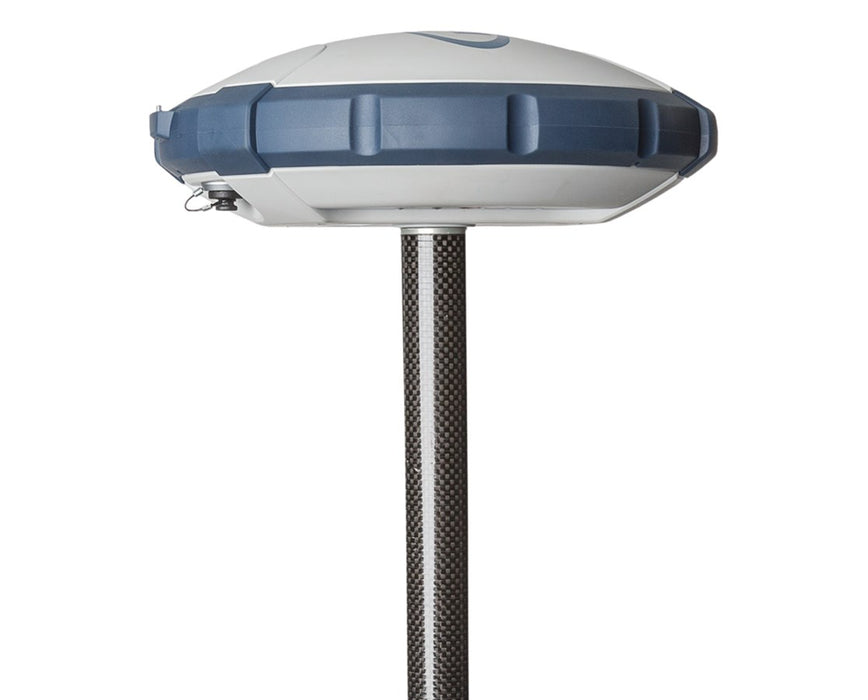

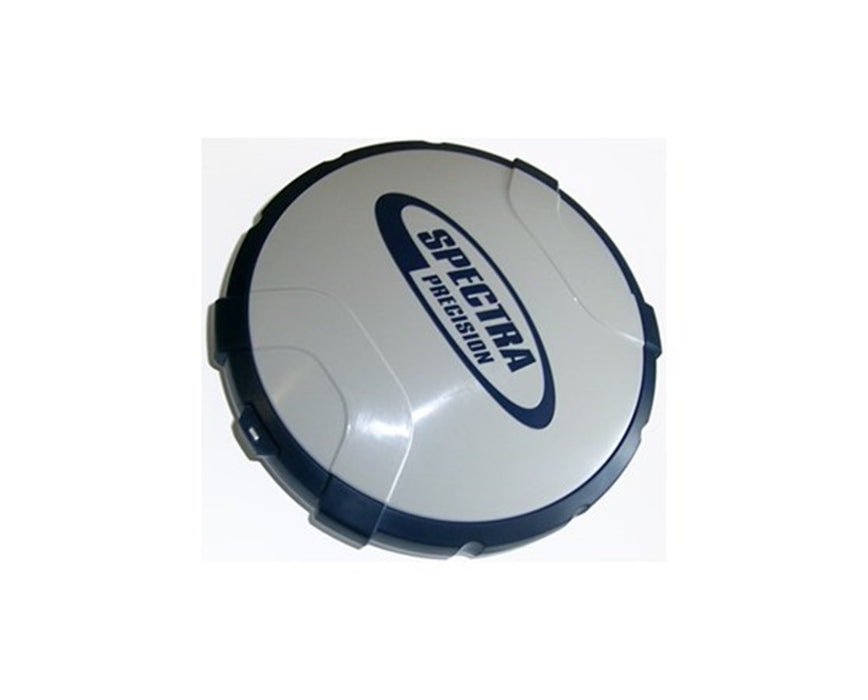

SP60 GIS GNSS Single Receiver Kit
SP60 GIS GNSS Single Receiver Kit - $3,528.00
$3,528.00
*Must Purchase 1 for SP60 GIS GNSS Single Receiver Kit

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 12/21/2023
Documents
Item Brochure
  • Capture & analyze all types of geographical data
  • Smart patented antenna
  • Compatible with Android devices
  • Integrated Bluetooth
  • Free SPace APP
  • IP67 dustproof and water immersible
  • Battery life up to 10 hours

Meticulously designed to meet the needs of every surveyor, the Spectra Precision SP60 GIS Single Receiver Kit offers increased accuracy of any android mobile device suitable for capturing and analyzing all types of geographical data. This SP60 receiver can be used effectively with any Geographical Information Systems (GIS) software running on any Android device. A free version of the Spectra Precision accuracy enabler (Space) application is also downloadable from Google Play Store which also supports the SP60 and SP80 GNSS receivers.

With the SP60 GIS single receiver, your smart phone, laptop or tablet device is capable of precision surveying. In addition, this kit gives you two choices of accuracies - 30/30, (Horizontal 30 cm, Vertical 30 cm) and 7/2, (Horizontal 7 cm, Vertical 2 cm). Equipped with long range Bluetooth connectivity, Anti-Theft Technology and extended scalability, this versatile receiver is ideal from simple GIS workflows to the most demanding surveying jobs.

Waterproof to IP67 standard, the SP60 can handle the toughest outdoor conditions. The patented antenna, set inside the fiberglass rod, extends the range of its performance and provides protection at the same time. All of these enhancements make the design of SP60 GIS receiver truly unique and powerful. Comes complete with rechargeable battery pack which lasts up to 10 hours, the SP60 GIS receiver is backed up with a 2-year manufacturer’s warranty.

Configuration Options

The Spectra Precision SP60 GIS Single Receiver Kit comes in two accuracy options. Select your preference on the dropdown section above.

  • 104234-80: SP60 GIS 30/30 Single Receiver Kit
  • 104234-85: SP60 GIS 7/2 Single Receiver Kit
  • Choice of 2 accuracy
  • For capturing and analyzing all types of geographical data
  • Smart antenna
  • Compatible with Android devices
  • Integrated Bluetooth
  • Free SPace APP
  • Water and dust-proof to IP67
  • Up to 10-hour battery life
  • Includes battery pack and charger
  • 2-year manufacturer's warranty

What’s in the Box

  • Spectra SP60 GIS Single Receiver Kit
  • Spectra Precision Survey Office Basic Software
  • Rechargeable battery pack
  • Battery charger
  • Power cord kit with C7 connector
  • Power supply
  • Tape measure
  • Extension pole
  • Cable USB client to host
  • Field system bag
  • SP60 Quick Start Guide
  • Anti-Theft Technology sticker
  • 2-year manufacturer's warranty

Available Package Options

Accuracy

  • 30 cm Horizontal/ 30 cm Vertical
  • 7 cm Horizontal/ 2 cm Vertical

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
DGPS
Horizontal: 25 cm + 1 ppm, Vertical: 50 cm + 1 ppm
Post Processing
Horizontal: 3 mm + 0.5 ppm, Vertical: 5 mm + 0.5 ppm
RTK
Horizontal: 8 mm + 1 ppm, Vertical: 15 mm + 1 ppm
SBAS
Horizontal: < 50 cm, Vertical: < 85 cm
Static
Horizontal: 3 mm + 0.5 ppm, Vertical: 5 mm + 0.5 ppm
Advanced Features
Shock Protection
Yes
Weather Protection
Yes
Applications
Kinematic Survey
Yes
Mapping
Yes
Static Survey
Yes
Topographic Survey
Yes
Battery/Power
Battery Life
Up to 10 hours
Power Source
Li-ion battery
Voltage
7.4 V
Communication Interface
Bluetooth
2.1 + EDR. Long range: Class 1 (19dbm)
Internal UHF
PN 67410-11 or 67410-12 antenna
NMEA 0183
Yes
RS232 (9-pin serial adapter)
Yes
USB
USB 2.0/UART and USB OTG
Display/Keypad
Type
LED light
Functions
Base Configuration
Yes
NTRIP Protocol
Direct IP
Post Processing
Yes
Raw Data Recording
Yes
Rover Configuration
Yes
RTK Network Rover
VRS, FKP, MAC
General
Dimensions
8.3” L x 8.3” W x 2.3” H (21.1 x 21.1 x 5.8 cm)
Housing
impact-resistant housing
Warranty
2-year
Weight
2.08 lbs. (0.94 kg)
Memory
On-Board
256 MB internal memory NAND Flash
Operating System
Processor
SPSO
Software
On-Board
Spectra Precision Survey Office Basic Software
Upgradeable
Yes
Temperature
Operating
-40 to 149 °F (-40 to 65 °C)
Storage
-40 to 185 °F (-40 to 85 °C)
Tracking Features
Antenna
UHF
Channels
240
Frequency
L1/L2
Range
>25 mi (>40 km)
RTK
Yes
Satellites
GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS
