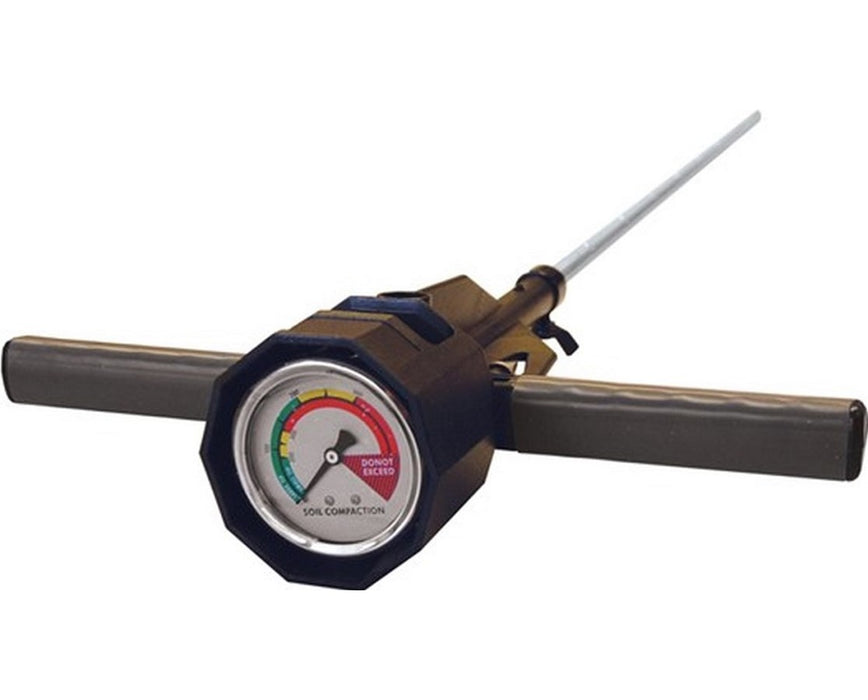

Soil Compaction Tester / Dial Penetrometer

by Turf-Tec

MFR#: PN-COMP1-S

TIGER#: TS70786

$250.00 - $250.00

List Price: $250.00

$292.50

$292.50 - $292.50

$292.50

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Soil Compaction Tester / Dial Penetrometer - $292.50

$292.50

*Must Purchase 1 for Soil Compaction Tester / Dial Penetrometer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 9/30/2023

Documents

Product Manual Item Brochure

Measures hardpans at different soil depths
Penetration depth up to 24”
Include 1/2" and 3/4" diameter tips
Stainless steel rod
Rubber grip handles
Compliance to ASAE S313.3 standard
Color-coded dial for testing ranges
Hanger hole with nail for easy storage

Made in the USA, the Turf-Tec Soil Compaction Tester / Dial Penetrometer is a simple tool that measures hardpans at different soil depths in compliance to the ASAE S313.3 standard. With this easy to operate dial penetrometer, you can test soil profiles down to 24 inches deep. It is often used to determine the feasibility of farming and evaluate the turfgrass area.

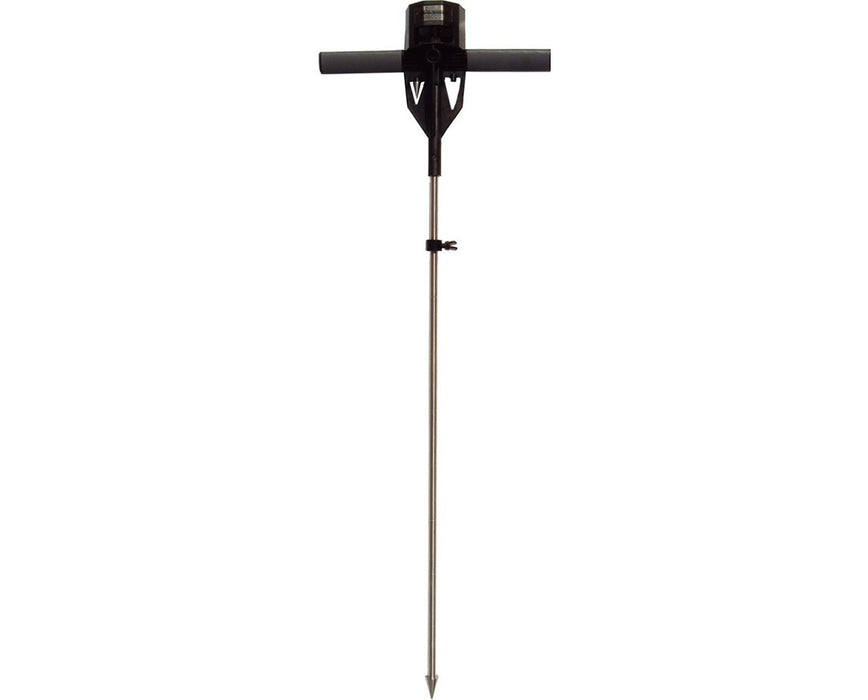

Measuring 37 inches long, the Turf-Tec soil compaction tester includes two tips - a 1/2” diameter tip for firm soil and a 3/4” diameter tip for soft soil. The dial has two scales (one for each tip) that are calibrated in pounds per square inch (PSI) of the base area of the cone-shaped tip. It is equipped with rubber grip handles and features a stainless steel rod with an adjustable shock collar to prevent damage to the gauge during transport and use.

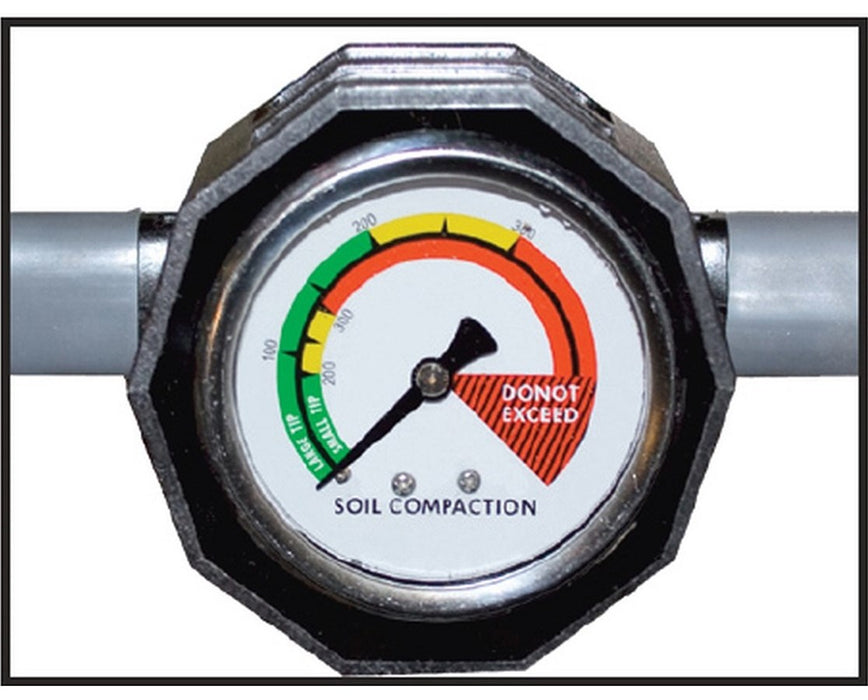

The Turf-Tec soil compaction tester features an easy to read, stainless steel dial that is liquid filled to reduce shock. This dial is also color-coded in green, yellow and red testing ranges to determine if the soil conditions are good, fair or poor. It includes a hanger hole with a nail for secure storing and covered by a 1-year limited warranty.

Measures hardpans at different depths in the soil profile
Penetration depth up to 24”

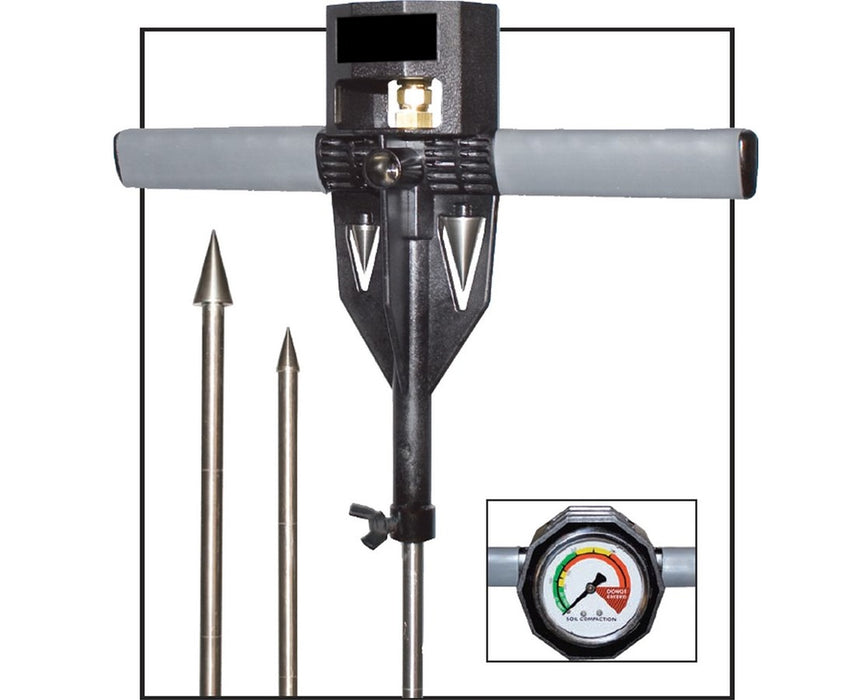

Two tips included: 1/2" for firm soil, 3/4" for soft soil
Stainless steel rod with an adjustable shock collar
Durable molded housing with rubber grip handles
Based on ASAE S313.3 standard
Color-coded dial for testing ranges
Hanger hole with nail included for easy storage on wall or above a workbench

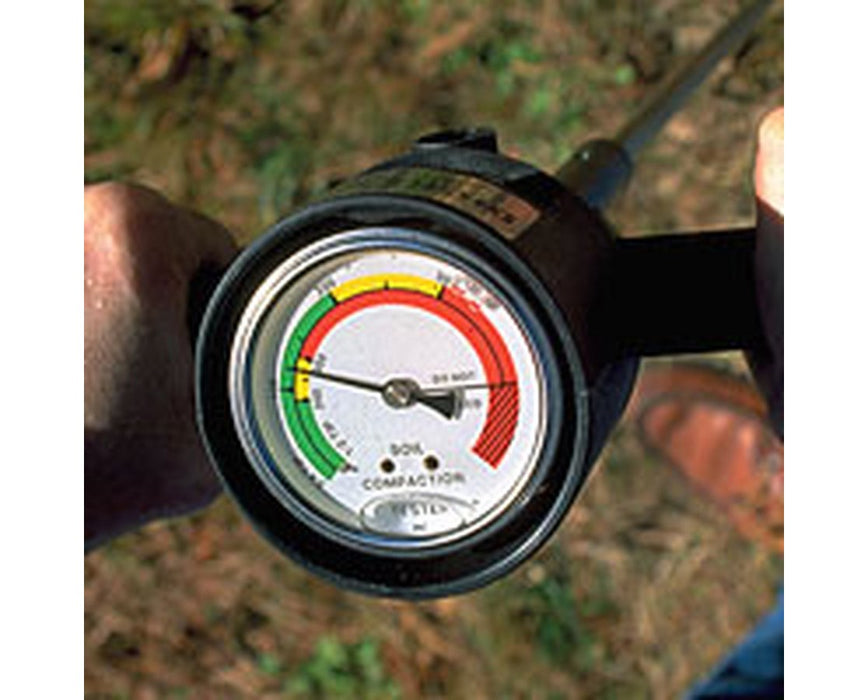

Easy to read dial
Green testing range (0-200 psi): good growing conditions
Yellow testing range (200-300 psi): fair growing conditions
Red testing range (300 psi and above): poor growing conditions
Size: 37 x 12.5 x 3.5 Inch (94 x 32 x 9 cm)
Weight: 3 lbs
Made in the USA

What’s in the Box

Turf-Tec Soil Compaction Tester / Dial Penetrometer
1/2" and 3/4" diameter tips
User Manual
1-year limited warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 30% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Features

Sample Depth

24"

Standard

ASAE S313.3

Tip Size

0.5", 0.75"

General

Height

37"

Material

Stainless Steel

Weight

3 lbs.
