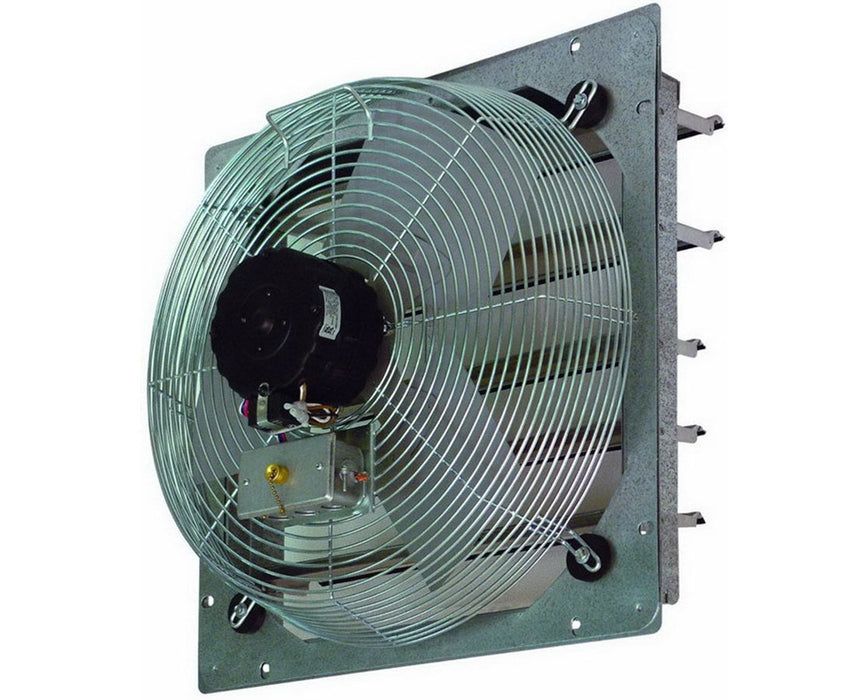

Shutter-Mounted Direct Drive Exhaust Fan

MFR#: CE10DS
TIGER#: TS59264
Original price List Price: $458.00
You Save: $111.17 -24%
Original price $458.00 - Original price $458.00
Original price List Price: $458.00
Current price $346.83
$346.83 - $346.83
Current price $346.83
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Shutter-Mounted Direct Drive Exhaust Fan
Shutter-Mounted Direct Drive Exhaust Fan - $346.83
$346.83
*Must Purchase 1 for Shutter-Mounted Direct Drive Exhaust Fan

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/29/2023
  • Choice of 8 fan sizes & HP
  • Keeps moisture out of humid areas
  • Pull-chain switch

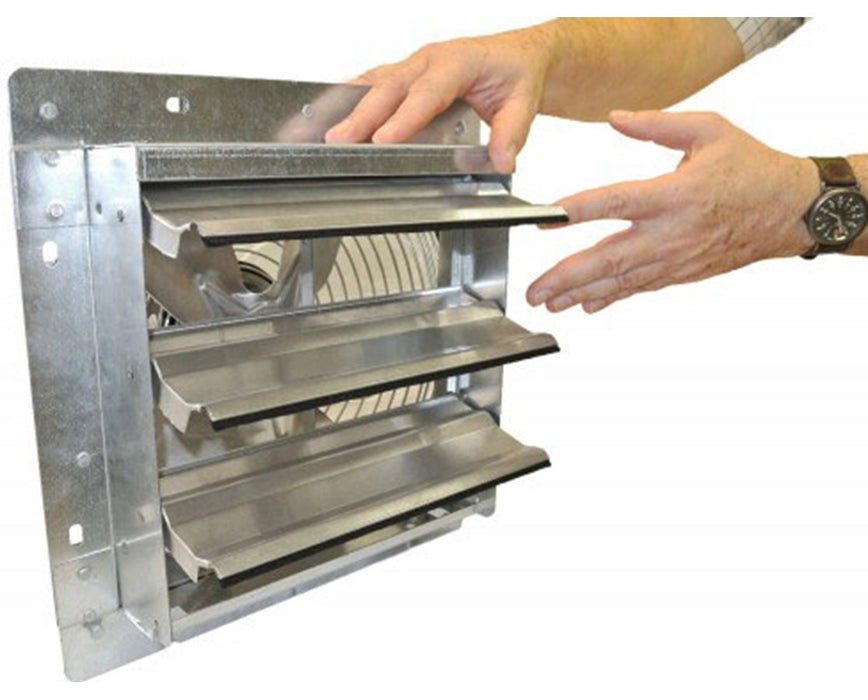

  • Lessens the need for shutters and external framing
  • Can be installed from inside wall
  • Single-phase, 120V motor
  • Rough-in hole: 1/2”
  • Aluminum blade construction

Perfect for humid areas, the TPI Shutter-Mounted Direct Drive Exhaust Fan provides the best and cost-effective solution for keeping moisture out of bathrooms, kitchens, and laundry rooms. Featuring a pull chain switch, this TPI exhaust fan is directly mounted to any shutter which lessens the need for shutters and external framing.

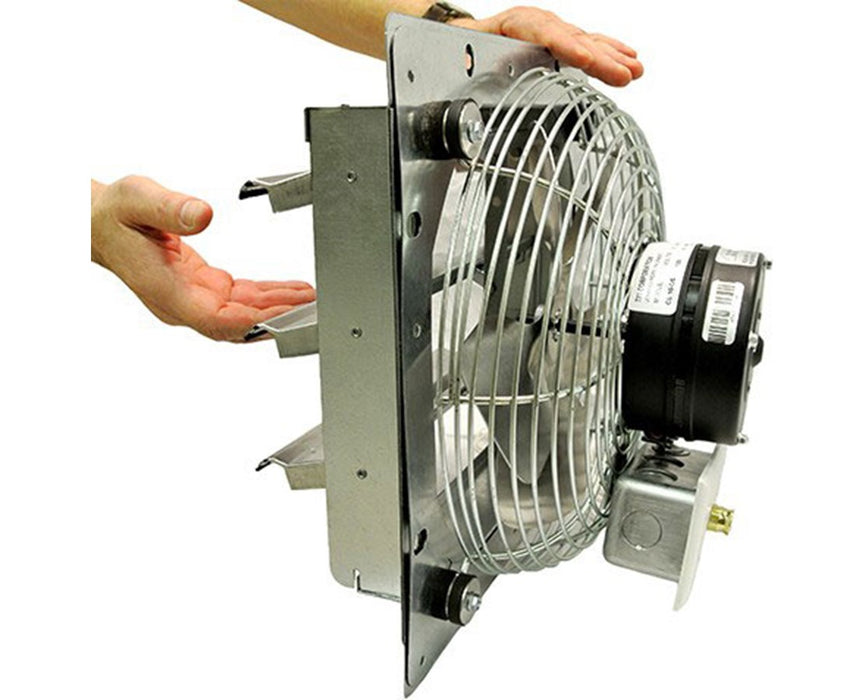

This TPI shutter-mounted exhaust fan comes can be installed from inside the wall. It uses a single-phase, 120-volt motor that is totally enclosed and is permanently lubricated. Also, it features a 1/2-inch rough-in hole that is bigger than the fan blade.

The TPI direct drive exhaust fan is constructed of aluminum blade and steel spiral wire guards that guarantee a long-lasting performance. As an extra feature, this TPI fan a no cord-junction box for direct wiring.

Configuration Options

The TPI Shutter-Mounted Direct Drive Exhaust Fan offers eight models with different fan size and horsepower motor. Please choose from the drop-down menu above.

  • CE10DS: 10” Fan, 1/12 HP (3-Speed Sleeve Bearing)
  • CE12DS: 12” Fan, 1/12 HP (3-Speed Sleeve Bearing)
  • CE14DS: 14” Fan, 1/8 HP (3-Speed Sleeve Bearing)
  • CE16DS: 16” Fan, 1/8 HP (3-Speed Sleeve Bearing)
  • CE18DS: 18” Fan, 1/8 HP (3-Speed Sleeve Bearing)
  • CE20DS: 20” Fan, 1/4 HP (2-Speed Ball Bearing)
  • CE24DS: 24” Fan, 1/4 HP (2-Speed Ball Bearing)
  • CE30DS: 30” Fan, 1/4 HP (2-Speed Ball Bearing)
  • Choice of 8 fan sizes & HP
  • Keeps moisture out of humid areas
  • Pull chain switch
  • Lessens the need for shutters and external framing
  • Can be installed from inside wall
  • Single-phase, 120V motor
  • Totally enclosed
  • Permanently lubricated
  • 1/2” rough-in hole
  • Aluminum blade construction
  • Steel spiral wire guards
  • Includes no cord-junction box

What’s in the Box

  • TPI Shutter-Mounted Direct Drive Exhaust Fan
  • No cord junction box
  • User manual
  • 1-year limited warranty

Available Package Options

  • Fan Size: 10”, 12”, 14”, 16”, 18”, 20”, 24” or 30”
  • HP (horsepower): 1/12, 1/8 or 1/4

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan
Amps
1 (CE10DS); 1.1 (CE12DS); 2 (CE14DS); 2.1 (CE16DS); 2.2 (CE18DS); 2.3 (CE20DS); 2.5 (CE24DS); 2.7 (CE30DS)
Blade Size
10" (CE10DS); 12" (CE12DS); 14" (CE14DS); 16" (CE16DS); 18" (CE18DS); 20" (CE20DS); 24" (CE24DS); 30" (CE30DS)
Cubic Feet per Minute (CFM)
Up to 680 (CE10DS); Up to 825 (CE12DS); Up to 1,520 (CE14DS); Up to 2,100 (CE16DS); Up to 2,300 (CE18DS); Up to 2,925 (CE20DS); Up to 3,400 (CE24DS); Up to 3,950 (CE30DS)
Fan Type
Exhaust fans
Speed (Revolutions per Minute)
Up to 1,560 (CE10DS, CE12DS); Up to 1,660 (CE14DS, CE16DS, CE18DS); Up to 1,140 (CE20DS, CE24DS, CE30DS)
General
Material
Aluminum blades/steel spiral wire guards
Warranty
1-year limited
Weight
11 lbs (CE10DS); 16 lbs (CE12DS); 17 lbs (CE14DS); 18 lbs (CE16DS); 25 lbs (CE18DS); 34 lbs (CE20DS); 47 lbs (CE24DS); 54 lbs (CE30DS)
Motor
Horsepower (HP)
1/12 (CE10DS, CE12DS); 1/8 (CE14DS, CE16DS, CE18DS); 1/4 (CE20DS, CE24DS, CE30DS)
Lubrication
Permanent
Power
1-Phase, 120V
Speed Switch
3-speed (CE10DS, CE12DS, CE14DS, CE16DS, CE18DS); 2-speed (CE20DS, CE24DS, CE30DS)
Split Capacitor
Permanent
