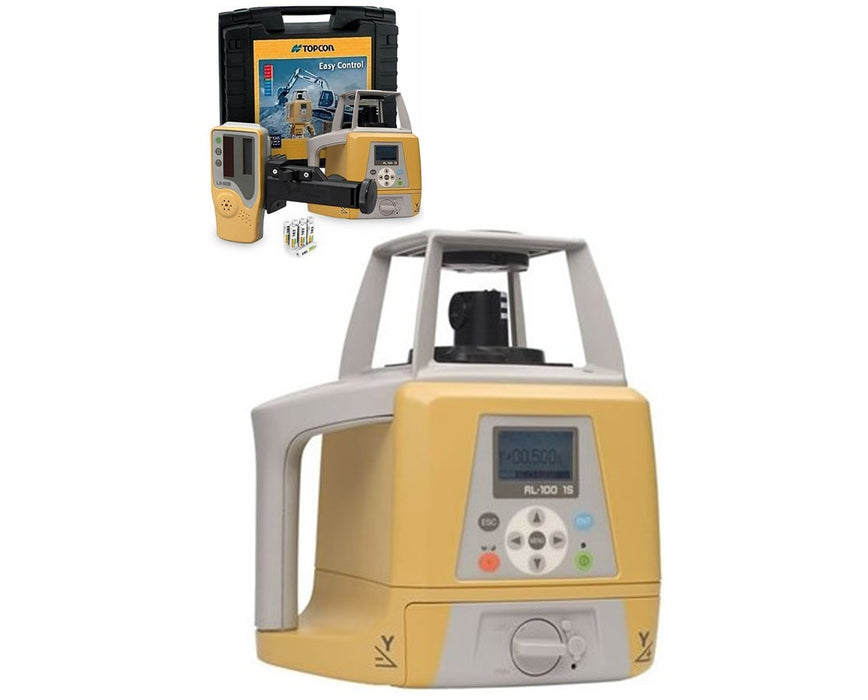

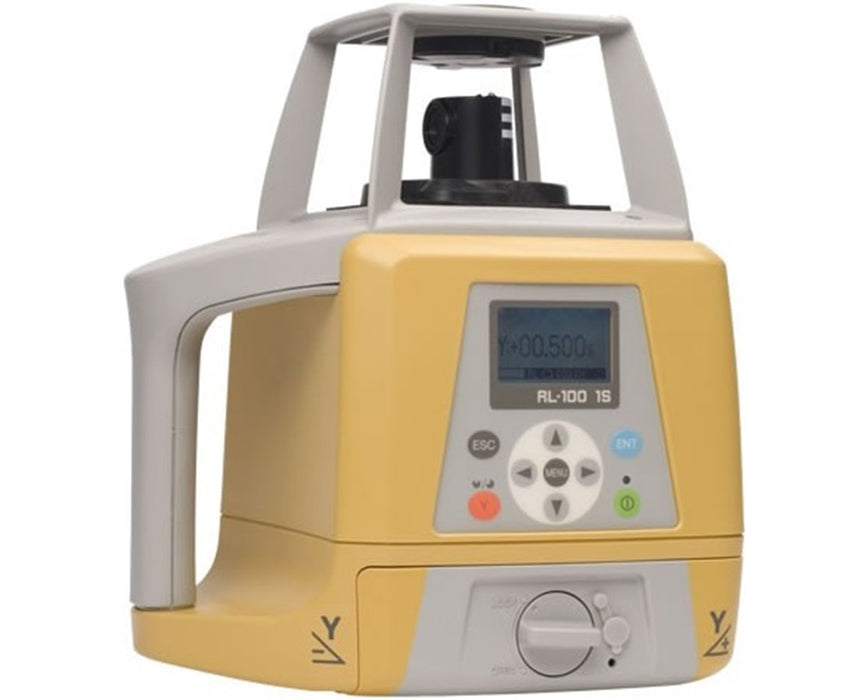

RL-100 1S Single Grade Laser

by Topcon

MFR#: 314860702

TIGER#: TS13655

List Price: $2,795.00

You Save: $69.87 -2%

$2,795.00 - $2,795.00

List Price: $2,795.00

$2,725.13

$2,725.13 - $2,725.13

$2,725.13

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

RL-100 1S Single Grade Laser - $2,725.13

$2,725.13

*Must Purchase 1 for RL-100 1S Single Grade Laser

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/28/2023

Requires Manager App for Bluetooth Connectivity. Purchase in Appstore for $99

Documents

Product Manual Item Brochure

Essential Add-Ons:

Universal Contractor’s Tripod

Details

$52.20

$149.95

Aluminum Rod

Details

$33.95

$44.95

Range up to 2,600 feet with laser receiver
Accuracy of ±10 arc second horizontally
Repeatability of ±5 arc second
Grade range of -5 to +25%
Auto-leveling within ±5 degrees
Rotation speed: 300, 600 or 900 RPM
IP66 dustproof and water resistant
High-contrast LCD graphic display

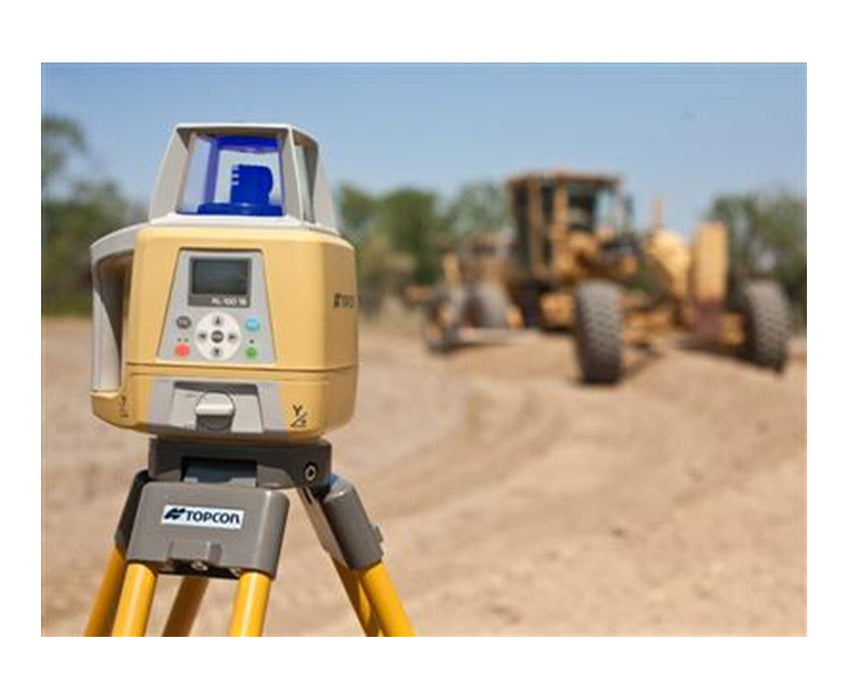

Rugged, lightweight and compact, the Topcon RL-100 1S Single Grade Laser sets the new standards for accuracy and precision. With a range up to 2,600 feet with a laser receiver, it is ideal for most construction leveling and grading applications. The RL-100 1S comes with an accuracy of ±10 arc second horizontally and has one of the highest repeatability, ±5 arc seconds. Also, this grade laser provides a single slope from -5% to +25% in x or y-axis.

The Topcon RL-100 1S is auto-leveling within ±5 degrees and has a rotation speed of 300, 600 or 900 rotations per minute. To prevent errors while leveling, it features an adjustable speed of 300, 600 or 900 rotations per minute. Also, it includes a high-contrast, LCD graphic display for easy reading. Plus, it has an operating temperature of -4°F to +122°F which allows the device to endure any weather condition.

With an IP66 rating, the Topcon RL-100 1S is dustproof and water resistant. It operates up to 85 hours with alkaline batteries and 80 hours with NiMH batteries. In addition, it includes a 5/8-11 tripod screw which is compatible with most tripod brands.

Configuration Options

The RL-100 1S Single Grade Laser comes has two available batteries. Please choose from the drop-down menu above.

57127LA: Alkaline Batteries
57127LB: NiMH Batteries

Choice of 2 batteries
Range up to 2,600 feet with laser receiver
Accuracy of ±10 arc second horizontally
Repeatability of ±5 arc second
Grade range of -5 to +25%
Auto-leveling within ±5 degrees
Rotation speed: 300, 600 or 900 RPM
Height-of-Instrument alert
Operating temperature: -4°F to 122°F
High-contrast LCD graphic display
Up to 85 hours with alkaline batteries
Up to 80 hours with NiMH batteries
IP66 dustproof and water resistant
5/8-11 tripod thread

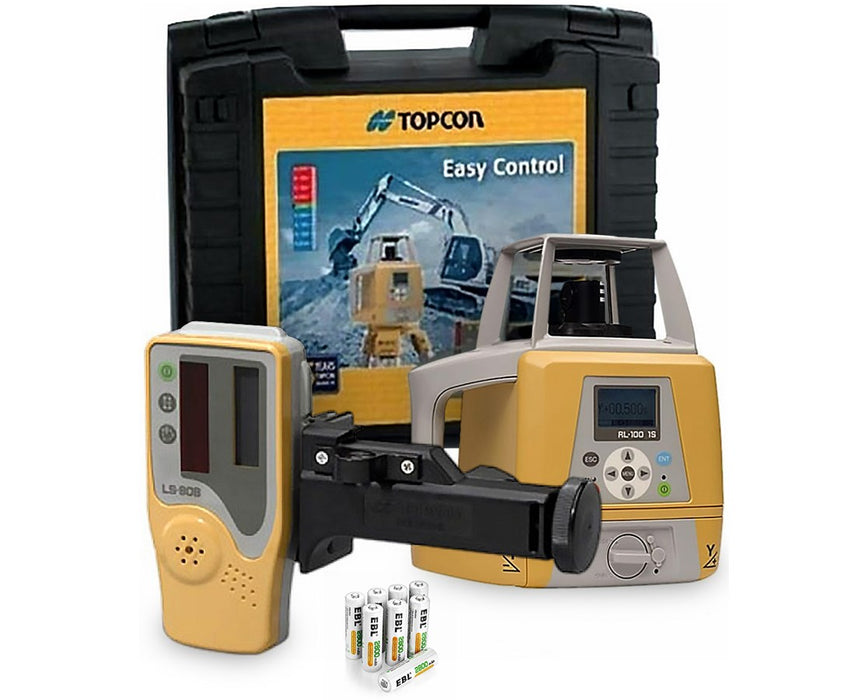

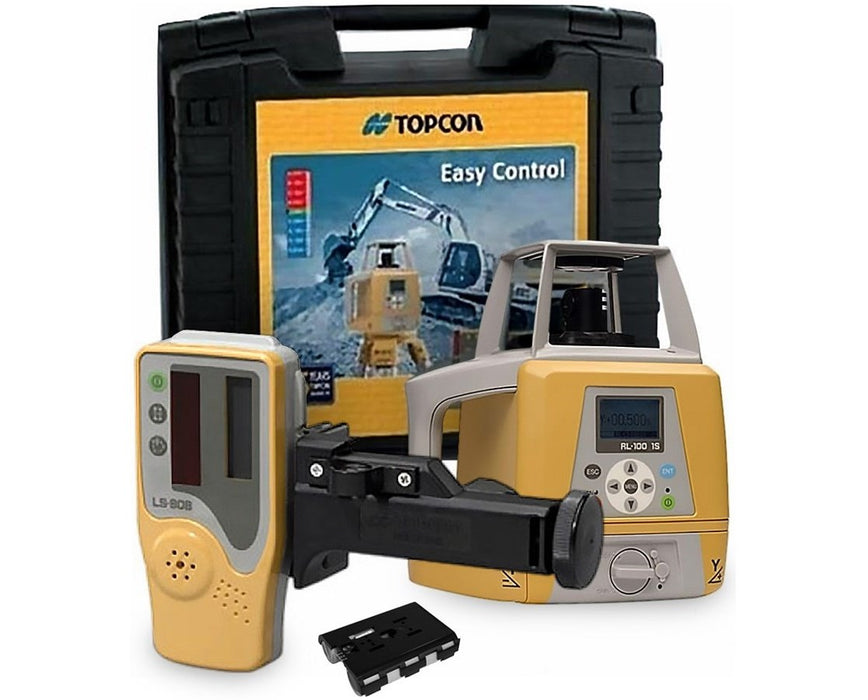

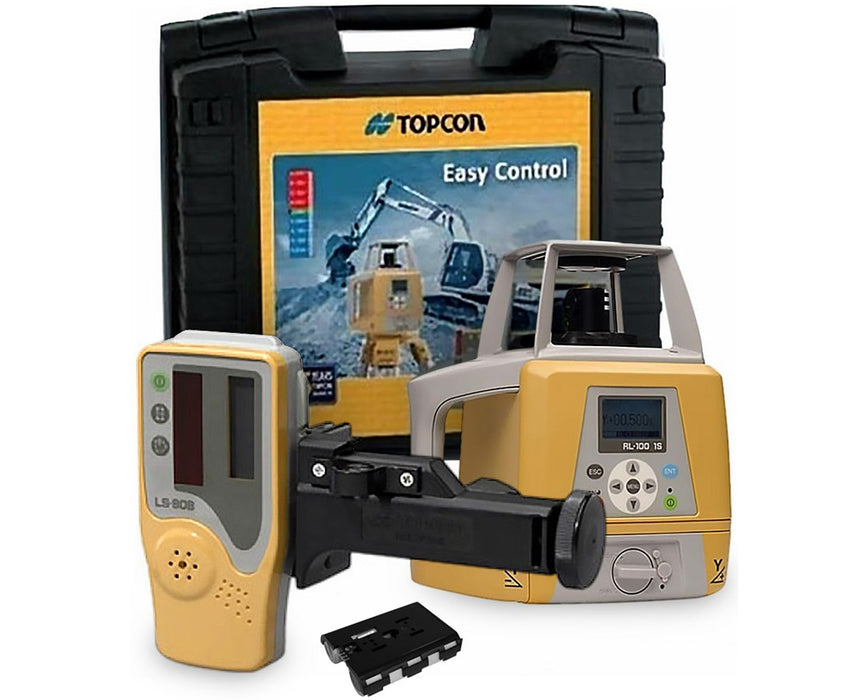

What’s in the Box

Topcon RL-100 1S Single Grade Laser
LS-80B laser receiver with holder
Hard carrying case
Battery
User manual
5-year manufacturer's warranty

Available Package Options

Battery: Alkaline or Rechargeable NiMH

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 20% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

Horizontal

±10 arc seconds

Applications

Concrete Forms, Footings and Foundations

Yes

Checking Building Square & Area

Yes

Checking Elevations of Sub-Base and Sub-Grade

Yes

Checking/Setting Elevations

Yes

Estimating Cut & Fill

Yes

Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)

Yes

Installation/Leveling Ceiling Grids

Yes

Installation/Leveling Interior Walls

Yes

Locating Finished Floor Levels

Yes

Matching Existing Slope & Grade

Yes

Short-Range Leveling for Decks, Patios & Swimming Pools

Yes

Short-Run Vertical Alignment

Yes

Squaring and Layout of Partitions, Walls & Tile Floors

Yes

Transferring Points from Floor to Ceiling

Yes

Battery/Power

Battery Life Alert

Yes

Battery Life with Alkaline Batteries

Up to 85 hours

Battery Life with Rechargeable Battery Pack

Up to 80 hours

Power Source

Rechargeable NiMH or D-cell Alkaline batteries

Extra Technology

Detector/Receiver

LS-80A

Features

Adjustable Rotating Speed

300, 600, 900 RPM

Bump Sensor (H.I./Out of Position Alert)

Yes

Display

Backlit, graphic LCD

Protection Class

IP66 dustproof and powerful water jet resistant

Tripod Adapter (Center Screw Thread)

5/8 x 11

Functions

Automatic Leveling

Yes

Beam Operating Modes

Beam masking

Grade Operation

Automatic

General

Dimensions

6.9" L × 8.6" W × 10.0" H

Warranty

5-year

Weight

7.5 lbs (3.4 kg)

Grade

Percentage

–5 to +25%

Type

Single

Laser

Classification

Class 3

Color

Red

Direction

Horizontal and vertical

Visibility

Visible

Wavelength

685 nm

Range

Exterior

Up to 2,624 feet (800 m)

Self Leveling

±5 degrees

Temperature

Operating

-4 to 122 °F (-20 to 50 °C)
