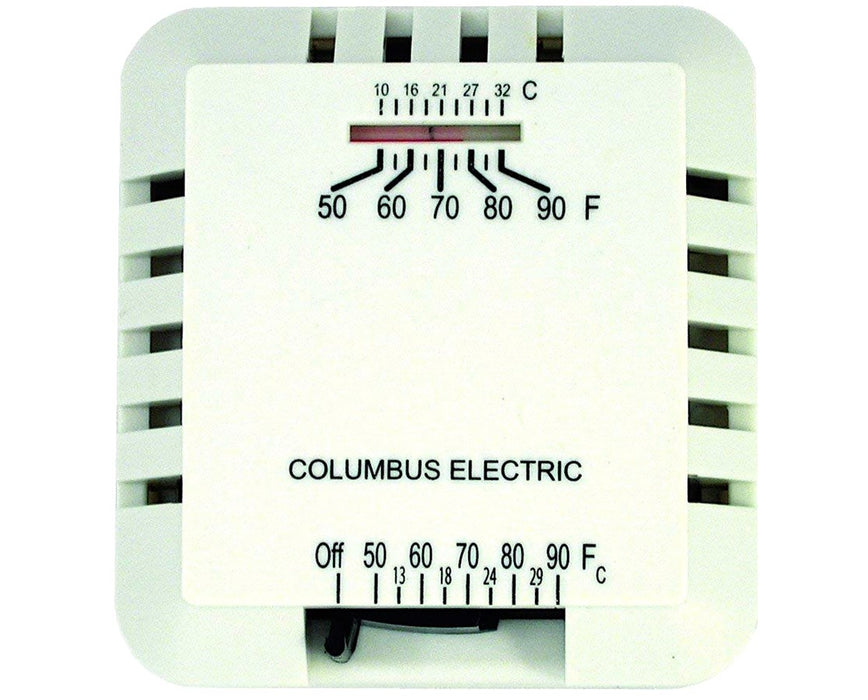

RK Heat Thermostat

The TPI RK Series Heat Only Thermostat provides an effective heating for indoor commercial and some residential applications. Equipped with a 2 to 3 °F rated differential, the RK Series thermostat offers an optional heat anticipator for added electrical safety.

This TPI Thermostat features both Fahrenheit and Celsius scales and delivers a range of up to 90 °F (32 °C). It also comes with a positive off element that inhibits the switch from being closed when the variable control means of the thermostat is set to its extreme “off” position.

The RK Series heat-only thermostat features a square cover with a shadow white color which gives an attractive look. It has a long life sealed contact and can be wall mounted only. As an additional feature, the RK Series is RoHS2 Directive compliant and is cUL listed.

Configuration Options

The TPI RK Series Heat Only Thermostat has four available models with different thermostat voltages and temperature ranges that suit your needs. Also, it has an optional anticipator. Choose from the drop-down menu above.

• RK134EAA: Millivolt Thermostat (35 - 75 °F)
• RK130EAA: Millivolt Thermostat (50 - 90 °F)
• RK120EAA: 24 VAC / MV Thermostat with Anticipator (50 - 90 °F)
• RK124EAA: 24 VAC / MV Thermostat with Anticipator (35 - 75 °F)
