RESI F-Series Wood Inspection Drill

by IML
MFR#: 3100800-3S
TIGER#: TS90539
Original price $5,199.99 - Original price $5,199.99
Original price List Price: $5,199.99
$6,395.61 - $6,395.61
Current price $6,395.61
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
RESI F-Series Wood Inspection Drill
RESI F-Series Wood Inspection Drill - $6,395.61
*Must Purchase 1 for RESI F-Series Wood Inspection Drill

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 9/29/2023
  • Direct-on-site result documentation
  • Cordless drill drive unit design
  • Lightweight design and easy to use
  • Secure, rugged, and splash-proof aluminum  housing
  • Upgradeable with Bluetooth Electronic Unit
  • Measurements under 45-degree angles
  • Feed speed of up to 150 cm/min
  • Available in 300mm-500mm drill bits

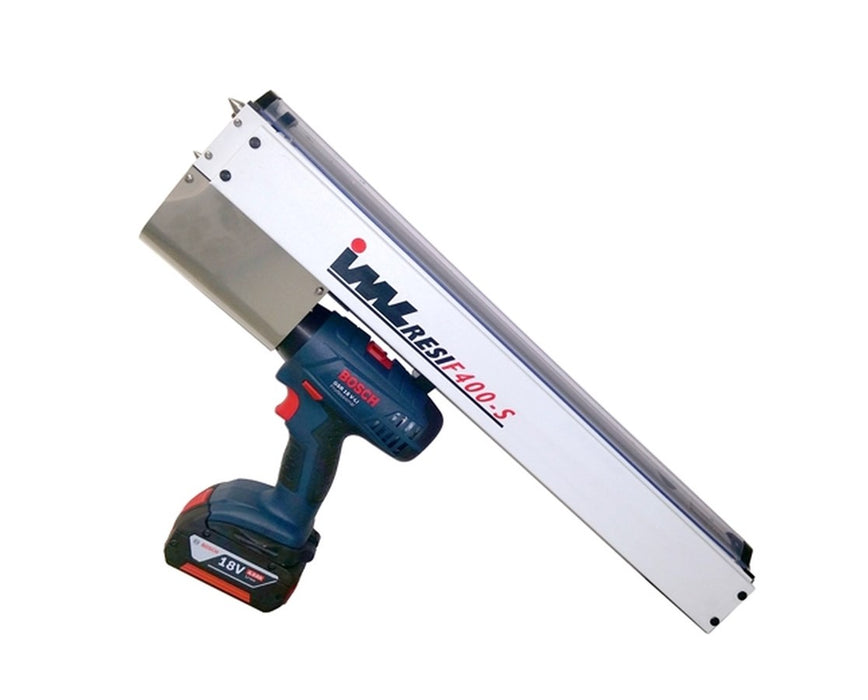

The IML Resistograph F-Series Wood Inspection Drill is a very easy-to-handle wood inspection power drill. Its cordless drive unit makes it a very convenient tool to be used in difficult working conditions.

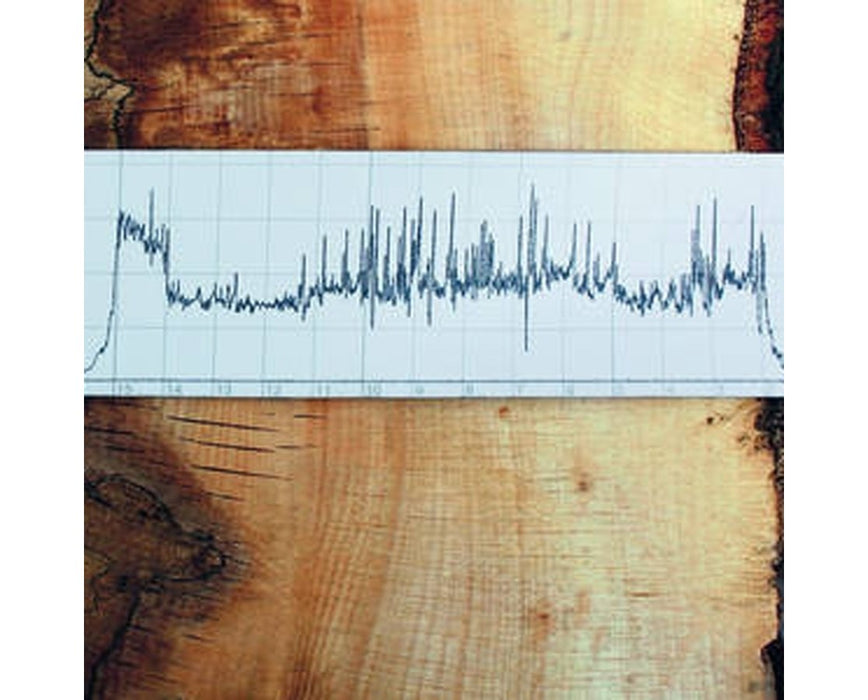

Wood Testing Drill with Data Print-Out. On the site, the F-Series wood testing drill measures the quality of the internal state of the wood by recording the drill resistance of the needle as it penetrates the wood product. The inspection data is then collected and printed on a wax paper strip.

Cordless Drill Drive Unit and Lightweight Design. The F-Series drive unit is cordless so it is very convenient to carry and use. It is the ideal instrument to use in difficult operating conditions. The lightweight and compact design of the F-Series offers a simple and easy user experience. The records are secure and protected by its rugged and splash-proof aluminum housing. It even allows measurements below 45-degree angles using an easy to mount adapter.

Upgradeable Using Innovative Bluetooth  Electric Unit. The Bluetooth  Electric Unit allows digital acquisition of measurement data and wireless transmission. Users can easily connect it to a PC or handheld device using the USB and Bluetooth interface. It also allows the electronic storage of data on an internal storage unit, thus preserving important records.

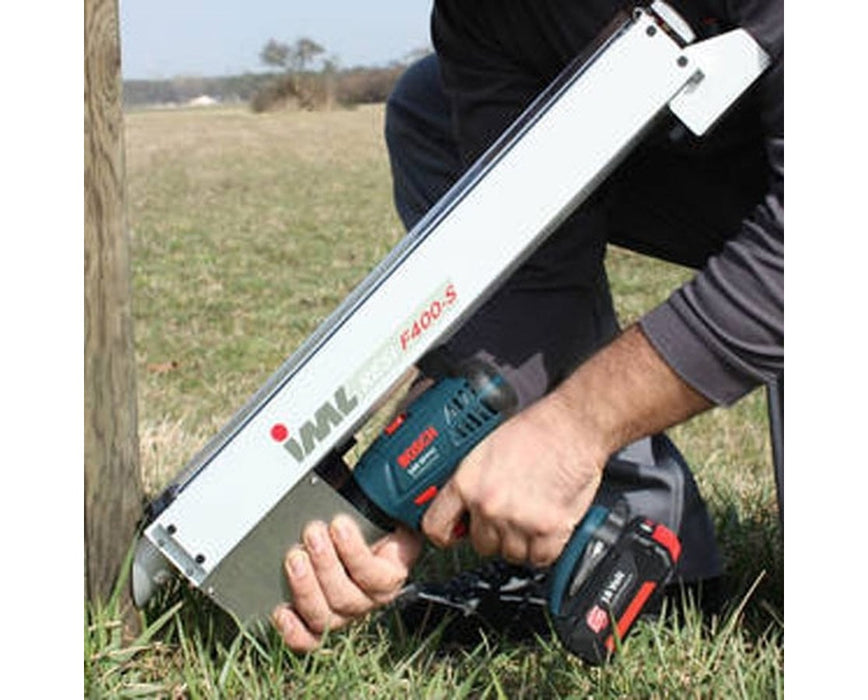

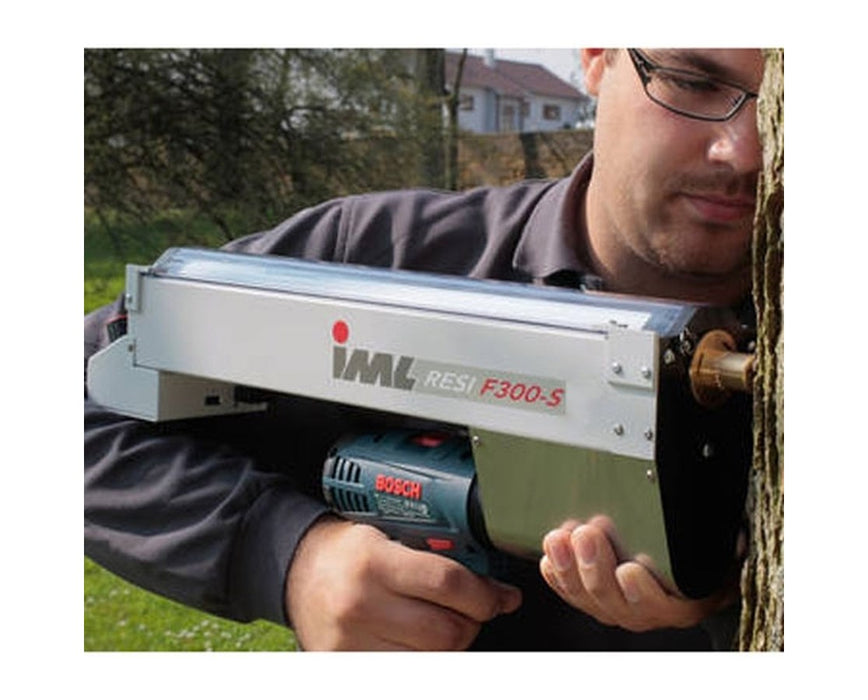

With its wide application areas, such as tree inspections, utility poles and wooden playground equipment, structural wood in houses, bridges, and buildings, the F-Series Wood Inspection drill is not only perfect for difficult working conditions but also provides a quality measurement that can be printed directly on site.

The F-Series comes in different drill bits ranging from 200mm-750mm. Pick your preferred inspection drill depth from the drop-down box below.

  • Model F300S 280mm Drill Depth
  • Model F300 300mm Drill Depth
  • Model F400S 380mm Drill Depth
  • Model F400 400mm Drill Depth
  • Model F500S 480mm Drill Depth
  • Model F500 500mm Drill Depth

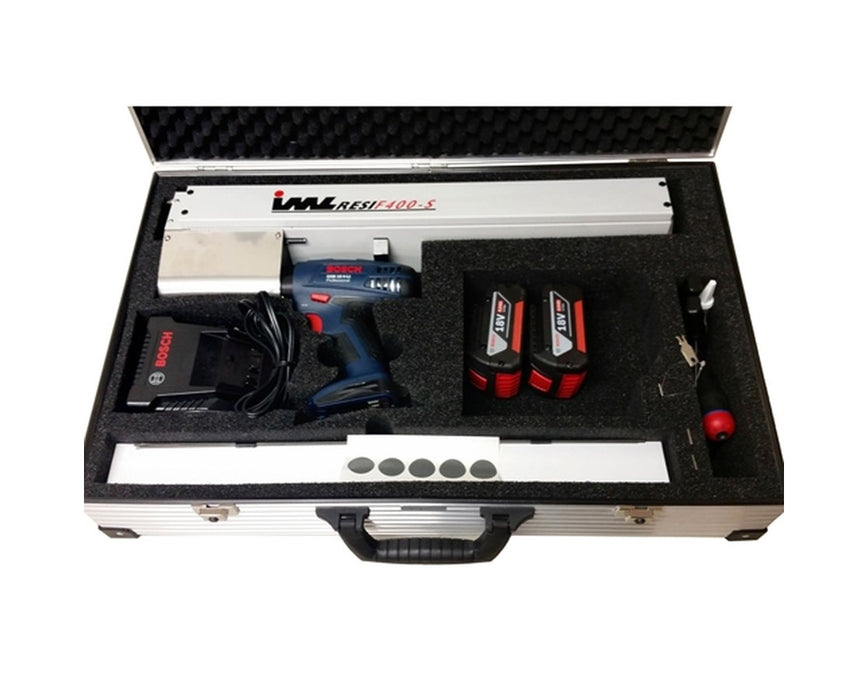

What’s in the Box

  • Bosch drill GSR 12V Professional adapter ring
  • Charger and 2x 12V 2.0 AhNiCd batteries
  • Shoulder Strap
  • 5x drilling needles
  • 400x waxed paper strips
  • Paper magazine
  • Tool for maintenance "Tool Kit"
  • Aluminum transport case
  • Instruction Manual
