Ranger 7 Data Collector

Spectra Geospatial
by Spectra Geospatial
MFR#: RG7-022-001
TIGER#: TS57793
List Price: $4,635.00
You Save: $568.00 -12%
$4,635.00 - $4,635.00
List Price: $4,635.00
$4,067.00
$4,067.00 - $4,067.00
$4,067.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Ranger 7 Data Collector
Ranger 7 Data Collector - $4,067.00
$4,067.00
*Must Purchase 1 for Ranger 7 Data Collector

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 12/1/2023
Documents
Product Manual Item Brochure Product Video
  • Integrated GNSS
  • Bluetooth connectivity
  • Keypad: Full QWERTY and function keys with backlight
  • Display: 7" multi-point capacitive
  • Windows 10 Professional OS
  • IP68 dustproof and water immersible
  • Integrated drop bumpers
  • Glass-fiber reinforced resin housing

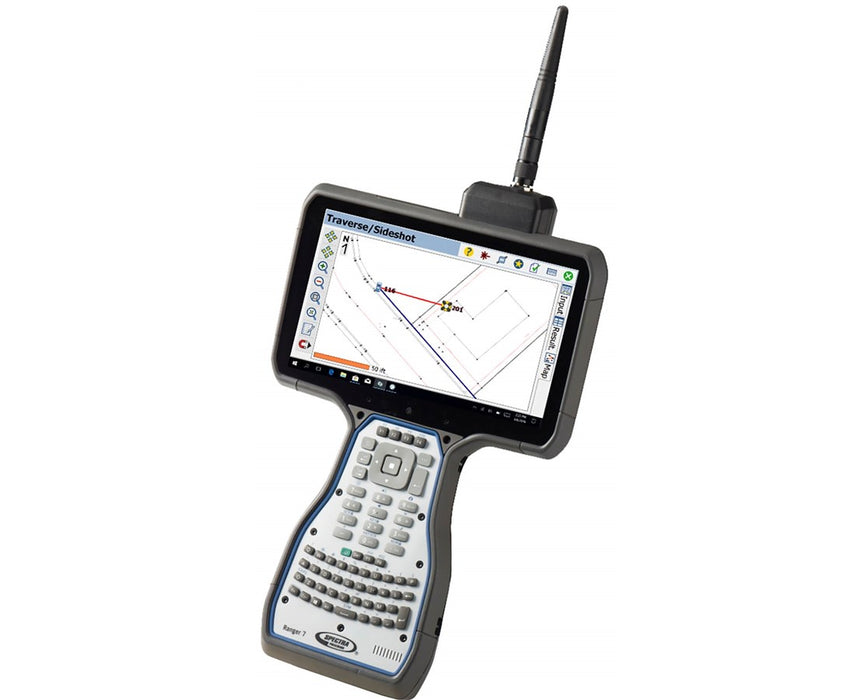

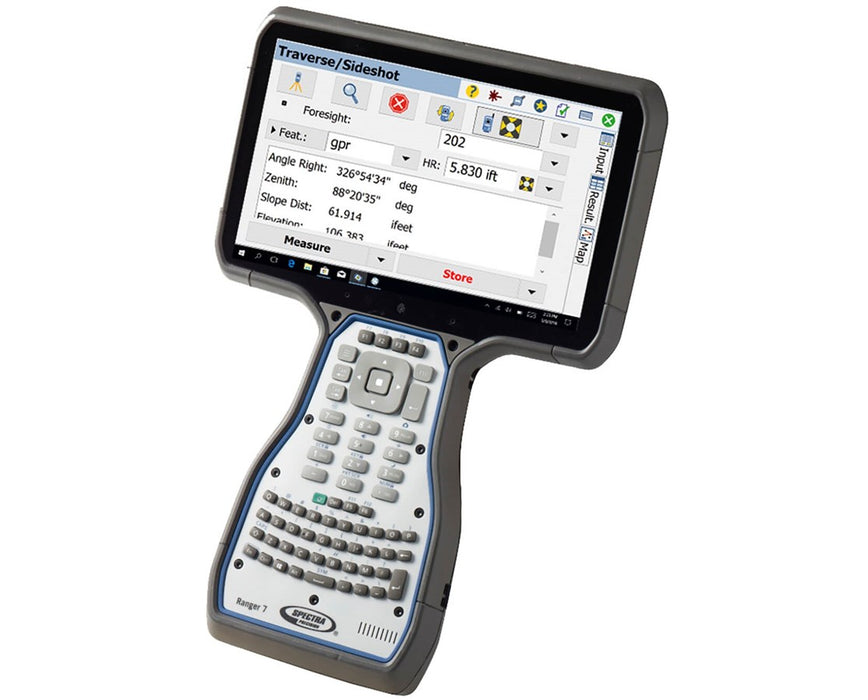

The Spectra Ranger 7 Data Collector is a rugged and durable electronic field computer that is ideal for various surveying applications. It works with GPS receivers, total stations, and digital levels. This field controller features an integrated GNSS and four sensor types for added precision. It also has a built-in Bluetooth connectivity for easy data transfer and management.

The Ranger 7 data collector utilizes a full QWERTY keyboard and function keys with backlighting. It is also equipped with a seven-inch multi-point capacitive display that is easy-to-read and is sunlight readable. This Spectra computer tablet comes with a Windows 10 Professional operating system offering a user-friendly interface.

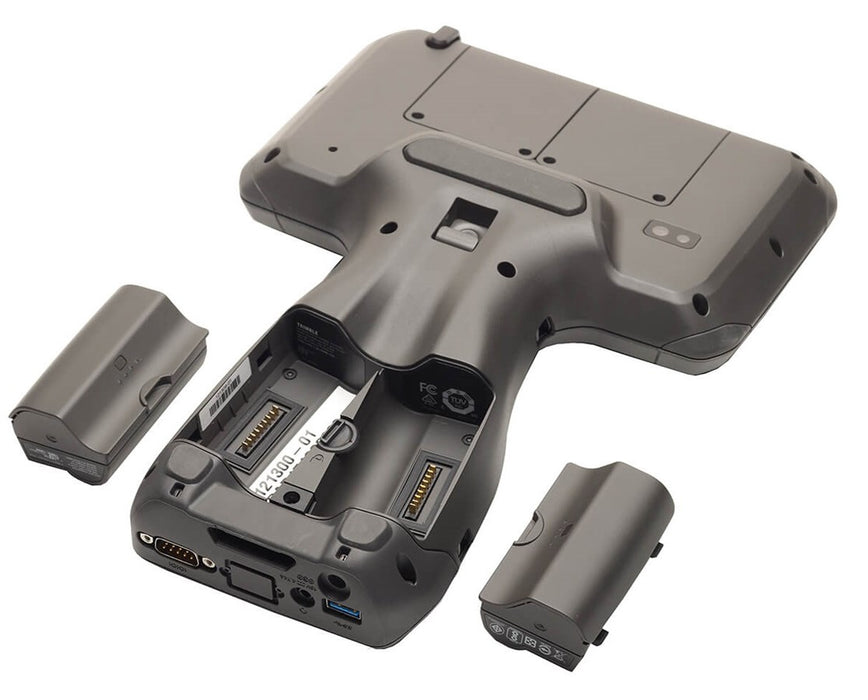

Powered by two rechargeable batteries, the Spectra Ranger 7 operates for up to five hours depending on usage. With an IP68 rating, it is dustproof and is water immersible up to 3.2 feet. As an added feature, this Spectra data collector is housed in a glass-fiber reinforced resin with integrated drop bumpers.

Please Note: For complete robotic instrument support, it is required to purchase the Survey Pro Robotic additional module.

Configuration Options

The Spectra Ranger 7 Data Collector offers five models with a software and wireless wide area network (WWAN) option. Please select your preference from the menu above.

  • RG7-022-001: Ranger 7 Hardware Only
  • RG7-C22-001: Ranger 7 with Layout Pro Robotic Software

The Layout Pro Robotic allows construction professionals to have more control over the job site. This surveying software carries, manages, works with and lays out data results in the field. Combined with a Spectra Precision or Nikon robotic total station, surveyors can layout an entire site from one setup in a fraction of the time.

  • RG7-S22-001: Ranger 7 with Survey Pro Standard Software

The Spectra Survey Pro Standard is a fast and reliable surveying software that provides data integration, efficiency, and precision. It is used for basic point stakeouts, basic COGO (inverses, intersections, manual traverses, area, etc.), basic curve solutions, and all other data collection features.

The Spectra Ranger 7 can also be equipped with a worldwide or APAC WWAN wireless network to give you a more stable wireless connection wherever the job takes you.

  • RG7-012-001: Ranger 7 APAC WWAN Wireless Network, Hardware Only
  • RG7-S12-001: Ranger 7 APAC WWAN Wireless Network with Survey Pro Standard
  • RG7-002-001: Ranger 7X Worldwide WWAN Wireless Network, Hardware Only
  • RG7-S02-001: Ranger 7X Worldwide WWAN Wireless Network with Survey Pro Standard
  • Choice of 5 models
  • Rugged and durable electronic field book
  • Works with GPS receivers, total stations, and digital levels
  • Integrated GNSS
  • 4 sensor types
  • Bluetooth connectivity
  • Full QWERTY keyboard and function keys with backlight
  • 7" multi-point capacitive display
  • Windows 10 Professional operating system
  • Powered by 2 rechargeable batteries
  • Up to 5 hours battery life
  • IP68 dustproof and water immersible
  • Glass-fiber reinforced resin housing
  • Integrated drop bumpers

What’s in the Box

  • Spectra Ranger 7 Data Collector
  • Power supply
  • Glass screen protector
  • Hand strap
  • 1 set of 2 batteries
  • Stylus with tether
  • Quick start guide
  • User manual
  • 1-year manufacturer's warranty

Available Package Options

  • Software: Layout Pro, Survey Pro Standard or None
  • Wireless Wide Area Network: Optional

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Battery Life
Up to 5 hours (medium usage), 4-7 hours (depending on settings)
Power Source
2 x 3100 mAh hot-swappable rechargeable
Camera
Resolution
8 MP autofocus with flash (rear); 2 MP fixed-focus (front)

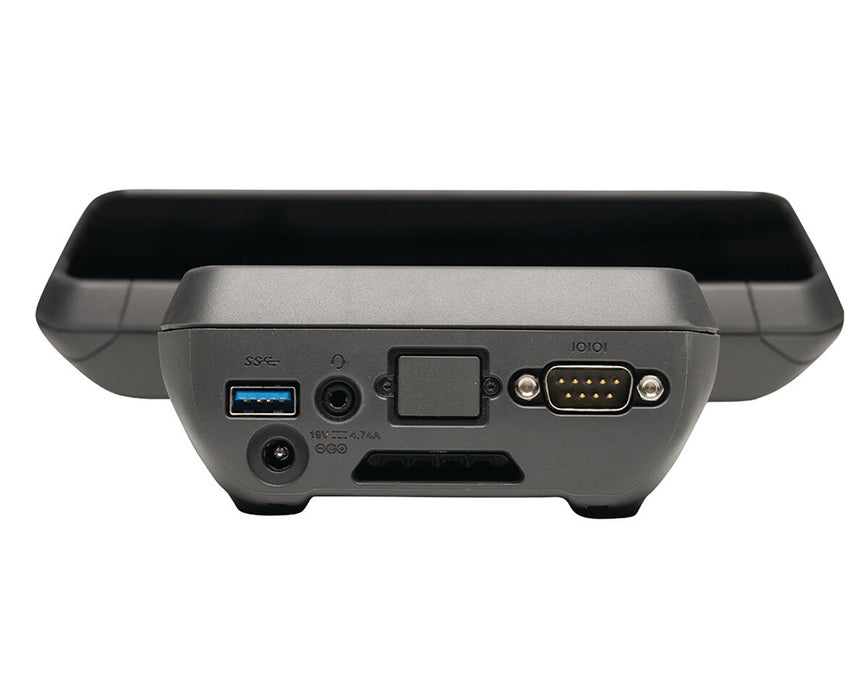

Card Slots/Ports
Audio
Speaker and dual digital microphone array with noise reduction
SD
MicroSDXC card up to 2 TB
Serial
RS232 DB-9
SIM
MicroSIM card
USB
USB 3.1 Gen 1
Display/Keypad
Backlight
Yes
Keys
QWERTY or ABCD, numeric key block, function keys
Resolution
1280 x 800
Size
7 inches
Touchscreen
Yes
Type
7" multi-point capacitive landscape LCD, sunlight readable
Features
2.4 GHz robotic radio module
No
Accelerometer
Yes
Altimeter
No
Auto Shut Off
No
Electronic Compass
Yes
Geotagging
Yes
Internet/Email
Yes
Live Video Display with Topcon Imaging Station
No
Long Range Measurement
No
Phone/Text
Yes
General
Casing
Glass-fiber reinforced resin
Dimensions
11.8" L x 8.2" W x 2.8" H (30 x 20.9 x 7.1 cm)
Protection Class
IP68 dustproof and water immersible
Warranty
1-year
Weight
3.12 lbs (1.42 kg)
Interface/Data
Bluetooth
BT 2.1 + EDR, BT 4.1
Operating System
Windows 10 Professional
Processor
Intel Apollo Lake - N4200, 64-bit quad-core
WI-FI
802.11 a/b/g/n, 2.4 GHz radio band
WWAN
Worldwide LTE (RG7-002-001, RG7-S02-001)
Software
Type
Layout Pro Robotic (RG7-C22-001); Survey Pro Standard (RG7-S22-001, RG7-S02-001)
Software Programs
Adobe Reader
Yes
Calculator
Yes
Calendar
No
Camera Control Application
No
CellStart (WWAN configuration application)
No
Contacts
Yes
E-Compass (Electronic compass and altimeter application)
No
Flashlight Mode Control Application
No
Google Mobile Services
No
Handwriting Recognition
No
Juniper Home Screen
No
Juniper On-Screen Keyboards, Mega Keys and Mega Keys Night
No
MS ActiveSync 4.x
No
MS Internet Explorer Mobile
Yes
MS Live Messenger
Yes
MS My Phone with SMS text messaging
No
MS Office Mobile
Yes
MS Pictures and Videos
Yes
MS Task Manager and Notes
Yes
MS Windows Media Player
Yes
Remote Desktop Mobile
No
SatViewer (GPS interface application)
Yes
TacLink (GPS interface application)
No
Terminal Services Client
No
Voice recorder
No
Storage
Flash
64 GB eMMC
RAM
8 GB
Temperature
Operating
–4 to 140 °F (–20 to 60 °C)
Storage
–40 to 158 °F (–40 to 70 °C)
