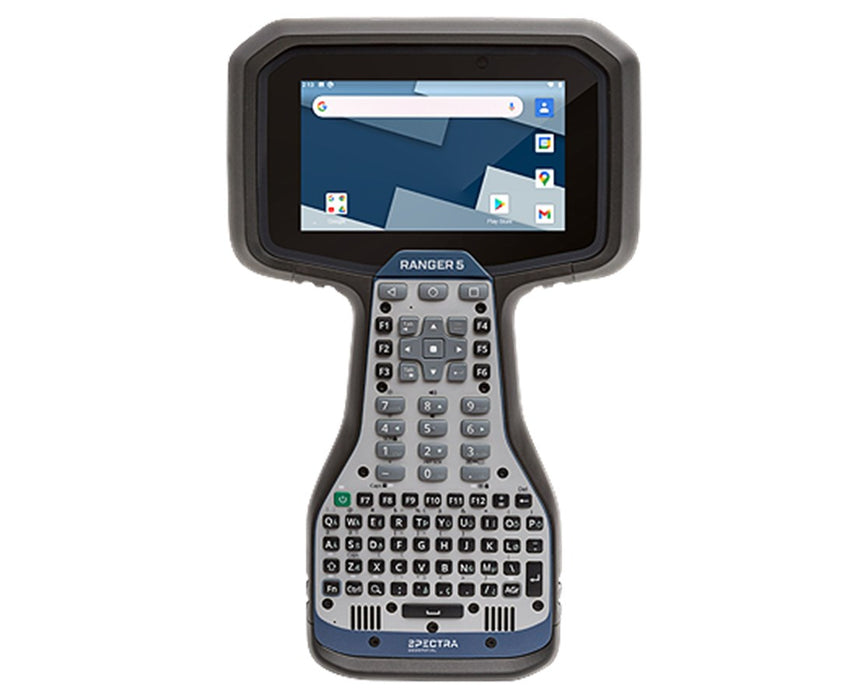

Ranger 5 Data Collector

by Spectra Geospatial

MFR#: RG5-1-0100-00

TIGER#: TS93900

$3,750.00 - $3,750.00

List Price: $3,750.00

$3,797.00

$3,797.00 - $3,797.00

$3,797.00

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Ranger 5 Data Collector - $3,797.00

$3,797.00

*Must Purchase 1 for Ranger 5 Data Collector

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 12/22/2023

Documents

Product Manual Item Brochure Product Video

Built-in Bluetooth, WiFi, GNSS, and optional WWAN
13MP rear camera with LED flash
Daylight-readable 5” colored screen
Backlit QWERTY keyboard
4GB RAM & 64GB storage
Android 10 with built-in Google apps and Playstore
Expandable with Empower module bay
IP65 & MIL-STD-810H protection against shock, dust, and water
Battery life up to 18 hours

The Ranger 5 Data Collector from Spectra Geospatial is a sophisticated Android-based survey field data collector designed to make data collection and transfer more seamless than ever before. It has several data collection features including Bluetooth, WiFi, GNSS, worldwide WWAN, and a rear camera, making it easy to capture and share geotagged videos and images. This Spectra Origin-compatible device is lightweight yet rugged, with an IP65 rating against dust and water as well as MIL-STD-810H protection against shock and extreme temperatures.

Easy to Use: The Ranger 5 has a bright, anti-glare 5” colored screen and a well-designed backlit alphanumeric keyboard that is easy to use even while wearing gloves. It runs on Android which dramatically flattens the learning curve. It has a more ergonomic, easier-to-grip, and lighter design than its predecessors to lessen onsite fatigue for you and your team.

Stays Connected: The Android 10 OS of the Ranger 5 is Google Mobile Services (GMS) certified, which means it comes with pre-installed Google apps (like Gmail) and access to Google Playstore. This opens up the possibilities when it comes to connectivity and data sharing as you can install apps for team messaging, task management, and a lot more.

Customizable: The Ranger 5 Data Collector is a part of the Trimble Empower platform, a family of modular field devices that can be customized for any application and industry. The Ranger 5 has an Empower module bay where you can attach the EM120 long-range radio, EM100 GNSS radio, EM11X family of RFID/barcode readers, and more. With this, you can remain flexible to deliver quality results for any job across several industries.

Used with the Spectra Origin and Origin Lite and with an all-day battery backed up by a removable battery option, the Ranger 5 is a powerhouse for surveying jobs from precision data collection to stakeouts and layouts.

Configuration Options

The Ranger 5 Data Collector is available in a Basic model and a WWAN model that can access fast internet anywhere you go. Please choose your preference from the menu above to place your order today.

RG5-1-0100-00: Basic
RG5-1-1100-00: Worldwide WWAN

Built-in Bluetooth, WiFi, GNSS, and optional WWAN
13MP rear camera with LED flash
4GB RAM & 64GB storage
Android 10 with built-in Google apps and Playstore
Daylight-readable 5” colored screen
Backlit QWERTY keyboard
EMPOWER module bay
IP65 protection against dust and water
MIL-STD-810H protection against shock, drop, and temperature
Battery life up to 18 hours

What’s in the Box

1x - Ranger 5 Data Collector
1x - Screen Protector Package w/ (1) Corning AG2bc glass screen protector, (1) 70% Isopropyl Alcohol prep pad, (1) grey lint-free cleaning cloth, and (1) blue lint/dust removal sticker
1x - 45W AC USB-C PD power supply with regional plug adapters (EU, UK, SAA)
1x - 2m (6.56 feet) USB-Type C (male) to USB-Type C (male) USB 2.0 cable
1x - Capacitive stylus with tether and 2 stylus tips
1x - Philips #1 screwdriver
1x - Hand strap
1x - Soft carry case
1x - User Manual and Quick Start Guide
2-year manufacturer’s warranty

Available Product Options

Model: Basic or Worldwide WWAN

2-year manufacturer's warranty

Battery/Power

Battery Life

Up to 18 hours

Battery Life Alert

Yes

Power Source

4530 mAh / 7.2V (32.6 Wh) nominal capacity

Camera

Resolution

13 MP

Type

Auto-focus with LED flash

Card Slots/Ports

Audio

Bluetooth or USB-C headsets

High capacity

Serial

Dual screw USB Type-C locking plug

SIM

Micro SIM card

USB

Standard host and client

Display/Keypad

Backlight

Yes

Keys

QWERTY

Resolution

1280x720 pixels

Size

5 inches

Touchscreen

Yes, with stylus

Type

Dual-layer glass color LCD

Features

2.4 GHz robotic radio module

Yes

Accelerometer

Yes

Electronic Compass

Yes

Geotagging

Yes

Internet/Email

Yes

Phone/Text

Yes

General

Casing

PC-EXL9330 Case with TPU-Texin990 Overmold

Dimensions

287.1 x 175.6 x 43.9 mm

Protection Class

IP65

Warranty

2-year manufacturer’s warranty

Weight

2.06 lbs (0.934 kg)

Interface/Data

Bluetooth

Bluetooth 5 classic & BLE 5, Class 1

GPS Receiver

Integrated Sierra Wireless EM7565 chipset

Operating System

Android 10

Processor

Qualcomm SDA660

Speed

2.2 GHz

WI-FI

2.4 GHz 802.11 b/g/n/ac & 5.0 GHz 802.11a/n/ac

WWAN

4G LTE Cellular

Software

Type

Android 10 applications, Trimble Access™ version 2021 and later Trimble Siteworks Positioning System version 1.40 and later Spectra Geospatial Origin Trimble 3Log ScaleWiz Trimble Unity Remote Monitoring and Work Management Software Trimble GasOps

Software Programs

Adobe Reader

Yes

Calculator

Yes

Calendar

Yes

Camera Control Application

Yes

Contacts

Yes

Google Mobile Services

Yes

MS Internet Explorer Mobile

Yes

MS Live Messenger

Yes

MS Office Mobile

Yes

MS Pictures and Videos

Yes

MS Task Manager and Notes

Yes

MS Windows Media Player

Yes

SatViewer (GPS interface application)

Yes

Storage

Flash

64 GB

RAM

4 GB

Temperature

Operating

-30 °C to +60 °C (–22 °F to +140 °F)

Storage

-40 °C to +70 °C (–40 °F to +158 °F)
