Ranger 3XC Data Collector

MFR#: RG3-M01-003
TIGER#: TS17652
Original price List Price: $6,090.00
You Save: $1,141.87 -19%
Original price $6,090.00 - Original price $6,090.00
Original price List Price: $6,090.00
Current price $4,948.13
$4,948.13 - $4,948.13
Current price $4,948.13
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Ranger 3XC Data Collector
Ranger 3XC Data Collector - $4,948.13
$4,948.13
*Must Purchase 1 for Ranger 3XC Data Collector

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 9/28/2023
  • Integrated Wi-Fi & WWAN capability
  • Includes 5-megapixel camera with flash
  • Bluetooth range of up to 30 ft.
  • GPS receiver w/ low battery consumption
  • 800MHz processor & 256MB RAM
  • Stores data w/ 8GB on-board memory
  • Touchscreen display w/ alphanumeric keypad
  • Rated IP67 & MIL-STD-810G-compliant

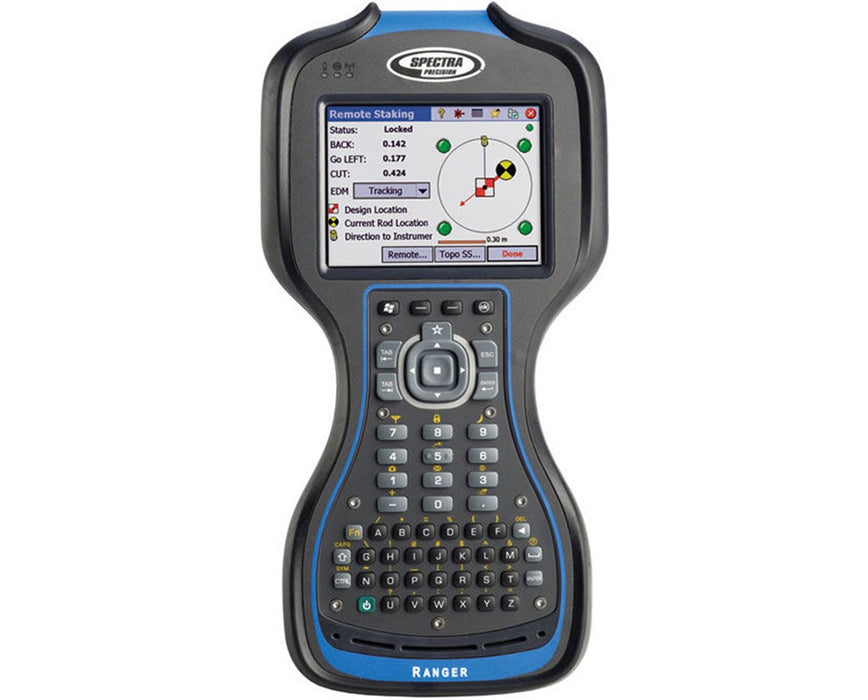

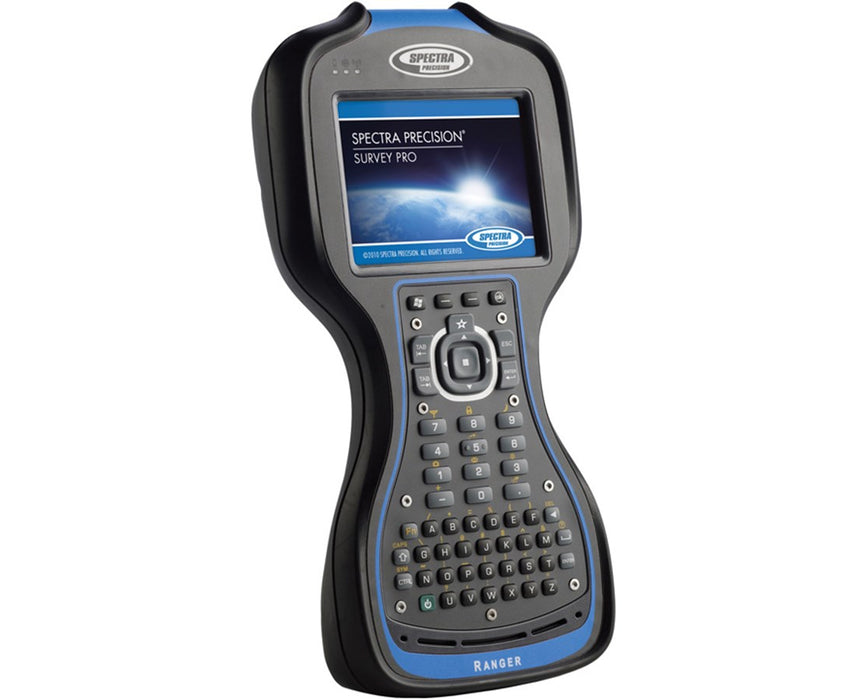

The Spectra Ranger 3XC Data Collector is a handheld surveying tool designed to gather accurate land data--including coordinates, distances, angles, and topographic elevations—even under the most extreme weather conditions. It has integrated Wi-Fi connectivity and Bluetooth technology with a working range of up to 30 feet to allow easy, wireless connection to compatible total stations and GNSS receivers. Featuring a GPS receiver with low battery consumption, a built-in accelerometer, and a compass, it enables quick, precise navigation and positioning.

This survey data collector by Spectra can run large and demanding applications with its high-speed 800 MHz processor and 256 MB RAM. It is equipped with 8GB of on-board memory for storing data and ensures hassle-free data sharing with its USB ports and high-capacity SD card slot. For maximum functionality, its WWAN (Wireless Wide-Area Network) capability permits sending of text messages and accessing the Internet via cellphone networks. It also includes a 5-megapixel camera with dual LED flash and geotagging for job site documentation.

The Spectra Ranger 3XC Data Collector is powered by Windows Mobile 6.5 Professional operating system and supports frequently used programs such as Internet Explorer, Word, Excel, PowerPoint, Outlook, Media Player, and Adobe Reader. It comes with a large, dual-layer touchscreen display and a full alphanumeric keypad for convenient interface. With a rechargeable Li-Ion battery, it offers 30 hours of continuous operation. It is rated IP67 for dust or water resistance and complies with MIL-STD-810G standards for drops, vibration, humidity and extreme temperatures making it a rugged, all-weather data collector.

Configuration Options

The Spectra Ranger 3XC Data Collector comes with various software package options to meet different surveying applications. Please select your preference from the menu above.

  • RG3-G01-003: ABC Keyboard & Camera, Survey Pro GNSS
  • RG3-G02-003: QWERTY Keyboard & Camera, Survey Pro GNSS

Spectra Survey Pro GNSS shares nearly all the Survey Pro functions, and it provides the capability to collect data from RTK GNSS receivers – the most accurate worldwide GSP system there is, with centimeter-level accuracy. Survey Pro GNSS software is easy to use and has step-by-step features that reduce training and simplify setups. It provides error messages if anything goes wrong. All staking functions are supported in the GNSS module too.

  • RG3-M01-003: ABC Keyboard & Camera, Survey Pro Max
  • RG3-M02-003: QWERTY Keyboard & Camera, Survey Pro Max

Spectra Survey Pro Max is the ultimate field software. It completely supports all instruments and has all the software features. It integrates Survey Pro Robotics and Survey Pro GNSS functions, enabling you to use the same job files with both GNSS receivers and total stations.

  • RG3-P01-003: ABC Keyboard & Camera, Survey Pro PRO
  • RG3-P02-003: QWERTY Keyboard, Survey Pro PRO

Spectra Survey Pro shares all the Survey Standard functions and adds advanced features. It provides intuitive and powerful slope staking and road layouts. You can also view DTM files, stake using the DTM surface and collect feature or attribute data, helping you save time in the field and in the office.

  • RG3-R01-003: ABC Keyboard & Camera, Survey Pro Robotics
  • RG3-R02-003: QWERTY Keyboard, Survey Pro Robotics

Spectra Survey Pro Robotics shares all Survey Pro functions and reliably controls your robotic total station with an easy-to-use interface that features intuitive, useful search tools, active maps, automatic repetition and a fine-turning routine that lets you make even precise turns remotely.

  • RG3-S01-003: ABC Keyboard & Camera, Survey Pro Standard
  • RG3-S02-003: QWERTY Keyboard, Survey Pro Standard

Spectra Survey Standard is the base model of Survey Pro software and is a complete data collection package for surveyors. It contains a complete COGO (Coordinate Geometry) suite including triangle solutions, map check, and predetermined area, as well as traverse, sideshot and staking routines. It has all the essential features required to properly manage a survey job.

THE FOLLOWING OPTION IS DISCONTINUED
800981-24: ABC Keyboard, SurvCE

  • Bluetooth range of up to 30 ft. (10 meters)
  • GPS receiver with low battery consumption
  • Integrated Wi-Fi & WWAN capability
  • Includes 5-megapixel camera with flash
  • 800MHz processor & 256MB RAM
  • Stores data w/ 8GB on-board memory
  • Built-in accelerometer and compass
  • USB ports and SD card slot for easy data sharing
  • OS: Windows Mobile 6.5 Professional
  • On-board data collection software (Spectra Survey Pro software)
  • Touchscreen display with alphanumeric keypad
  • Rated IP67 and MIL-STD-810G-compliant
  • Rechargeable Li-Ion battery for 30-hour operation
  • Dimensions: 10.9" L x 5.6" W x 2.5" H
  • 1-year manufacturer's warranty

What’s in the Box

  • Spectra Ranger 3XC Data Collector
  • 2 x Stylus Pens
  • 2 x Screen Protectors

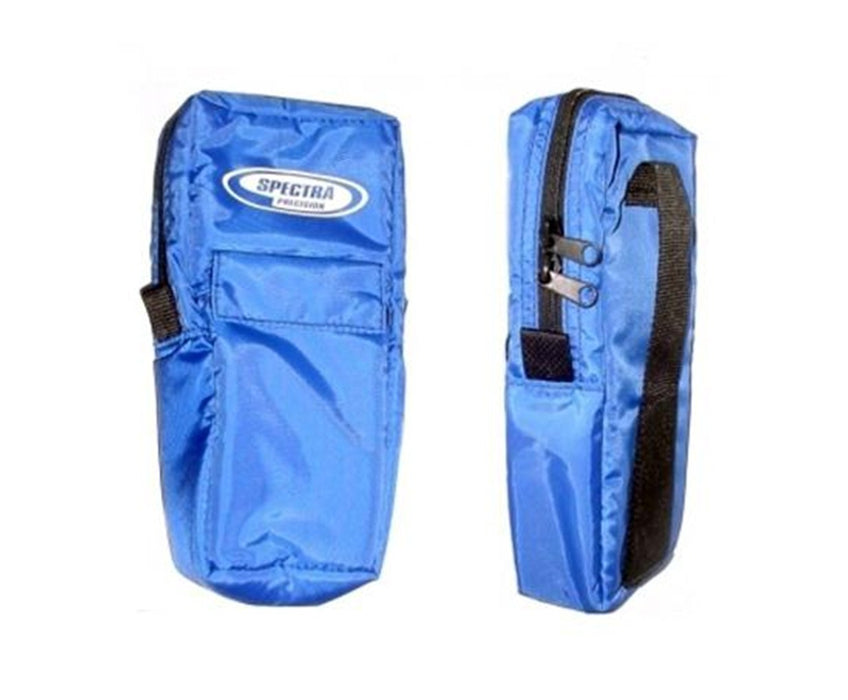

  • Standard Soft Case
  • Stylus Tether
  • USB Data Cable
  • Audio Port Dust Cover

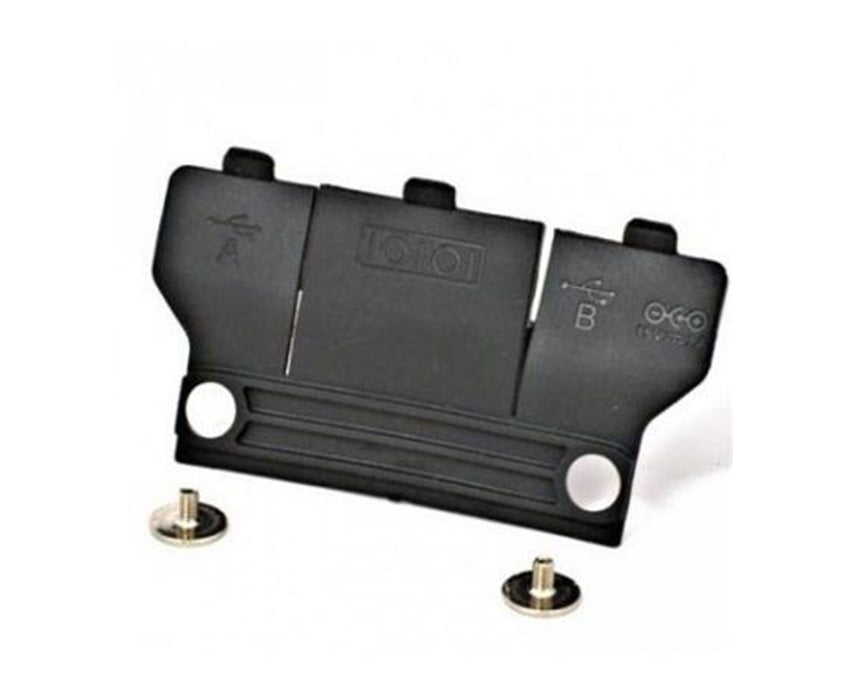

  • I/O Port Dust Covers

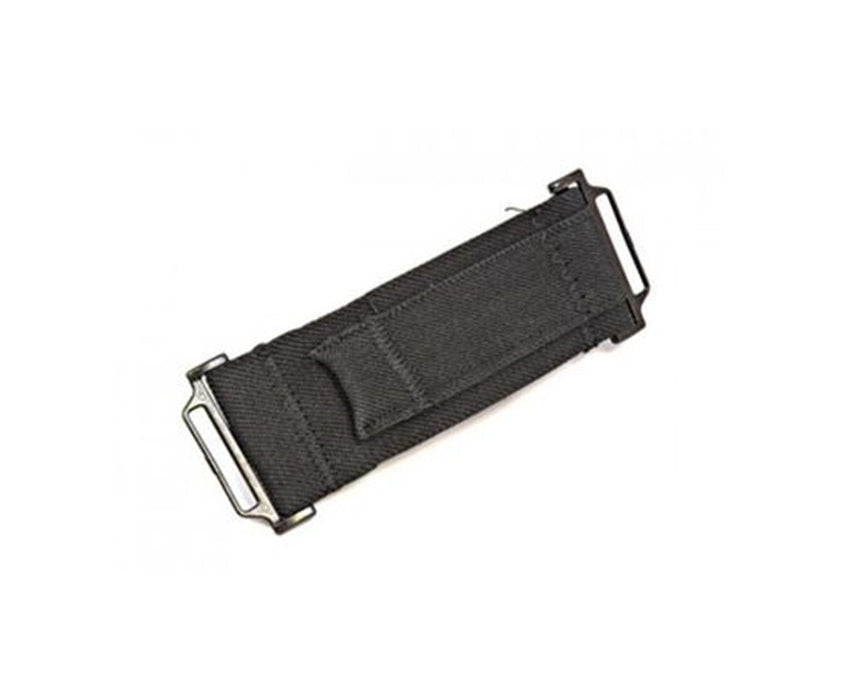

  • Hand Strap

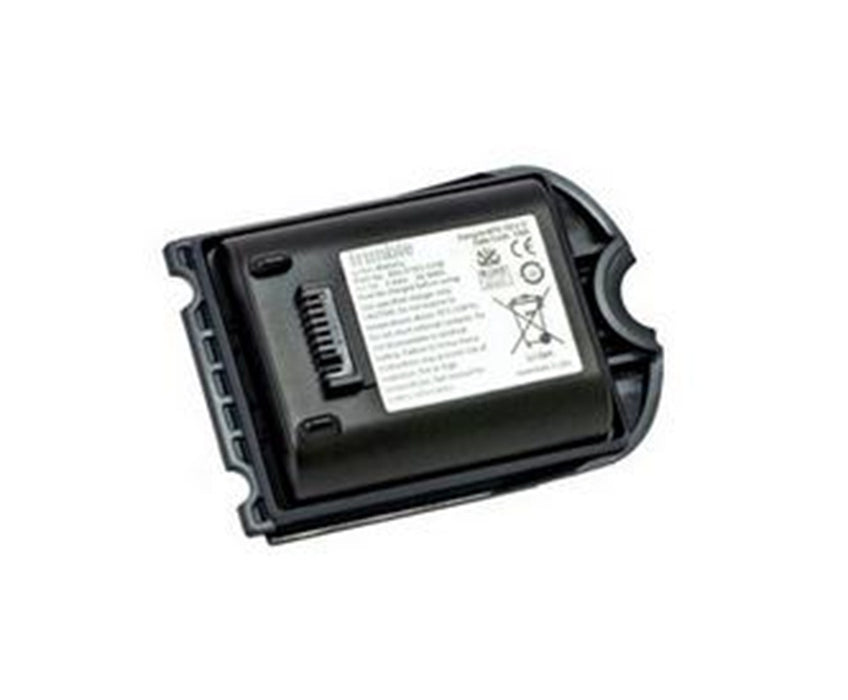

  • Rechargeable Li-Ion Batteries

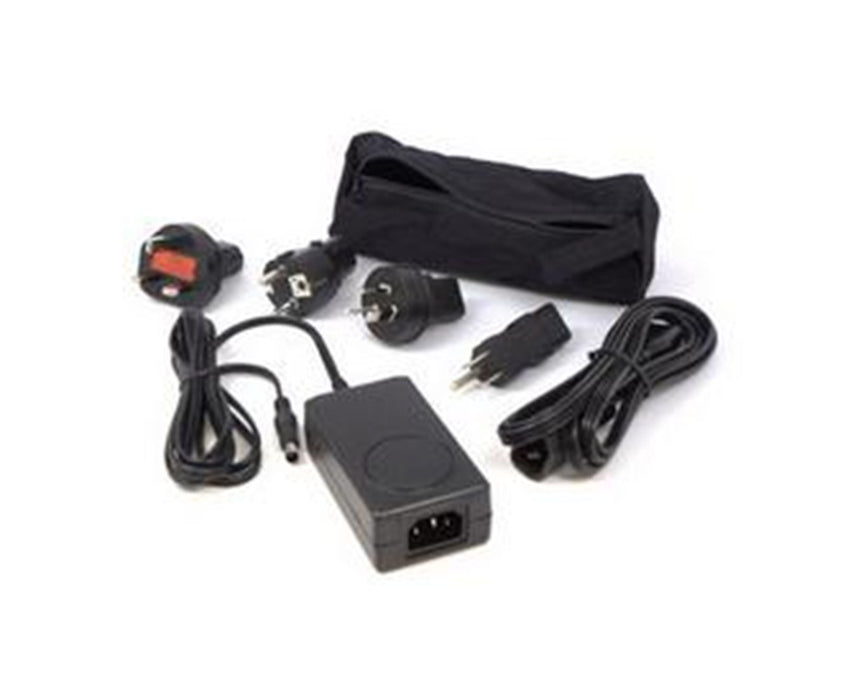

  • International AC Charger
  • User Manual
  • 1-Year Manufacturer's Warranty

Available Package Options

  • Keyboard & Camera: ABC Keyboard & Camera, QWERTY Keyboard, or QWERTY Keyboard & Camera
  • Software: SurvCE, Survey Pro GNSS, Survey Pro Max, Survey Pro PRO, Survey Pro Robotics, or Survey Pro Standard

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Battery Life
Up to 30 hours
Battery Life Alert
Yes
Power Source
2600 mAh Li-Ion battery
Camera
Resolution
5 MP
Type
Dual white light LED flash
Card Slots/Ports
Audio
3.5 mm
SD
High capacity
Serial
9-pin serial RS-232
USB
Standard host and client
Display/Keypad
Backlight
Yes
Keys
Alphanumeric
Resolution
640 x 480
Size
4.2 inches
Touchscreen
Yes, with stylus
Type
Dual-layer glass color LCD
Features
Accelerometer
Yes
Electronic Compass
Yes
Geotagging
Yes
Internet/Email
Yes
Phone/Text
Yes
General
Casing
Polycarbonate case with Hytrel overmold
Dimensions
10.9" L x 5.6" W x 2.5" H (27.6 x 14.2 x 6.3 cm)
Protection Class
IP67 dustproof and water immersible
Warranty
1-year
Weight
2.3 lbs (1.04 kg)
Interface/Data
Bluetooth
2.0 with Enhanced Data Rate
GPS Receiver
SiRFstar IV; WAAS enabled
Operating System
Windows Mobile 6.5 Professional
Processor
Texas Instrument Sitara 3715 series ARM Cortex-A8
Speed
800 MHz
WI-FI
Yes
WWAN
Quad-band GSM/GPRS/EDGE
Software
Type
Survey Pro Software or SurvCE
Software Programs
Adobe Reader
Yes
Calculator
Yes
Calendar
Yes
Contacts
Yes
MS Internet Explorer Mobile
Yes
MS Live Messenger
Yes
MS My Phone with SMS text messaging
Yes
MS Office Mobile
Yes
MS Pictures and Videos
Yes
MS Task Manager and Notes
Yes
MS Windows Media Player
Yes
SatViewer (GPS interface application)
Yes
Storage
Flash
8 GB
RAM
256 MB
Temperature
Operating
-22 to 140 ºF (-30 to 60 ºC)
Storage
-40 to 158 ºF (-40 to 70 ºC)
