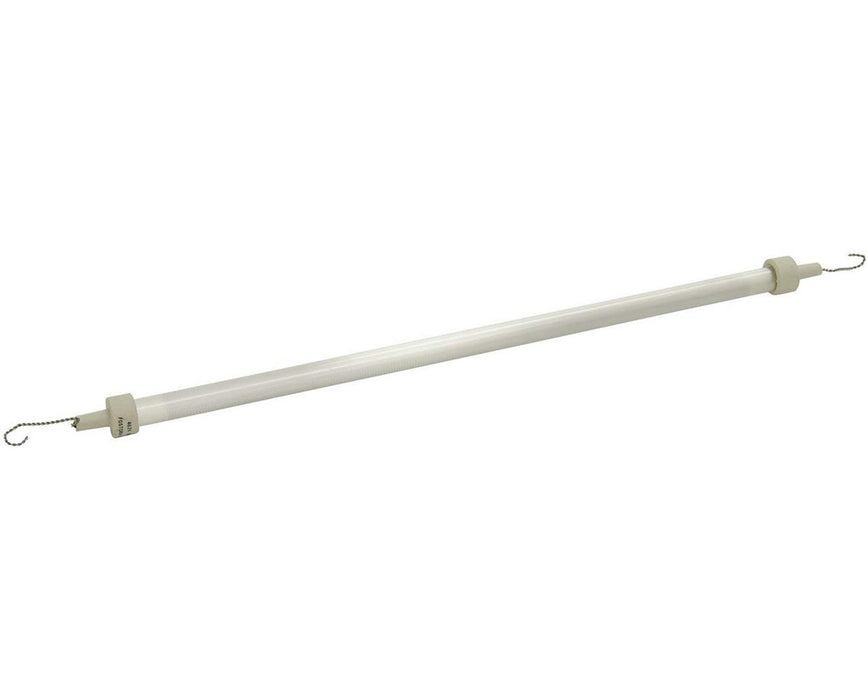

Quartz Tube Infrared Heating Element for Infrared Heater

The Quartz Tube Infrared Heating Element for TPI Infrared Heater is an effective heating tube that works with the TPI infrared heaters. It offers a medium wavelength temperature that produces a temperature of 1,800 °F (982 °C). This TPI Quartz tube provides a bright orange glow which is great for many heating applications.

This TPI heater quartz tube features an approximate radiant efficiency of up to 60%. Also, it comes with a 5/8-inch diameter frosted quartz envelope that includes a porcelain end cap to eliminate short-outs. The TPI heater accessory includes a fast heat-up and cool-down performance.

The quartz tube infrared heating element is made of Nickel-Chromium alloy coiled element and pigtailed termination for long life. With a frequency of 50/60 Hertz, the TPI heater tube has a life expectancy of up to 5,000 hours.

Configuration Options

The Quartz Tube Infrared Heating Element for TPI Infrared Heater has 12 models with different wattages and volts that suit your needs. Please select your preference from the drop-down menu above.

• Watts: 450 W, 550 W, 1,000 W, 1,425 W, 1,500 W, 2,000 W, 2,250 W or 3,000 W
• Volts: 120 V, 208 V, 240 V, 277 V or 480 V
