Quartz Lamp Infrared Heating Element for Infrared Heater

TPI Corporation
by TPI Corporation
MFR#: 63005129
TIGER#: TS62172
List Price: $166.00
You Save: $35.45 -21%
$166.00 - $166.00
List Price: $166.00
$130.55
$130.55 - $130.55
$130.55
Add to cart for Lower Price
As low as $/mo.
Apply at Cart

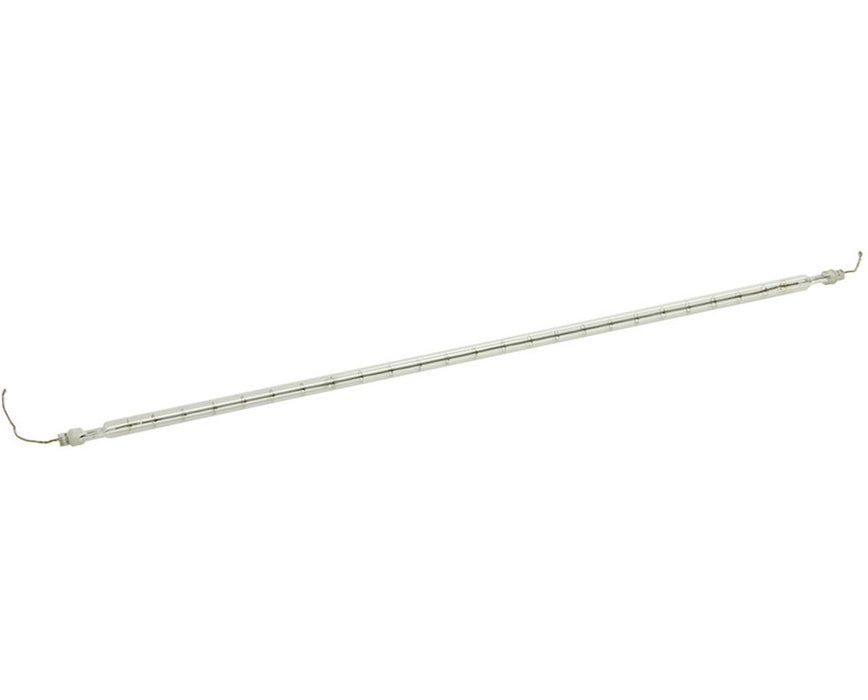

Quartz Lamp Infrared Heating Element for Infrared Heater
Quartz Lamp Infrared Heating Element for Infrared Heater - $130.55
$130.55
*Must Purchase 1 for Quartz Lamp Infrared Heating Element for Infrared Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/29/2023
  • Choice of 18 models
  • Radiant efficiency: 96%
  • Operates at a frequency: 50/60 Hz
  • Infrared temperature up to 4,100 °F

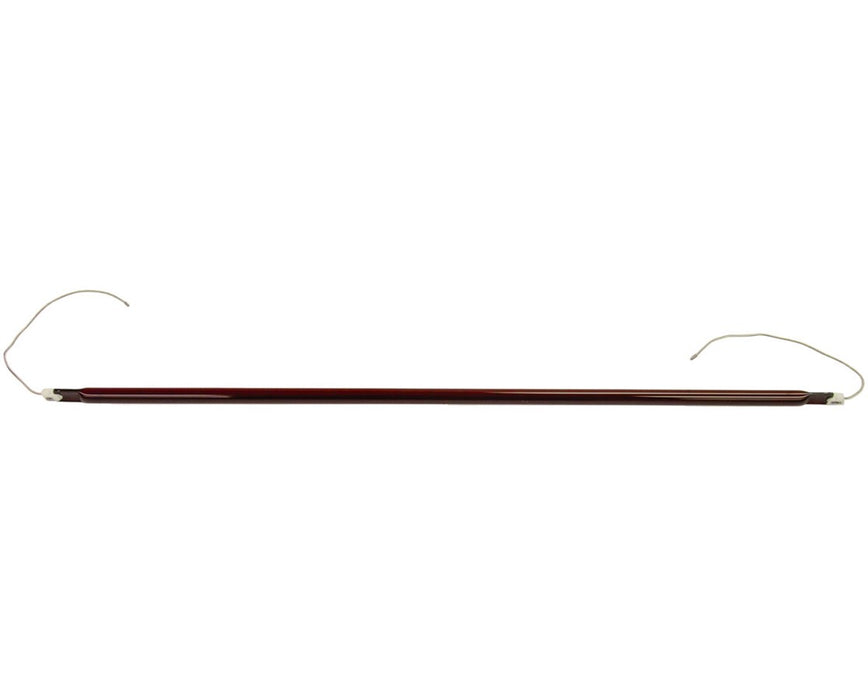

  • Clear or red Quartz envelope
  • Diameter: 3/8”
  • Outstanding resistance to thermal shock
  • Life expectancy up to 5,000 hours

The Quartz Lamp Infrared Heating Element for TPI Infrared Heater is a rugged infrared heating element that offers a 96% radiant efficiency and high brightness for superior heating performance. This TPI quartz lamp operates at a frequency of 50 / 60 Hertz. It offers a near wavelength infrared temperature up to 4,100 °F.

This TPI heating element features a clear or red Quartz envelope that has a diameter of 3/8 inches. Also, it provides the highest moisture resistance and the quickest heat-up time. Also, the TPI infrared heating element offers outstanding resistance to thermal shock.

The TPI Quartz infrared lamp includes a coiled tungsten filament that has sealed porcelain end caps for fast heating. It is also filled with halogen gas. As an extra feature, it has a life expectancy of up to 5,000 hours.

Configuration Options

The Quartz Lamp Infrared Heating Element for TPI Infrared Heater offers several wattages, volts and model type that suit your infrared heater. Please select your preference from the drop-down menu above.

  • Watts: 500 W, 1,600 W, 2,500 W, 3,000 W, 3,650 W or 3,800 W
  • Volts: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
  • Model Type: Horizontal Burning Clear, Horizontal Burning Red or Horizontal/Vertical Burning Clear
Model Watts Volts Overall
Length		 Heated
Length		 Envelope Type Compatible Heaters
63005129 500 W 120 V 8.69" 5" Horizontal Burning Clear MM-13A
63016209 1,600 W 208 V 19.69" 16" Horizontal Burning Clear 222, 223 or MM-24A
63016249 240 V Horizontal Burning Clear
63116249 Horizontal / Vertical Burning Clear
63016279 277 V Horizontal Burning Clear
63016489 480 V Horizontal Burning Clear
63025209 2,500 W 208 V 28.69" 25" Horizontal Burning Clear 342, 343 or MM-33A
63025249 240 V Horizontal Burning Clear
63025279 277 V Horizontal Burning Clear
63025489 480 V Horizontal Burning Clear
63125489 Horizontal / Vertical Burning Clear
63125609 600 V Horizontal / Vertical Burning Clear
63036489 3,650 W 480 V 41.69" 38" Horizontal Burning Clear 462, 463 or MM-46A
63038579 3,800 W 600 V Horizontal Burning Clear
63138579 480 V Horizontal / Vertical Burning Clear
6321620 1,600 W 208 V 19.69" 16" Horizontal Burning Red 222, 223 or RPH
6321624 240 V Horizontal Burning Red
6322548 2,500 W 480 V 28.69" 25" Horizontal Burning Red 342 or 343
  • Choice of 18 models
  • Radiant efficiency: 96%
  • High brightness
  • Operates at a frequency: 50/60 Hz
  • Infrared temperature up to 4,100 °F
  • Clear or red Quartz envelope
  • Diameter: 3/8”
  • Highest moisture resistance
  • Quickest heat-up time
  • Outstanding resistance to thermal shock
  • Coiled tungsten filament with sealed porcelain end caps
  • Filled with halogen gas
  • Life expectancy up to 5,000 hours

What’s in the Box

  • Quartz Lamp Infrared Heating Element for TPI Infrared Heater
  • 1-year limited warranty

Available Product Options

  • Watts: 500 W, 1,600 W, 2,500 W, 3,000 W, 3,650 W or 3,800 W
  • Volts: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
  • Model Type: Horizontal Burning Clear, Horizontal Burning Red or Horizontal/Vertical Burning Clear

We cannot accept returns for this item, as is our policy for all parts replacements. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.
