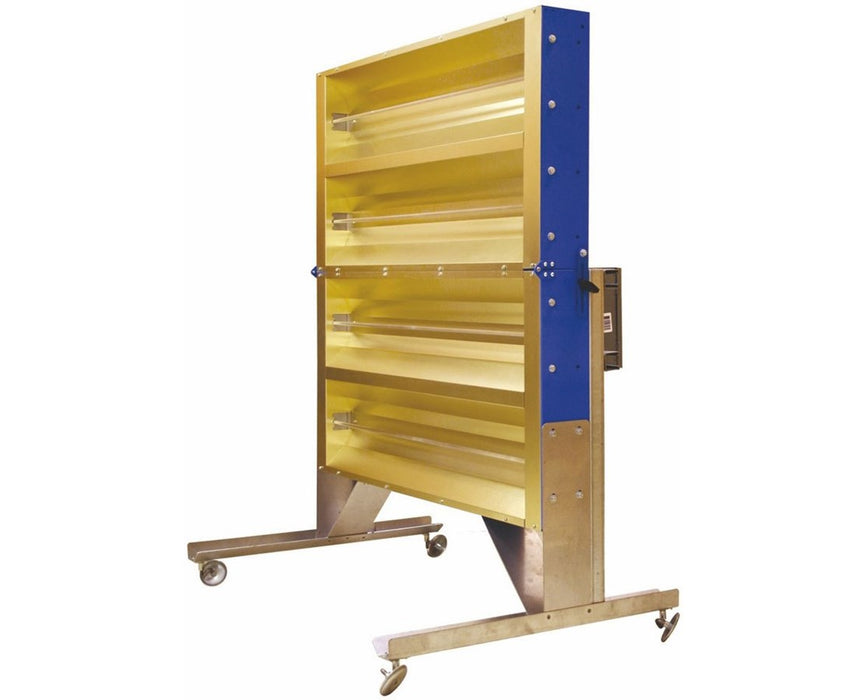

Portable Electric Infrared Heat Panel

TPI Corporation
by TPI Corporation
MFR#: HP5QT
TIGER#: TS62275
List Price: $4,121.00
You Save: $1,000.38 -24%
$4,121.00 - $4,121.00
List Price: $4,121.00
$3,120.62
$3,120.62 - $3,120.62
$3,120.62
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Portable Electric Infrared Heat Panel
Portable Electric Infrared Heat Panel - $3,120.62
$3,120.62
*Must Purchase 1 for Portable Electric Infrared Heat Panel

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/22/2023
Documents
Item Brochure
  • Choice of 3 watts
  • Rated from 4.8 to 11.2 kW
  • Power: 240 V
  • Medium-wave heat elements
  • Element reaches full temperature limit in less than 2 min
  • Adjustable hinges
  • Casters: 3”
  • Cable: 20’ SO-type flexible

The TPI Portable Electric Infrared Heat Panel is a portable infrared heater that is designed for most industrial and heavy commercial applications including auto collision repair shops other curing jobs. It is rated from 4.8 to 11.2 kilowatts and 240 volts of power.

The TPI infrared heat panel uses a medium-wave radiant heat element that has a life expectancy of up to 5,000 hours. Also, this heater panel element reaches its full temperature limit in less than two minutes. The TPI portable heater panel is set with adjustable hinges that allow the car shop personnel to apply direct heat accurately to the targeted area.

This TPI electric heat panel is constructed of 20 gauge steel from, base and housing. It includes three-inch steel casters which provide high stability and mobility. It includes Gold anodized Aluminum reflectors and end caps for a quicker cure time in paint and dust-laden environments. As an extra feature, it includes an SO-type flexible cable with a length of 20 feet.

Configuration Options

The TPI Portable Electric Infrared Heat Panel has three models with different wattages. Please choose from the menu above.

Model Heater
Wattage
(kW)		 Volts Amps Heat Sources Cable Type Dimensions
(W x H)		 Heated Area Size
(W x H)
HP5QT 4.8 240 20 4 12-3 SO 44.63" x 56.5" 40" x 44"
HP6QT 6.4 26.7 4 12-3 SO 55.63" x 56.5" 40" x 44"
HP11QT 11.2 46.7 7 6-3 SO 55.63" x 89.5" 60" x 77"



  • Choice of 3 watts
  • Rated from 4.8 to 11.2 kW
  • Power: 240 V
  • Medium-wave heat elements
  • Life expectancy up to 5,000 hours
  • Element reaches full temperature limit in less than 2 min
  • Adjustable hinges
  • 20 gauge steel construction
  • 3” steel casters
  • Gold anodized Aluminum reflectors and end caps
  • 20’ SO-type flexible cable

What’s in the Box

  • TPI Portable Electric Infrared Heat Panel
  • 4 x 3” steel casters
  • 1-year limited warranty

Available Product Options

  • Watts: 4.8 kW, 6.4 kW or 11.2 kW

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions
Heater
44.63" W x 56.5" H x 42" D, 55.63" W x 89.5" H x 9" D
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Housing
20 gauge steel
Warranty
1-year limited
Weight
116 lbs, 141 lbs, 225 lbs
Heater
Amps
20, 26.7, 46.7
BTU
16,378 BTU, 21,838 BTU or 38,216 BTU
Voltage
240 V
Wattage
4.8 kW, 6.4 kW, 11.2 kW
