PLS HV2G Green Beam Manual Rotary Laser Level

Pacific Laser Systems
by Pacific Laser Systems
MFR#: 5022520
TIGER#: TS65677
List Price: $2,440.99
You Save: $122.05 -5%
$2,440.99 - $2,440.99
List Price: $2,440.99
$2,318.94
$2,318.94 - $2,318.94
$2,318.94
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
PLS HV2G Green Beam Manual Rotary Laser Level
PLS HV2G Green Beam Manual Rotary Laser Level - $2,318.94
$2,318.94
*Must Purchase 1 for PLS HV2G Green Beam Manual Rotary Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 9/28/2023
Documents
Item Brochure
Essential Add-Ons:
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$52.20
$149.95
Fiberglass Rod
Fiberglass Rod
Details
$76.95
$99.95
  • 3x brighter than most standard rotary lasers
  • Range up to 1,000 feet using the XLD laser detector
  • Class II green laser
  • Accuracy: ±3/32 inch at 100 feet
  • Self-leveling within ±5 degrees
  • Drop resistant up to 3.3 feet (1m)
  • IP67 dustproof and water immersible
  • Horizontal and vertical laser beams

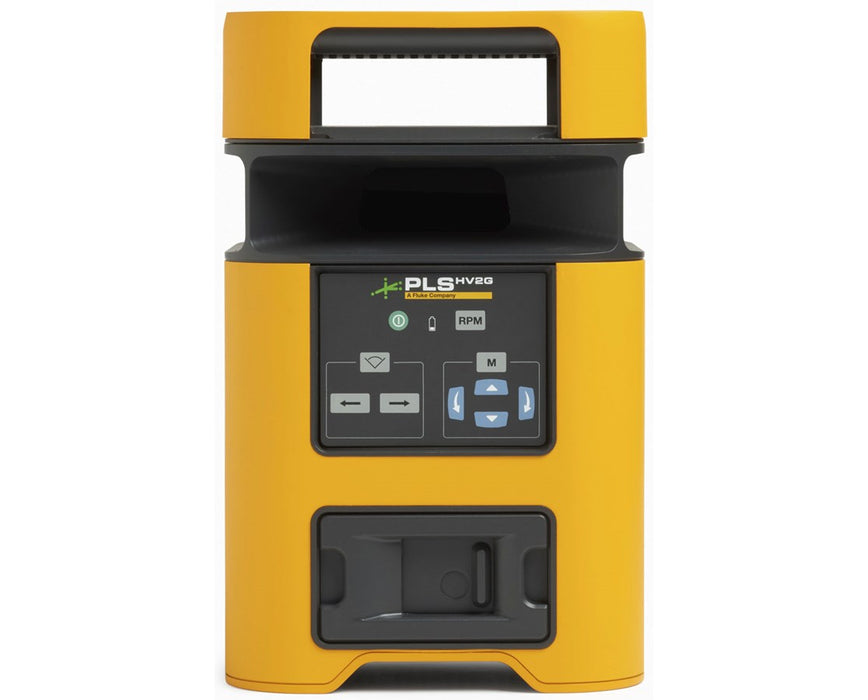

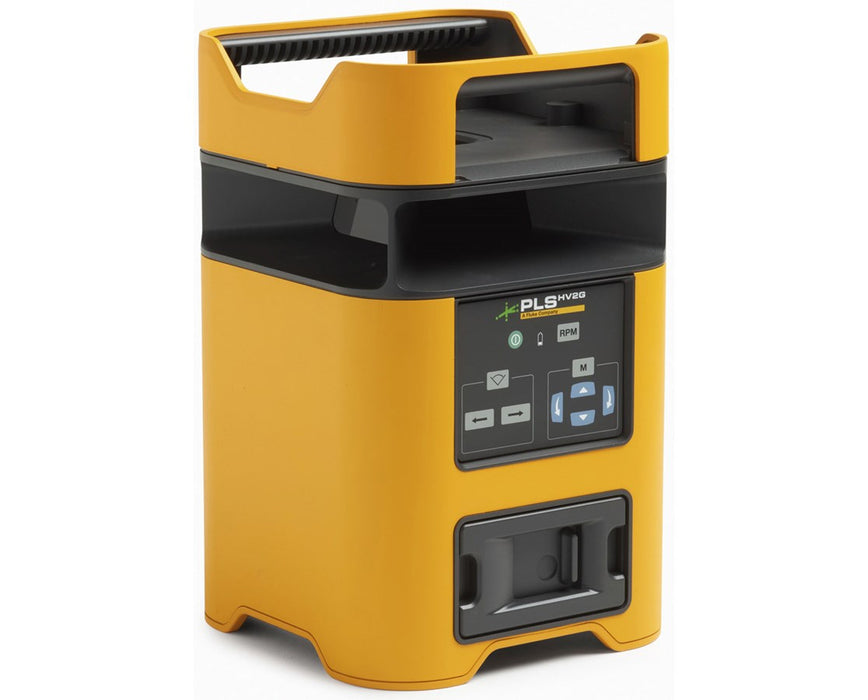

3x brighter than most standard rotary lasers, the Pacific Laser Systems PLS HV2G Green Beam Manual Rotary Laser is a fully-featured construction laser that is used for both indoor and outdoor layout applications. It features a high accuracy of ±3/32 inch at 100 feet and is self-leveling within ±5 degrees. This rotary laser also offers a range from 100 feet to 1,000 feet using the XLD laser detector.

The PLS HV2G laser level flaunts both horizontal and vertical laser beams that provide a manual slope of ±5 degrees. It produces a Class II green laser that is highly-visible when doing distant leveling jobs. This self-leveling laser level also emits a point from the top when put in a vertical position.

The Pacific Laser Systems rotary laser boasts a durable and ergonomic design that can withstand a drop up to 3.3 feet (1 m). Offering an IP67 rating, this rotating laser is protected from dust and is water immersible up to 3.3 feet for up to 30 minutes. As an additional feature, the PLS HV2G uses four D-cell Alkaline batteries or an NiMH rechargeable battery that powers the device up to 60 hours of use which is great for long-standing projects.

Configuration Options

The Pacific Laser Systems PLS HV2G Green Beam Manual Rotary Laser has three available packages that suit your needs. Please choose from the menu above.

  • 5022535: PLS HV2G Z Laser Bare Tool
  • 5022547: PLS HV2G Laser System
  • 5022520: PLS HV2G Laser Kit
Model What's Included
PLS HV2G Z
  • PLS HV2G rotary laser
  • BP10 Alkaline battery tray
PLS HV2G Laser System
  • PLS HV2G rotary laser
  • BP10 Alkaline battery tray
  • RBP10 NiMH rechargeable battery tray
  • BC20 Universal charging cord
  • RC2 Remote control
  • XLD Rotary laser detector with clamp
  • WCB10 Rotary wall and ceiling mount
  • GRT4 Red reflective target

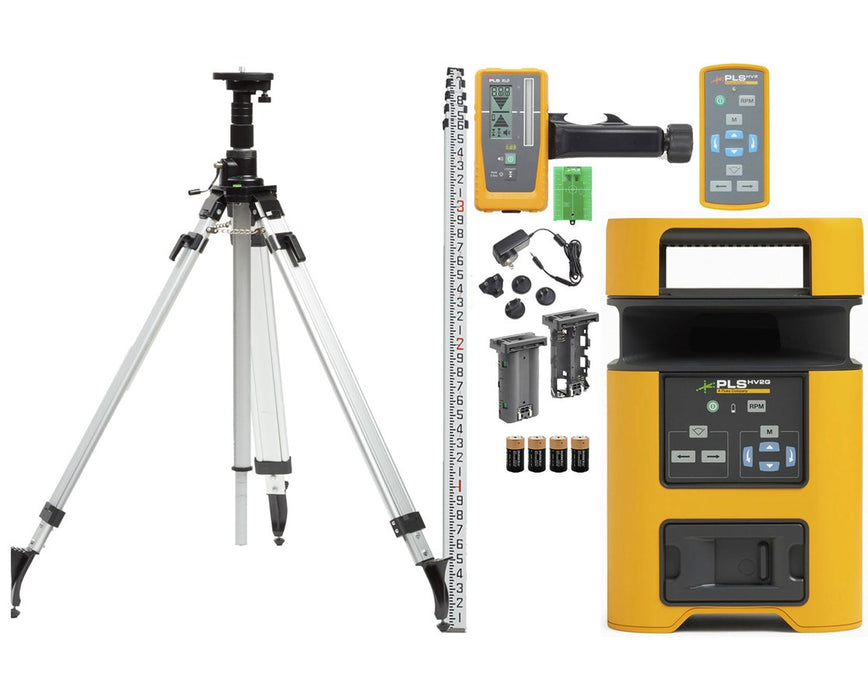

PLS HV2G Laser Kit
  • PLS HV2G rotary laser
  • BP10 Alkaline battery tray
  • RBP10 NiMH rechargeable battery tray
  • BC20 Universal charging cord
  • RC2 Remote control
  • XLD Rotary laser detector with clamp
  • WCB10 Rotary wall and ceiling mount
  • GRT4 Red reflective target
  • TPOD500 Elevator tripod
  • GR16 16' Grade rod (feet/8ths & metric)
  • Choice of 3 packages
  • 3x brighter than most standard rotary lasers
  • Accuracy: ±3/32 inch at 100 feet
  • Self-leveling within ±5 degrees
  • Range from 100 to 1,000 feet using the XLD laser detector
  • Horizontal and vertical laser beams
  • Manual slope: ±5 degrees
  • Class II green laser
  • Durable and ergonomic design
  • Drop resistant up to 3.3 feet (1m)
  • IP67 dustproof and water immersible up to 3.3 feet (1m) for up to 30 minutes
  • Uses 4 D-cell Alkaline batteries or NiMH rechargeable battery
  • Up to 60 hours of battery life

What’s in the Box

  • Pacific Laser Systems PLS HV2G Green Beam Manual Rotary Laser
  • User manual
  • 3-year warranty

Please refer to Overview for the full list of accessories

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±3/32 inches at 100 feet
Vertical
±3/32 inches at 100 feet
Applications
Concrete Forms, Footings and Foundations
No
Checking Building Square & Area
No
Checking Elevations of Sub-Base and Sub-Grade
No
Checking/Setting Elevations
No
Estimating Cut & Fill
No
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
No
Matching Existing Slope & Grade
No
Plumb Reference
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
No
Transferring Points from Floor to Ceiling
No
Battery/Power
Battery Life with Alkaline Batteries
Up to 60 hours
Battery Life with Rechargeable Battery Pack
Up to 60 hours
Power Source
4 x D-cell Alkaline or NiMH rechargeable batteries
Extra Technology
Detector/Receiver
XLD laser detector
Remote Control
RC2
Features
Bump Sensor (H.I./Out of Position Alert)
Yes
Detecting Indicator
XLD laser detector
Display
Light indicator
Drop Damage Protection
Up to 3.3 feet (1 m)
Dual Handles
Yes
Protection Class
IP67 dustproof and water immersible up to 3.3 feet up to 30 minutes
Functions
Automatic Leveling
Yes
Scanning Modes
Yes
General
Dimensions
7.24" L x 6.85" W x 10.79" H
Warranty
3-year
Weight
6.6 lbs (3 kg)
Laser
Classification
Class II
Color
Green
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
525nm
Range
Exterior
Up to 100 feet (w/o XLD detector); Up to 1,000 feet (w/ XLD detector)
Interior
Up to 100 feet (w/o XLD detector); Up to 1,000 feet (w/ XLD detector)
Self Leveling
±5 degrees
Temperature
Operating
-4 °F to 122 °F (-20 °C to 50 °C)
