PLS 6R Cross Line & Point Laser Level

Pacific Laser Systems
by Pacific Laser Systems
MFR#: 5009438
TIGER#: TS65305
List Price: $649.69
You Save: $161.20 -25%
$649.69 - $649.69
List Price: $649.69
$488.49
$488.49 - $488.49
$488.49
Add to cart for Lower Price
As low as $/mo.
Apply at Cart

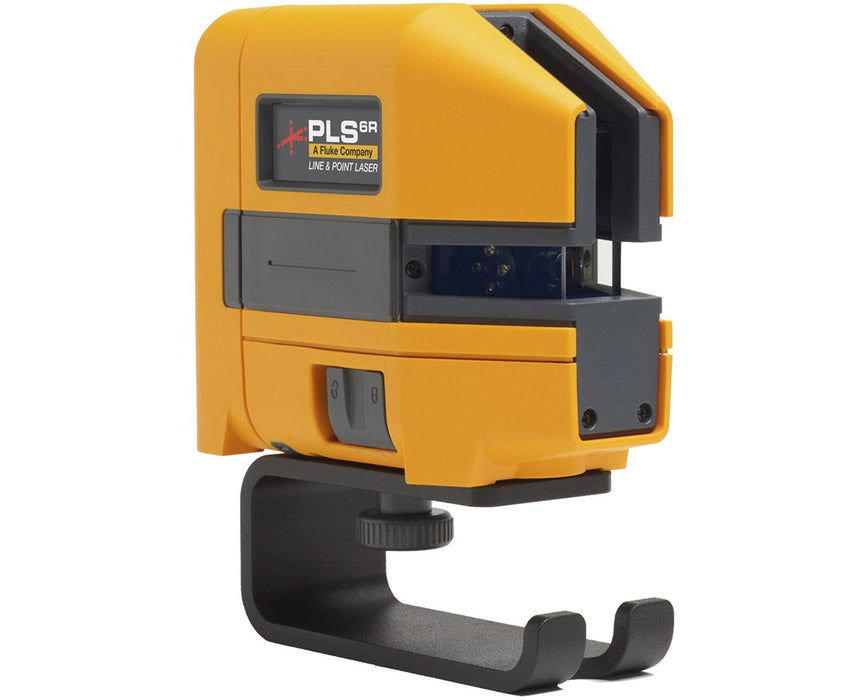

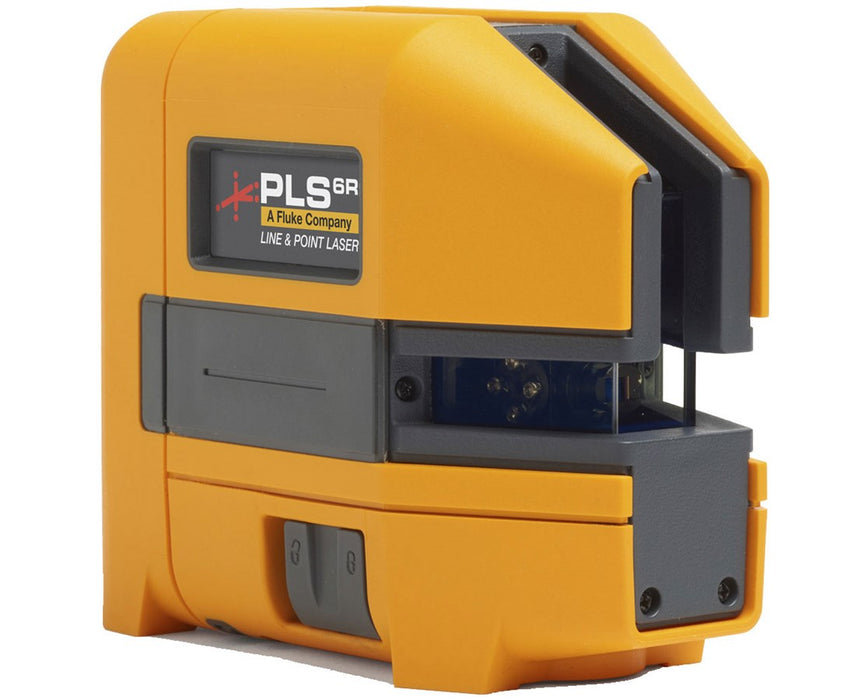

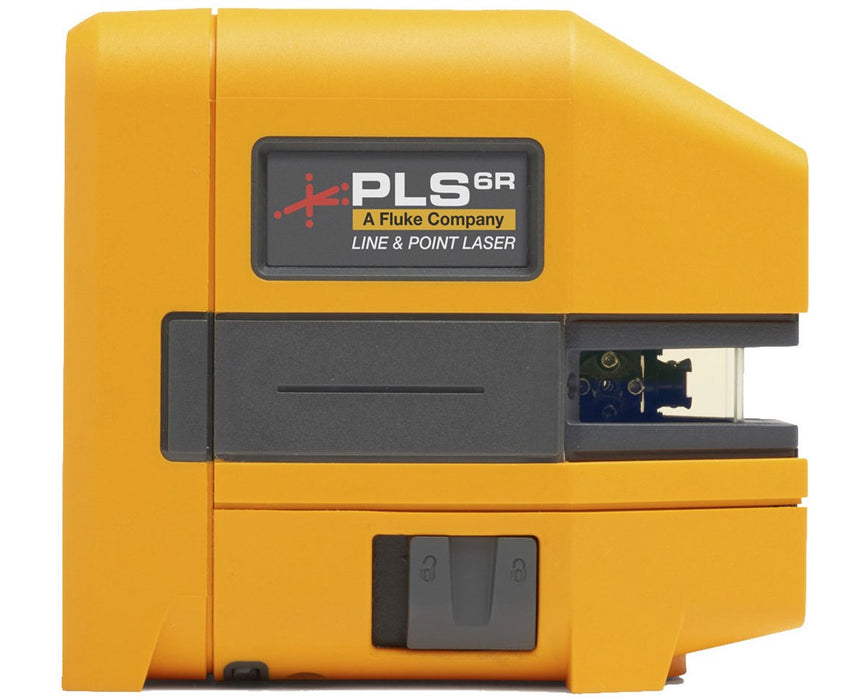

PLS 6R Cross Line & Point Laser Level
PLS 6R Cross Line & Point Laser Level - $488.49
$488.49
*Must Purchase 1 for PLS 6R Cross Line & Point Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 10/2/2023
Documents
Item Brochure
  • Laser: 2 lines and 4 points
  • Self-leveling within ±4 degrees
  • Accuracy: ±1/8 inch at 30 feet
  • Point laser range up to 100 feet
  • Line laser range up to 200 feet w/ optional SLD detector
  • Fan angle: 190° (horizontal); 130° (vertical)
  • Laser direction: 90° up, down, left, right
  • IP54 dustproof and water splash resistant

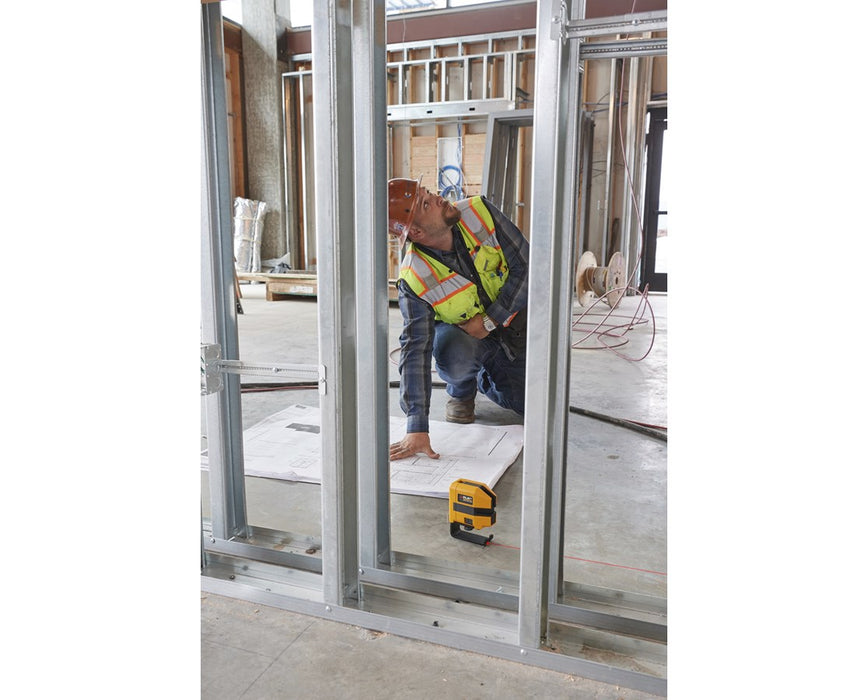

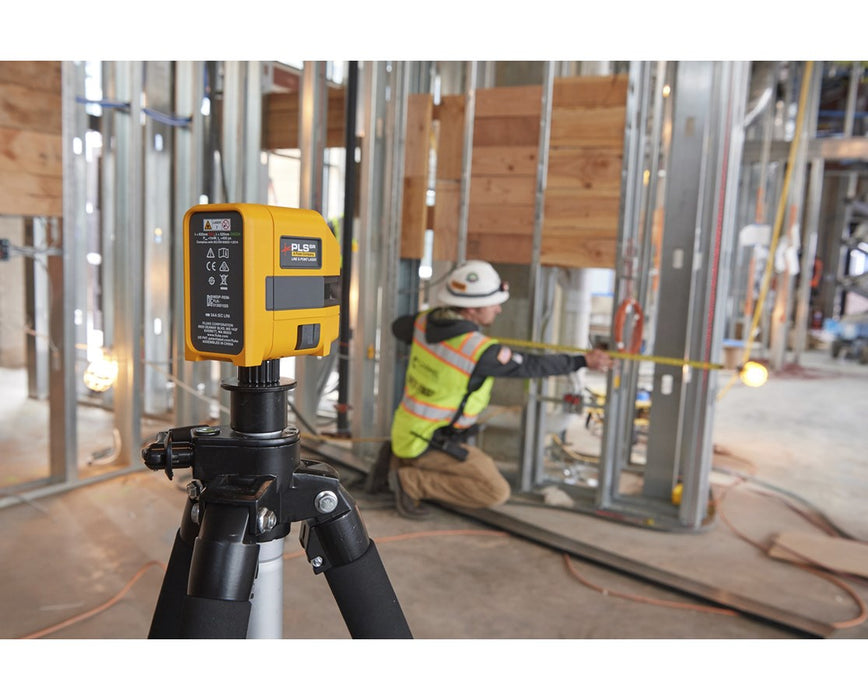

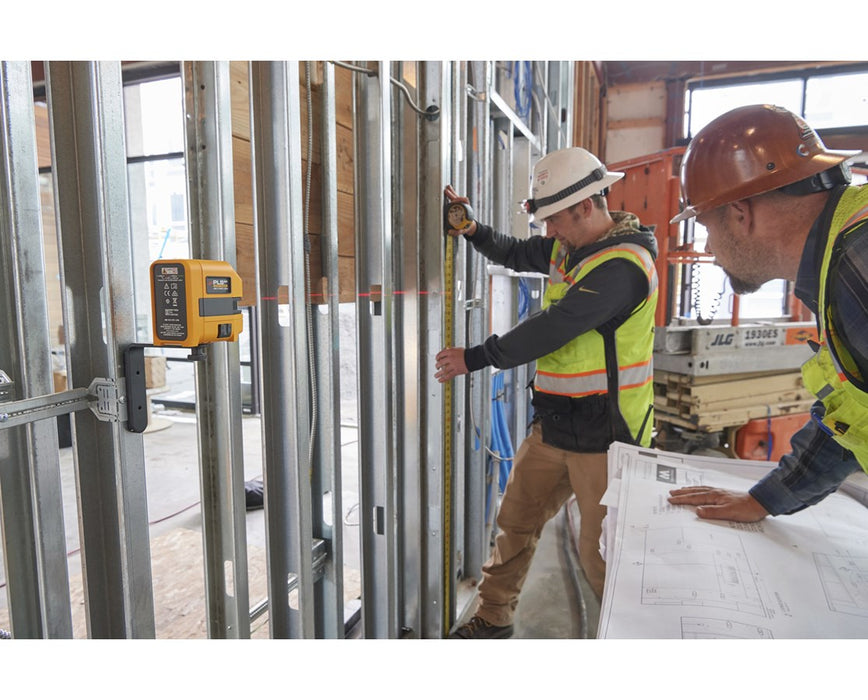

The Pacific Laser Systems PLS 6R Cross Line & Point Laser is an efficient construction laser that is perfect for metal or wood stud installation, square alignment, finish carpentry, and other general layout applications. It features two lines and four points for quick and easy plumbing, leveling and squaring. Self-leveling within ±4 degrees, this cross line and point laser offers an accuracy of ±1/8 inch at 30 feet.

The PLS 6R laser level features a Class II red laser that provides a point laser range up to 100 feet. It also comes with a line laser range up to 50 feet and up to 200 feet with the optional SLD laser line detector. For a full coverage, this PLS line laser offers a fan angle of 190 degrees horizontal and 130 degrees vertical. Plus, it has four point laser directions: 90° up, down, left, right.

Featuring an IP54 rating, this Pacific Laser Systems line laser is dustproof and water splash resistant. It includes a pendulum lock to keep device safe when moved or dropped. The PLS 6R laser includes three AA alkaline batteries that run up to eight hours of continuous use. In addition, it only weighs 1.3 pounds and measures 4.1” L x 2.5” W x 4.6” H which is easy to carry around.

Configuration Options

The Pacific Laser Systems PLS 6R Cross Line & Point Laser has three available packages that suit your needs. Please select your preference from the menu above.

  • 5009423: PLS 6R Z Laser Only
  • 5009438: PLS 6R Laser Kit
  • 5009445: PLS 6R Laser System
Model What's Included

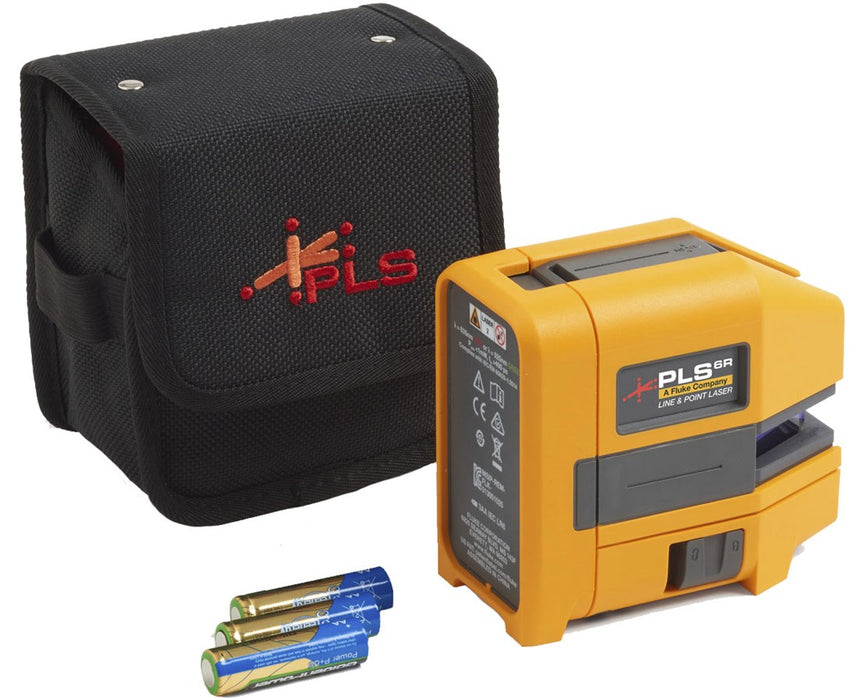

PLS 6R Z
  • PLS 6R laser level
  • Carrying pouch
  • BP5 Alkaline battery pack

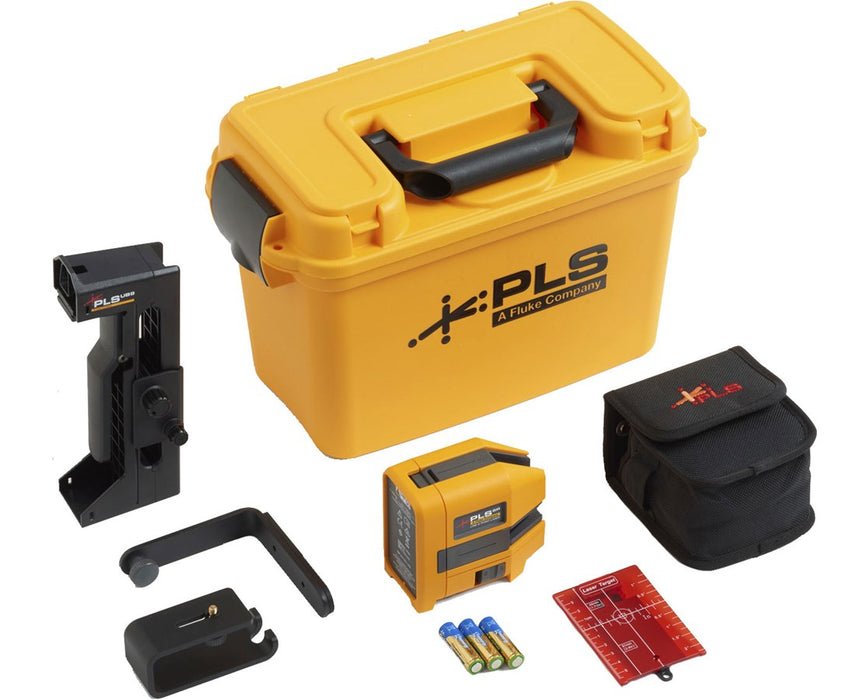

PLS 6R Laser Kit
  • PLS 6R laser level
  • Carrying pouch
  • BP5 Alkaline battery pack
  • UB9 Universal ceiling and wall bracket
  • Floor stand
  • Magnetic L-bracket
  • Red reflective target

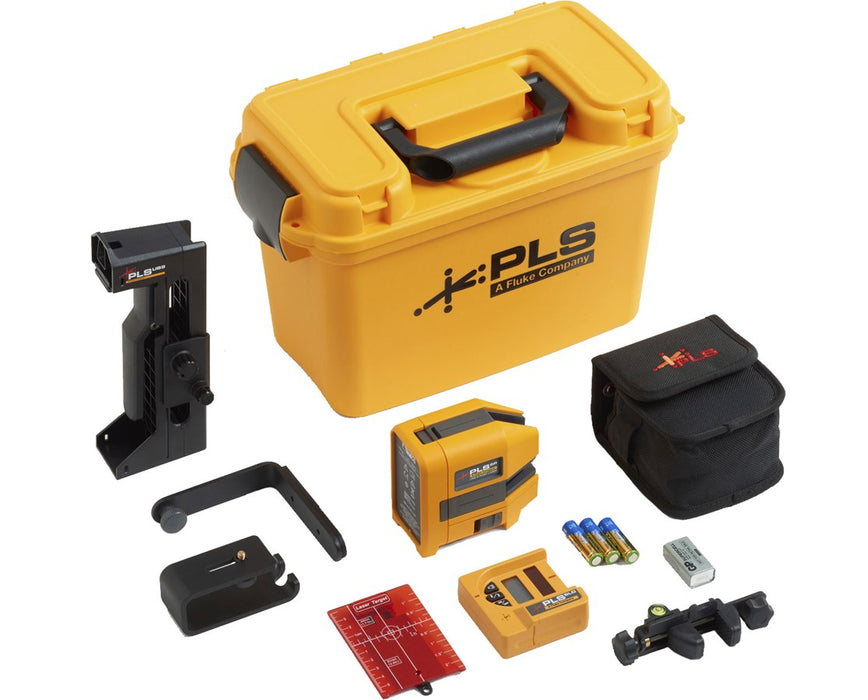

PLS 6R Laser System
  • PLS 6R laser level
  • Carrying pouch
  • BP5 Alkaline battery pack
  • SLD Laser line detector with clamp
  • UB9 Universal ceiling and wall bracket
  • Floor stand
  • Magnetic L-bracket
  • Red reflective target
  • Choice of 3 packages
  • Laser: 2 lines and 4 points
  • Self-leveling within ±4 degrees
  • Accuracy: ±1/8 inch at 30 feet
  • Class II red laser
  • Point laser range up to 100 feet
  • Line laser range up to 50 feet and up to 200 feet with optional SLD detector
  • Fan angle: 190° (horizontal); 130° (vertical)
  • 4-point laser direction: 90° up, down, left, right
  • IP54 dustproof and water splash resistant
  • Pendulum lock
  • Includes 3 AA alkaline batteries
  • Up to 8 hours of continuous use
  • Weight: 1.3 lbs
  • Dimensions: 4.1” L x 2.5” W x 4.6” H

What’s in the Box

  • Pacific Laser Systems PLS 6R Cross Line & Point Laser
  • User manual
  • 3-year warranty

Please refer to Overview for the full list of accessories.

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Elevator Shafts
No
Flooring and Tile Layout
Yes
High Rise Jobsites
No
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
No
Smoke Stacks
No
Stud Plumbing and Alignment
Yes
Tank Distortion Measurement
No
Towers
No
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
Yes
Battery/Power
Operating Temperature
14 °F to 122 °F (-10 °C to 50 °C)
Operating Time
Up to 8 hours
Power Source
3 x AA Alkaline
Storage Temperature
-0.4 °F to 122 °F (-18 °C to 50 °C) With Batteries; -13 °F to 158 °F (-20 °C to 70 °C) Without Batteries
Features
Environmental Class
IP54 dust and water splash resistant
Self-Leveling
Yes
Functions
Aligning at an Angle
Yes
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
Yes
Vertical Aligning
Yes
Vertical and Horizontal Aligning
Yes
General
Dimensions
4.1” L x 2.5” W x 4.6” H
Laser Class
2 (in accordance with IEC 60825-1:2014)
Laser Type
635 nm ± 5 nm
Warranty
3-year
Weight
1.3 lbs (0.6 Kg)
Measuring Capabilities
Beam Direction
90° up, down, left, right
Leveling Accuracy
±1/8 inch at 30 feet (3.18 mm at 9 m)
Number of Lines (Planes)
2
Number of Points
4
Range with Receiver
Up to 200 ft (61 m)
Self-Leveling Range
±4 degrees
Working Range
Up to 100 ft (30 m)
