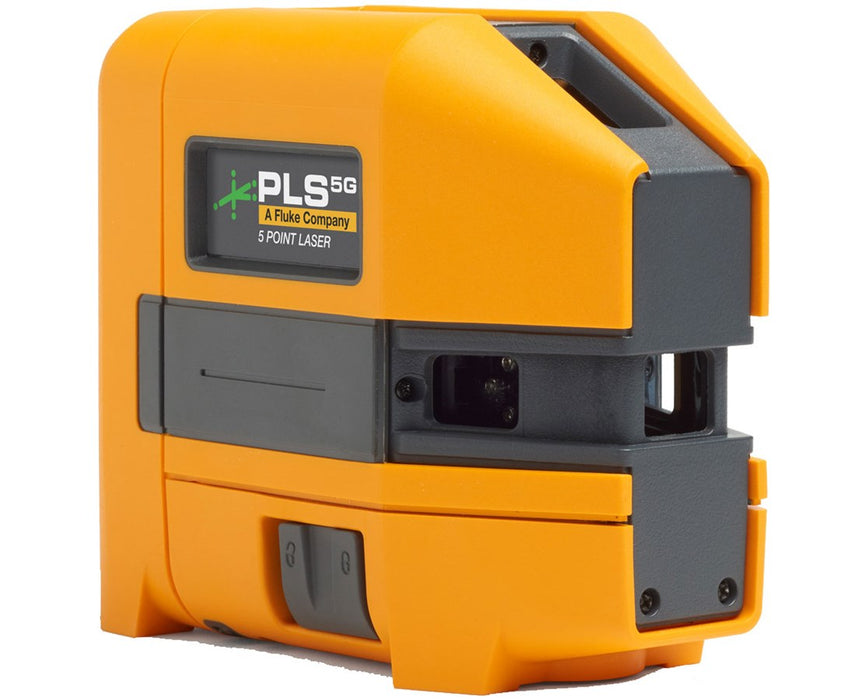

PLS 5G Green Beam 5-Point Laser Level

Pacific Laser Systems
by Pacific Laser Systems
MFR#: 5009414
TIGER#: TS65239
List Price: $549.99
You Save: $27.50 -5%
$549.99 - $549.99
List Price: $549.99
$522.49
$522.49 - $522.49
$522.49
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
PLS 5G Green Beam 5-Point Laser Level
PLS 5G Green Beam 5-Point Laser Level - $522.49
$522.49
*Must Purchase 1 for PLS 5G Green Beam 5-Point Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 10/1/2023
Documents
Item Brochure
Essential Add-Ons:
Antenna Tripod Side Mount Bracket
Antenna Tripod Side Mount Bracket
Details
$173.23
$205.00

With a 3x brighter beam than standard PLS 5R lasers, the Pacific Laser Systems PLS 5G Green Beam 5-Point Laser Level provides a leveling performance like no other. This construction laser level offers a working range up to 100 feet with an accuracy as high as ±1/8 inch at 30 feet. It is also self-leveling within ±4 degrees for more precision.

This PLS 5G green laser features a pendulum lock platform which allows the device to be transported safely and enables to secure the laser level in tilt mode. It comes with a Class II laser and a Pollution Degree 2 for added safety. This 5-point green laser produces five beams with different laser directions - 90° up, down, left, right, and forward.

The Pacific Laser system 5-point green laser level uses three AA Alkaline batteries that allow the device to operate up to nine hours of continuous use. With an IP54 rating, the PLS 5G is dustproof and water splash resistant. As an additional feature, this green beam laser weighs only 1.3 pounds and offers a compact size of 4.1” L x 2.5” W x 4.6” H for added portability.

Configuration Options

The Pacific Laser Systems PLS 5G Green Beam 5-Point Laser Level offers two packages with varying included accessories for your needs. Please choose from the menu above.

  • 5009406: PLS 5G Z Laser Only
  • 5009414: PLS 5G Laser Kit
Model What's Included

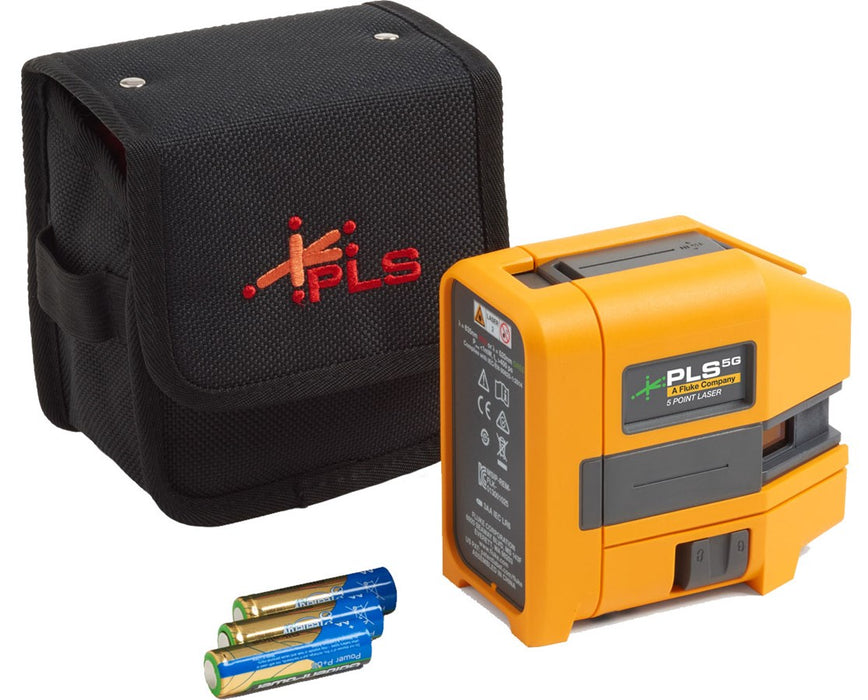

PLS 5G Z
  • PLS 5G laser level
  • Carrying pouch
  • BP5 Alkaline battery pack

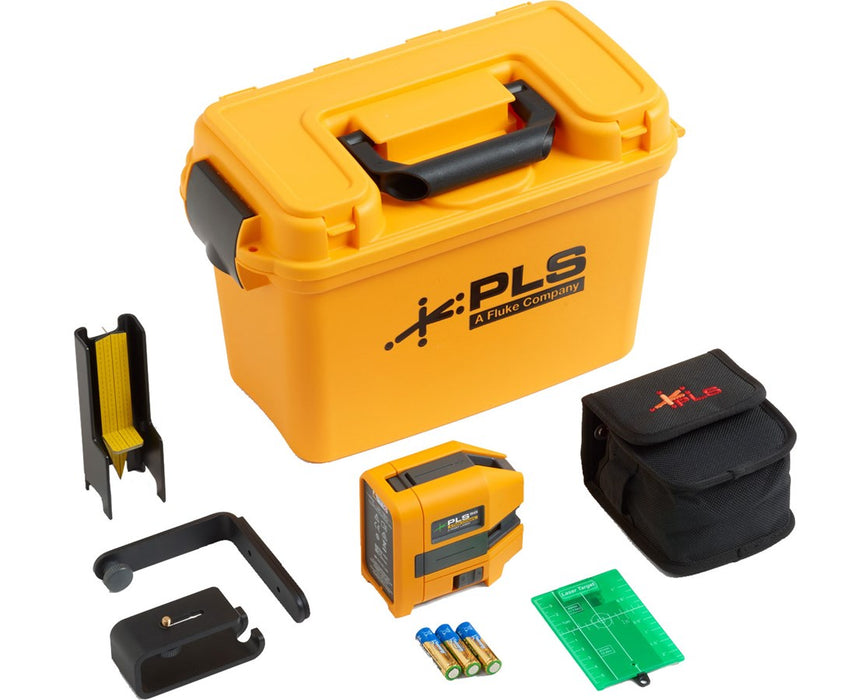

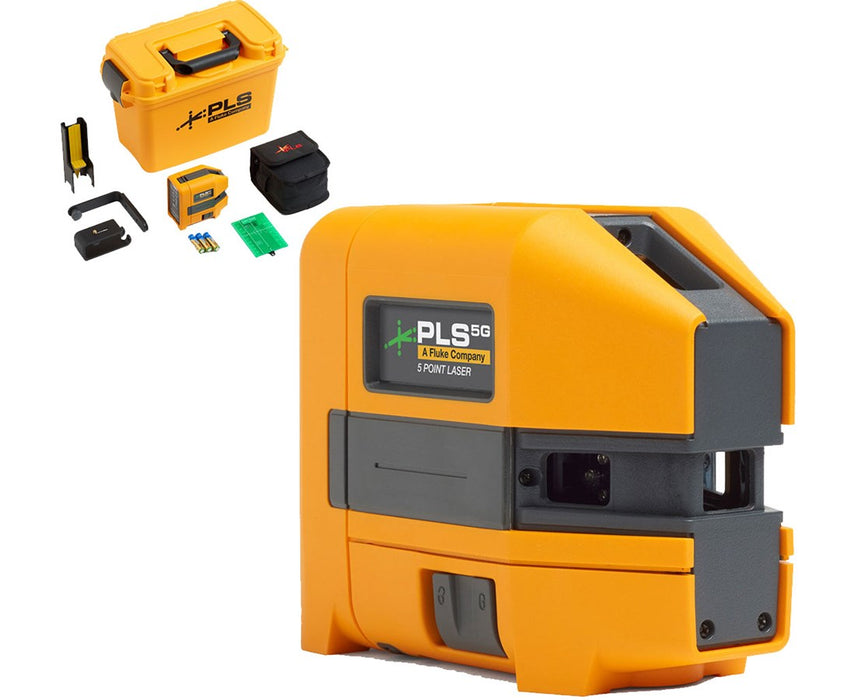

PLS 5G Laser Kit
  • PLS 5G laser level
  • Carrying pouch
  • BP5 Alkaline battery pack
  • Floor stand

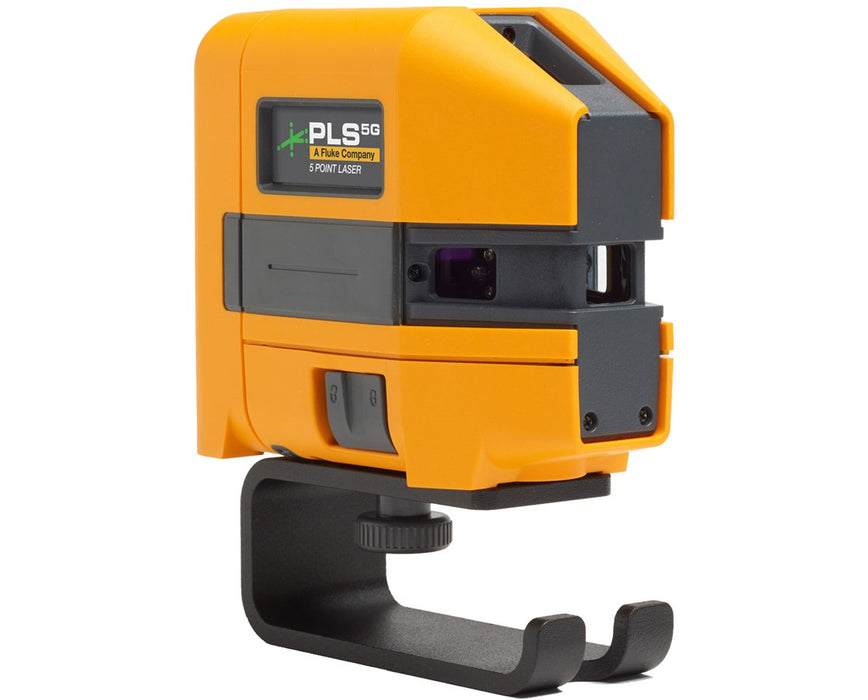

  • Magnetic L-bracket
  • Pendulum target
  • Green reflective target
  • Choice of 2 packages
  • 3x brighter beam than PLS 5R lasers
  • Range up to 100 feet
  • Accuracy: ±1/8 inch at 30 feet
  • Self-leveling within ±4 degrees
  • Pendulum lock platform
  • Class II laser
  • Pollution Degree 2
  • 5-point laser direction
  • Uses 3 AA Alkaline batteries
  • Up to 9 house of continuous use
  • IP54 dustproof and water splash resistant
  • Weight: 1.3 lbs
  • Dimensions: 4.1” L x 2.5” W x 4.6” H
  • 3-foot drop resistance

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Elevator Shafts
No
Flooring and Tile Layout
Yes
High Rise Jobsites
No
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Smoke Stacks
No
Stud Plumbing and Alignment
Yes
Tank Distortion Measurement
No
Towers
No
Transferring Points from Floor to Ceiling
Yes
Transferring Points from Wall to Wall
No
Battery/Power
Operating Temperature
14 to 122 °F (-10 to 50 °C)
Operating Time
Up to 9 hours
Power Source
3 x AA Alkaline
Storage Temperature
-0.4 to 122 °F (-18 to 50 °C) With Batteries; -13 °F to 158 °F (-20 °C to 70 °C) Without Batteries
Features
Environmental Class
IP54 dust and water splash resistant
Self-Leveling
Yes
Functions
Aligning at an Angle
No
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
Setting out Right Angles
No
Vertical Aligning
No
Vertical and Horizontal Aligning
No
General
Dimensions
4.1” L x 2.5” W x 4.6” H

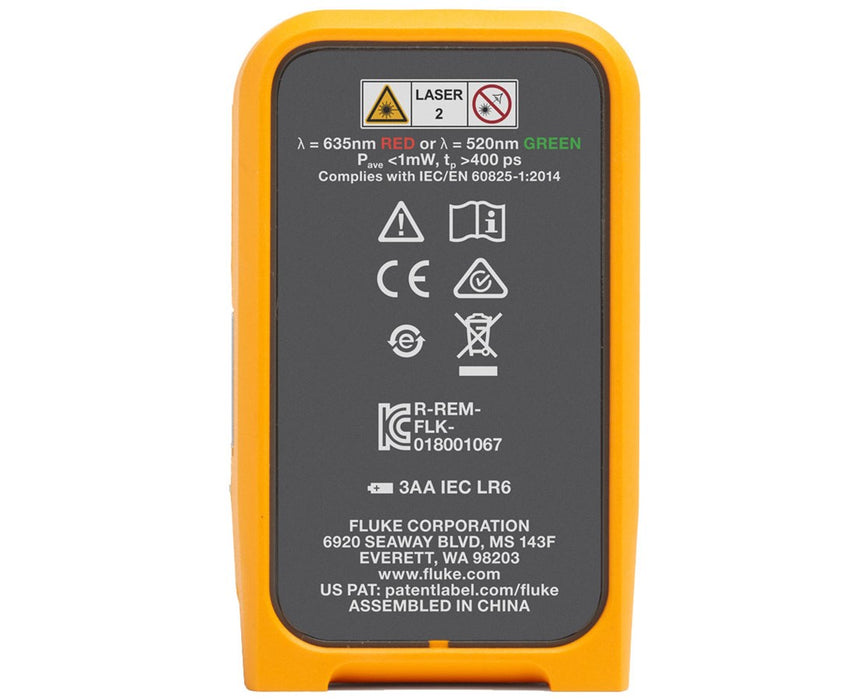

Laser Class
2 (in accordance with IEC 60825-1:2014)
Laser Type
525 nm ± 5 nm
Warranty
3-year
Weight
1.3 lbs (0.6 Kg)
Measuring Capabilities
Beam Direction
90° up, down, left, right, forward
Leveling Accuracy
±1/8 inch at 30 feet (3.18 mm at 9 m)
Number of Points
5
Self-Leveling Range
±4 degrees
Working Range
Up to 100 feet (30 m)
