PLS 3R 3-Point Laser Level

Pacific Laser Systems
by Pacific Laser Systems
MFR#: 5009340
TIGER#: TS65085
List Price: $251.99
You Save: $12.60 -5%
$251.99 - $251.99
List Price: $251.99
$239.39
$239.39 - $239.39
$239.39
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
PLS 3R 3-Point Laser Level
PLS 3R 3-Point Laser Level - $239.39
$239.39
*Must Purchase 1 for PLS 3R 3-Point Laser Level

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 10/3/2023
Documents
Item Brochure
Essential Add-Ons:
Antenna Tripod Side Mount Bracket
Antenna Tripod Side Mount Bracket
Details
$173.23
$205.00
  • Range up to 100 feet
  • Accuracy: ±1/8 inch at 30 feet
  • Self-leveling at ±4 degrees
  • 3-point laser direction
  • Pendulum lock
  • IP54 dust and water splash resistant
  • Battery life up to 30 hours
  • Drop-resistant up to 3 feet

The Pacific Laser Systems PLS 3R 3-Point Laser Level is a small yet powerful construction laser that is great for indoor and outdoor alignment applications. With a ±1/8 inch at 30 feet accuracy, it offers a working range up to 100 feet which is perfect for steel stud framing, HVAC installation, electrical and other residential leveling applications. This 3-point laser is also self-leveling at ±4 degrees with an automatic pendulum leveling system.

The PLS 3R laser uses a Class II red laser that produces three bright visible laser beams to quickly trace plumb lines from floor to ceiling. It also has three-point laser directions: 90° up, down and forward. This PLS 3R laser level comes with a pendulum lock to guarantee safe transport and to lock the device while in tilt mode.

This PLS 3-point laser is constructed of durable plastic that is built to withstand a drop up to three feet. Weighing only 1.3 pounds, it has dimensions of 4.1” L x 2.5” W x 4.6” H. As an extra feature, the PLS 3R laser level uses three AA Alkaline batteries that runs the instrument up to 30 hours of continuous use. Plus, it is IP54 rated for added dust and water splash protection.

Configuration Options

The Pacific Laser Systems PLS 3R 3-Point Laser Level offers two packages that suit your needs. Please select your preference from the menu above.

  • 5009340: PLS 3R Z Laser Only
  • 5009357: PLS 3R Laser Kit
Model What's Included
PLS 3R Z
  • PLS 3R laser level
  • Carrying pouch
  • BP5 Alkaline battery pack

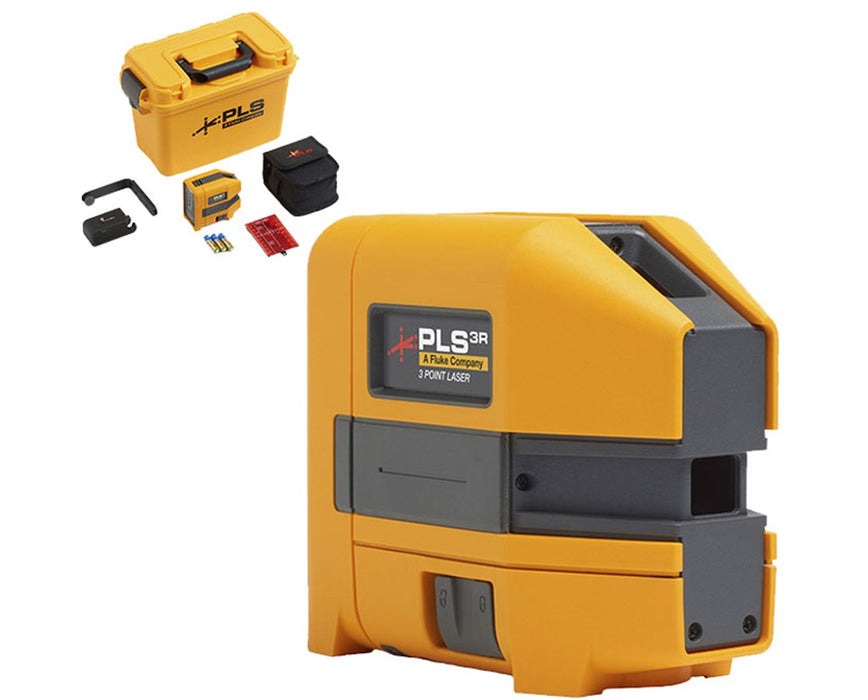

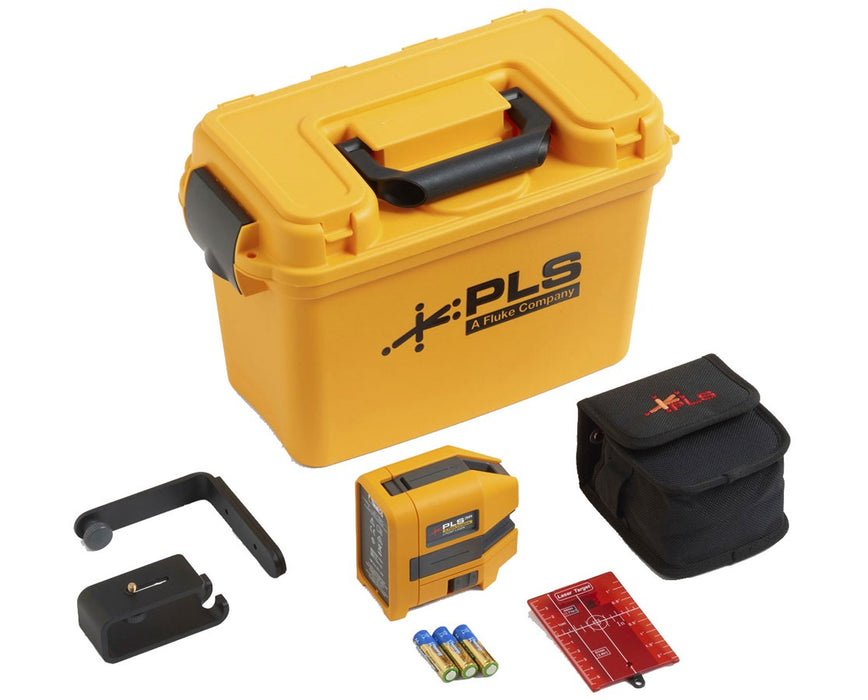

PLS 3R Laser Kit
  • PLS 3R laser level
  • Carrying pouch
  • BP5 Alkaline battery pack
  • Floor stand
  • Magnetic L-bracket
  • RRT4 Red reflective target
  • Choice of 2 packages
  • Small yet powerful construction laser
  • Accuracy: ±1/8 inch at 30 feet
  • Range up to 100 feet
  • Self-leveling at ±4 degrees
  • Automatic pendulum leveling system
  • Class II red laser
  • 3 bright visible laser beams
  • 3 point laser directions: 90° up, down and forward
  • Pendulum lock
  • Durable plastic construction
  • Drop-resistant up to 3 feet
  • Weight: 1.3 lbs
  • Dimensions: 4.1” L x 2.5” W x 4.6” H
  • Uses 3 AA Alkaline batteries
  • Up to 30 hours of continuous use
  • IP54 dust and water splash resistant

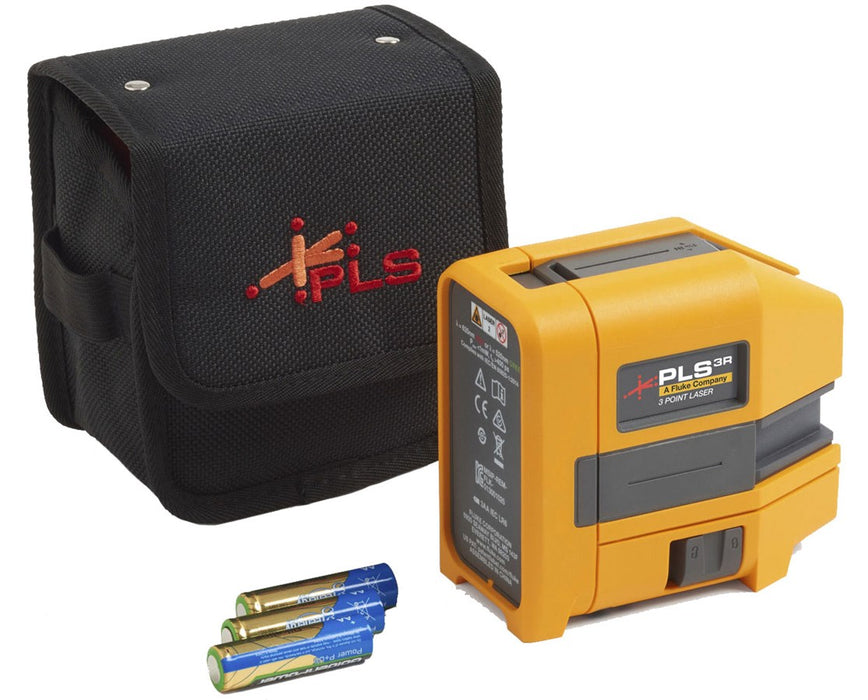

What’s in the Box

  • Pacific Laser Systems PLS 3R 3-Point Laser Level
  • User manual
  • 3-year warranty

Please refer to Overview for the full list of accessories.

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Applications
Ceiling Joist and Rafter Alignment
Yes
Diagonals and Footings for Patios
Yes
Flooring and Tile Layout
Yes
Installing Drop Ceilings and Lights
Yes
Installing Plumbing Pipes and Conduit
Yes
Installing Windows and Partition Walls
Yes
Leveling and Excavation
Yes
Stud Plumbing and Alignment
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Operating Temperature
14 to 122 °F (-10 to 50 °C)
Operating Time
Up to 30 hours
Power Source
3 x AA Alkaline
Storage Temperature
-0.4 to 122 °F (-18 to 50 °C) With Batteries; -13 °F to 158 °F (-20 °C to 70 °C) Without Batteries
Features
Environmental Class
IP54 dust and water splash resistant
Self-Leveling
Yes
Functions
Horizontal Leveling
Yes
Plumbing Up and Down
Yes
General
Dimensions
4.1” L x 2.5” W x 4.6” H
Laser Class
2 (in accordance with IEC 60825-1:2014)
Laser Type
635 nm ±5 nm
Warranty
3-year
Weight
1.3 lbs (0.6 kg)
Measuring Capabilities
Beam Direction
90° up, down and forward
Leveling Accuracy
±1/8 inch at 30 feet (3.18 mm at 9 m)
Number of Points
3
Self-Leveling Range
±4 degrees
Working Range
Up to 100 feet (30 m)
