PHLA Portable Hazardous Location Fan-Forced Unit Heater

by TPI Corporation

MFR#: PHLA122081603.024TDP

TIGER#: TS59591

List Price: $30,167.00

You Save: $10,860.12 -36%

$30,167.00 - $30,167.00

List Price: $30,167.00

$19,306.88

$19,306.88 - $19,306.88

$19,306.88

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

PHLA Portable Hazardous Location Fan-Forced Unit Heater - $19,306.88

$19,306.88

*Must Purchase 1 for PHLA Portable Hazardous Location Fan-Forced Unit Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/29/2023

Documents

Product Manual Item Brochure Product Video

Choice of heater wattage, voltage & phase
Anti-static wheeled cart
Integrated fork-lift channels
NEMA 7 enclosure
Adjustable louvers
Manual reset
Hazardous location unit mounted male/female plug
Durable epoxy coating on housing

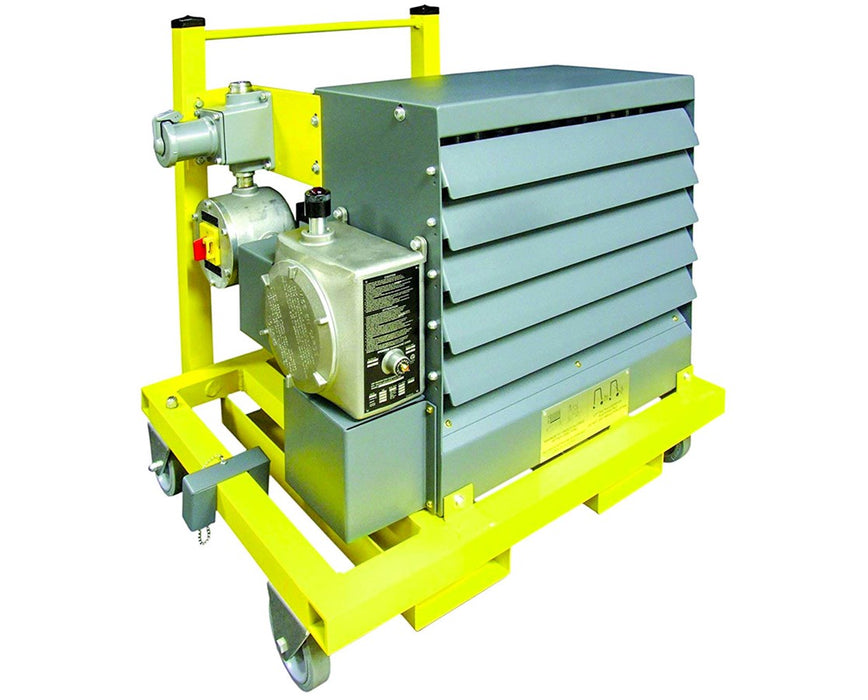

The TPI PHLA Series Portable Hazardous Location Fan-Forced Unit Heater is a robust transportable heater that provides exceptional seasonal heating in many hazardous environments. This PHLA heater comes with a cart that has anti-static wheels and integrated fork-lift channels for easy transferring to ramps and trucks. It offers a power rating of three to 25 kilowatts.

This TPI portable heater consists of a 24-volt control, transformer, and contactor that are housed in a NEMA 7 enclosure. Also, it comes with adjustable louvers and a manual reset for easy operation. Plus, it includes a hazardous location unit mounted male or female plug.

Designed to last for a long time, the TPI PHLA series heater comes with a disconnect switch, pilot light, and a standard thermostat. The heater housing also has a durable epoxy coating that is weather resistant. As an extra feature, this TPI fan-forced heater is made in the USA and is Intertek compliant.

Configuration Options

The TPI PHLA Series Portable Hazardous Location Fan-Forced Unit Heater offers 31 models that have different heater wattages (in kilowatts), voltage and phase. Please select your preference from the menus above.

Heater Wattage	BTUs	Volts	PH	Amps	Temperature Rise (°F)	Air Throw	CFM	Dimensions (L x W x H)
3 kW	10,250	208 208 240 240 480 600	1 3 1 3 3 3	16.3 9.8 14.8 8.6 4.3 3.5	16.5	24'	580	1-Phase: 22.38" x 20.63" x 17.75 3-Phase: 22.38" x 19.75" x 17.75"
5 kW	17,100	208 208 240 240 480 600	1 3 1 3 3 3	26 15.4 23.1 13.4 6.7 5.4	27.6	24'	580
7.5 kW	25,600	208 208 240 240 480 600	1 3 1 3 3 3	38 22.3 33.6 19.4 9.7 7.8	41.4	24'	580
10 kW	34,150	208 240 240 480 600	3 1 3 3 3	29.3 44 25.5 12.7 10.2	21.7	40'	1,500	1-Phase: 26.38" x 21.63" x 20.75" 3-Phase: 26.38" x 20.75" x 20.75
15 kW	51,200	208 240 480 600	3 3 3 3	43.5 38.1 19 15.2	19.2	43'	2,450	3-Phase: 30.38" x 22.5" x 24.75"
20 kW	68,300	480 600	3 3	25.1 20	26.2	43'	2,450
25 kW	85,400	480 600	3 3	31.1 24.9	32.8	43'	2,450

Choice of heater wattage, voltage & phase
Robust transportable heater
Exceptional seasonal heating in hazardous environments
Anti-static wheeled cart
Integrated fork-lift channels
Power rating: 3 to 25 kilowatts
NEMA 7 enclosure
Adjustable louvers
Manual reset
Hazardous location unit mounted male/female plug
Disconnect switch
Pilot light
Standard thermostat
Durable epoxy coating on the housing
Made in the USA
Intertek compliant

What’s in the Box

TPI PHLA Series Portable Hazardous Location Fan-Forced Unit Heater
1-year limited warranty

Available Product Options

Heater Wattage (kW): 3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW or 25 kW
Voltage: 208 V, 240 V, 480 V, 600 V
Phase: 1-Phase or 3-Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater

Adjustable Louves

Yes

Control Enclosure

Average Temperature Rise

16.5 °F (3-kW models); 27.6 °F (5-kW models); 41.4 °F (7.5-kw models); 21.7 °F (10-kW models); 19.2 °F (15-kW); 26.2 °F (20-kW models); 32.8 °F (25-kW models)

Control Voltage

24 V

NEMA Rating

NEMA 7

Rating Cycles

6,000 cycles

Transformer

Yes

Features

Cart

Yes

Disconnect Switch

Yes

Forklift Channels

Yes

Pilot Light

Thermostat

Optional

General

Finish/Coating

Epoxy coating

Hazardous Location Rating

Class I, Group C & D Division 1 & 2 and Class II Groups E, F, & G Divisions 1 & 2

Housing

14 gauge steel

Warranty

1-year limited

Weight

260 lbs (3-kW, 5-kW, 7.5-kW models); 305 lbs (10-kW models); 350 lbs (15-kW, 20-kW or 25-kW models)

Heater

Air Throw

24’ (3-kW, 5-kW, 7.5-kW models); 40’ (10-kW models); 43’ (15-kW, 20-kW or 25-kW models)

Amps

3.5, 4.3, 5.4, 6.7, 7.8, 8.6, 9.7, 9.8, 10.2, 12.7, 13.4, 14.8, 15.2, 15.4, 16.3, 19, 19.4 20, 22.3, 23.1, 24.9, 25.1, 25.5, 26, 29.3, 31.1, 33.6, 38, 38.1, 43.5, 44

BTU

10,250 BTU, 17,100 BTU, 25,600 BTU, 34,150 BTU, 51,200 BTU, 68,399 BTU, 85,400 BTU

CFM

580 (3-kW, 5-kW, 7.5-kW models); 1,500 (10-kW models); 2,450 (15-kW, 20-kW or 25-kW models)

Power Distribution

1-Phase or 3-Phase

Voltage

208 V, 240V, 480 V or 600 V

Wattage

3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW, 25 kW

Motor

Bearing Type

Ball bearing

Capacitor Type

Permanent split

Frequency

60 Hz

Plug

male/female plug

Speed

1,725 RPM
