PD Packaged Duct Heater

TPI Corporation
by TPI Corporation
MFR#: PD51283
TIGER#: TS62398
List Price: $1,179.00
You Save: $286.20 -24%
$1,179.00 - $1,179.00
List Price: $1,179.00
$892.80
$892.80 - $892.80
$892.80
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
PD Packaged Duct Heater
PD Packaged Duct Heater - $892.80
$892.80
*Must Purchase 1 for PD Packaged Duct Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/22/2023
Documents
Item Brochure
  • Choice of heater wattage, volts & phase
  • Rating up to 50 kW
  • Primary automatic reset temperature limiting control
  • Load carrying secondary over-temperature protective device
  • 24-volt control voltage
  • Step-down control transformer
  • Definite purpose magnetic contactor
  • Switch: door interlock disconnect

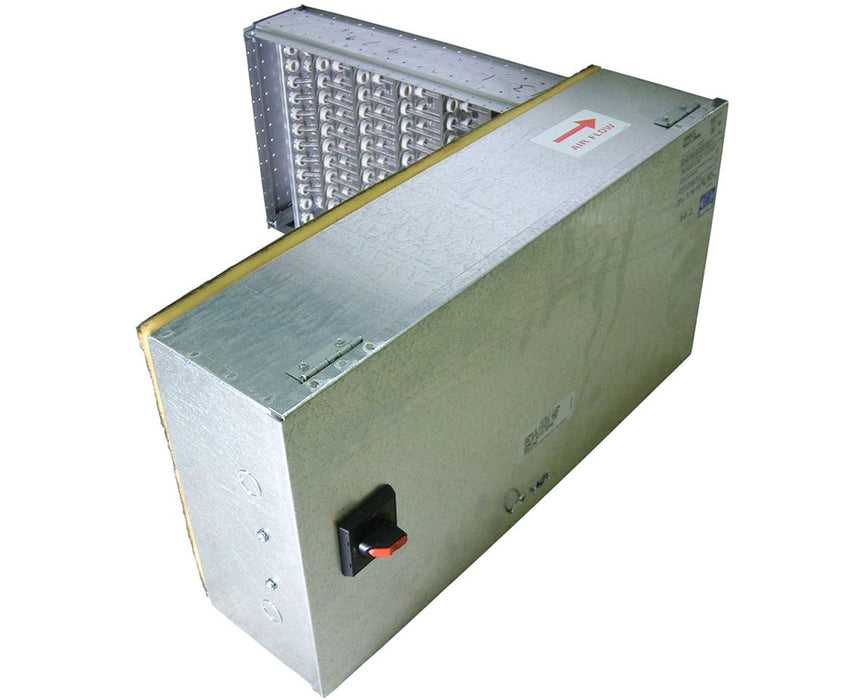

The TPI PD Series Packaged Duct Heater is a robust duct heating unit that is perfect for industrial and commercial spaces. This TPI duct heater features a rating up to 50 kilowatts and an optional single or three-phase wiring. It comes with a primary automatic reset temperature limiting control that safely regulates electric flow depending on the change in temperature.

The PD Series Packaged Duct Heater comes with a load carrying secondary over-temperature protective device which protects the unit from any overheating. Offering a 24-volt control voltage, it has a step-down control transformer that is built to give stability during an inrush current. Also, the PD Series duct heater features a definite purpose magnetic contactor that generates a strong magnetic field.

The TPI packaged duct heater is housed in a galvanized steel element rack and compartment which guarantees long life. It consists of a door interlock disconnect switch and a differential pressure fan inter-lock switch that works with many standard circuits. In addition, the PD Series is approved by the cETLus standards.

Configuration Options

The TPI PD Series Packaged Duct Heater offers 43 models with different features. Please select your preference from the drop-down menu above.

  • Heater Wattage: 2 kW, 3.5 kW, 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 40 kW, 45 kW or 50 kW
  • Volts: 208 V, 240 V, 277 V or 480 V
  • Phase: 1 or 3 Phase
Volts Phase Heater
Wattage 		Amps Control
Steps		 Dimensions
(L x W x H)
240 1 5
10
15
20
25		 20.9
41.7
62.5
83.3
104.2		 1
2
2
2
3		 26" x 12" x 8"
28" x 18" x 10"
27" x 18" x 12"
31" x 20" x 12"
38" x 20" x 16"
277 1 2
3.5
5		 7.2
12.6
18.1		 1 26" x 12" x 8"
208 3 5
10
15
15
20
25
30
30
35
40
45
50		 13.9
27.8
41.7
41.7
55.6
69.5
83.4
83.4
97.3
111.2
125.1
139		 1
1
1
2
2
2
2
3
3
3
3
3		 26" x 12" x 8"
22" x 18" x 10"
25" x 18" x 12"
28" x 18" x 12"
40" x 20" x 12"
29" x 20" x 16"
29" x 24" x 16"
35" x 24" x 16"
35" x 24" x 16"
43" x 24" x 16"
43" x 30" x 16"
43" x 30" x 16"
240 3 5
10
15
15
19.9
25
30
30
35
40
45
49.8		 12.1
24.1
36.2
36.2
47.9
60.2
72.3
72.3
84.3
96.3
108.4
120		 1
1
1
2
2
2
2
3
3
3
3
3		 26" x 12" x 8"
22" x 18" x 10"
20" x 18" x 12"
26" x 18" x 12"
28" x 20" x 12"
39" x 20" x 16"
25" x 24" x 16"
35" x 24" x 16"
35" x 24" x 16"
35" x 24" x 16"
43" x 30" x 16"
43" x 30" x 16"
480 3 5
10
15
15
20
25
30
30
35
39.9
50		 6.1
12.1
18.1
18.1
24.1
30.1
36.2
36.2
42.2
48.1
60.2		 1
1
1
2
2
2
2
3
3
3
3		 26" x 12" x 8"
22" x 18" x 10"
20" x 18" x 12"
26" x 18" x 12"
26" x 18" x 12"
22" x 20" x 16"
18" x 24" x 16"
24" x 24" x 16"
26" x 24" x 16"
40" x 24" x 16"
36" x 30" x 16"
  • Choice of heater wattage, volts & phase
  • Rating up to 50 kW
  • Optional 1 or 3-phase wiring
  • Primary automatic reset temperature limiting control
  • Load carrying secondary over-temperature protective device
  • 24-volt control voltage
  • Step-down control transformer
  • Definite purpose magnetic contactor
  • Galvanized steel element race and compartment
  • Door interlock disconnect switch
  • Differential pressure fan interlock switch
  • cETLus approved

What’s in the Box

  • TPI PD Series Packaged Duct Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 2 kW, 3.5 kW, 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 40 kW, 45 kW or 50 kW
  • Volts: 208 V, 240 V, 277 V or 480 V
  • Phase: 1 or 3 Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions
Heater
18”/20”/22” L x 4.75” W x 6.5” H, 22”/24” L x 9.13” W x 6.5” H, 25” L x 4.75” W x 6.5” H, 25” L x 9.13” W x 6.5” H, 26” L x 4.75” W x 6.5” H, 26” L x 9.13” W x 6.5” H, 27”/28” L x 4.75” W x 6.5” H, 28”/29” L x 9.13” W x 6.5” H, 29”/31”/35” L x 9.13” W x 7.5” H, 35”/36” L x 9.13” W x 6.5” H, 38” L x 9.13” W x 7.5” H, 39”/40” L x 9.13” W x 6.5” H, 43” L x 9.13” W x 7.5” H
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
No
Thermostat
Yes
General
Housing
Galvanized steel
Warranty
1-year limited
Weight
21 lbs, 22 lbs, 26 lbs, 27 lbs, 30 lbs, 32 lbs, 33 lbs, 34 lbs, 37 lbs, 39 lbs, 33 lbs, 56 lbs, 57 lbs, 58 lbs, 60 lbs, 65 lbs, 75 lbs, 80 lbs, 85 lbs
Heater
Amps
6.1, 7.2, 12.1, 12.6, 13.9, 18.1, 20.9, 24.1, 27.8, 30.1, 36.2, 41.7, 42.2, 47.9, 48.1, 55.6, 60.2, 62.5, 69.5, 72.3, 83.3, 83.4, 84.3, 96.3, 97.3, 104.2, 108.4, 111.2, 120, 125.1, 139
BTU
6,824 BTU, 11,942 BTU, 17,061 BTU, 34,121 BTU, 51,182 BTU, 67,902 BTU, 68,243 BTU, 85,304 BTU, 102,364 BTU, 119,425 BTU, 136,144 BTU, 136,486 BTU, 169,925 BTU, 170,607 BTU
Power Distribution
1-Phase or 3-Phase
Voltage
208 V, 240 V, 277 V, 240 V, 480 V
Wattage
2 kW, 3.5 kW, 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 35 kW, 40 kW, 45 kW, 50 kW
