Output Options for C6 Doppler & Magnetic Flow Meter

The Output Options for Compu-Flow C6 Doppler & Magnetic Flow Meter offers a wide range of functions and features to optimize the performance of flow meters. Designed specifically for C6 Doppler and magnetic flow meters, it ensures easy installation and integration with their control panels.

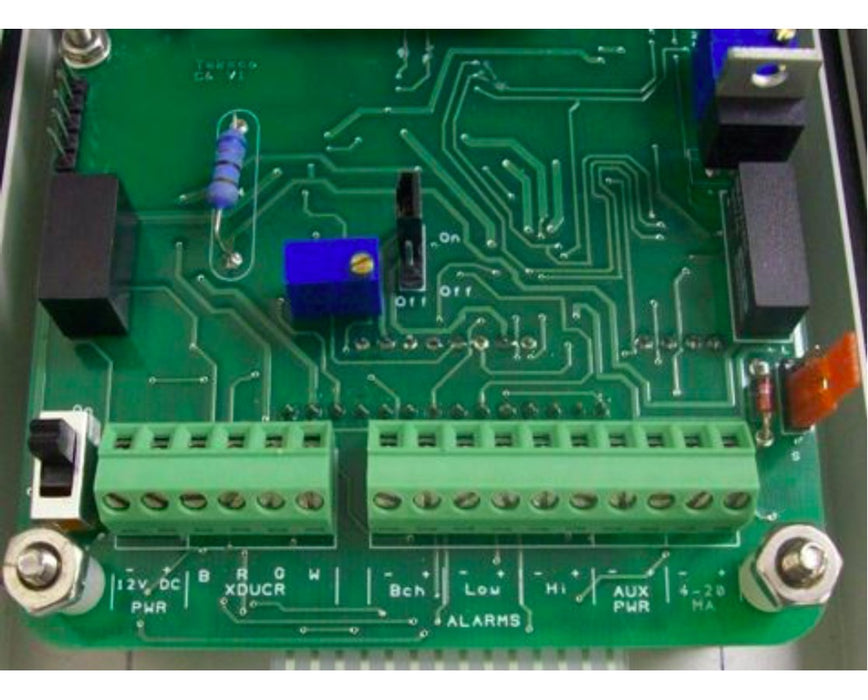

This set of output options by Compu-Flow includes four-milliampere up to 20-milliampere output (option one), high and low alarms with 50-milliampere at 12 volts (option two), RS 232 through DB9 and USB ports with 9,300 baud rate (option three), and batch control (option four). Wireless kit (option seven) for sensor is also sold separately to allow signal transmission via internet for up to 300-meter range.

The Output Options for Compu-Flow C6 Doppler & Magnetic Flow Meter also provides data logging options that are simple to set up and enables hassle-free data storage and transfer. One-gigabyte USB board mount (option five) and up to 32-gigabyte remote cable USB terminal access (option six) are both available.

Configuration Options

The Output Options for Compu-Flow C6 Doppler & Magnetic Flow Meter offers seven different functions to optimize the performance of your flow meter. Please select your preference from the menu above.

• C6-Output-1: Option 1 - 4/20mA
• C6-Output-2: Option 2 - Hi/Lo Alarms
• C6-Output-3: Option 3 - RS 232
• C6-Output-4: Option 4 - Batch Control

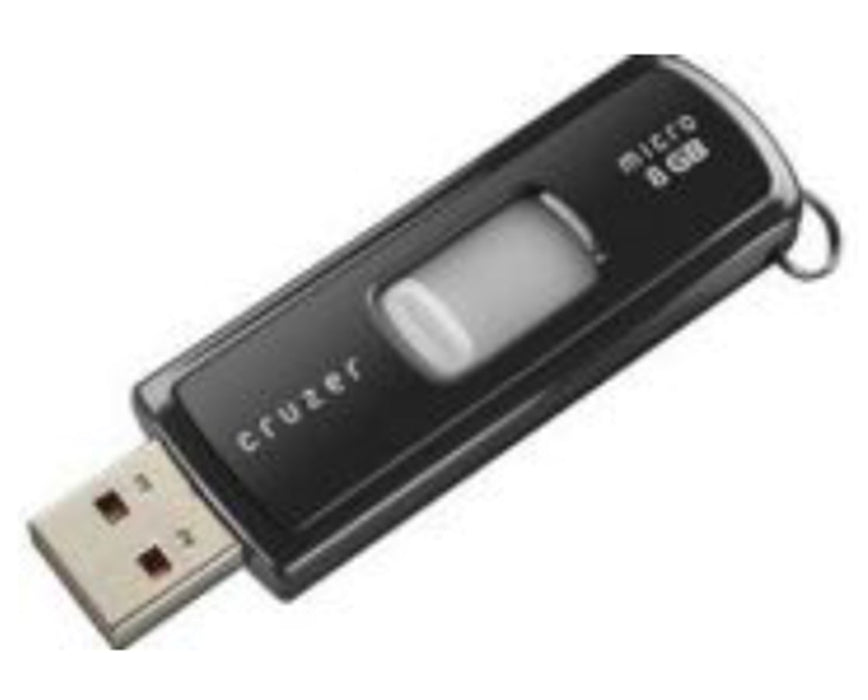

• C6-Output-5: Option 5 - Data Logger, On-Board (1GB)
• C6-Output-6: Option 6 - Data Logger, Remote (1–32GB)

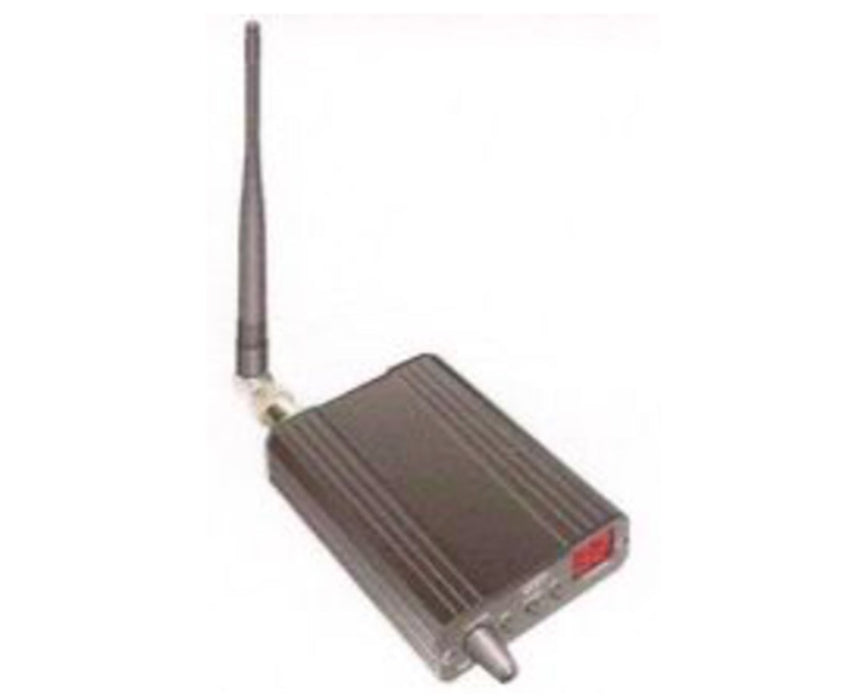

• C6-Output-7: Option 7 - Wireless Kit (For Sensor)
