On-A-Roll Standard Media Lifter

by Foster

MFR#: 61584

TIGER#: TS67026

List Price: $2,985.00

You Save: $269.00 -9%

$2,985.00 - $2,985.00

List Price: $2,985.00

$2,716.00

$2,716.00 - $2,716.00

$2,716.00

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

On-A-Roll Standard Media Lifter - $2,716.00

$2,716.00

*Must Purchase 1 for On-A-Roll Standard Media Lifter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/10/2023

Documents

Product Manual Item Brochure Product Video

Capacity up to 660 lbs
Maximum lift height: 33.5”
Roll width: 8.2’
Fits rolls with a diameter up to 15.75”
Concave trough design
Ergonomic pull bar
Bottom fork clearance: 4”
Size: 47” H x 31.5” W x 31.5” D

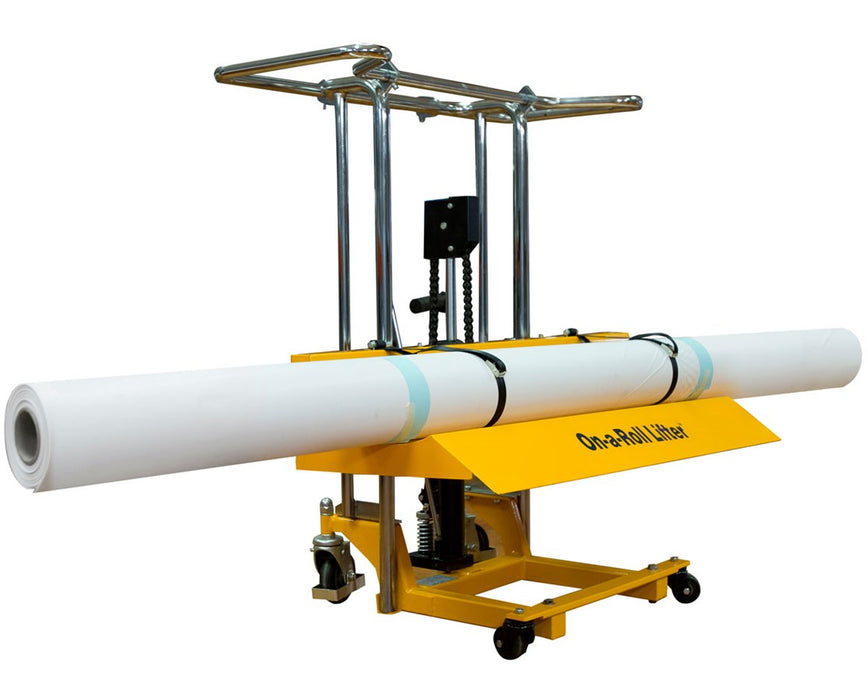

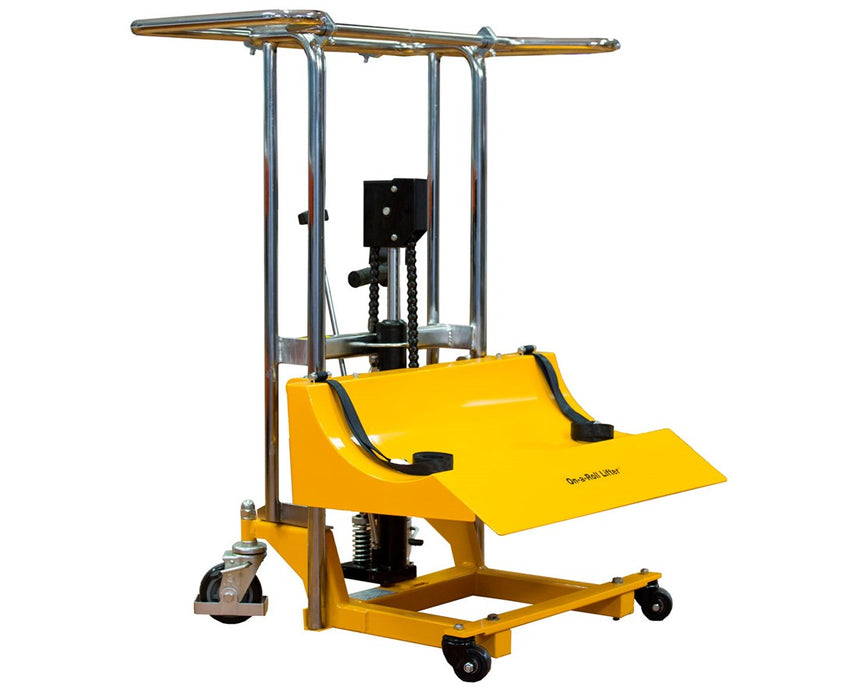

Designed to operate in small-spaced shops, the Foster On-A-Roll Standard Media Lifter offers the best solutions for handling wide and heavy media rolls. Presenting a maximum lift height of 33.5 inches, this media lifter can swiftly raise media rolls as heavy as 660 pounds and as wide as 8.2 feet. It also accommodates rolls with a diameter up to 15.75 inches.

Flaunting a concave trough design, the Foster standard media lifter also features extended nylon safety straps that enable sign makers to secure the roll for transport. It includes ergonomic pull bar for easy movement around small spaces. The Keencut media lifter features a foot pump to raise the materials with minimal effort.

The Foster Standard lifter includes rotating casters and a solid steel handle extension that makes it easier to move around. As an extra feature, this On-a-Roll media lifter has a bottom fork clearance of four inches and a size of 47” H x 31.5” W x 31.5” D.

Designed to operate in small-spaced shops
Maximum lift height: 33.5”
Capacity up to 660 lbs
Roll width: 8.2’
Accommodates rolls with diameter up to 15.75”
Concave trough design
Extended nylon safety straps
Ergonomic pull bar
Foot pump
Rotating casters
Solid steel handle extension
Bottom fork clearance: 4”
Size: 47” H x 31.5” W x 31.5” D

What’s in the Box

Foster On-A-Roll Standard Media Lifter 61584
User manual
2-year warranty on hydraulics and media tray
5-year warranty on cross bars

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Features

Roll Loading Ramp

Roll Wedges

Roller Platform

Optional

Solid Steel Handle Extension

Yes

Tray Cut Out

General

Bottom Fork Clearance

Dimensions

47” H x 31.5” W x 31.5” D

Front Swivel Casters

2.36" ø x 1.57" W

Max. Lift Height

33.5"

Max. Roll Diameter

15.75"

Max. Roll Width

8.2'

Rear Swivel Casters

5" ø x 1.46" W

Warranty

2-year (hydraulics & media tray); 5-year (cross bars)

Weight

177 lbs (80 kg)

Weight Capacity

660 lbs (300 kg)
