On-A-Roll Grande Max Media Lifter

Foster
by Foster
MFR#: 61546
TIGER#: TS67028
List Price: $4,675.00
You Save: $421.00 -9%
$4,675.00 - $4,675.00
List Price: $4,675.00
$4,254.00
$4,254.00 - $4,254.00
$4,254.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
On-A-Roll Grande Max Media Lifter
On-A-Roll Grande Max Media Lifter - $4,254.00
$4,254.00
*Must Purchase 1 for On-A-Roll Grande Max Media Lifter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/6/2023
Documents
Product Manual Item Brochure Product Video
  • Capacity up to 2,200 lbs
  • Maximum roll width up to 16.5’
  • Lift height up to 42.25”
  • Bottom fork clearance: 3.15” - 7.72”
  • Optional motorized version with built-in charger
  • 6" rear swivel casters
  • Easy step-on locking brake
  • Single-person operation

Designed to handle rolls that need lower clearances, the Foster On-A-Roll Grande Max Media Lifter is a good tool for roll converter, package printers, and other businesses that handle heavy media. With a lift height up to 42.25 inches, this media lifter carries weight up to 2,200 pounds. It also holds a maximum roll width of up to 16.5 feet.

The Foster on-a-roll media lifter has an optional motorized version that features a 12V/60AH DC motor, key-controlled power, and a built-in 110V AC charger. It is equipped with a specially-designed tray to easily load, unload, and transport media rolls. It also has a foot pump that effortlessly and quickly lifts rolls in minutes. This Foster lifter boasts a single-person operation and a user-friendly design that avoids dangerous mistakes while reducing on-the-job injuries.

This Foster Grande Media Lifter boasts a rugged construction that is sure to last for a long time. Equipped with a pair of heavy-duty swivel casters, it also comes with an easy step-on locking brake for more mobility. As an additional feature, the media lifter offers a bottom fork clearance from 3.15 to 7.72 inches for added versatility.

Configuration Options

The Foster On-A-Roll Grande Max Media Lifter is available in different models. Please choose from the menu above.

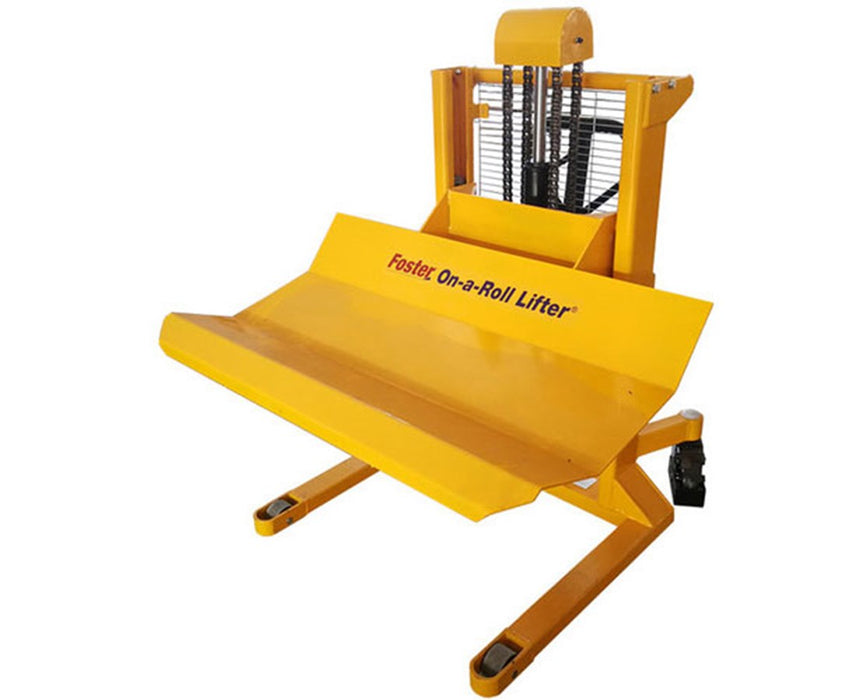

  • 61594: Grande Max Media Lifter with Swivel Front Casters

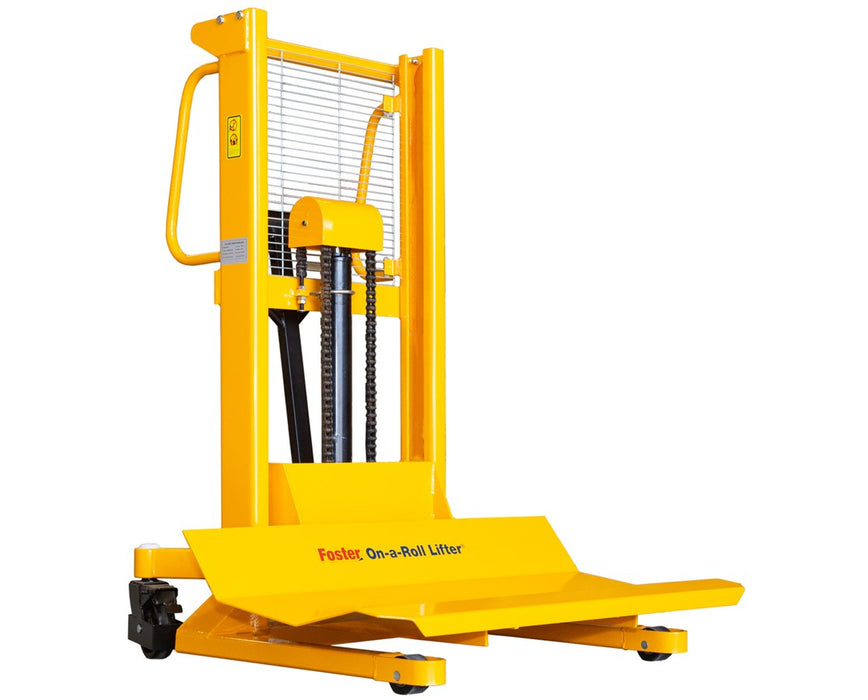

  • 61546: Low Profile Grande Max Media Lifter with Fixed Front Casters
  • 61548: Power Low Profile Grande Max Motorized Media Lifter with Fixed Front Casters
Model Grande Max
61594		 Low Profile Grande Max
61546		 Power Low Profile Grande Max
61548
Motorized No No Yes
Min. Tray Height 7.72" N/A N/A
Max. Roll Diameter 35.4" 31.5" 31.5"
Bottom Fork Clearance 7.72" 3.15" 3.15"
Front Casters 4", Swivel Fixed Fixed
  • Choice of 2 models
  • Designed to handle rolls that need lower clearances
  • Lift height up to 42.25”
  • Capacity up to 2,200 lbs
  • Maximum roll width up to 16.5’
  • Optional motorized version with key-controlled power and built-In 110V AC charger
  • Specially-designed tray
  • Single-person operation
  • User-friendly
  • Rugged construction
  • 6" rear swivel casters
  • Easy step-on locking brake
  • Bottom fork clearance: 3.15” - 7.72”

What’s in the Box

  • Foster On-A-Roll Grande Max Media Lifter
  • User manual
  • 2-year warranty on hydraulics and media tray
  • 5-year warranty on crossbars

Available Product Options

  • Motorized: Optional
  • Front Casters: Fixed or Swivel

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Features
Roll Loading Ramp
No
Roll Wedges
No
Roller Platform
No
Solid Steel Handle Extension
No
Tray Cut Out
No
General
Bottom Fork Clearance
3.15" or 7.72"
Dimensions
47.24" W x 59.1" H x 49.59" or 45.2" D
Front Swivel Casters
4" ø x 2" W (Fixed or Swivel)
Max. Lift Height
42.25"
Max. Roll Diameter
31.5" or 35.4"
Max. Roll Width
16' 5"
Rear Swivel Casters
6" ø x 2" W
Warranty
2-year (hydraulics & media tray); 5-year (cross bars)
Weight
452 lbs or 600 lbs
Weight Capacity
2,200 lbs (1,000 kg)
