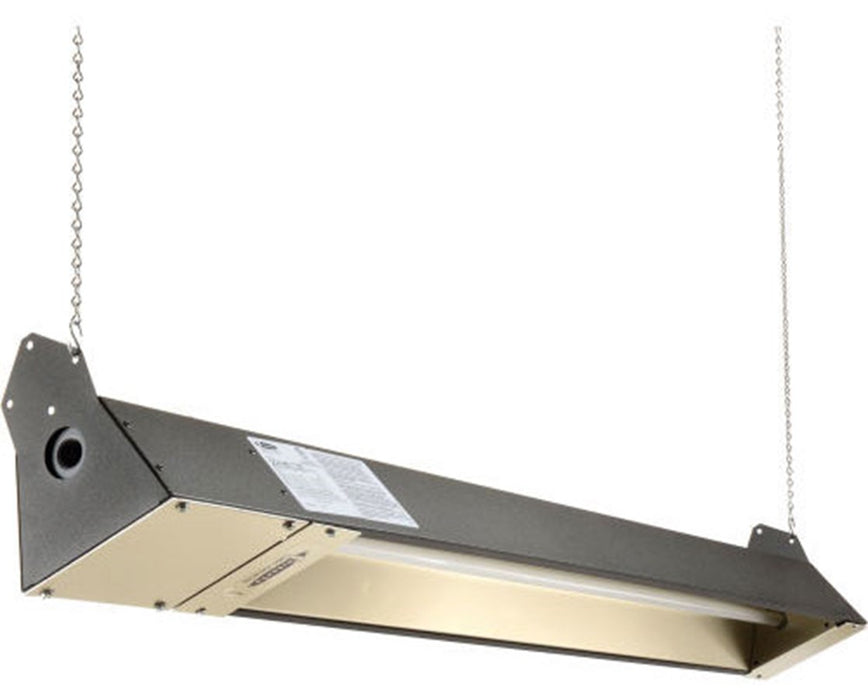

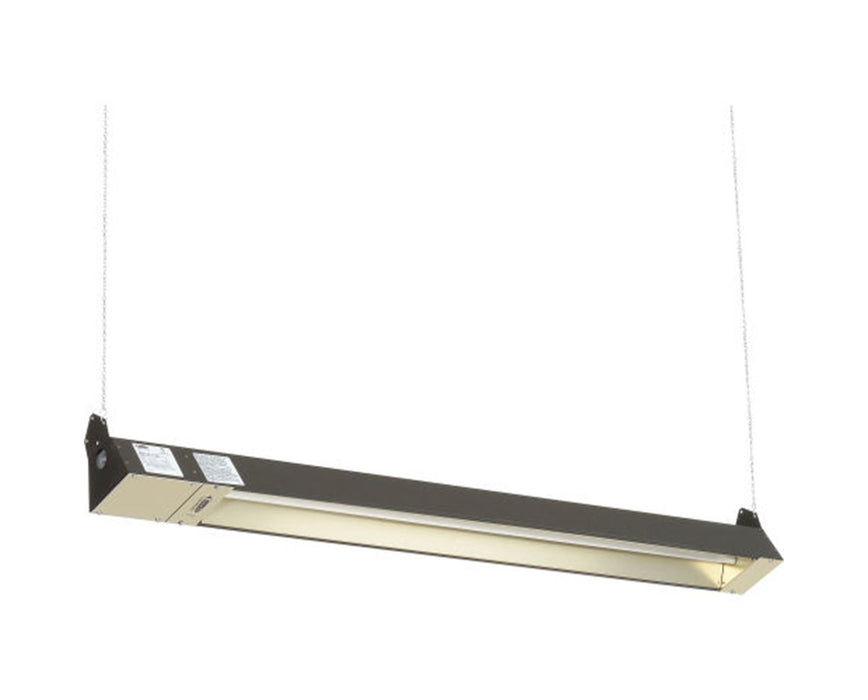

OCH Outdoor / Indoor Rated Quartz Electric Infrared Heater

TPI Corporation
by TPI Corporation
MFR#: OCH46120VE
TIGER#: TS62123
List Price: $494.00
You Save: $119.91 -24%
$494.00 - $494.00
List Price: $494.00
$374.09
$374.09 - $374.09
$374.09
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
OCH Outdoor / Indoor Rated Quartz Electric Infrared Heater
OCH Outdoor / Indoor Rated Quartz Electric Infrared Heater - $374.09
$374.09
*Must Purchase 1 for OCH Outdoor / Indoor Rated Quartz Electric Infrared Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/29/2023
Documents
Product Manual Item Brochure Product Video
  • Choice of watts, volts, connection type & finish
  • Radiant efficiency: 60%
  • Uses a Quartz tube
  • Temperature up to 1,800 °F with a bright orange glow
  • Heat pattern: 60° symmetric
  • Horizontal mounting only
  • Housing: rugged 24-gauge steel

The TPI OCH Series Outdoor / Indoor Rated Quartz Electric Infrared Heater provides the best heating performance for totally exposed outdoor and indoor spot heating applications. Offering a 60% radiant efficiency, this TPI infrared heater uses a Quartz tube that produces a temperature up to 1,800 °F (982 °C) with a bright orange glow. Also, it features a 60° symmetric heat pattern that gives a wide heating coverage.

This TPI outdoor and indoor rated Quartz infrared heater comes with a frosted quartz envelope with a Nickel-Chromium coiled filament that offers a fast heat-up and cool-down performance. It has a selectable wattage from 1,500 to 3,000 watts and voltages up to 480 volts. This OCH Series heater can only be mounted horizontally that allows up to 45° horizontal tilt adjustment.

The OCH Series infrared heater boasts a rugged 24-gauge steel housing that is cETLus listed for indoor and outdoor use. It has a Gold anodized Aluminum reflector and end caps for exceptional reflectiveness. As an extra feature, the OCH Series is made in the USA.

Configuration Options

The TPI OCH Series Outdoor/Indoor Rated Quartz Electric Infrared Heater offers 19 models with selectable wattages, voltages, connection type and finish that suit your needs. Please select your preference from the menus above.

Model & Connection Watts BTUs Volts Amps Replacement Quartz Tube Finish Dimensions
(L x W x H)
OCH-46
Hardwired		 1,500
2,000
2,000
2,000		 5,120
6,826
6,826
6,826		 120
208
240
277		 12.5
9.6
8.3
7.2		 671-3784
671-5061
671-3785
671-5018 		Brown Enamel / Stainless Steel 48" x 5.38" x 6.5"
OCH-46
Corded		 1,500 5,120 120 12.5 671-3784 Brown Enamel
OCH-57
Hardwired		 3,000
3,000
3,000
2,250		 10,239
10,239
10,239
7,679		 208
240
277
480		 14.4
12.5
10.8
4.7		 671-5060
671-3786
671-5059
671-5058 		Brown Enamel / Stainless Steel 59" x 5.38" x 6.5"
OCH-57
Corded		 3,000 10,239 208
240		 14.4
12.5		 671-5060
671-3786 		Brown Enamel



  • Choice of watts, volts, connection type & finish
  • Radiant efficiency: 60%
  • Uses a Quartz tube
  • Temperature up to 1,800 °F (982 °C) with a bright orange glow
  • 60° symmetric heat pattern
  • Frosted quartz envelope with a Nickel-Chromium coiled filament
  • Fast heat-up and cool-down performance
  • Selectable wattages from 1,500 to 3,000 W
  • Voltages up to 480 V
  • Horizontal mounting only
  • Allows up to 45° horizontal tilt adjustment
  • Rugged 24-gauge steel housing
  • cETLus listed
  • Gold anodized Aluminum reflector and end caps
  • Made in the USA

What’s in the Box

  • TPI OCH Series Outdoor / Indoor Rated Quartz Electric Infrared Heater
  • 2 x 2-foot mounting chains
  • 4 x S-Hooks
  • Frosted Quartz Tube heating element
  • 1-year limited warranty

Available Product Options

  • Watts: 1,500 W, 2,000 W, 2,250 W or 3,000 W
  • Volts: 120 V, 208 V, 240 V, 277 V or 480 V
  • Connection Type: Corded or Hardwired
  • Finish: Brown or Stainless Steel

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions
Heater
48" L x 5.38" W x 6.5" H, 59" L x 5.38" W x 6.5" H
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Finish/Coating
Brown powder coated finish and stainless steel
Housing
24 gauge steel
Recommended Mounting Height
7’, 8’, 9’, 10’ or 12’
Warranty
1-year limited
Weight
10 lbs, 11 lbs, 12 lbs, 13 lbs
Heater
Amps
4.7, 7.2, 8.3, 9.6, 10.8, 12.5, 14.4
BTU
5,120 BTU, 6,826 BTU, 7,679 BTU, 10,239 BTU
Voltage
120 V, 208 V, 240 V, 277 V, 480 V
Wattage
1,500 W, 2,000 W, 2,250 W, 3,000 W
Motor
Plug
208 V models must have field supply plug
