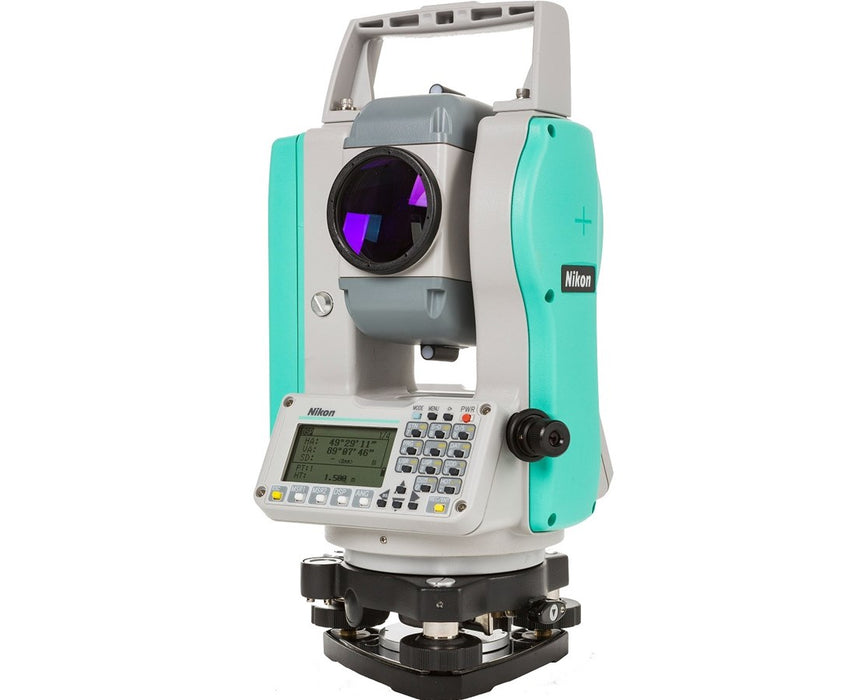

N 5" Total Station - Single Display

Nikon
by Nikon
MFR#: HQA46710
TIGER#: TS79482
List Price: $6,455.00
You Save: $161.00 -2%
$6,455.00 - $6,455.00
List Price: $6,455.00
$6,294.00
$6,294.00 - $6,294.00
$6,294.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
N 5
N 5" Total Station - Single Display - $6,294.00
$6,294.00
*Must Purchase 1 for N 5" Total Station - Single Display

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: Discontinued
Documents
Product Manual Item Brochure Product Video
  • Angular accuracy of 2” or 5”
  • Reflectorless range of up to 1.968 ft
  • Single-Prism range up to 13,123 feet
  • Internal memory up to 50,000 records
  • Built-in Bluetooth connectivity
  • IP55 protection class
  • Up to 22 hours Li-ion battery life
  • Optional dual display

The Nikon N Series Total Station is an advanced EDM designed to make surveying quick and easy. You have two options to operate the device: the prism mode has a range of 13,000 feet while the reflectorless option works up to 1,900 feet. You can choose between 2” and 5” accuracy so that the total station will fit your application.

Easy Operation The N Series comes with a laser pointer for faster locking on target. Nikon’s onboard software collects up to 50,000 data points and can be transferred wirelessly via Bluetooth. Simply tap your phone on the NFC sensor, and it will automatically connect to the total station.

The Total Station File Transfer app for iOS and Android devices allows you to transfer coordinate data to the N Series. It also captures the collected information from the EDM for transmission to your office. All these features make your work more efficient and save you time.

Rugged and Reliable Built to standard with IP55 dust and water protection, you can confidently use this in the field even in inclement weather. For added security, a rain/dust cover is included in the package for harsher environs. In cases where you need assistance, Nikon’s excellent customer support and service network will ensure that your devices are up to the task.

Flexible Battery and Power Options The device comes with a single replaceable Li-ion battery that lasts up to 14 hours of continuous use. You can use any Type-C USB charging port, like the charger on your vehicle or your power bank, to recharge the batteries.

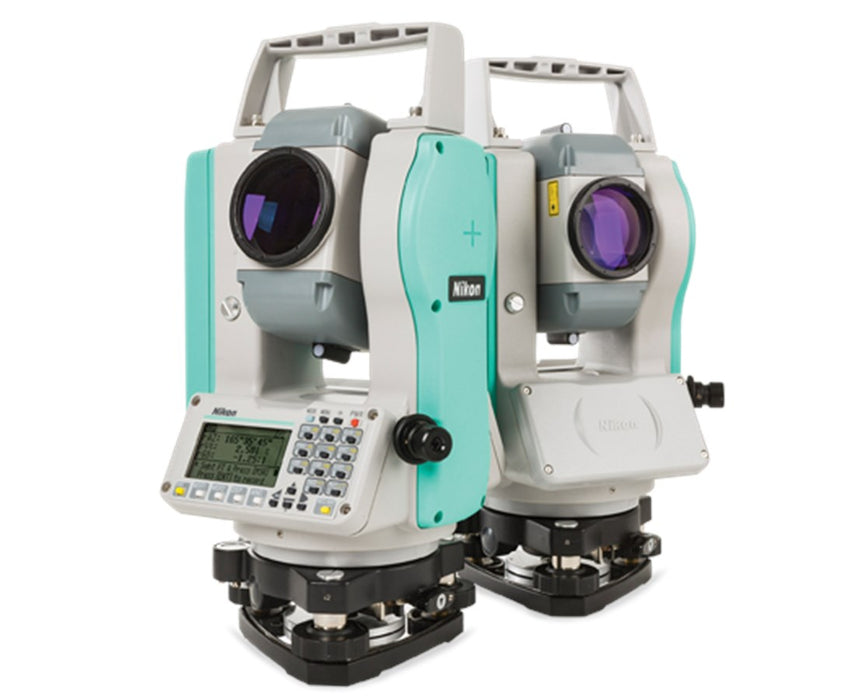

Configuration Options

The Nikon N Series Total Stations comes in two options. Please choose your preference from the menu above.

  • HQA46700: 2” Accuracy (Dual Display)
  • HQA46710: 5” Accuracy (Single Display)

What’s in the Box

  • 1 Nikon N Series Total Station
  • 1 Tribrach
  • 1 Hard plastic case
  • 1 Shoulder strap for the case
  • 1 Li-ion battery
  • 1 Single-slot USB battery charger
  • 1 USB cable for charger
  • 1 Rain/dust cover
  • 1 Lens cap
  • 1 Adjustment pin tool
  • 1 Allen wrench
  • 1 Warranty card
  • 1 Quick start guide
  • 1 Instrument certificate
Angle Measurement
Accuracy
Nikon N 2": 0.6 mgon / Nikon N 5": 1.5 mgon
Detection Method
Photoelectric detection by incremental encoder
Diameter of Circle
3.46 in
Measuring Method/Reading System
Prism / Reflectorless
Minimum Reading
1/5/10” (0.2/1/2 mgon)
Battery/Power
Battery Life
Up to 22 hours
Power Source
Li-on battery
Display and Keypad
Backlight
Yes
Pixels
128 × 64 pixel
Sides
Nikon N 2": Both / Nikon N 5": Single
Touchscreen
No
Type
LCD Display
Distance Measurement
EDM Accuracy (Precision)
±(2+2 ppm × D) mm
General
Dimensions
13.1 in x 6.6 in x 6.8 in
Internal Memory
50,000 records
Protection Class
IP55
Weight
11 lb
Interface
Bluetooth
Integrated
Level
Circular Bubble Vial
10‘/2 mm
Measurement Range (under fair weather conditions)
No Prism
1,968 ft
Single Prism
13,123 ft
Optical Plummet
Field of View
5°
Focus Range
0.5 m (1.6 ft) to 8
Erect
Magnification
3X
Telescope
Diameter of Objective Lens (Aperture)
1.77in
Field of View
1°20‘
Erect
Length of Tube
4.9 in
Magnification
30× (18x/36x with optional eyepieces)
Minimum Focus Distance
4.9 ft
Resolving Power
3
Temperature
Operating
–4 °F to +122 °F
Tilt Sensor/Compensator
Method
Liquid-electric detection
Range
±3'
Type
Dual axis
