MobileMapper 60 Data Collector

Spectra Geospatial
by Spectra Geospatial
MFR#: 227057-20-GEO
TIGER#: TS70207
List Price: $1,570.00
You Save: $192.32 -12%
$1,570.00 - $1,570.00
List Price: $1,570.00
$1,377.68
$1,377.68 - $1,377.68
$1,377.68
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
MobileMapper 60 Data Collector
MobileMapper 60 Data Collector - $1,377.68
$1,377.68
*Must Purchase 1 for MobileMapper 60 Data Collector

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 12/26/2023
Documents
Product Manual Item Brochure Product Video
  • Connects via Bluetooth, Wi-Fi, and 4G LTE
  • Smartphone capabilities such as phone calls, texts, and emails
  • GNSS receiver with SBAS support
  • Fast 2.2GHz processor and 4GB SDRAM
  • Operating system: Android 8.0
  • Includes 64GB storage & MicroSD slot
  • Rear and front cameras
  • Complies w/ MIL-STD-810G specifications

The Spectra MobileMapper 60 Data Collector is a handheld geospatial data collection device that combines the functionality of a GNSS receiver with the convenience of a smartphone. It connects with ease and speed via Bluetooth, Wi-Fi, or 4G LTE cellular data, making it ideal for a wide variety of applications including cadastral, surveying, topographic, forestry, utilities, and many others. For ultimate accuracy and efficiency, it comes with SBAS support and offers smartphone capabilities such as phone calls, texts, and emails.

This Spectra data collector is powered by a fast 2.2GHz processor and a 4GB SDRAM to accommodate demanding applications. It runs with the Android 8.0 operating system and works with Penmap, a hybrid survey and GIS app for data collection and stake-out. Equipped with rear (auto-focus and LED flash) and front (fixed focus) cameras, it allows detailed documentation. It includes a 64GB storage and a MicroSD slot to enable convenient data sharing. For precise navigation and tracking, it is integrated with digital compass, accelerometer, gyro meter, and barometer.

The Spectra MobileMapper 60 Data Collector features a six-inch touchscreen display that provides easy readability even under direct sunlight. Made of Gorilla Glass, it is damage-resistant. It offers a full-day battery life with its high-capacity Li-Ion battery. For superior durability and strength, it complies with the MIL-STD-810G military specifications and IP67 environmental rating for dust and water protection. It also comes with a fitted hand strap to ensure secure and non-slip use.

  • Connects via Bluetooth, Wi-Fi, and 4G LTE
  • Smartphone capabilities such as phone calls, texts, and emails
  • GNSS receiver with SBAS support
  • Fast 2.2GHz processor and 4GB SDRAM
  • Operating system: Android 8.0
  • Includes 64GB storage and MicroSD card slot (up to 256GB)
  • Rear and front cameras
  • Digital compass, accelerometer, and other sensors

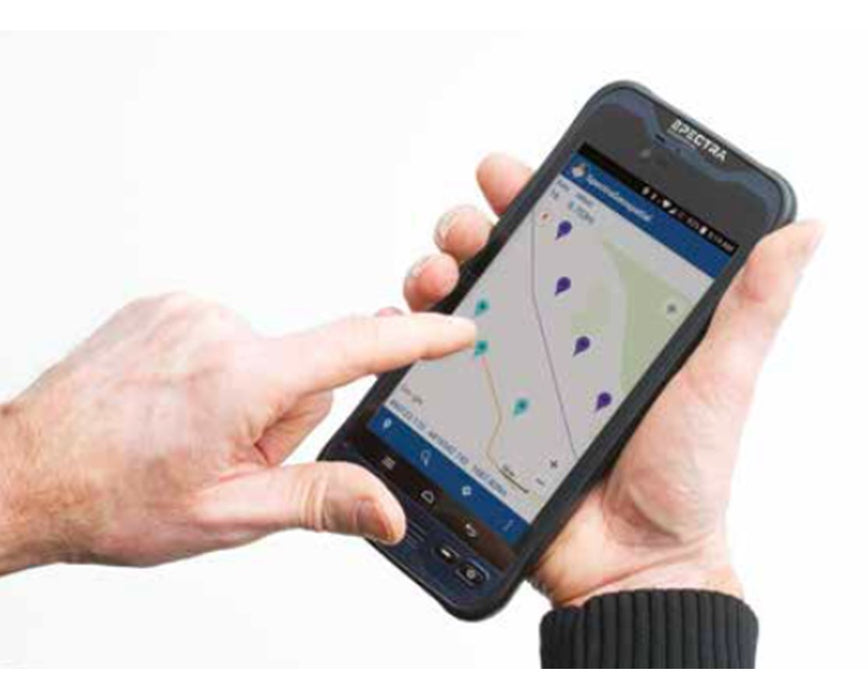

  • Damage-resistant 6” touchscreen display
  • High-capacity battery for full-day battery life
  • Complies with military specifications MIL-STD-810G
  • IP67 protection rating for dust and water resistance
  • Works with Penmap app for Android
  • Fitted hand strap for secure, non-slip use
  • 1-year manufacturer's warranty

What’s in the Box

  • Spectra MobileMapper 60 Data Collector
  • Universal A/C Battery Charger and International Plugs
  • 3.8V Li-Ion Battery, 8000 mAh (30,4Wh)
  • USB Type C Cable

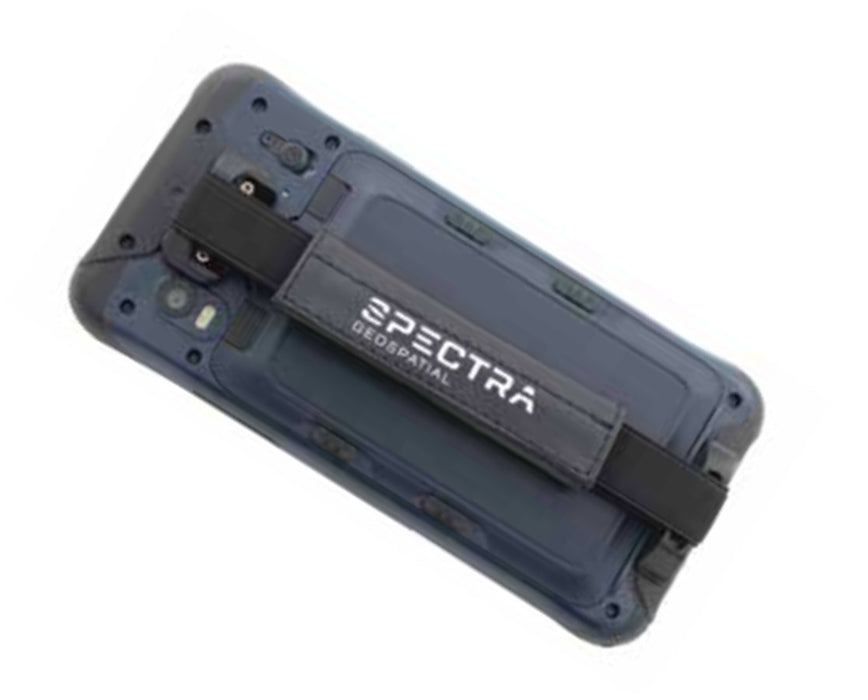

  • Handstrap
  • 2x Screen Protector
  • MobileMapper 60 Quick Start Guide
  • 1-Year Manufacturer's Warranty

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Battery Life
15 hrs @ 20 oC with GPS on
Battery Life Alert
Yes
Power Source
Rechargeable Li-Ion, 8000mAh
Camera
Resolution
Rear: 13 megapixels; Front: 5 megapixels
Type
Rear: with auto-focus and LED ash; Front: with xed focus
Card Slots/Ports
Audio
Audio jack through USB adapter
SD
MicroSD memory card (up to 256 GB)
Serial
Pogo pin connector
SIM
2 Nano SIM card slots
USB
USB 3.0 (Type-C)
Display/Keypad
Backlight
Yes
Keys
2 volume keys, on/off/reset key, 4 programmable keys, standard Android touch panel buttons, plus on-screen keyboard
Resolution
1920 x 1080 pixels
Size
6.0”
Touchscreen
Yes
Type
Capacitive multi-touch
Features
2.4 GHz robotic radio module
Yes
Accelerometer
Yes
Auto Shut Off
Yes
Electronic Compass
Yes
Geotagging
Yes
Internet/Email
Yes
Live Video Display with Topcon Imaging Station
Yes
Long Range Measurement
Yes
Phone/Text
Yes
General
Dimensions
7.7"H x 3.6"W x 0.67"T (196 x 93.4 x 17.2 mm)
Protection Class
IP67
Warranty
1-year manufacturer's warranty
Weight
385 g (13.6 oz)
Interface/Data
Bluetooth
Bluetooth 4.1
GPS Receiver
GPS L1 C/A
Operating System
Android 8.0
Processor
Qualcomm Snapdragon 626
Speed
2.2GHz
WI-FI
Wi-Fi (IEEE) 802.11
Software
Type
MobileMapper Field (sold separately)
Software Programs
Calendar
Yes
Camera Control Application
Yes
Contacts
Yes
E-Compass (Electronic compass and altimeter application)
Yes
Google Mobile Services
Yes
MS My Phone with SMS text messaging
Yes
Voice recorder
Yes
Storage
Flash
64 GB
RAM
4 GB SDRAM
Temperature
Operating
20°C to +55°C (-4°F) to 131°F)
Storage
-40°C to +70°C (-40°F to 158°F)
