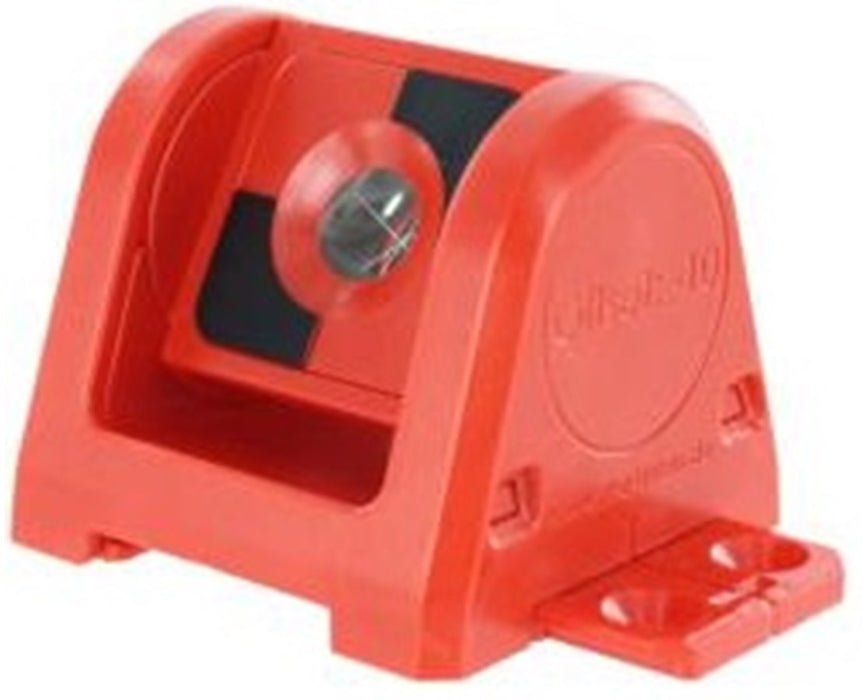

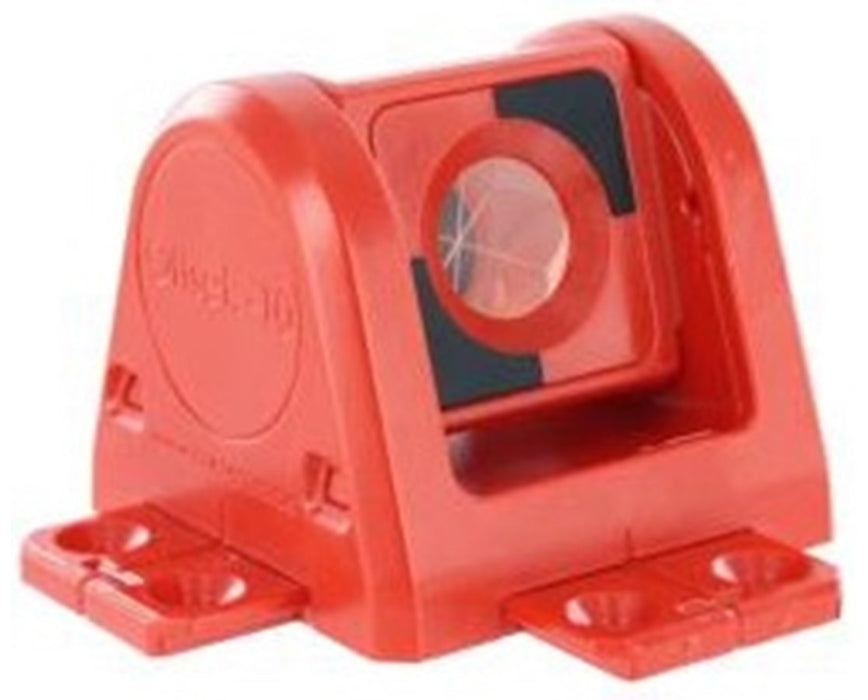

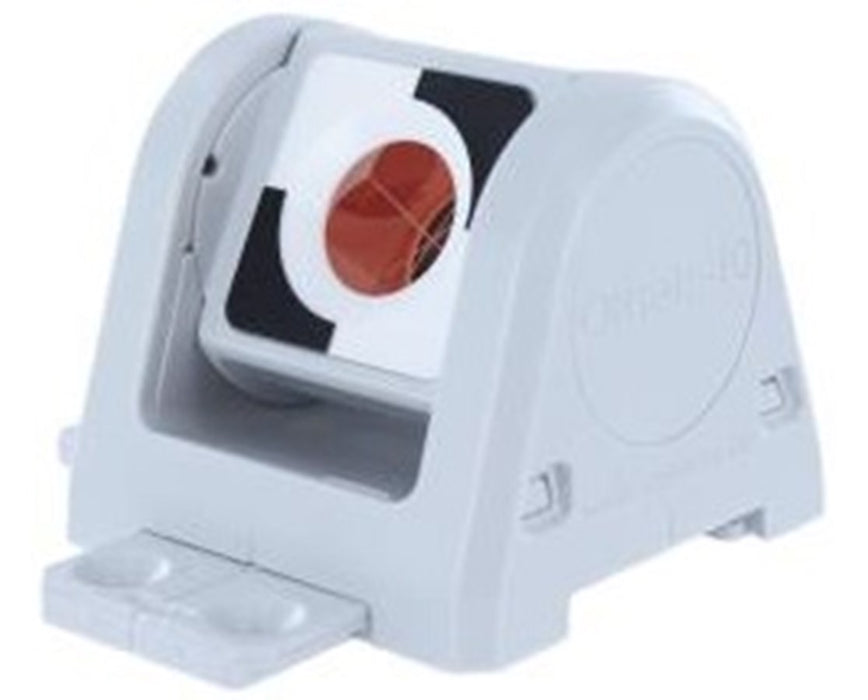

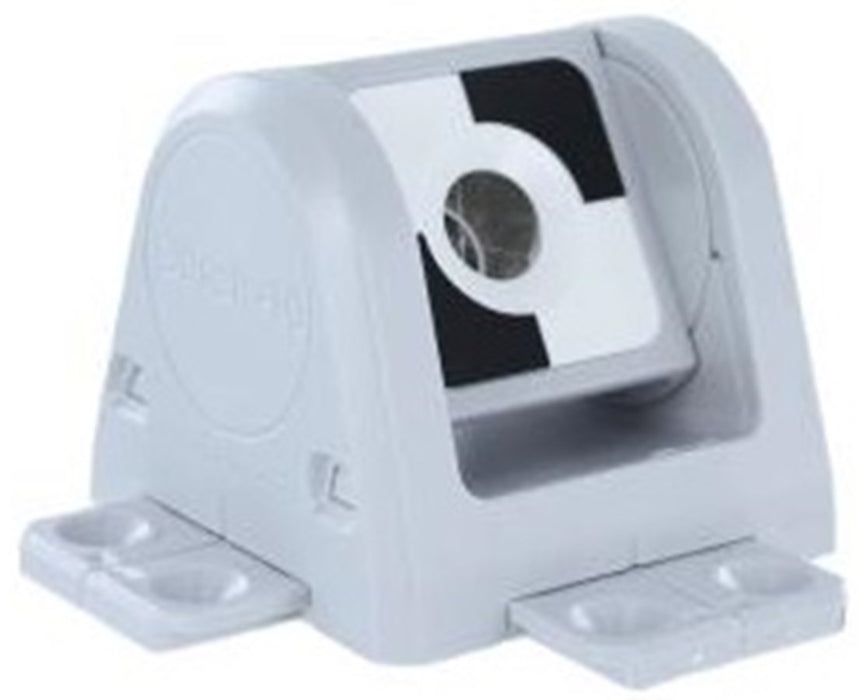

Mini Prism, 180-Degree Rotation

Berntsen
by Berntsen
MFR#: RSMP280G
TIGER#: TS37608
List Price: $227.68
You Save: $63.88 -28%
$227.68 - $227.68
List Price: $227.68
$163.80
$163.80 - $163.80
$163.80
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Mini Prism, 180-Degree Rotation
Mini Prism, 180-Degree Rotation - $163.80
$163.80
*Must Purchase 1 for Mini Prism, 180-Degree Rotation

The cart will thereforce automatically set Qty to 1 when you order this product

COLOR
Free Shipping (USA) Ships Out Within: 3 - 5 Business Days Shipping Date By: 10/10/2023
Documents
Product Video
  • Choice of 2 sizes
  • Choice of gray or red color
  • Remarkable swiveling efficiency
  • Accuracy: 5 arc seconds
  • Rotation of 180 degrees
  • Integrated plug-in system
  • Tilting axis height: 1.18 inches
  • Easy attachment

With remarkable swiveling efficiency, the Berntsen Mini Prism, 180-Degree Rotation makes it possible to use the same survey point from any number of areas while sustaining absolute accuracy. Having a five arc-second accuracy and 180-degree rotation feature, it provides accurate results, especially when used with total stations. It is perfect for measurement bridges, rail lines, buildings, and other structures.

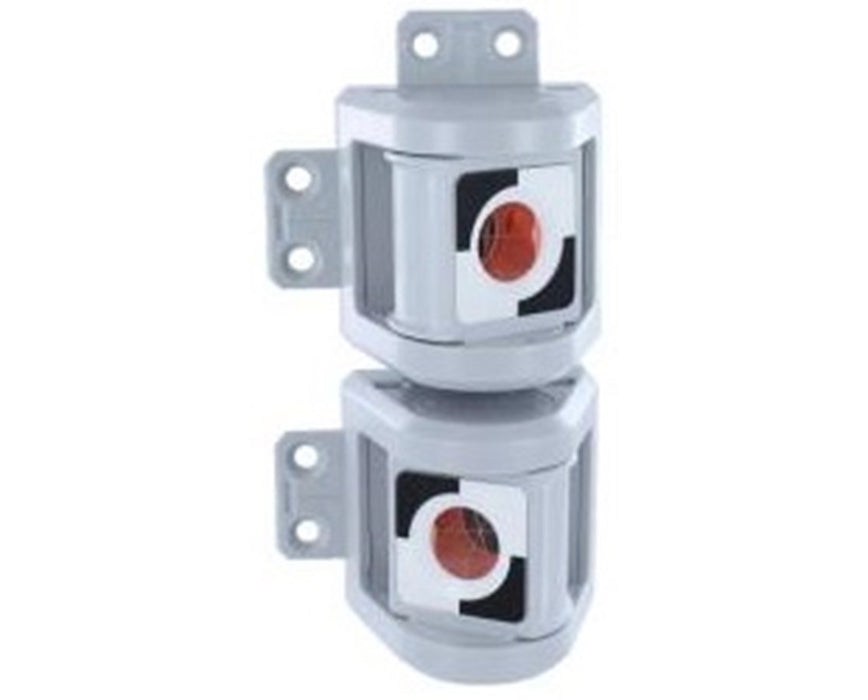

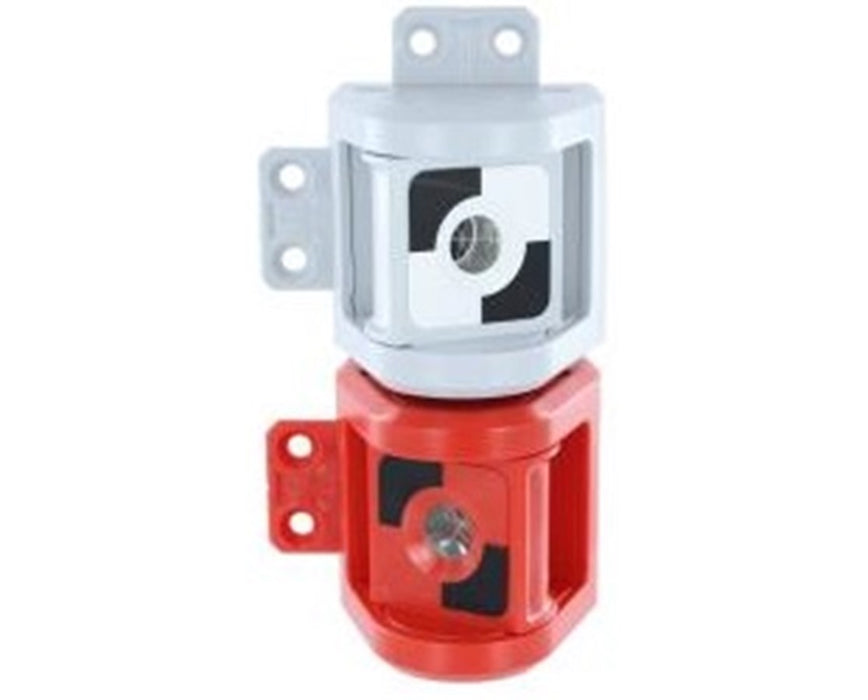

This survey tool features an integrated plug-in system where several prisms can be combined as necessary. It has a tilting axis height of 1.18 inches, which helps in measuring difficult areas. Plus, it can be easily attached using screws, bolts or mounting adhesives. In addition, the user can choose from two colors - gray and red.

Configuration Options

The Berntsen Mini Prism, 180-Degree Rotation offers two sizes that suit every measuring need. Please choose from the drop-down menu above.

  • RSMP280: 17.5-millimeter Prism Size
  • Choice of 2 sizes
  • Choice of gray or red color
  • Remarkable swiveling efficiency
  • 5 arc-second accuracy
  • 180-degree rotation
  • Integrated plug-in system
  • 1.18-inch tilting axis height (30 mm)
  • Easy attachment
  • Perfect for measurement bridges, rail lines, buildings, and other structures

What’s in the Box

  • Berntsen Mini Prism, 180-Degree Rotation

Prism Size:

  • 17.5-millimeter Prism Size

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Distance
5 arc sec with a tolerance of +/-2 arc sec
Offset
-10
Tilt
1.18 inch (30 mm)
Features
Case
Protection cap (RSPC10M)
General
Diameter Of Center Hole
0.5 inches/12.7 mm (RSMP180); 17.5 mm/0.69 (RSMP280)
Dimensions
2.9 x 2.3 x 1.9 inches/ 75 x 58 x 50 mm
Material
Plastic housing
Operating Temperature
-80°C to 100°C/ -112°F to +212°F (RSMP180)
Prism Height
12.7 mm mini prism (RSMP180); 17.5 mm mini prism (RSMP280)
Type
prism with swivel
