M1 Strobe Warning Light

North American Signal
by North American Signal
MFR#: STM1-ACA
TIGER#: TS45937
List Price: $245.00
You Save: $53.90 -22%
$245.00 - $245.00
List Price: $245.00
$191.10
$191.10 - $191.10
$191.10
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
M1 Strobe Warning Light
M1 Strobe Warning Light - $191.10
$191.10
*Must Purchase 1 for M1 Strobe Warning Light

The cart will thereforce automatically set Qty to 1 when you order this product

COLOR
Ships Out Within: 5 - 7 Business Days Shipping Date By: 10/7/2023
Documents
Product Manual
  • Choice of 10 models in 5 colors
  • Designed with Stainless Steel Base and Band
  • With Fresnel lens
  • Operates at 12/24V and 120V AC
  • Running at 1.5 to 3.8 Amperes
  • Features a Single Flash Display
  • Dust Cover (for models DFSM1C-A, DFSM1CP-A, QM1C-A, and QM1CP-A only)

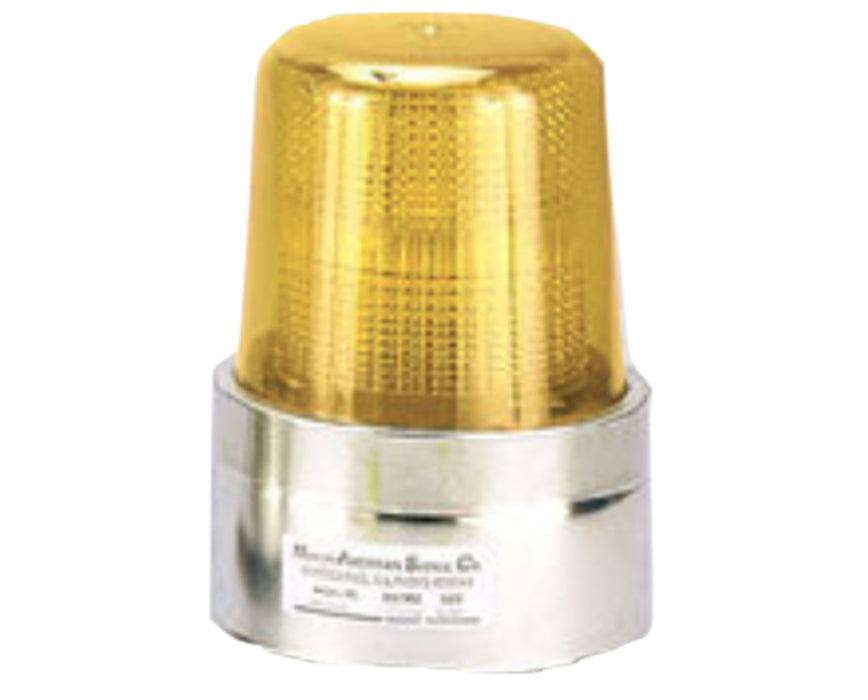

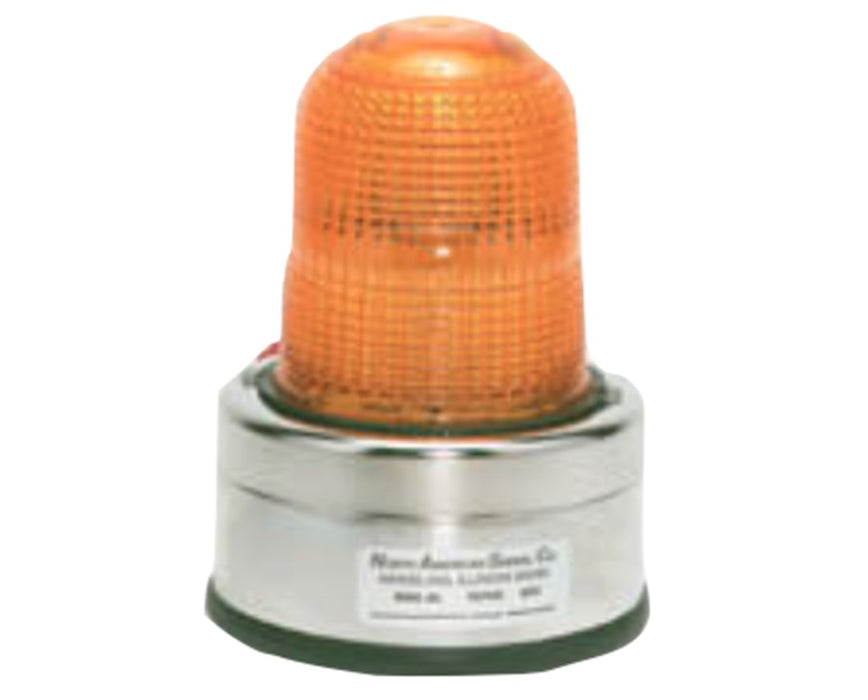

The North American M1 Series Strobe Warning Light is designed to produce effective strobe light and guaranteed to be durable due to its base made of stainless steel and band paired with a Fresnel lens.

It operates at 12/24V to 120V AC and running a rated current of 1.5 to 3.8 amperes with a light output ranging from 150 to 750 candelas per second. It features a single, double or quad flash display.

The M1 series strobe warning light has permanent, pipe and a magnetic mount for easy installation. All units are available in amber, blue, clear, green and red. The models DFSM1C-A, DFSM1CP-A, QM1C-A and QM1CP-A comes with a dust cover for protection against dust, water, ultra-violet damage or any other elements as well as a different design which features an outer dome with an inner lens.

Configuration Options

The North American M1 Series Strobe Warning Light is available in 10 models with different operating voltage, rated current, light output, joule rating, mounting, dust cover and lens color. Please select your preference from the drop-down menu above.

  • STM1-A: 12/24V, Single Flash, w/ Permanent Mount
  • STM1-ACA: 120V AC, Single Flash, w/ Permanent Mount
  • DFSM1-A: 12/24V, Double Flash, w/ Permanent Mount
  • DFSM1M-A: 12/24V, Double Flash, w/ Magnetic Mount
  • DFSM1C-A: 12/24V, Double Flash, Permanent Mount w/ Dust Cover
  • DFSM1CP-A: 12/24V, Double Flash, Pipe Mount w/ Dust Cover
  • QM1-A: 12/24V, Quad Flash, w/ Permanent Mount
  • QM1M-A: 12/24V, Quad Flash, w/ Magnetic Mount
  • QM1C-A: 12/24V, Quad Flash, Permanent Mount w/ Dust Cover
  • QM1CP-A: 12/24V, Quad Flash, Pipe Mount w/ Dust Cover


Item Number


STM1-A


STM1-ACA


DFSM1-A


DFSM1C-A


QM1-A


QM1M-A


Operating Voltage


12/24V


120V AC


12/24V


12/24V


12/24V


12/24V


Rated Current (Amperes)


1.5


0.2


1.5


1.5


3.8


3.8


Light Output (Candelas/Second)


200


125


375


375


750


750


Joule Rating


9


5.5


12


12


17


17


Flashes per Minute (FPM)


75 Single


80 Single


75 Double


75 Double


75 Quad


75 Quad


Mounting


Permanent


Permanent


Permanent or Magnetic


Permanent or Pipe


Permanent or Magnetic


Permanent or Pipe


Dust Cover & Outer Dome


No


No


No


Yes


No


Yes
  • Made of Stainless Steel Base and Band
  • With Fresnel lens
  • Operates from 12/24V to 120V AC
  • Rated Current of 1.5 to 3.8 Amperes
  • Light Output of 150 to 750 Candelas/Second
  • Single, Double or Quad Flash Display
  • Dust Cover for models (DFSM1C-A, DFSM1CP-A, QM1C-A, and QM1CP-A)
  • Available 5 colors

What’s in the Box

  • North American M1 Series Strobe Warning Light
  • Instruction and Mounting Guide

Available Product Options

  • Operating Voltage: 12/24V or 120V AC
  • Rated Current: 1.5, 0.2 or 3.8 Amperes
  • Flashes per Minute: 75 and 80 Single Flash, 75 Double Flash or 75 Quad Flash
  • Light Output: 125, 200, 375, or 750 candelas/second
  • Joule Rating: 5.5, 9, 12, or 17 Joules
  • Mounting: Permanent, Pipe, or Magnetic
  • Dust Cover: With or Without
  • Outdoor Dome: With or Without
  • Lens Color: Amber, Blue, Green, Clear, or Red


Tiger Supplies offers a 90-day return policy from date of shipment for this product, subject to a 15% to 25% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General
Dimensions
8.250"L x 5.750"W x 7.750"H
Materials
Stainless steel base & band; Fresnel lens
Mounting
Permanent (STM1-X, STM1-ACX, DFSM1-X, DFSM1C-X, QM1-X & QM1C-X); Pipe (DFSM1CP-X & QM1CP-X); Magnetic (DFSM1M-X & QM1M-X)
UL Listed
No
Weight
4.50 lbs
Lighting
Flashes per Minute
75 single flash (STM1-X); 80 single flash (STM1-ACX); 75 double flash (DFSM1-X, DFSM1M-X & DFSM1C-X); 75 quad flash (DFSM1CP-X, QM1-X, QM1M-X, QM1C-X & QM1CP-X)
Joule Rating - Output Energy
5.5 (STM1-ACX); 9 (STM1-X); 12 (DFSM1-X, DFSM1M-X, DFSM1C-X & DFSM1CP-X); 17 (QM1-X, QM1M-X, QM1C-X & QM1CP-X)
Light Output
125 (STM1-ACX); 200 (STM1-X); 375 (DFSM1-X, DFSM1M-X, DFSM1C-X & DFSM1CP-X); 750 (QM1-X, QM1M-X, QM1C-X & QM1CP-X)
Rated Current (Ampere)
1.5 (STM1-X, DFSM1-X, DFSM1M-X, DFSM1C-X & DFSM1CP-X); 0.2 (STM1-ACX); 3.8 (QM1-X, QM1M-X, QM1C-X & QM1CP-X)
Voltage
12/24V (STM1-X, DFSM1-X, DFSM1M-X, DFSM1C-X, DFSM1CP-X, QM1-X, QM1M-X, QM1C-X & QM1CP-A); 120V AC (STM1-ACX)
