Layout Pro Field Software
Layout Pro Field Software - $965.25
*Must Purchase 1 for Layout Pro Field Software

The cart will thereforce automatically set Qty to 1 when you order this product

Out of Stock

Bring your design ideas into reality with Spectra Precision Layout Pro Field software. The advanced surveying software enables you to carry, manage, work with, and lay out your job site blueprints so you have more control over construction projects. With this layout field software, you can easily take designs from drawings to the field using total stations or data collectors, boosting productivity. Combining the power of wireless communication for design updates, simple user interface and advanced applications, Layout Pro Field is a revolutionary tool for today’s contractors and engineers.

The One-Person Job Solution

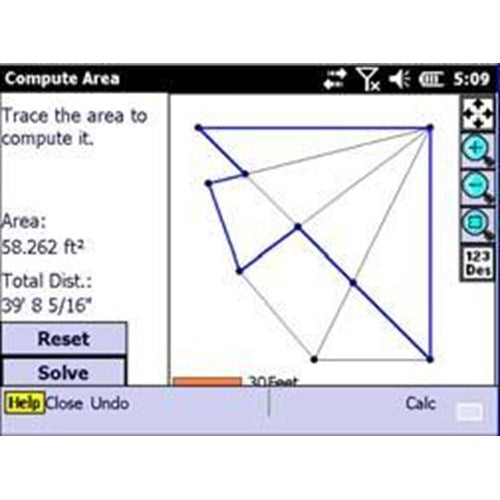

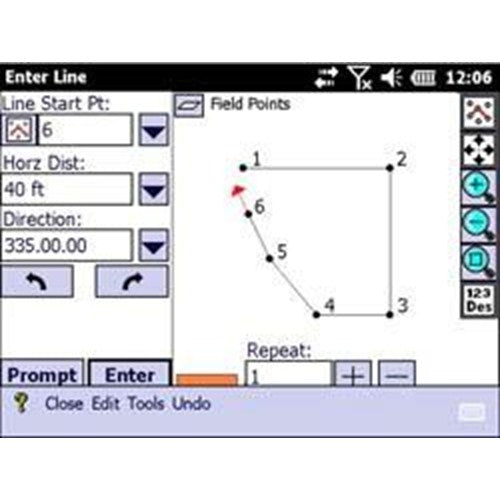

With Layout Pro Field software, you can do many things single-handedly! Input blueprint dimensions to build a digital replica of your design or import Layout Pro Office and AutoCAD files to automatically create your layout plan. You can also set out complex concrete forms or anchor bolts from any location, create points in the field, calculate angles and dimensions and easily collect topographical data. Everything is done faster and more cost-effectively with this data collection software, so you can always work on your schedule and get the job done efficiently.

Convenient and Practical

On a tight budget? No worries! With Layout Pro Field you can make minor adjustments to the building position as needed without waiting or paying subcontractor fees. You can also lay out all lines faster and more accurately than with tape and a theodolite. Collaborate with your team! This field software allows you to check the work of others and create documentation for change orders when necessary. It also enables you to take control of your project by sending and receiving design updates and progress data without waiting on a third party specialist.

Integrates with Modern Field Equipment

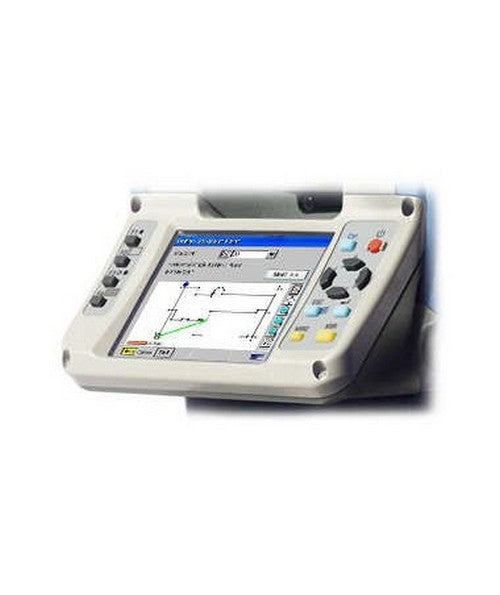

Take advantage of reflectorless measurement capabilities with Spectra Layout Pro Field. This onboard field software can be used in conjunction with Spectra Precision FOCUS 8, Nikon Nivo C series, Nikon DTMNPL series total stations and FOCUS 30 robotic total station or with Bluetooth wireless connection to Spectra FOCUS 6 and Nikon Nivo M total stations. For a more rugged and portable solution, it also works with the Spectra Nomad data collector.

Whether you are laying out your design, collecting field data or calculating angles and dimensions, the Layout Pro Field improves accuracy and productivity. Loaded with advanced calculation tools and high-compatibility with total stations and data collectors, this layout field software guarantees to save you time and money!

  • Take CAD designs and data from the office into the field
  • Easily collect topographical data and import it into third-party software
  • Lay out complex concrete forms or anchor bolts from any location
  • Lay out control points and offset hubs
  • Lay out all lines from one reference location
  • Make minor adjustments to the building position
  • Check the work of others and create documentation
  • Reflectorless measurement capabilities make a one-person job
  • Lay out control lines for subcontractors faster and more accurately

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Data Collectors
Spectra Nomad 900
File Formats
Total Stations
Spectra FOCUS 6, FOCUS 8, Nikon Nivo C series, Nivo M series, Nikon DTM-322, NPL-322
Survey Reports
