Laser Geo Rangefinder

by Haglof

MFR#: 15-103-1111

TIGER#: TS63260

List Price: $2,624.82

You Save: $490.82 -19%

$2,624.82 - $2,624.82

List Price: $2,624.82

$2,134.00

$2,134.00 - $2,134.00

$2,134.00

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Laser Geo Rangefinder - $2,134.00

$2,134.00

*Must Purchase 1 for Laser Geo Rangefinder

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 3 - 5 Business Days Shipping Date By: 10/1/2023

Documents

Product Video

Choice of package
Built-in GPS and compass
5-Point numeric ID
3D measurements
Angle compensated or horizontal distance value
Tilt sensor
Field-adapted keypad
Bluetooth capable

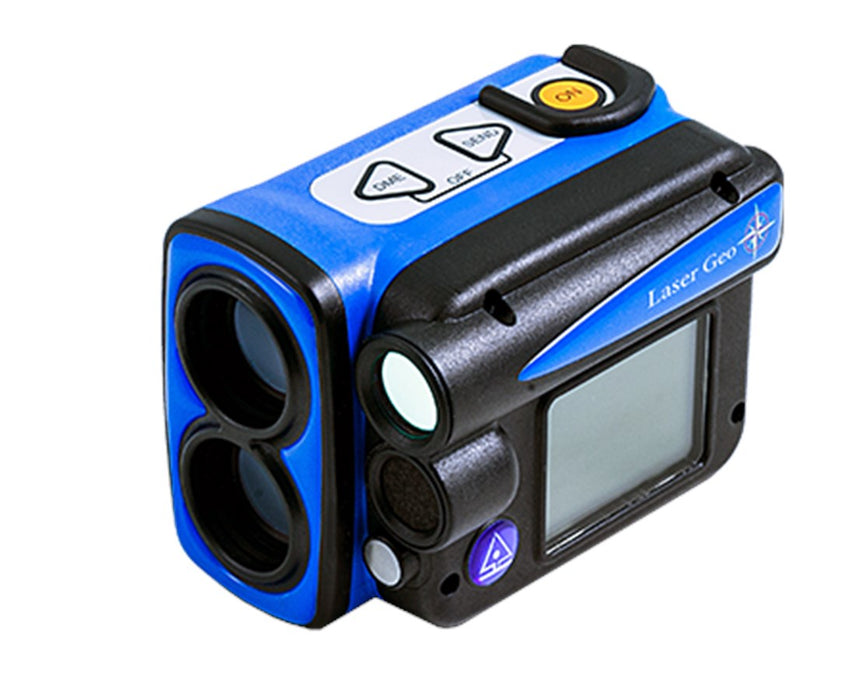

The Haglof Laser Geo Rangefinder is designed for high-precision results with its built-in GPS and integrated tilt and compass sensors. A handy tool for control work in the utility industry, it delivers accurate 3D measurements with results presented in an integrated heads-up display and external, graphic display. Moreover, the 5-position numeric ID attribute works with the GPS receiver to allow professionals to tag important data with coordinates with a quick press of a button.

This Haglof rangefinder is adapted for long-range measurement in open area with its distance measurement capacity that ranges from approx. 0.5 m or 1.5 ft up to 700 m or 2,300 ft. It has 1-, 2- or 3-point direct height measuring as well as a 3D vector function to measure horizontal targets. It also features an adjustable laser filter with a non-magnifying red dot aim for easy spotting of tree tops.

A complete measuring tool on the field, the Laser Geo measures, maps, processes and stores information. Data can be accessed remotely via Bluetooth or IR, or through USB 2.0 connectivity to any PC or Apple computer. Its reinforced housing makes it resistant to drops and shock while field-adapted keypad and step-through menu makes it easy to use. It also comes with a rechargeable Li-ion battery.

Configuration Options

The Haglof Laser Geo Rangefinder comes as an instrument only or as part of a set that includes the instrument, software application and non-magnetic monopod.

15-103-1111: Laser Geo Only
15-103-1110: Laser Geo Set w/ Software & Monopod

Measures, maps, processes and stores
Built-in GPS and compass
5-Point numeric ID
3D measurements
Angle compensated or horizontal distance value
Tilt sensor
Li-ion battery
Field-adapted keypad
Reinforced housing
Bluetooth and IR capable
Adjustable laser filter

What’s in the Box

Haglof Laser Geo Rangefinder
USB Cable
USB Charge
USB Adapter
Aluminum Transport Case
Software Application (for 15-103-1110 only)
Non-Magnetic Monopod (for 15-103-1110 only)
1-Year Manufacturer’s Defect Warranty

Available Package Options

Package: Laser Geo Only or Laser Geo Set

Tiger Supplies offers a 14-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy

Azimuth

0-360 °, resolution 0,1 °, accuracy <1.5 RSME °.

Inclination

0.10 typical

Applications

Actual Distance

Yes

Angle

Yes

Azimuth

Yes

Height

Yes

Horizontal Distance

Yes

Missing Line (Distance Between Two Remote Points)

Yes

Slope Distance

Yes

Three-point Measurement (Height Between Two Points)

Yes

Vertical Separation

Yes

Battery/Power

Power Source

Li-ion battery (built-in)

Communication

Bluetooth

Yes

Display/Finder

Backlight

Yes

Field of View

External & Internal

Type

External Graphic LCD 100x60pixles. Internal Heads-up display

Features

Tilt-Sensor (Inclinometer)

Yes

General

Color

Blue

Dimensions

93x63x72mm/3.7x2.5x2.8”.

Laser Classification

class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001)

Operating Temperature

-20° to +45° C/ -4°F-113°F

Protection Class

MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001)

Warranty

1-Year Manufacturer's Defect

Weight

243 g/8.6oz.

Range

Angle

-90° - 90°

Maximum

46cm/1.5ft

Minimum

700m/2000ft
