Industrial Unassembled Specialty Circulator Head

TPI Corporation
by TPI Corporation
MFR#: ACH24TE3
TIGER#: TS58376
List Price: $1,099.00
You Save: $266.78 -24%
$1,099.00 - $1,099.00
List Price: $1,099.00
$832.22
$832.22 - $832.22
$832.22
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Industrial Unassembled Specialty Circulator Head
Industrial Unassembled Specialty Circulator Head - $832.22
$832.22
*Must Purchase 1 for Industrial Unassembled Specialty Circulator Head

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/21/2023
Documents
Item Brochure Product Video
  • Choice of blade size, motor voltage & fan rating
  • 1-speed
  • HP: 1/4
  • Speed up to 1,725 RPM
  • Air Velocity up to 7,200 CFM/250 area sq. ft.
  • No cord-junction box for hard wiring
  • Durable steel hub/aluminum paddle blades
  • OSHA standard compliant

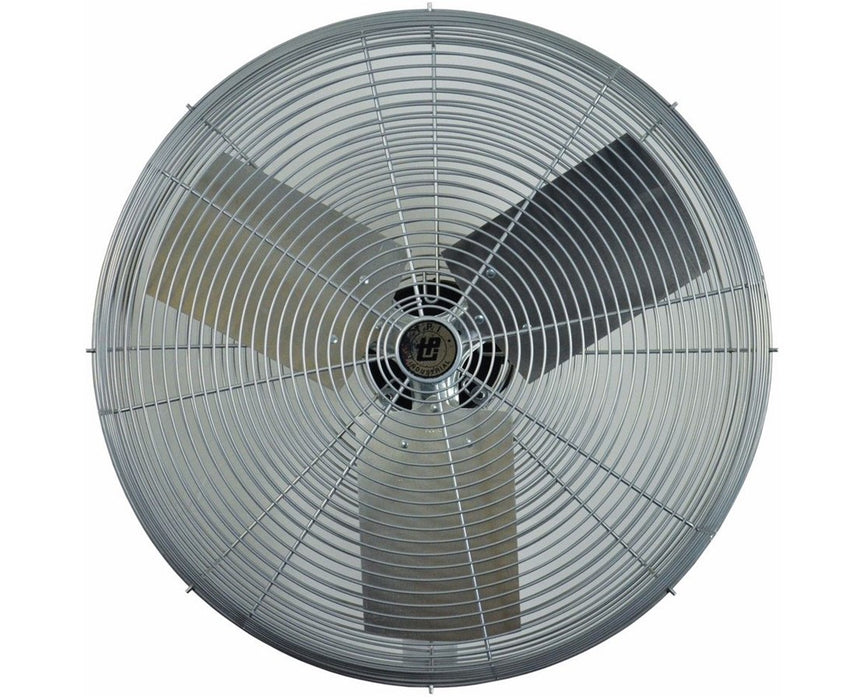

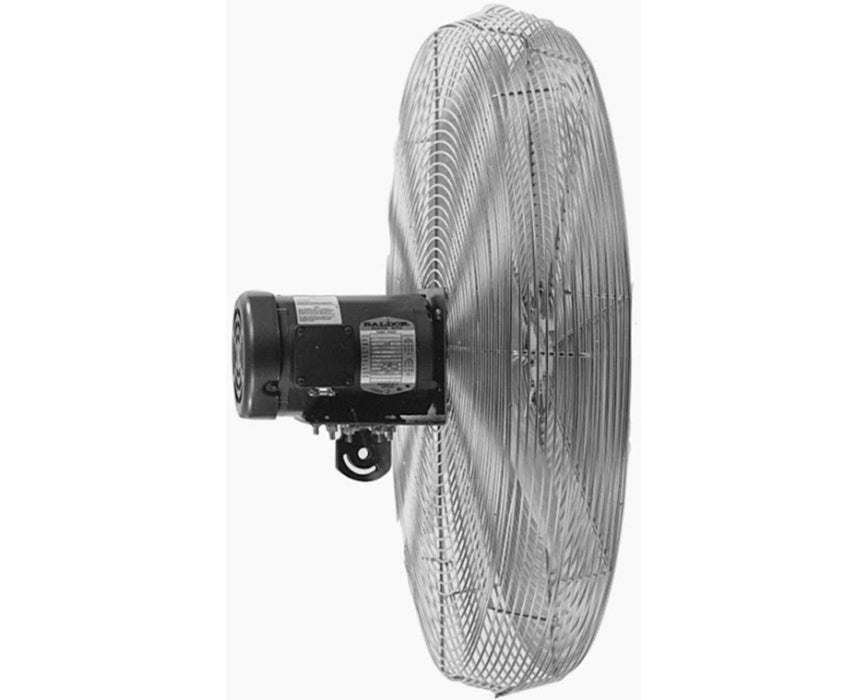

The TPI Industrial Unassembled Specialty Circulator Head is an ideal machine that is used to maintain a healthy air ventilation and circulation in heavily industrialized workplaces. It features a 1-speed switch that provides a fan speed of up to 1,725 revolutions per minute (RPM).

This TPI specialty circulator offers a 1/4 horsepower and an air velocity of up to 7,200 cubic feet per minute (CFM) per 250 area square feet. It has a totally enclosed ball bearing with permanent lubrication. Also, the TPI unassembled air circulator doesn’t have a cord-junction box for hard wiring.

The TPI specialty circulator is made of durable steel hub with aluminum paddle blades and coated steel guards that will surely last for a long time. As an extra feature, this TPI fan meets OSHA standards and is made in the USA.

Please Note: Pedestals, mounts and other accessories are sold separately.

Configuration Options

The TPI Industrial Unassembled Specialty Circulator Head offers six models that have varying blade sizes, motor voltage, and fan rating. All are supported by a one-year limited warranty. Please select from the menus above.

  • ACH24TE3: Standard Fan with 24” Blade and 240/480-Volt 3-Phase Motor
  • ACH30TE3: Standard Fan with 30” Blade and 240/480-Volt 3-Phase Motor
  • ACH24EX1: Ex-Rated Fan with 24” Blade and 120/240-Volt 1-Phase Motor

The Ex-Rated models are perfect to use where fire or explosion hazards are present. It is rated for Class I, Group D and Class II, Group F and G.

  • ACH30EX1: Ex-Rated Fan with 30” Blade and 120/240-Volt 1-Phase Motor
  • ACH24EX3: Ex-Rated Fan with 24” Blade and 240/480-Volt 3-Phase Motor
  • ACH30EX3: Ex-Rated Fan with 30” Blade and 240/480-Volt 3-Phase Motor
  • Choice of blade size, motor voltage & fan rating
  • 1-speed
  • Speed up to 1,725 RPM
  • HP: 1/4
  • Air Velocity up to 7,200 CFM/250 area sq. ft.
  • Totally enclosed ball bearing
  • Permanent lubrication
  • No cord-junction box for hard wiring
  • Durable steel hub/aluminum paddle blades
  • Coated steel guards
  • OSHA standard compliant
  • Made in the USA

What’s in the Box

  • TPI Industrial Unassembled Specialty Circulator Head
  • User manual
  • 1-year limited warranty

Available Product Options

  • Blade Size: 24” or 30”
  • Motor Voltage: 120/240V, 1-phase or 240/480V, 3-phase
  • Ex-Rated for Hazardous Areas: Optional

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Fan
Amps
5/2.6 (ACH24EX1, ACH30EX1); 1.4/0.7 (ACH24EX3, ACH30EX3, ACH24TE3, ACH30TE3)
Blade Size
24" (ACH24TE3, ACH24EX1, ACH24EX3); 30" (ACH30TE3, ACH30EX1, ACH30EX3)
Certification
OSHA, Intertek
Cubic Feet per Minute (CFM)
4,300 (24” Models); 5,400 (30” Models)
Fan Type
Industrial circulators
Head Type
Stationary
Speed (Revolutions per Minute)
1,725
Velocity Profile (CFM/Area Sq. Ft.)
6,400/240 (24” Models); 7,200/250 (30” Models)
General
Color
Gray
Material
Steel hub / Aluminum paddle blades
Warranty
1-year limited
Weight
45 lbs (ACH24TE3); 48 lbs (ACH30TE3); 66 lbs (ACH24EX1, ACH24EX3); 69 lbs (ACH30EX1, ACH30EX3)
Motor
Horsepower (HP)
1/4
Lubrication
Permanent
Power
1-Phase, 120/240V (ACH24EX1, ACH30EX1); 3-phase, 240/480V (ACH24EX3, ACH30EX3, ACH24TE3, ACH30TE3)
Speed Switch
1-speed
Mount
Mount Type
Fan only. Mounts sold separately
Pole Adjustment
48" to 67"
