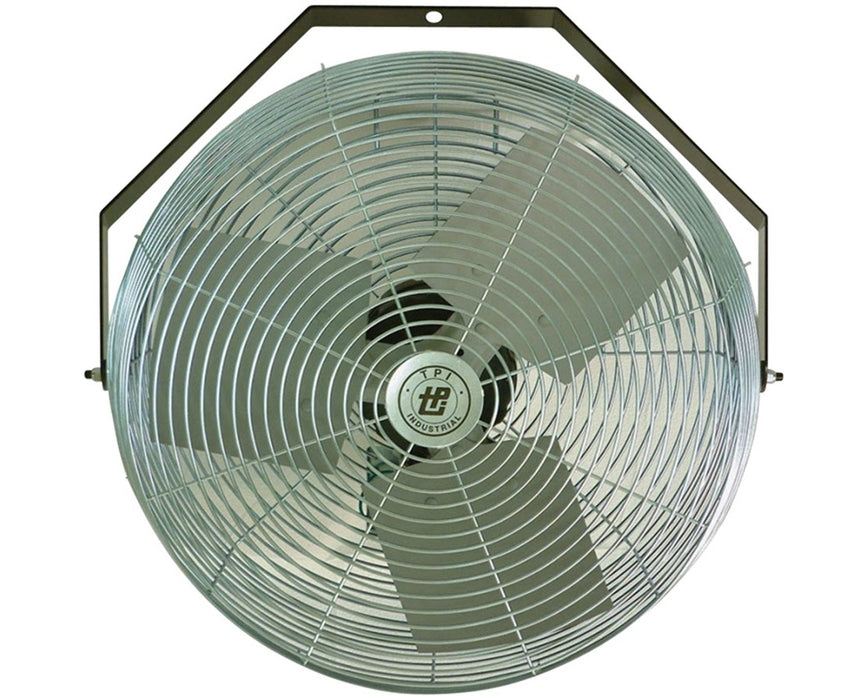

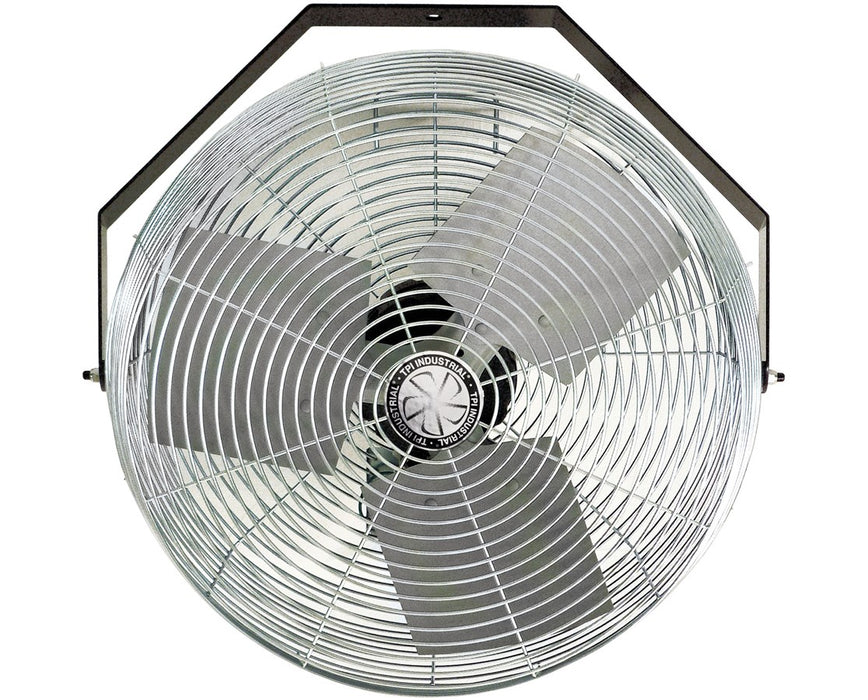

Industrial Mounted Workstation Fan

by TPI Corporation

MFR#: U12TE

TIGER#: TS58985

List Price: $234.00

You Save: $56.80 -24%

$234.00 - $234.00

List Price: $234.00

$177.20

$177.20 - $177.20

$177.20

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Industrial Mounted Workstation Fan - $177.20

$177.20

*Must Purchase 1 for Industrial Mounted Workstation Fan

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/25/2023

Documents

Product Manual Item Brochure

Choice of 3 models
Pull-chain switch
Variable 3-speed switches
Frame size: 42
Shaft: 5/16”
Head rotation of 360° vertically and horizontally
Sleeve bearing
Permanently lubricated

The TPI Industrial Mounted Workstation Fan is a strong and durable fan that is great to use in industrial workplaces and factories. This workstation fan features a pull chain switch and variable three-speed switches for an easy operation. Also, it has a 42 frame size and a 5/16-inch shaft.

This TPI workstation fan features a head that rotates up to 360-degrees both vertically and horizontally. It offers a fan speed of up to 1,634 revolutions per minute (RPM) for the high speed and up to 1,080 RPM on low speed. With an SJT type-3 ten-foot conductor cord, this TPI fan features a single-phase 120-volt motor power and has a sleeve bearing that is totally enclosed and is permanently lubricated.

The TPI mounted workstation fan includes coated steel guards and steel hub with spider aluminum paddle blades that can last for a long time. As an additional feature, this TPI industrial fan meets OSHA standards and is made in the USA.

Configuration Options

The TPI Industrial Mounted Workstation Fan has three available sizes - 12”, 18” or 24” and varying horsepowers. Please select from the menu above.

U12TE: 12” Fan Blade Size with 1/12 HP
U18TE: 18” Fan Blade Size with 1/8 HP

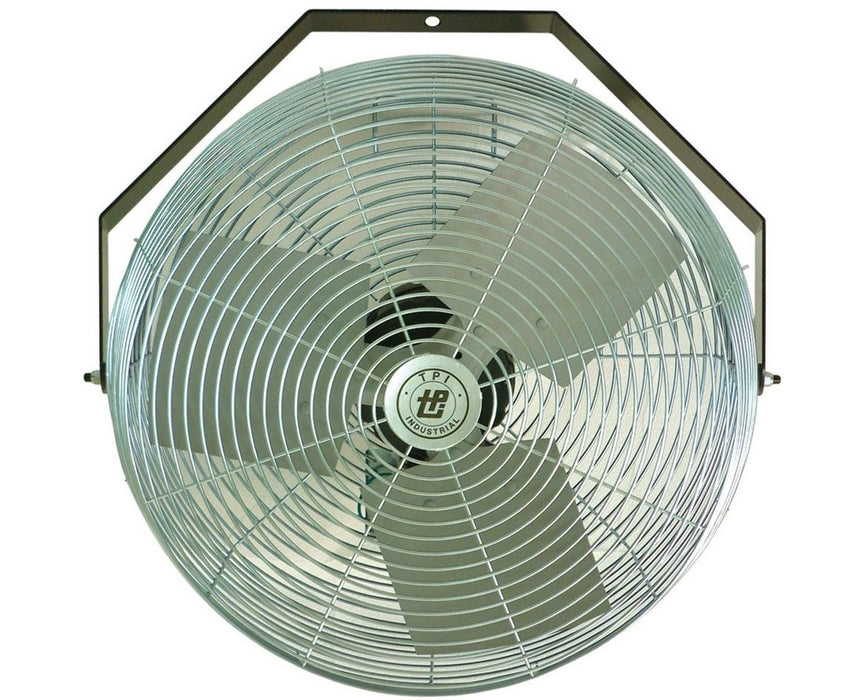

U24TE: 24” Fan Blade Size with 1/8 HP
U24TEHV: 24" Fan Blade Size with 1/4 HP

Choice of 3 models
Pull chain switch
Variable 3-speed switches
42 frame size
5/16” shaft
Head rotation of 360° vertically and horizontally
Up to 1,634 RPM on high speed
Up to 1,080 RPM on low speed
SJT type-3 10’ conductor cord
Single-phase, 120 V motor
Sleeve bearing
Totally enclosed
Permanently lubricated
Coated steel guards
Steel hub/spider aluminum paddle blades
OSHA standard compliant
Made in USA

What’s in the Box

TPI Industrial Mounted Workstation Fan
User manual
1-year limited warranty

Available Package Options

Blade Size: 12”, 18” or 24”
HP: 1/4, 1/8 or 1,12

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

1.1 (U12TE); 2.2 (U18TE); 2.4 (U24TE); 2.7 (U24TEHV)

Blade Size

12” (U12TE); 18” (U18TE); 24” (U24TE, U24TEHV)

Certification

OSHA, Intertek

Cord Length

10 feet

Cord Type

SJT type-3 conductor

Cubic Feet per Minute (CFM)

Up to 900 (U12TE); Up to 1,800 (U18TE); Up to 2,100 (U24TE); Up to 3,800 (U24TEHV)

Fan Type

Workstation fans

Head Type

Head rotation up to 360°, vertical and horizontal

Shaft Size

5/16"

Speed (Revolutions per Minute)

Up to 1,590 (U12TE); Up to 1,660 (U18TE); Up to 1,634 (U24TE); Up to 1,100 (U24TEHV)

Velocity Profile (CFM/Area Sq. Ft.)

1,400/50 (U12TE); 2,900/125 (U18TE); 3,500/150 (U24TE); 6,000/240 (U24TEHV)

General

Dimensions

15.24" H x 14.5" W x 9.5" D (12" Fans); 21.5" H x 20.5" W x 10.5" D (18" Fans); 27" H x 26" W x 10.5" D (24" Fans)

Material

Steel hub / Aluminum paddle blades

Warranty

1-year limited

Weight

13 lbs (U12TE); 20 lbs (U18TE); 23 lbs (U24TE); 25 lbs (U24TEHV)

Motor

Frame Size

Horsepower (HP)

1/12 (U12TE); 1/8 (U18TE, U24TE); 1/4 (U24TEHV)

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

3-speed
