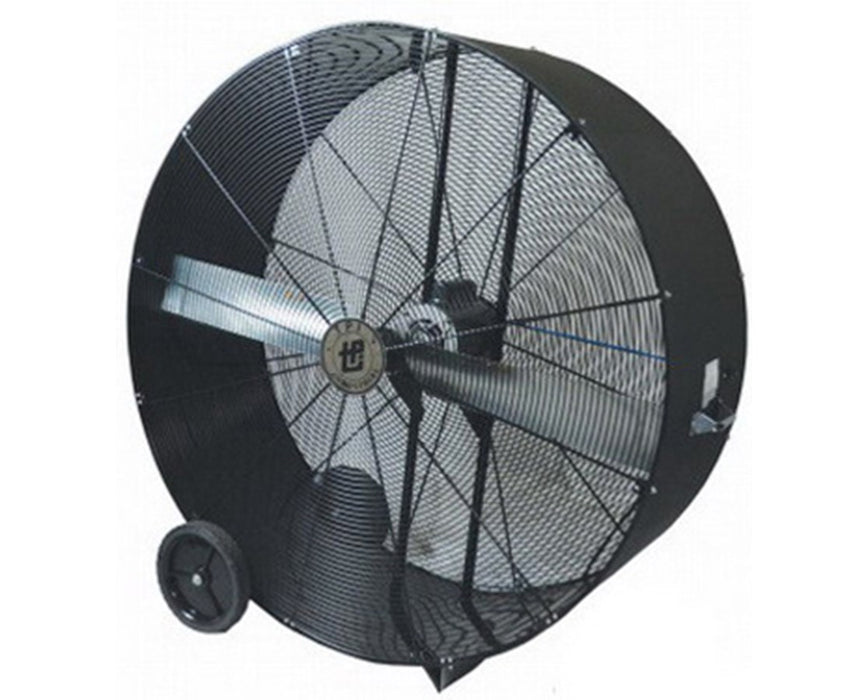

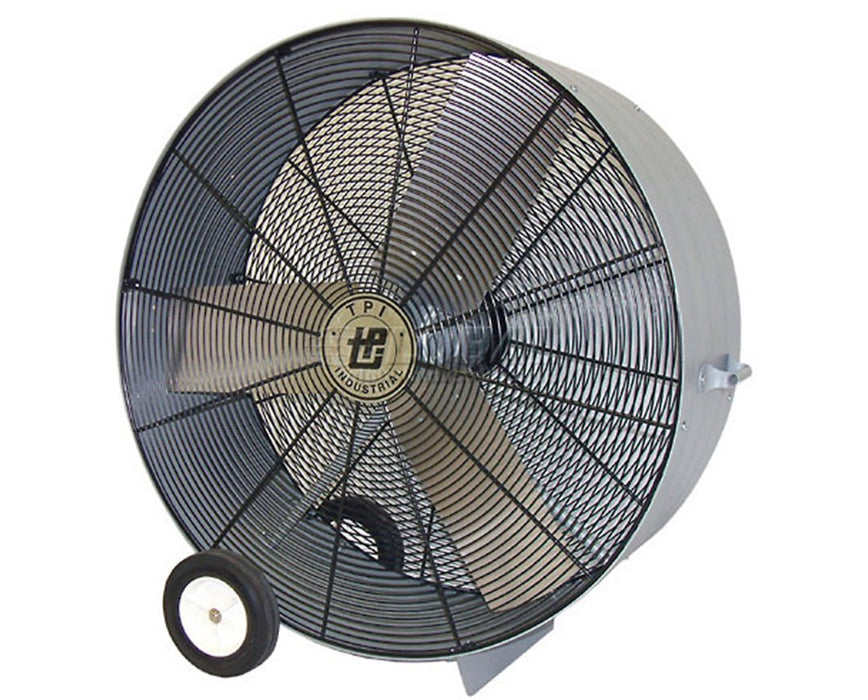

Industrial Direct Drive Portable Blower

by TPI Corporation

MFR#: PB48DOP

TIGER#: TS58449

List Price: $2,265.00

You Save: $549.83 -24%

$2,265.00 - $2,265.00

List Price: $2,265.00

$1,715.17

$1,715.17 - $1,715.17

$1,715.17

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Industrial Direct Drive Portable Blower - $1,715.17

$1,715.17

*Must Purchase 1 for Industrial Direct Drive Portable Blower

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/24/2023

Choice of fan size and type
Rocker switch
SJT type-3 conductor, 12’ long cord
Single-phase, 120V
Ball bearing
Permanent split capacitor
Corrosion and dent-proof high-density polyethylene housing
Spiral wire and front-rear guards

The TPI Industrial Direct Drive Portable Blower is a rugged ventilation machine that is mostly used in highly industrialized areas including warehouse and factories. Featuring a rocker switch, this industrial blower uses a 12-foot long SJT type-3 conductor cord for better cable management.

This TPI portable blower features a motor that offers a single-phase, 120-volt power with a permanent split capacitor which is less expensive than three-phase motors and requires minimal maintenance. Also, it is totally enclosed with ball bearing system that is designed to withstand higher temperatures and can endure wear and tear. Plus, this TPI fan is permanently lubricated.

Built to last, the TPI industrial direct drive blower features spiral wire and front-rear guards that serve as protection from accidents. It also comes with a corrosion and dent-proof high-density polyethylene housing for added protection. As an additional feature, this TPI industrial blower is OSHA standard compliant and is made in the USA.

Configuration Options

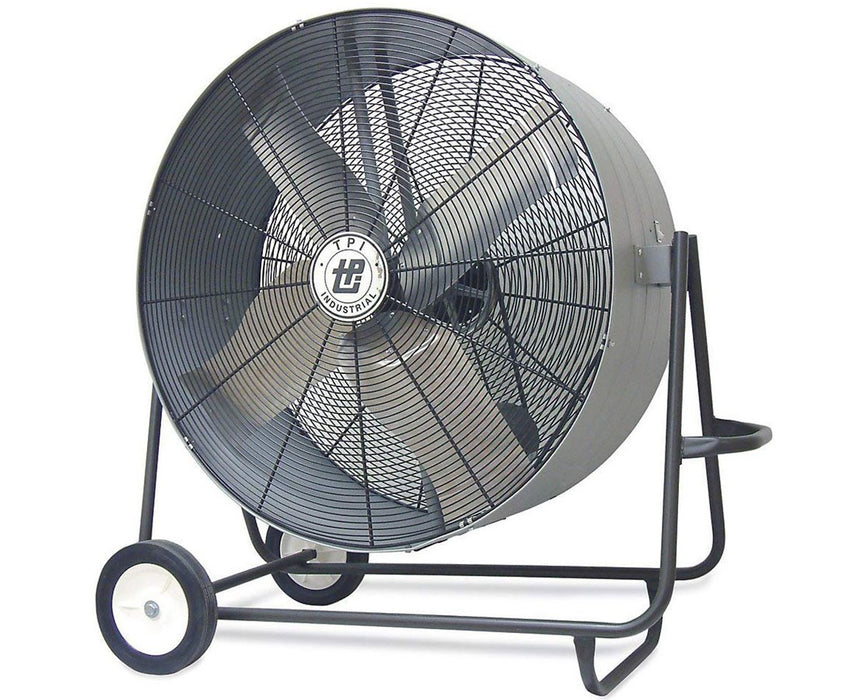

The TPI Industrial Direct Drive Portable Blower offers eight models with varying features. Also, the 36”, 42” and 48” swivel models can rotate 130 degrees in 12-1/2-degree increments and can lock in place using a steel locking pin. Please choose from the menus above.

PB30D: TPI Industrial Direct Drive 30” Portable Blower, Standard
PBS30D: TPI Industrial Direct Drive 30” Portable Blower, Swivel
PB36D: TPI Industrial Direct Drive 36” Portable Blower, Standard
PBS36D: TPI Industrial Direct Drive 36” Portable Blower, Swivel
PB42D: TPI Industrial Direct Drive 42” Portable Blower, Standard
PBS42D: TPI Industrial Direct Drive 42” Portable Blower, Swivel
PB48DOP: TPI Industrial Direct Drive 48” Portable Blower, Standard
PBS48DOP: TPI Industrial Direct Drive 48” Portable Blower, Swivel

Item #	PB30D/PBS30D	PB36D / PBS36D	PB42D / PBS42D	PB48DOP / PBS48DOP
Wheel Size	8" / 10"	8" / 10"	10"	10"
Motor Horsepower (HP)	1/4	1/3	1/2	3/4
Cubic Feet per Minute (CFM)	High: 4,400 / Low: 3,800	High: 6,500 / Low: 5,400	9,000	11,800
Revolutions per Minute (RPM)	N/A	High: 1,040 / Low: 950	825	825
Velocity Profile (CFM/Area sq. ft.)	7,200/250	11,500/320	15,000/340	14,000/360
Amps	2.5	5.5	6.0	10.3
Speed Switch	2-speed	2-speed	1-speed	1-speed

Choice of fan size and type
Rocker switch
SJT type-3 conductor, 12’ long cord
Single-phase, 120V
Permanent split capacitor
Ball bearing
Permanently lubricated
Spiral wire and front-rear guards
Corrosion and dent-proof high-density polyethylene housing
OSHA standard compliant
Made in the USA

What’s in the Box

TPI Industrial Direct Drive Portable Blower
User manual
1-year limited warranty

Available Product Options

Size: 30”, 36”, 42” or 48”
Type: Standard or Swivel

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

2.5 (PB30D, PBS30D); 5.5 (PB36D, PBS36D); 6.0 (PB42D, PBS42D); 10.3 (PB48DOP, PBS48DOP)

Blade Size

30" (PB30D, PBS30D); 36" (PB36D, PBS36D); 42" (PB42D, PBS42D); 48" (PB48DOP, PBS48DOP)

Certification

OSHA, Intertek

Cord Length

12 feet

Cord Type

SJT type-3 conductor

Cubic Feet per Minute (CFM)

4,400/3,800 (PB30D,PBS30D); 6,500/5,400 (PB36D, PBS36D); 9,000 (PB42D, PBS42D); 11,800 (PB48DOP, PBS48DOP)

Fan Type

Industrial blowers

Speed (Revolutions per Minute)

1,040/950 (PB36D, PBS36D); 825 (PB42D, PBS42D, PB48DOP, PBS48DOP)

Velocity Profile (CFM/Area Sq. Ft.)

7,200/250 (PB30D, PBS30D); 11,500/320 (PB36D, PBS36D); 15,000/340 (PB42D, PBS42D); 14,000/360 (PB48DOP, PBS48DOP)

General

Color

Black

Material

Aluminum paddle blade (PB30D, PBS30D, PB36D, PBS36D, PB42D, PBS42D); Steel paddle blades (PB48DOP, PBS48DOP); High-density Polyethylene housing

Warranty

1-year limited

Weight

65 lbs (PB30D); 70 lbs (PBS30D); 82 lbs (PB36D); 110 lbs (PBS36D); 102 lbs (PB42D0; 128 lbs (PBS42D); 117 lbs (PB48DOP); 142 lbs (PBS48DOP)

Motor

Horsepower (HP)

1/4 (PB30D, PBS30D); 1/3 (PB36D, PBS36D); 1/2 (PB42D, PBS42D); 3/4 (PB48DOP, PBS48DOP)

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

2-speed (30" & 36" Models); 1-speed (42" & 48" Models)

Split Capacitor

Permanent
