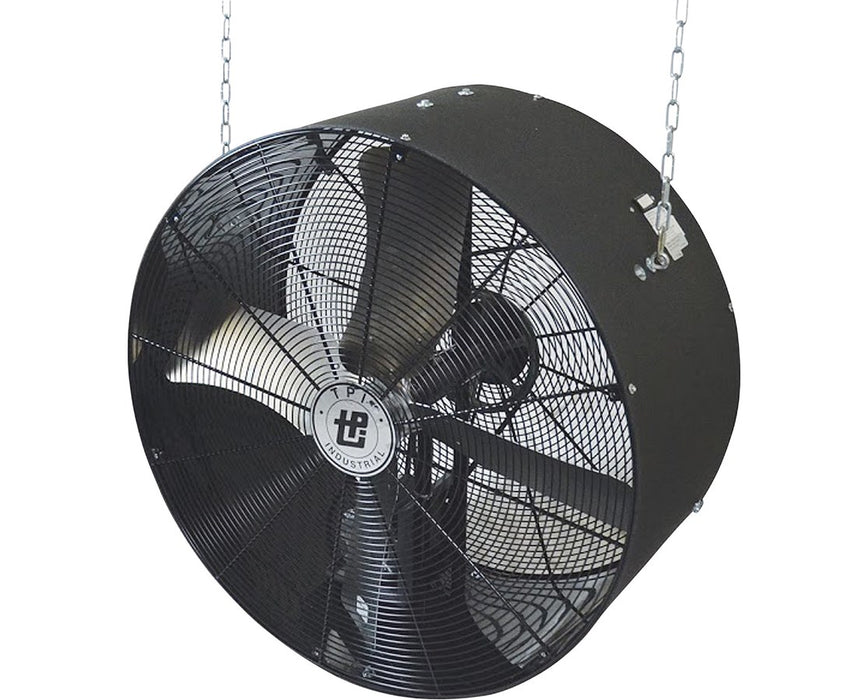

Industrial Belt-Drive Suspension Blower

by TPI Corporation

MFR#: SB36B3

TIGER#: TS58492

List Price: $2,133.00

You Save: $517.79 -24%

$2,133.00 - $2,133.00

List Price: $2,133.00

$1,615.21

$1,615.21 - $1,615.21

$1,615.21

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Industrial Belt-Drive Suspension Blower - $1,615.21

$1,615.21

*Must Purchase 1 for Industrial Belt-Drive Suspension Blower

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/25/2023

Documents

Item Brochure

Choice of blade size, HP & motor type
Permanent split capacitor
2-speed or 1-speed switch
Permanently lubricated
Aluminum blades
Corrosion, dent-proof high-density polyethylene housing
Powder coated spiral wire front and rear guards
OSHA standard compliant

The TPI Industrial Belt-Drive Suspension Blower is a sturdy industrial fan that maintains fresh and clean air in factories and warehouses. Featuring a durable motor, this TPI blower comes with a ball bearing system and a permanent split capacitor that delivers higher torque and efficiency.

This TPI belt-drive blower comes with a 2-speed or 1-speed switch that allows the operator to adjust the speed intensity of the fan. Also, it is permanently lubricated.

The TPI industrial blower is constructed of aluminum blades and corrosion, dent-proof high-density polyethylene housing that guarantees to last long. Plus, it has powder coated spiral wire front and rear guards for extra protection. In addition, this TPI suspension blower is OSHA standard compliant.

Configuration Options

The TPI Industrial Belt-Drive Suspension Blower offers nine models that offer varying features including blade size, motor type and horsepower (HP). Please choose from the menus above.

SB36B: 36” Blade Size, 115 V 1-Phase ODP Motor with 1/2 HP (2-Speed)

The Open drip proof (ODP) models do not overheat. Its chamber features small vents that allow these motor types to run cooler.

SB42B: 42” Blade Size, 115 V 1-Phase ODP Motor with 3/4 HP (1-Speed)
SB48B: 48” Blade Size, 115 V 1-Phase ODP Motor with 1 HP (1-Speed)
SB36B3: 36” Blade Size, 230/460 V 3-Phase ODP Motor with 1/2 HP (2-Speed)
SB42B3: 42” Blade Size, 230/460 V 3-Phase ODP Motor with 3/4 HP (1-Speed)
SB48B3: 48” Blade Size, 230/460 V 3-Phase ODP Motor with 1 HP (1-Speed)
SB36BHL: 36” Blade Size 115/230 V 1-Phase EXP Motor with 1/2 HP (2-Speed)

The Ex-Rated (EXP) models are perfect to use where fire or explosion hazards are present. It is rated for Class I, Group D and Class II, Group F and G.

SB42BHL: 42” Blade Size 115/230 V 1-Phase EXP Motor with 3/4 HP (1-Speed)
SB48BHL: 48” Blade Size 115/230 V 1-Phase EXP Motor with 1 HP (1-Speed)

Please Note: Single-Phase models feature an on-off rocker switch and use an SJT type-3 12-foot long conductor cord. Also, the models SB36BHL, SB42BHL and SB48BHL are not listed.

Choice of blade size, HP & motor type
Ball bearing
Permanent split capacitor
2-speed or 1-speed switch
Permanently lubricated
Aluminum blades
Corrosion, dent-proof high-density polyethylene housing
Powder coated spiral wire front and rear guards
OSHA standard compliant

What’s in the Box

TPI Industrial Belt-Drive Suspension Blower
User manual
1-year limited warranty

Available Product Options

Blade Size: 36”, 42” or 48”
Motor Type: 115 V 1-Phase ODP, 230/460 V 3-Phase ODP or 115/230V 1-Phase EXP
HP: 1/2, 3/4 or 1

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

8 (SB36B); 11 (SB42B); 15 (SB48B); 2.3/1.1 (SB36B3); 3.3/1.5 (SB42B3); 3.8/1.9 (SB48B3); 7.8/3.9 (SB36BHL); 10.8/5.4 (SB42BHL); 13.2/6.6 (SB48BHL)

Blade Size

36" (SB36B, SB36B3, SB36BHL); 42" (SB42B, SB42B3, SB42BHL); 48" (SB48B, SB48B3, SB48BHL)

Certification

OSHA, Intertek

Cord Length

12 feet

Cord Type

SJT type-3 conductor on 120 1-Phase models

Cubic Feet per Minute (CFM)

6,900 (SB36B, SB36B3, SB36BHL); 10,600 (SB42B, SB42B3, SB48B3); 14,400 (SB48B, SB48B3, SB48BHL)

Fan Type

Industrial blowers

Speed (Revolutions per Minute)

500 (SB36B, SB36B3, SB48BHL); 430 (SB42B, SB42B3, SB48B3); 390 (SB48B, SB48B3, SB48BHL)

Velocity Profile (CFM/Area Sq. Ft.)

14,000/360 (SB36B, SB36B3, ); 17,500/420 (SB42B, SB42B3, SB48B3); 23,500/550 (SB48B, SB48B3, SB48BHL)

General

Color

Silver

Material

Aluminum blade/high-density Polyethylene housing

Warranty

1-year limited

Weight

120 lbs (SB36B); 127 lbs (SB36B3, SB36BHL); 135 lbs (SB42B); 143 lbs (SB42B3); 150 lbs (SB42BHL); 155 lbs (SB48B); 164 lbs (SB48B3); 172 lbs (SB48BHL)

Motor

Horsepower (HP)

1/2 (SB36B, SB36B3, SB36BHL); 3/4 (SB42B, SB42B3, SB48B3); 1 (SB48B, SB48B3, SB48BHL)

Lubrication

Permanent

Power

1-Phase, 115 V (SB36B, SB42B, SB48B); 3-Phase, 230/460 V (SB36B3, SB42B3, SB48B3); 1-Phase 115/230 V (SB36BHL, SB42BHL, SB48BHL)

Speed Switch

2-speed (30” Models); 1-speed (42” and 48” Models)

Split Capacitor

Permanent
