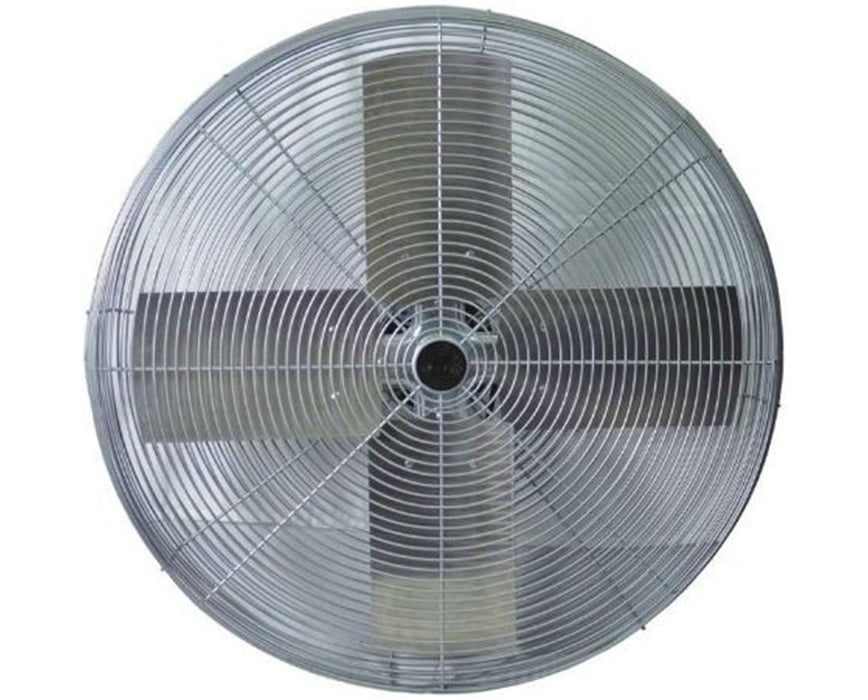

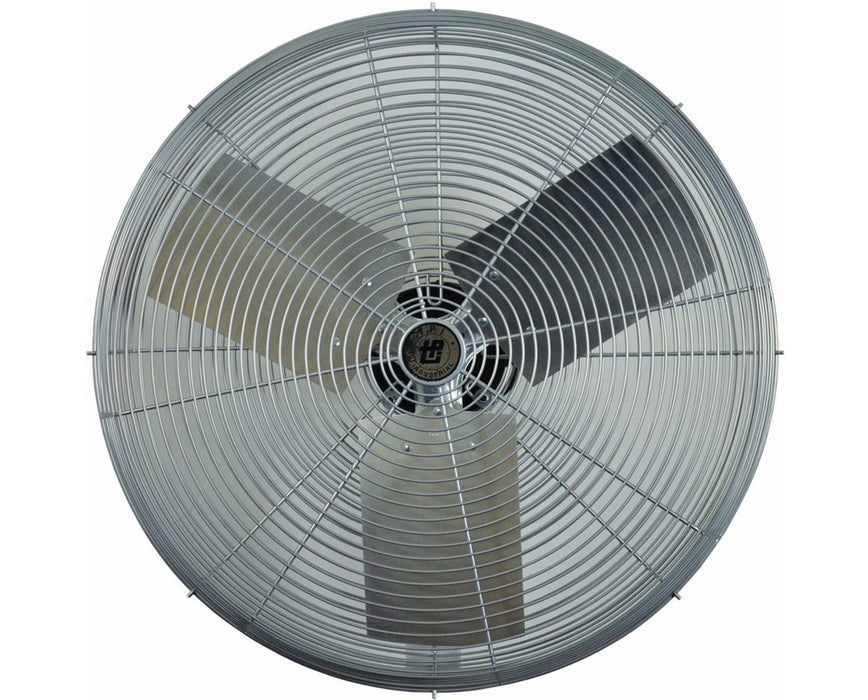

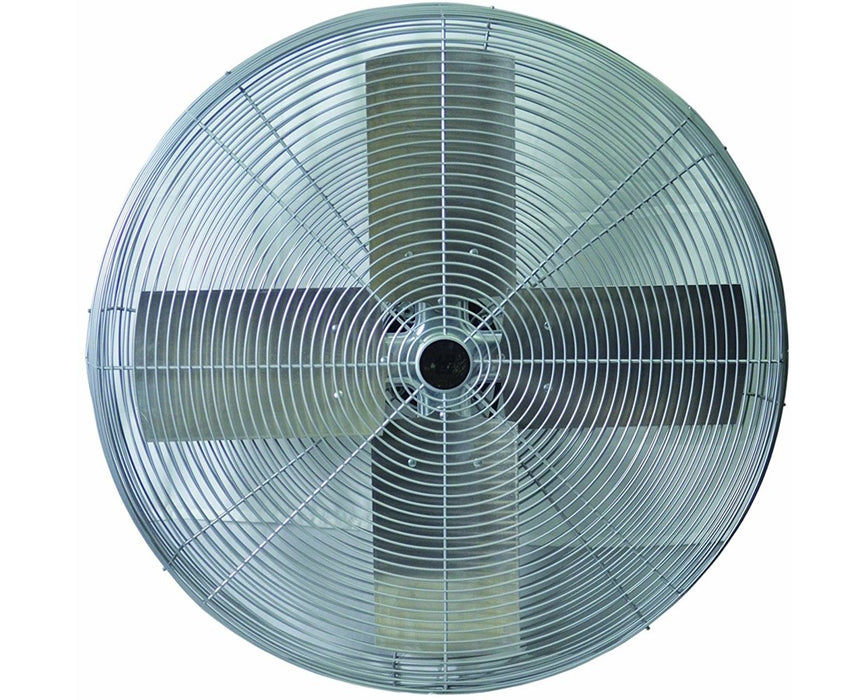

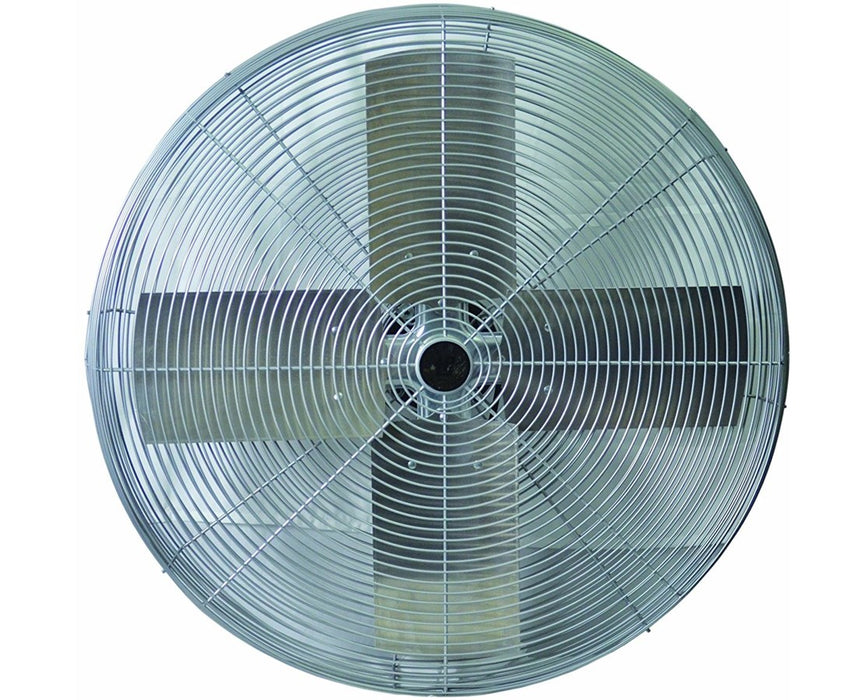

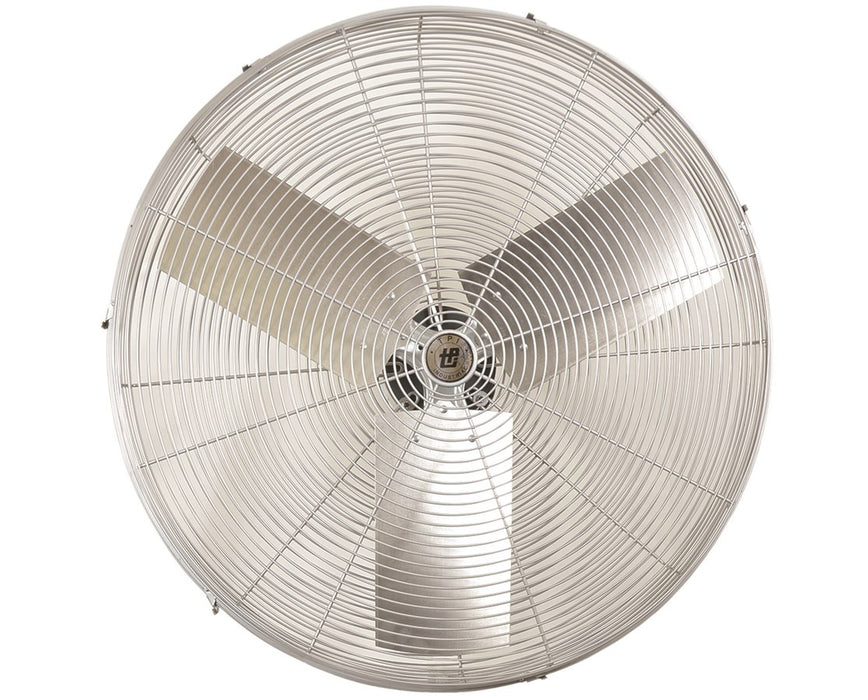

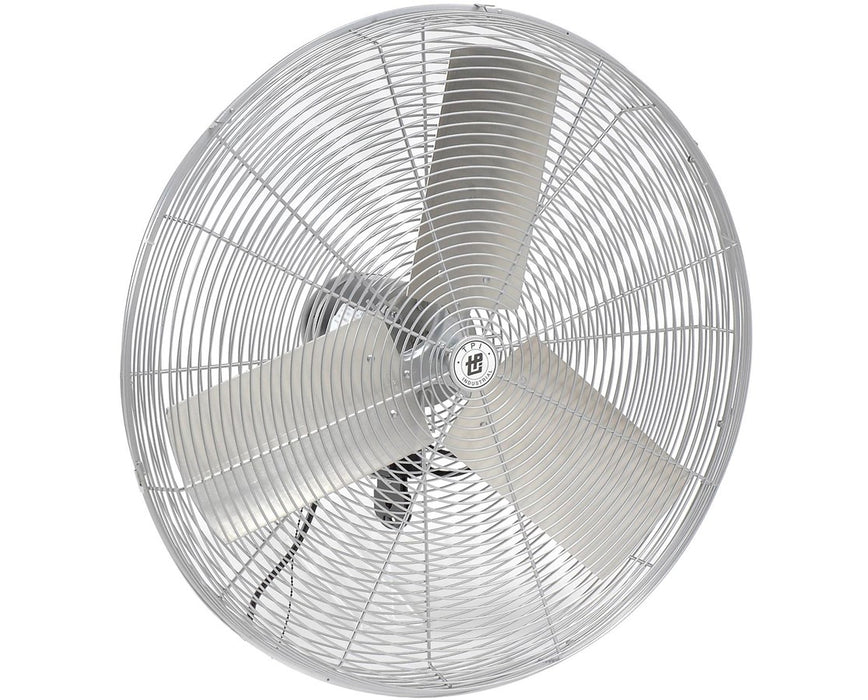

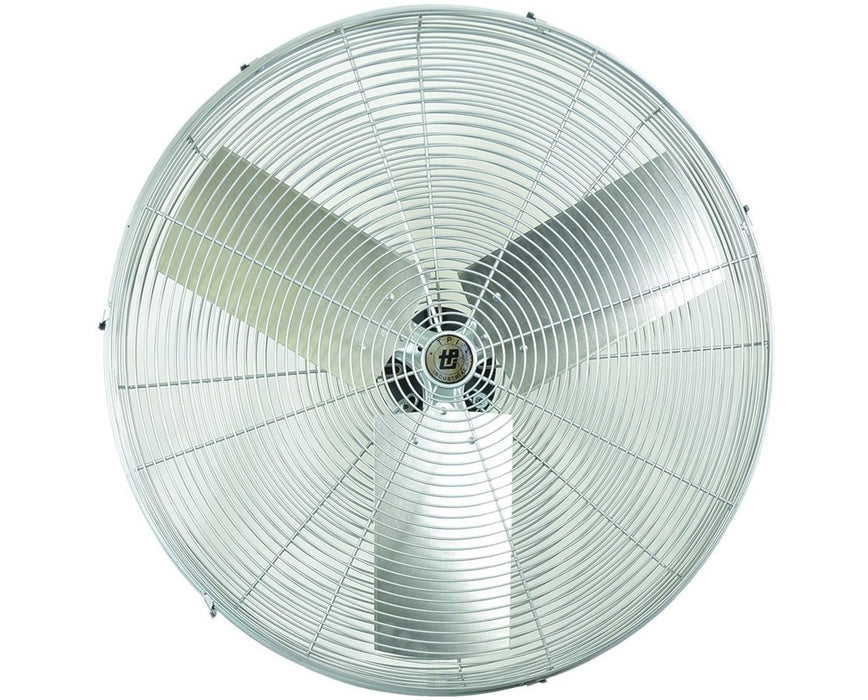

Industrial Assembled Air Circulator Fan Head

by TPI Corporation

MFR#: ACH24

TIGER#: TS58174

List Price: $516.00

You Save: $125.26 -24%

$516.00 - $516.00

List Price: $516.00

$390.74

$390.74 - $390.74

$390.74

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Industrial Assembled Air Circulator Fan Head - $390.74

$390.74

*Must Purchase 1 for Industrial Assembled Air Circulator Fan Head

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/20/2023

Documents

Item Brochure Product Video

Choice of 9 models
Motor frame size: 48
Single-Phase, 120V power
Pull-chain switch
SJT type-3 conductor with 12' cord length
Permanent split capacitor
Shaft: 1/2" with ball bearing
Permanently lubricated

The TPI Industrial Assembled Air Circulator Fan Head is an industrial fan that is perfect to use in warehouses, factories or office building. It comes with a 48 frame-size motor that offers a Single-Phase, 120 voltage power, and 2-speed. This fan head features a pull chain switch that has an SJT type-3 conductor with 12-foot cord length.

This TPI air circulator fan head comes with a permanent split capacitor and a 1/2-inch shaft with ball bearing. Also, it is totally enclosed and is permanently lubricated. This TPI fan has an oscillating model option that sways in a 90-degree arc or can be placed in a fixed position.

The TPI industrial air circulator fan head is constructed of a steel hub and spider aluminum paddle blades that surely last long. Plus, it has coated steel guards for added durability. As an extra feature, the TPI industrial fan head meets OSHA standards.

Please Note: Pedestals, mounts and other accessories are sold separately.

Configuration Options

The TPI Industrial Assembled Air Circulator Fan Head offers nine models that have varying features such as blade size, HP (horsepower), and fan head type. Please select your preference from the drop-down menu above.

ACH20O: Industrial 1/4 HP, 20" Blade, Oscillating Fan Head
ACH24O: Industrial 1/4 HP, 24" Blade, Oscillating Fan Head
ACH30O: Industrial 1/4 HP, 30" Blade, Oscillating Fan Head
ACH24: Standard Industrial 1/4 HP, 24" Blade, Stationary Fan Head
ACH30: Standard Industrial 1/4 HP, 30" Blade, Stationary Fan Head
HDH24G: Heavy Duty 1/2 HP, 24" Blade, Stationary Fan Head - Gray
HDH30G: Heavy Duty 1/2 HP, 30" Blade, Stationary Fan Head - Gray
IHP24H: High Performance 1/3 HP, 24" Blade, Stationary Fan Head
IHP30H: High Performance 1/3 HP, 30" Blade, Stationary Fan Head

Choice of 9 models
Industrial fan
48 frame-size motor
Single-Phase, 120V power
2-speed
Pull-chain switch
SJT type-3 conductor with 12' cord length
Permanent split capacitor
1/2" shaft with ball bearing
Totally enclosed
Permanently lubricated
Oscillating model option
Steel hub and spider aluminum paddle blades
Coated steel guards
Meets OSHA standards

What’s in the Box

TPI Industrial Assembled Air Circulator Fan Head
User manual
1-year warranty for ACH Models
3-year warranty for IHP Models
5-year warranty for HDH Models

Available Product Options

Fan Type: Industrial, Heavy Duty or High Performance
Horsepower: 1/2, 1/3 or 1/4
Blade Size: 20", 24" or 30"
Fan Head: Stationary or Oscillating

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Fan

Amps

2.5 (ACH 24, ACH 24-O); 2.7 (ACH 30, ACH 30-O); 2.8 (IP 24-H); 3 (IP 30-H); 3.5 (HDH 24-G); 4 (HDH 30-G)

Blade Size

20" (ACH 20-O); 24" (ACH 24, ACH 24-O, IHP 24-H, HDH 24-G); 30" (ACH 30, ACH 30-O, IHP 30-H, HDH 30-G)

Certification

OSHA, Intertek

Cord Length

12 feet

Cord Type

SJT type-3 conductor

Cubic Feet per Minute (CFM)

3,800/3,400 (ACH 24); 4,300/3,800 (ACH 30); 4,300/3,900 (IHP 24-H); 5,400/4,700 (IHPH 30-H); 5,600/4,900 (HDH 24-G); 6,800/6,000 (HDH 30-G); 3,000/2,600 (ACH 20-O); 3,800/3,400 (ACH 24-O); 4,300/3,800 (ACH 30-O)

Fan Type

Industrial circulators

Head Type

Stationary (ACH 24, ACH 30, IHP 24-H, IHP 30-H, HDH 24-G, HDH 30-G); Oscillating (ACH 20-O, ACH 24-O, ACH 30-O)

Shaft Size

1/2"

Speed (Revolutions per Minute)

1,100/800

Velocity Profile (CFM/Area Sq. Ft.)

6,000/240 (ACH 24, IHP 24-H, ACH 24-O); 7,200/250 (ACH 30, IP 30-H, ACH 30-O); 7,500/260 (DHH 24-G); 5,000/200 (ACH 20-O); 8,000/270 (HDH 30-G)

General

Color

Silver

Dimensions

27" Diameter x 14.5" Depth (ACH 24, IHP 24-H, HDH 24-G, ACH 24-O); 33.5" Diameter x 14.5" Depth (ACH 30, IHP 30-H, HDH 30-G, ACH 30-O)

Material

Steel hub / Aluminum paddle blades

Warranty

1-year (ACH 24, ACH 30, ACH 20-O, ACH 24-O, ACH 30-O); 3-year (IHP 24-H, IHP 30-H); 5-year (HDH 24-G, HDH 30-G)

Weight

40 lbs (ACH 24, IHP 24-H); 44 lbs (ACH 30, IHP 30-H, HDH 24-G, ACH 34-O); 48 lbs (HDH 30-G, ACH 30-O)

Motor

Frame Size

Horsepower (HP)

1/4 (ACH 24, ACH 30, ACH 20-O, ACH 24-O, ACH 30-O); 1/3 (IHP 24-H, IHP 30-H); 1/2 (HDH 24-G, HDH 30-G)

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

2-speed

Split Capacitor

Permanent

Mount

Mount Type

Fan only. Mounts sold separately
