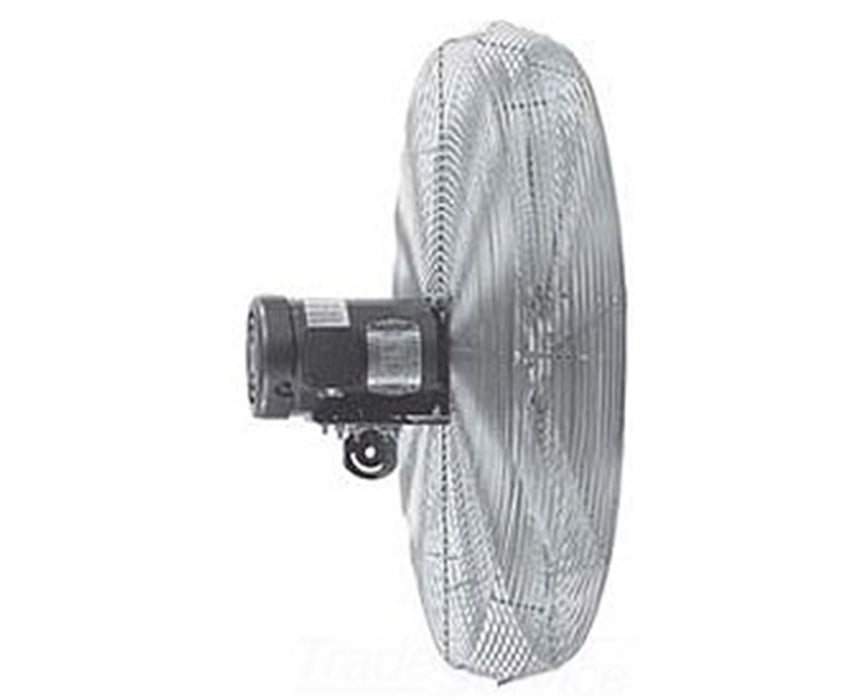

Industrial Assembled 277V Specialty Air Circulator Head

by TPI Corporation

MFR#: IHP24H277

TIGER#: TS58369

List Price: $772.00

You Save: $187.40 -24%

$772.00 - $772.00

List Price: $772.00

$584.60

$584.60 - $584.60

$584.60

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Industrial Assembled 277V Specialty Air Circulator Head - $584.60

$584.60

*Must Purchase 1 for Industrial Assembled 277V Specialty Air Circulator Head

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/29/2023

Documents

Item Brochure

Choice of 2 sizes
Single-phase, 277V power
No cord-junction box for hard wiring
2-speed switch
HP: 1/3
Ball bearing system
Speed up to 1,125 RPM
OSHA standard compliant

The TPI Industrial Assembled 277V Specialty Air Circulator Head is a specially-designed fan that is built to maintain healthy and clean airflow in industrial environments. Featuring a 2-speed switch, this TPI fan uses a single-phase, 277-volt power.

This TPI industrial fan features a 1/3 horsepower and comes with a ball bearing system for securing the fan in place. It offers a speed of up to 1,125 revolutions per minute (RPM) which provides a tremendous amount and air strength for a refreshing feeling. Also, it doesn’t have a cord-junction box for hard wiring.

The TPI assembled specialty air circulator is completely enclosed and is permanently lubricated for longevity. It is made of steel hub and aluminum paddle blades with coated steel guards that are designed to last for a long time. As an extra feature, the TPI industrial air circulator head is OSHA standard compliant.

Please Note: Pedestals, mounts and other accessories are sold separately.

Configuration Options

The TPI Industrial Assembled 277V Specialty Air Circulator Head has two available sizes that suit your needs. Please select your preference from the menu above.

IHP24H277: 24”
IHP30H277: 30”

Choice of 2 sizes
2-speed switch
Single-phase, 277V power
HP: 1/3
Ball bearing system
Speed up to 1,125 RPM
No cord-junction box for hard wiring
Completely enclosed
Permanently lubricated
Steel hub/aluminum paddle blades
Coated steel guards
OSHA standard compliant

What’s in the Box

TPI Industrial Assembled 277V Specialty Air Circulator Head
User manual
1-year limited warranty

Available Product Options

Blade Size: 24” or 30”

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

Blade Size

24" (IHP24H277); 30" (IHP30H277)

Certification

OSHA, Intertek

Cubic Feet per Minute (CFM)

4,300/3,900 (IHP24H277); 5,400/4,700 (IHP30H277)

Fan Type

Industrial circulators

Head Type

Stationary

Speed (Revolutions per Minute)

1,125

Velocity Profile (CFM/Area Sq. Ft.)

6,000/240 (IHP24H277); 7,200/250 (IHP30H277)

General

Color

Gray

Material

Steel hub/Aluminum paddle blades

Warranty

1-year limited

Weight

40 lbs (IHP24H277); 44 lbs (IHP30H277)

Motor

Horsepower (HP)

1/3

Lubrication

Permanent

Power

1-Phase, 277V

Speed Switch

2-speed

Mount

Mount Type

Fan only. Mounts sold separately

Pole Adjustment

48" to 67"
